MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Haas
  • Model:

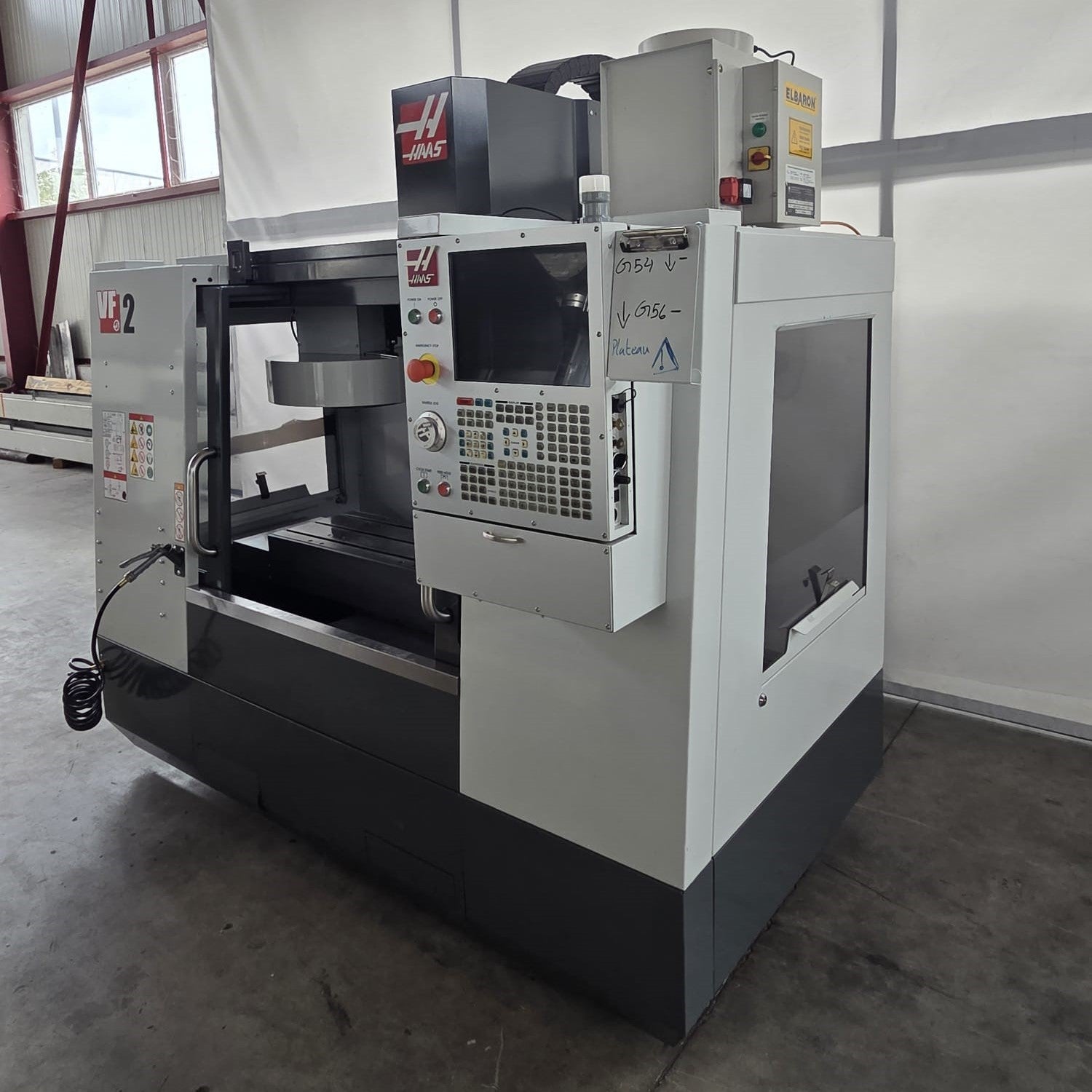

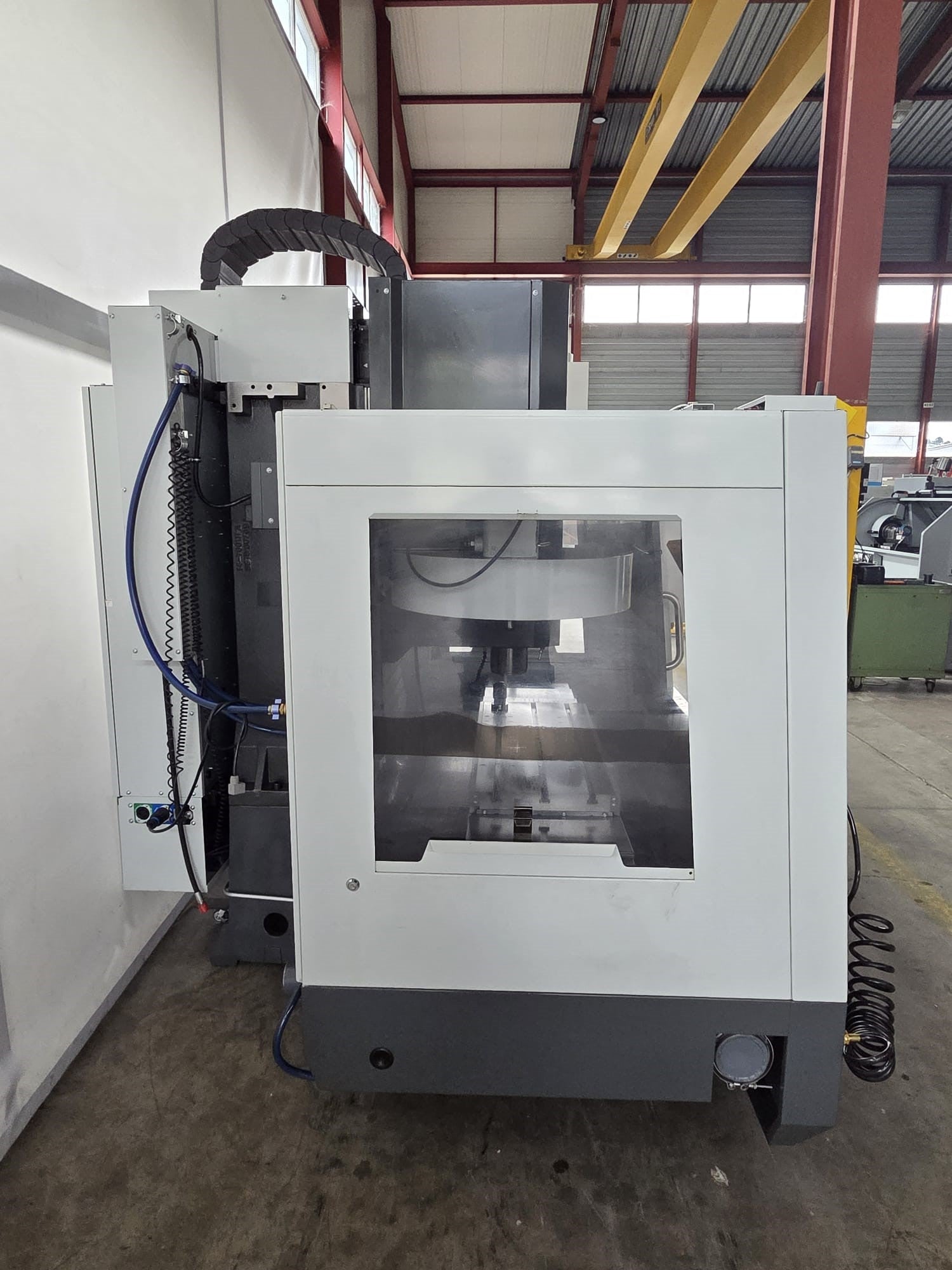

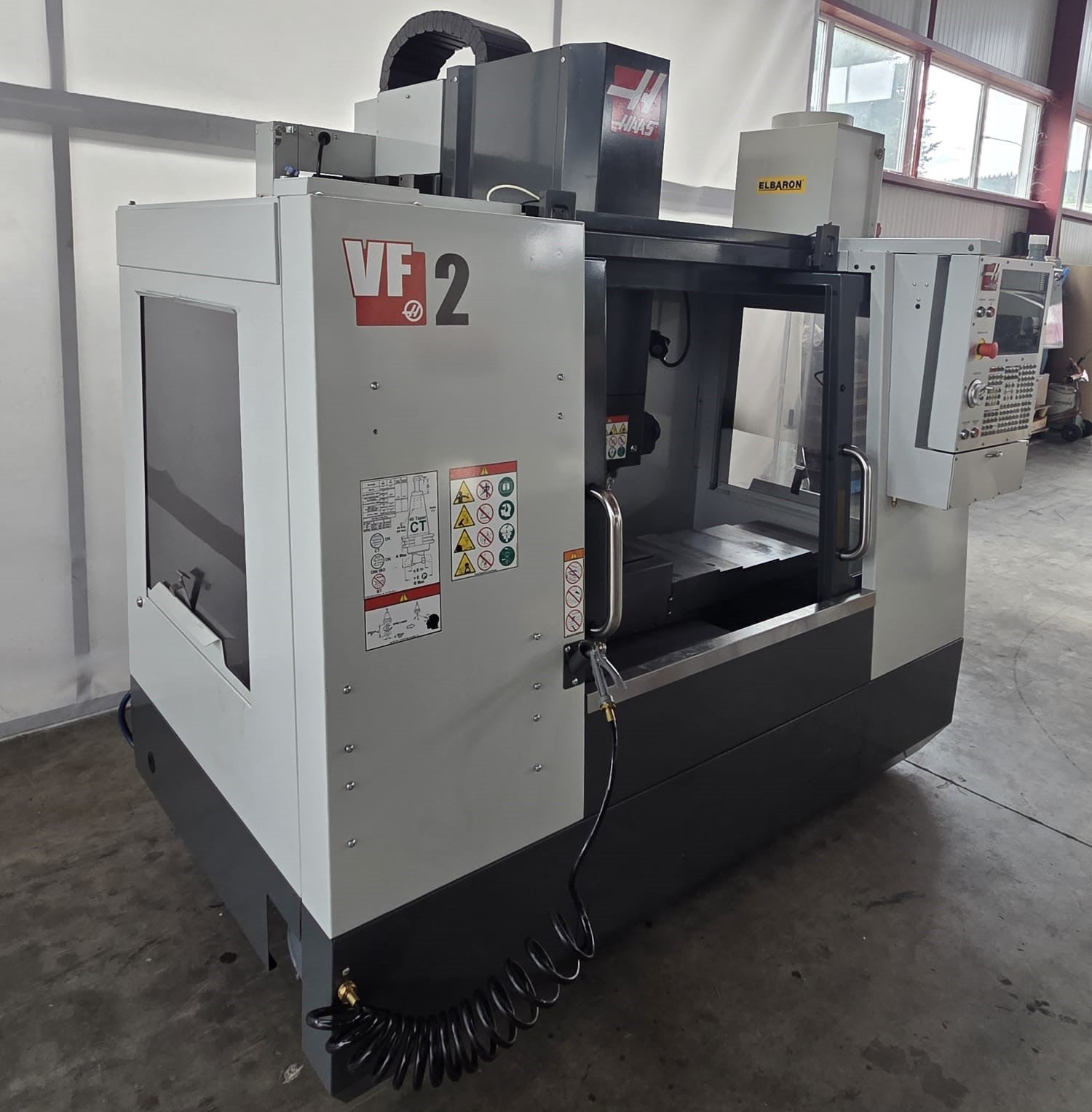

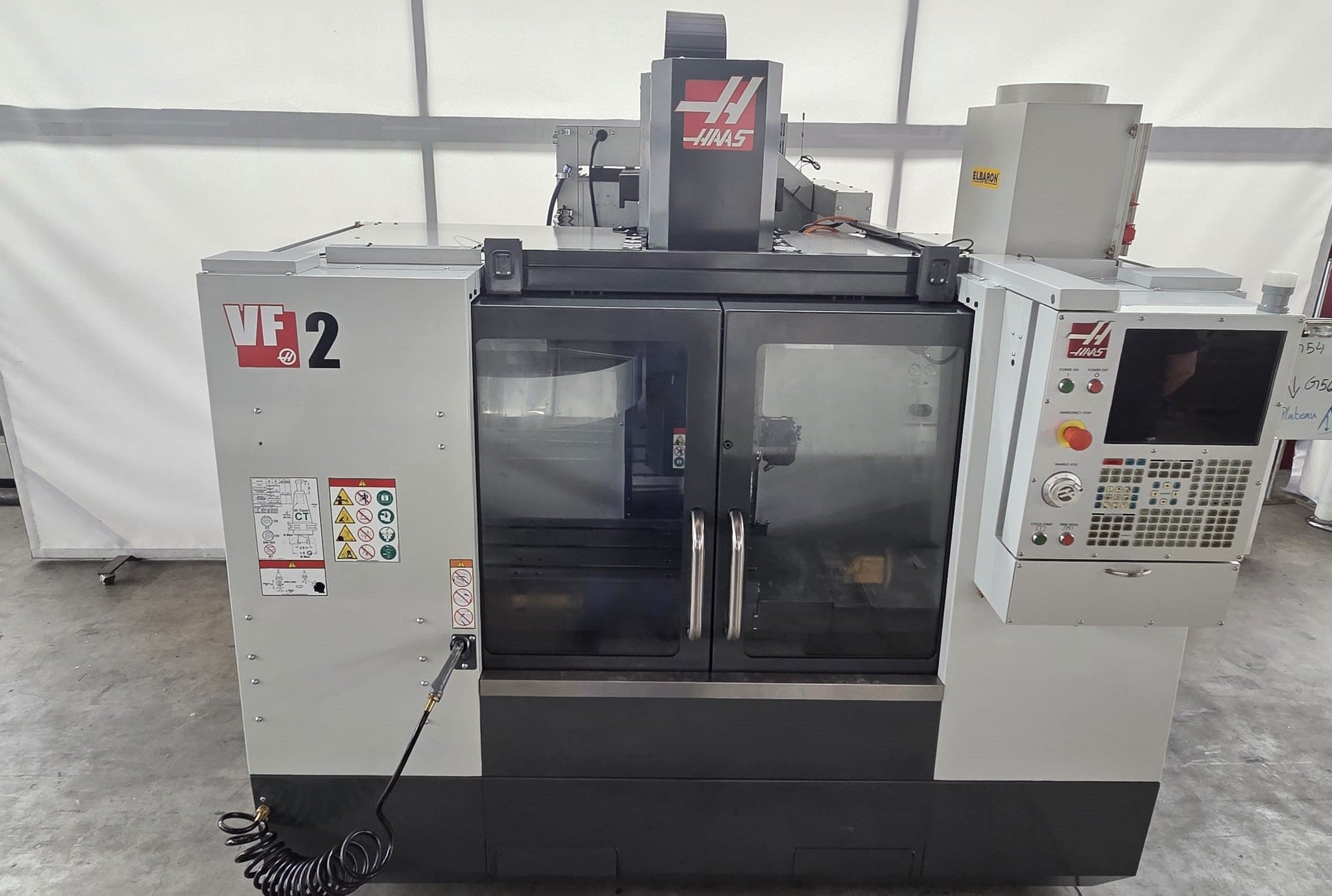

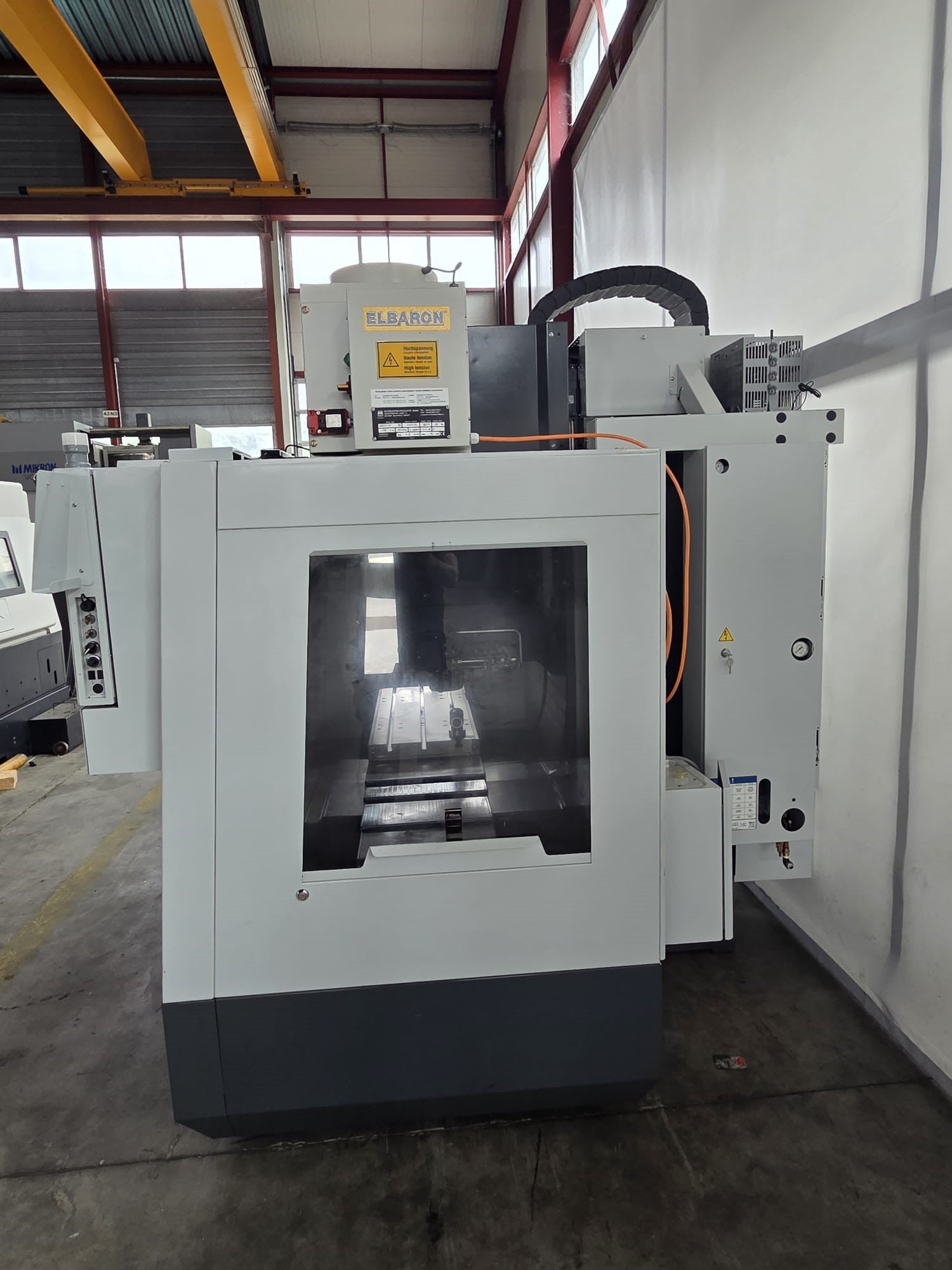

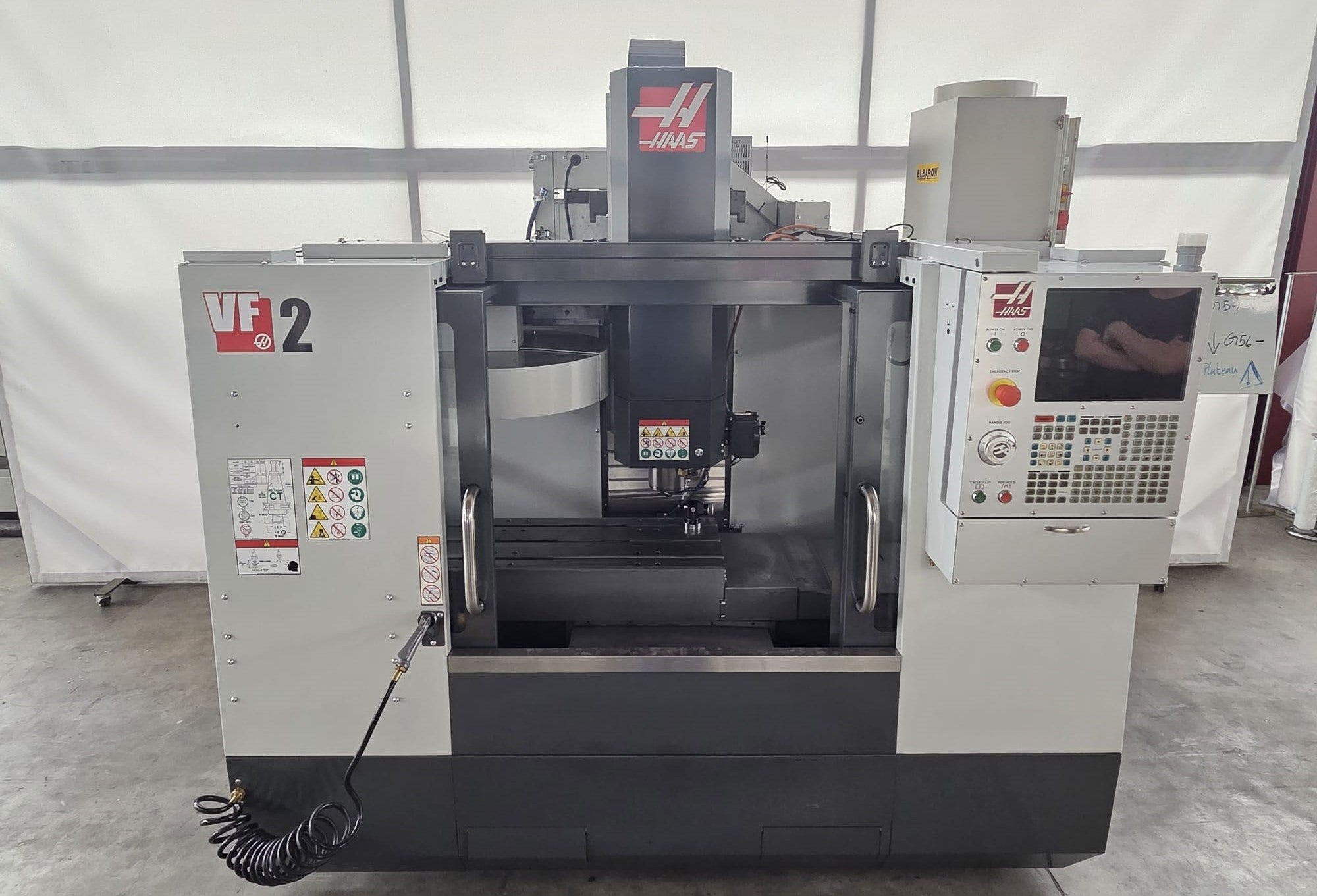

  • 023239 - HAAS VF-2
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

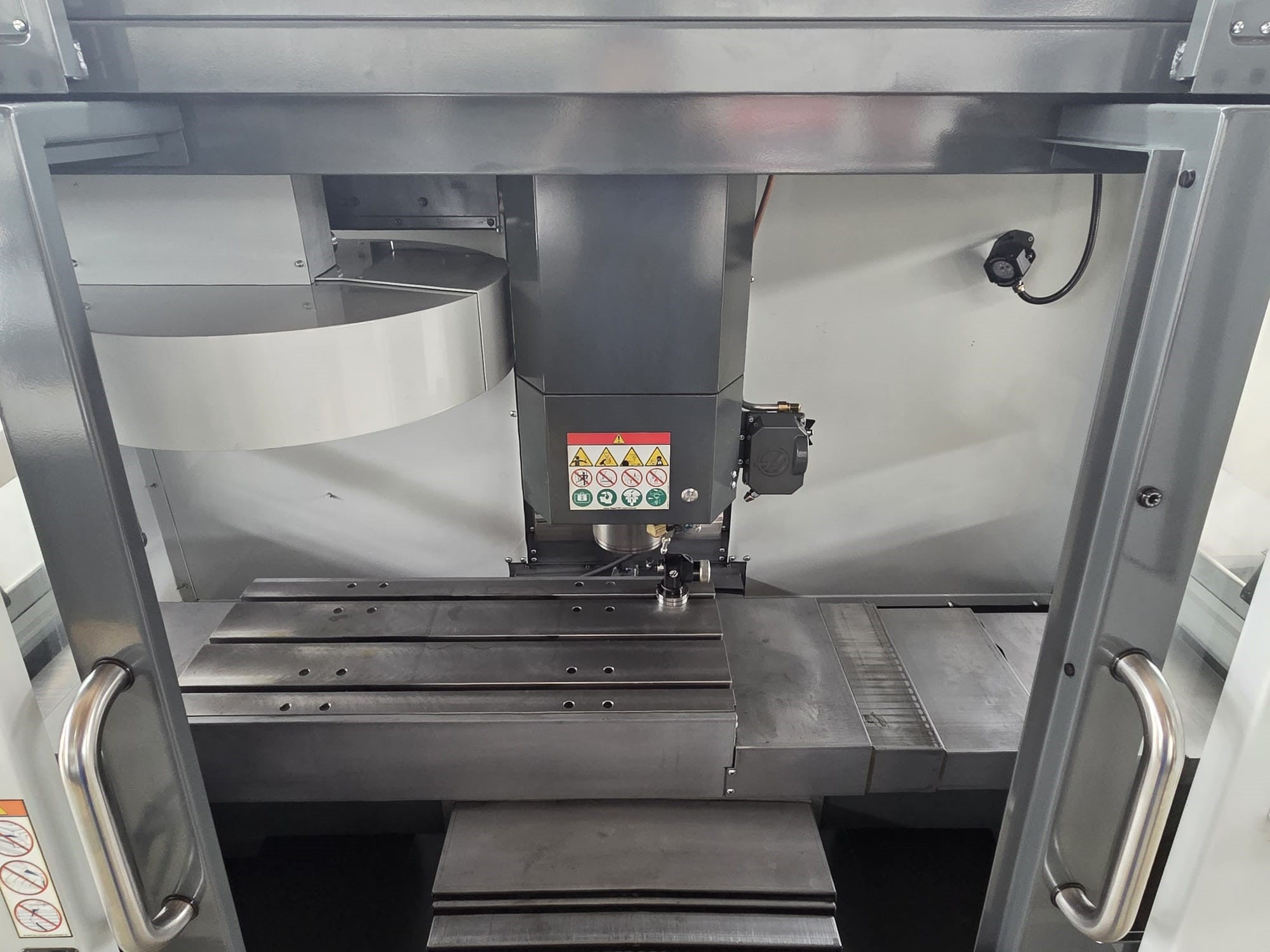

Table length: 914 mm.
Table width: 356 mm.
Longitudinal travel (X-axis): 750 mm.
Transversal travel (y-axis): 406 mm.
Vertical travel (z axis): 508 mm.
Table load max.: 680 kg.

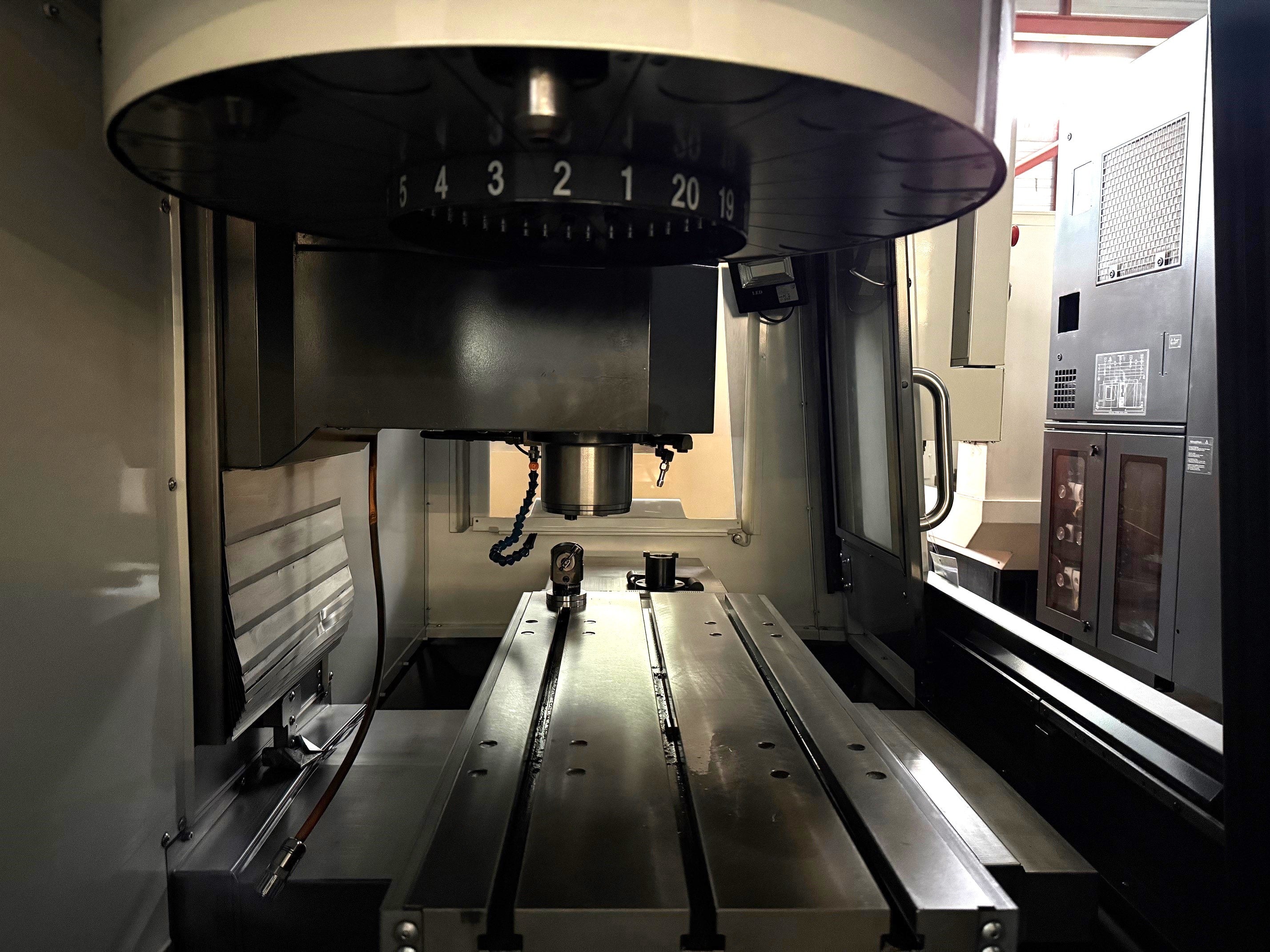

Number of tools: 20.
Spindle nose:: CT 40.
up to: 8100 t/min.
Rapid traverse:: 25.4 m/min.
Spindle power: 22.4 kW.
Machine's weight about: 3447 kg.
Length: 2464 mm.
Width: 2337 mm.
Height: 2578 mm.
