MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:

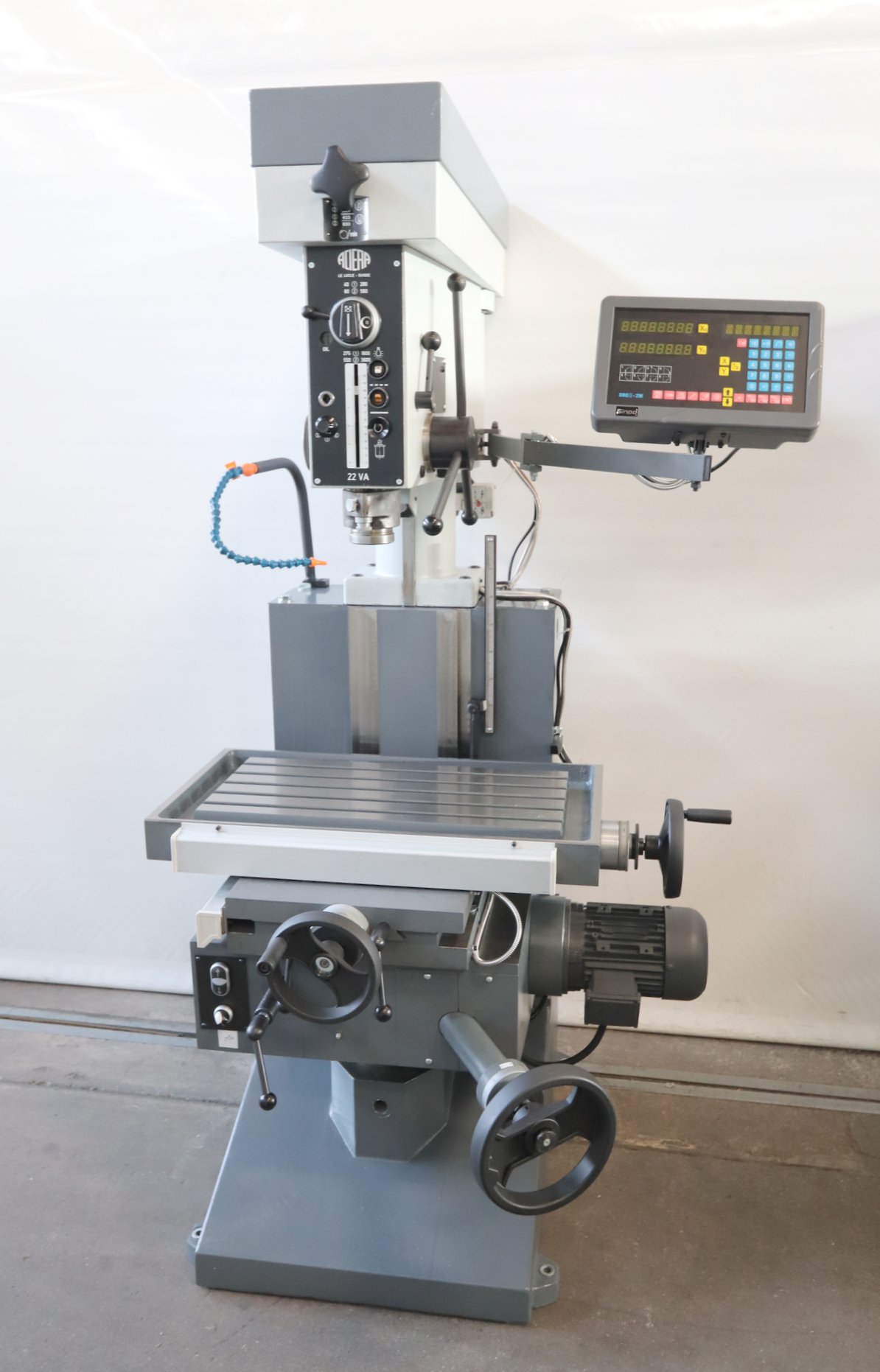

  • 018944 - ACIERA 22 VA
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 700 mm.
Table width: 370 mm.
Length: 900 mm.
Width: 1000 mm.
Drill capacity in steel: 22 mm.
Drill capacity in cast-iron: 24 mm.
Taper in spindle: MT: 3.
Depth of throat: 300 mm.
Drill depth (spindle stroke): 120 mm.
Spindle head adjustment: 300 mm.
Longitudinal travel (X-axis): 330 mm.
Transversal travel (y-axis): 210 mm.
Vertical travel (z axis): 350 mm.
from: 0.02 mm/t.
up to: 0.25 mm/t.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.0 / 1.5 CV.
Machine's weight about: 990 kg.
Height: 1800 mm.

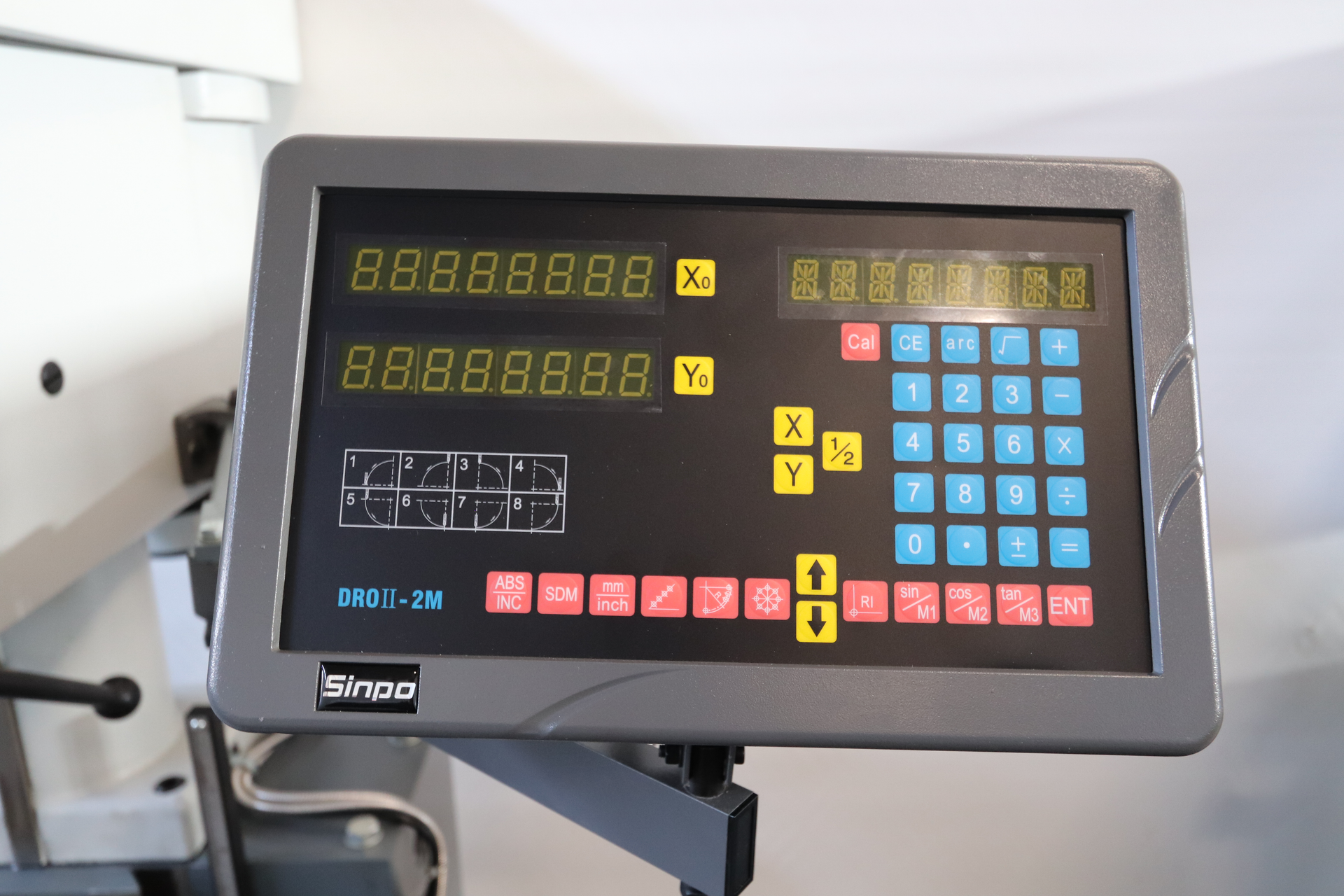

Digital readout number of axis:: 2.
