MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TAKUMI
  • Model:

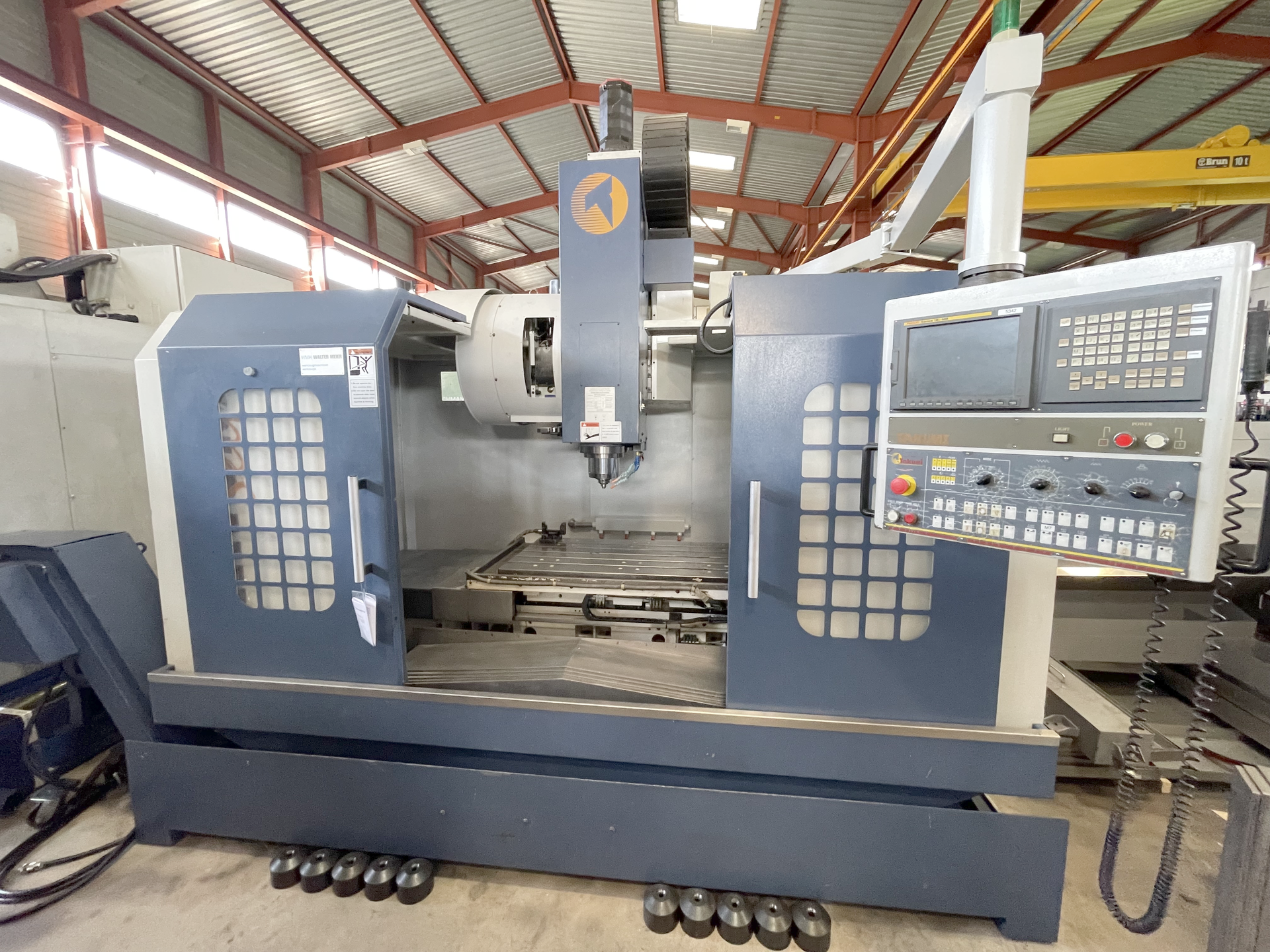

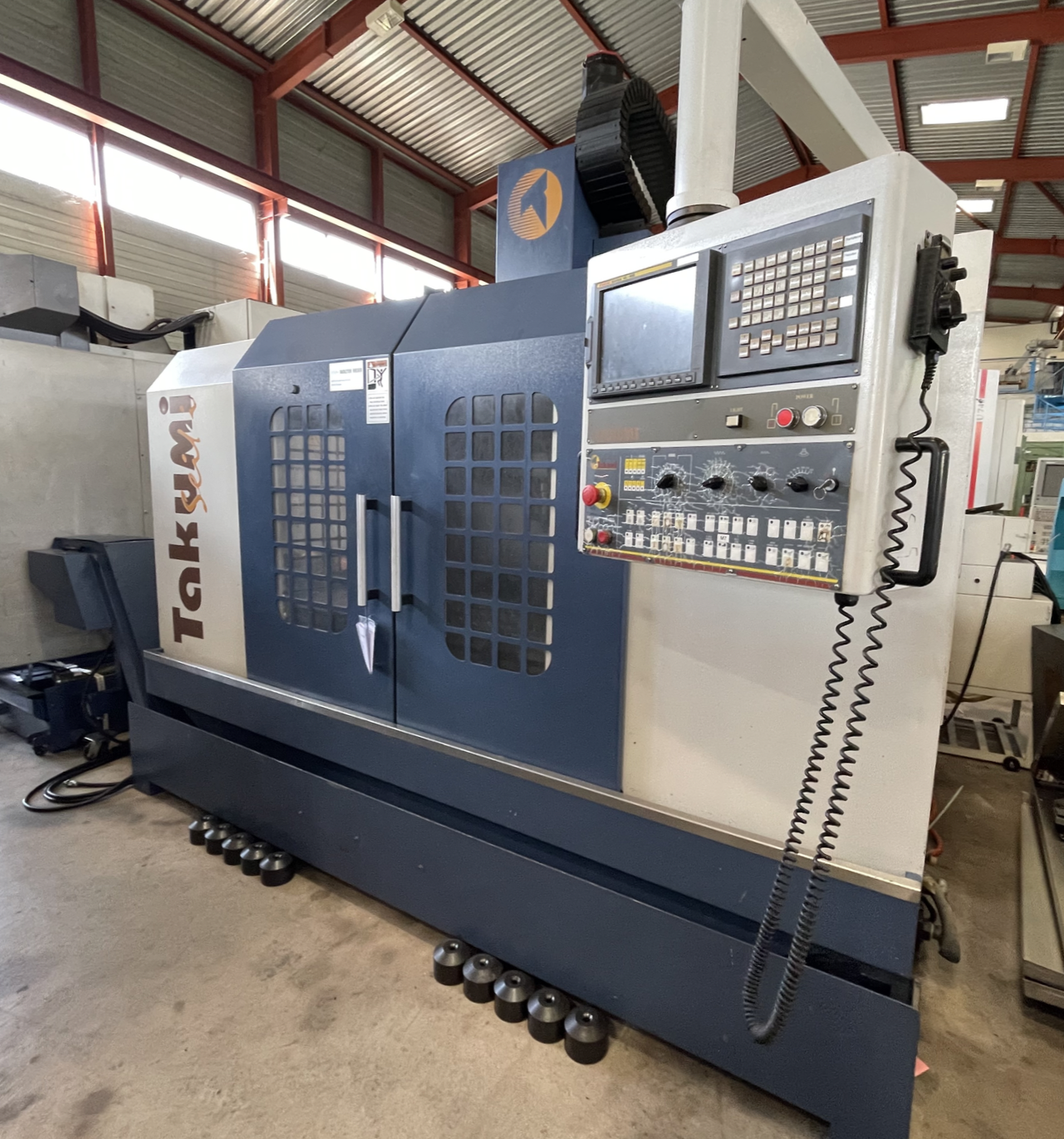

  • 021183 - TAKUMI F11
  • Condition:
  • 1
  • YOM:
  • NA

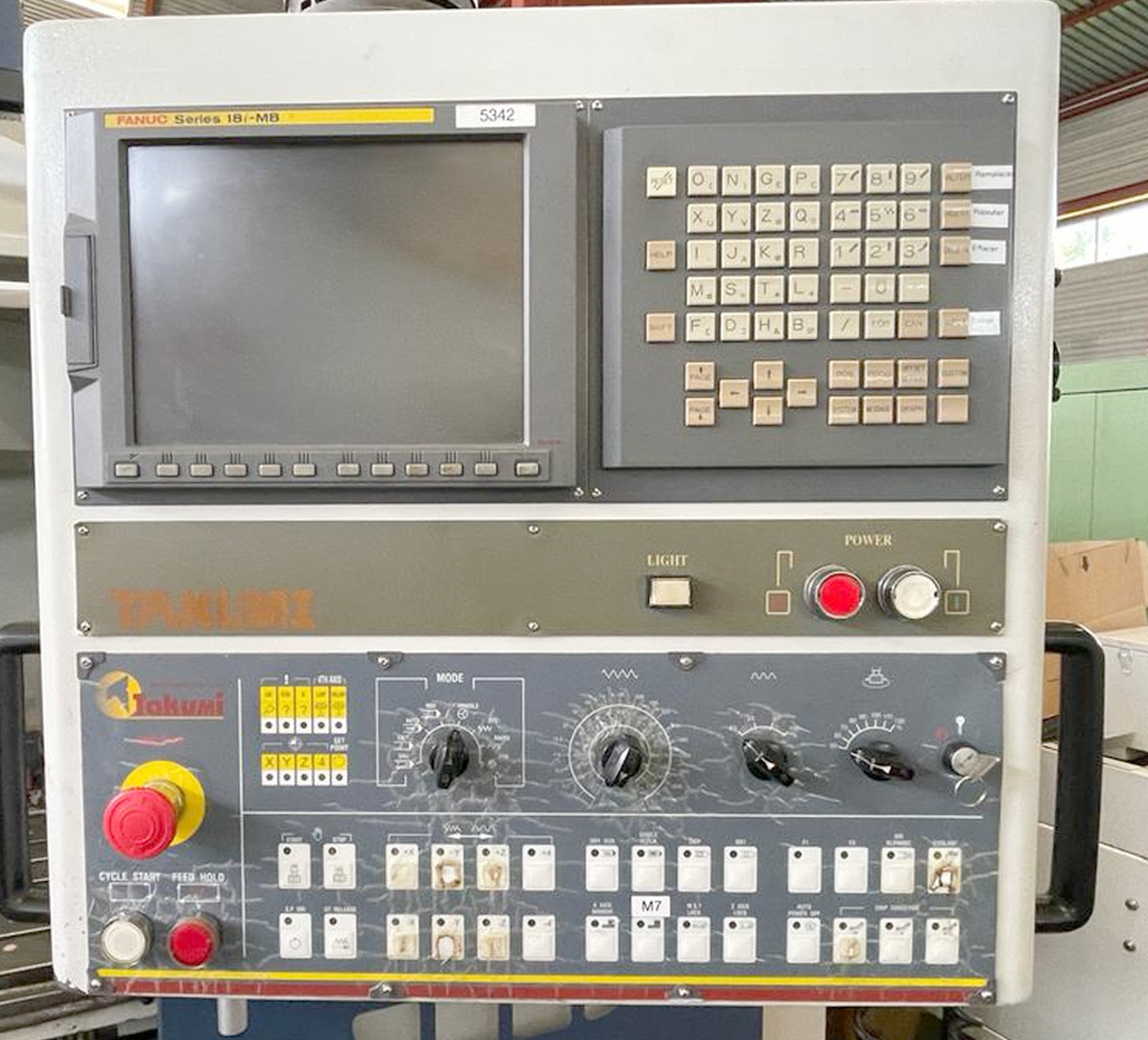

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

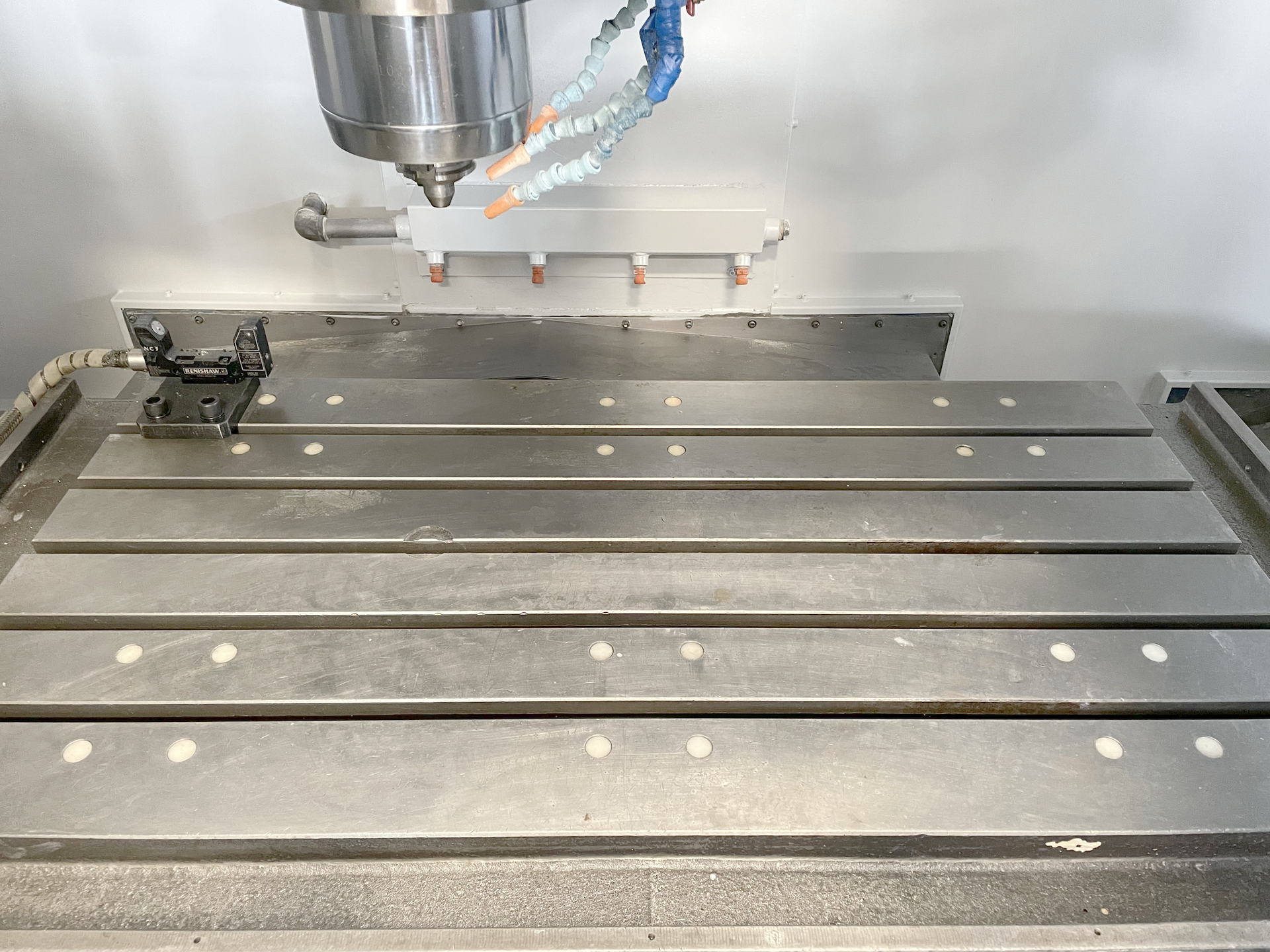

Table length: 1200 mm.
Table width: 625 mm.
Table load max.: 1200 kg.
Longitudinal travel (X-axis): 1100 mm.
Transversal travel (y-axis): 625 mm.
Vertical travel (z axis): 500 mm.

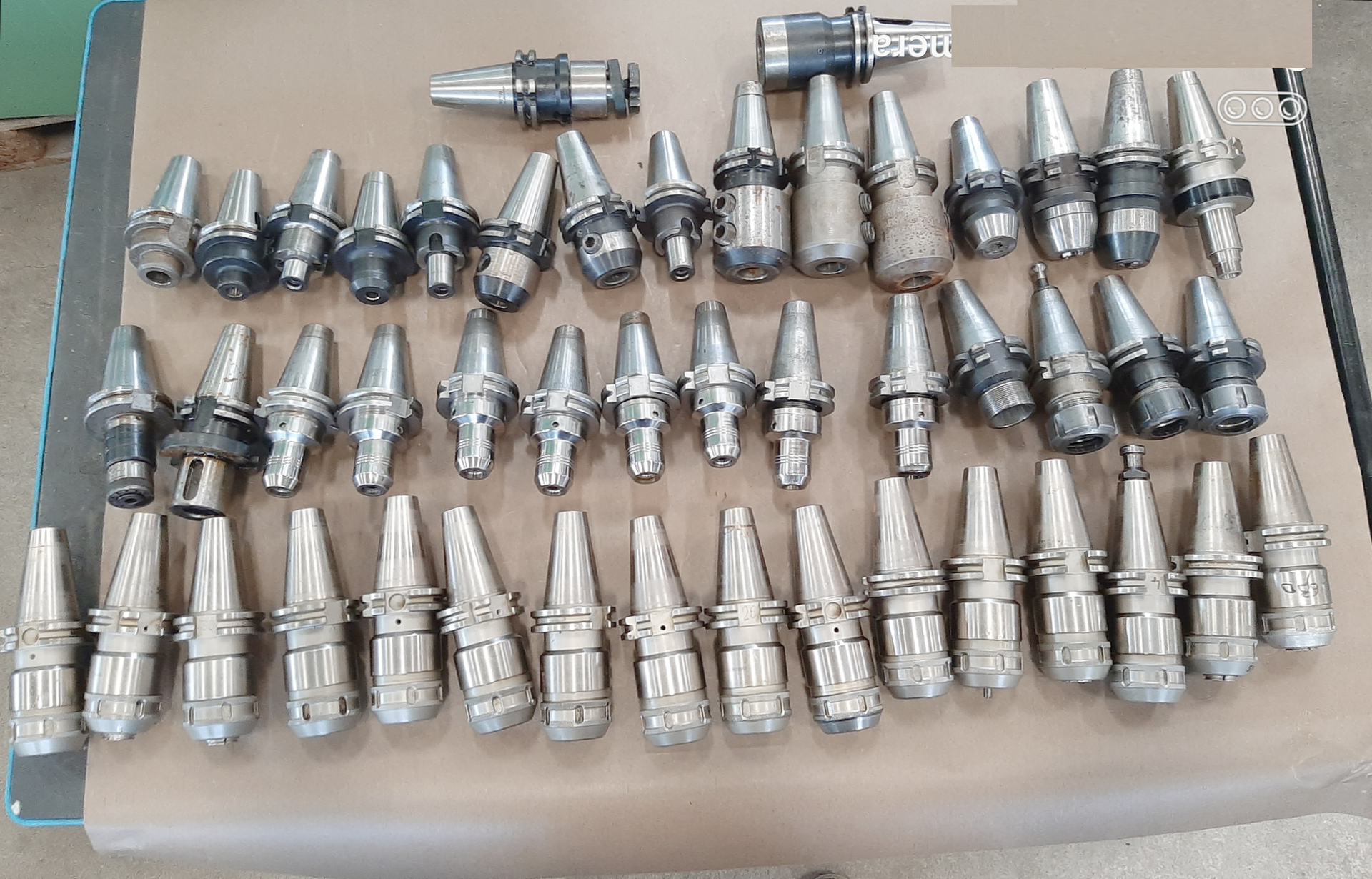

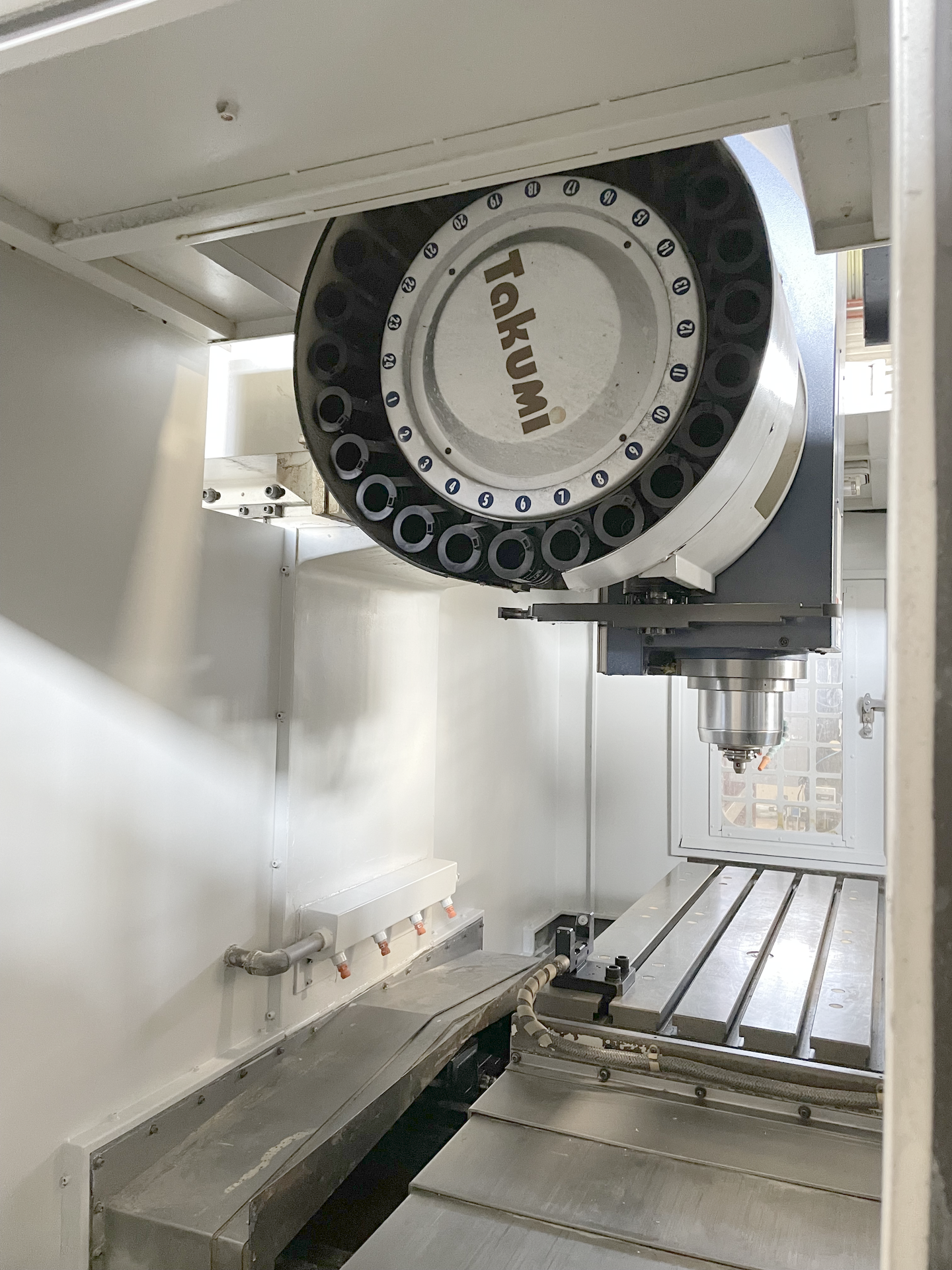

Number of tools: 24.
Tool diameter max.: 80 mm.
Tool lenght: 250 mm.
Max. tool-weight: 7 kg.

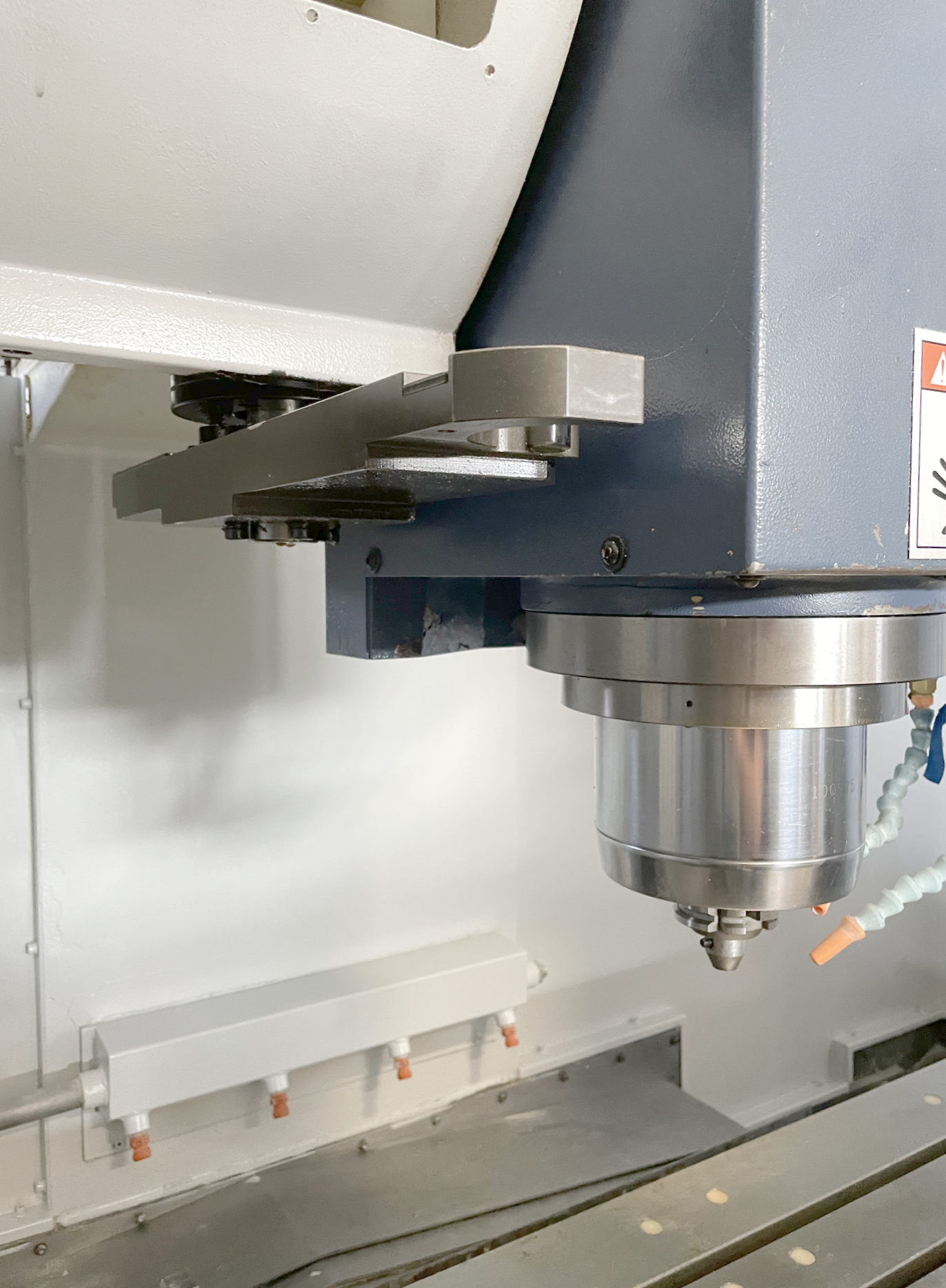

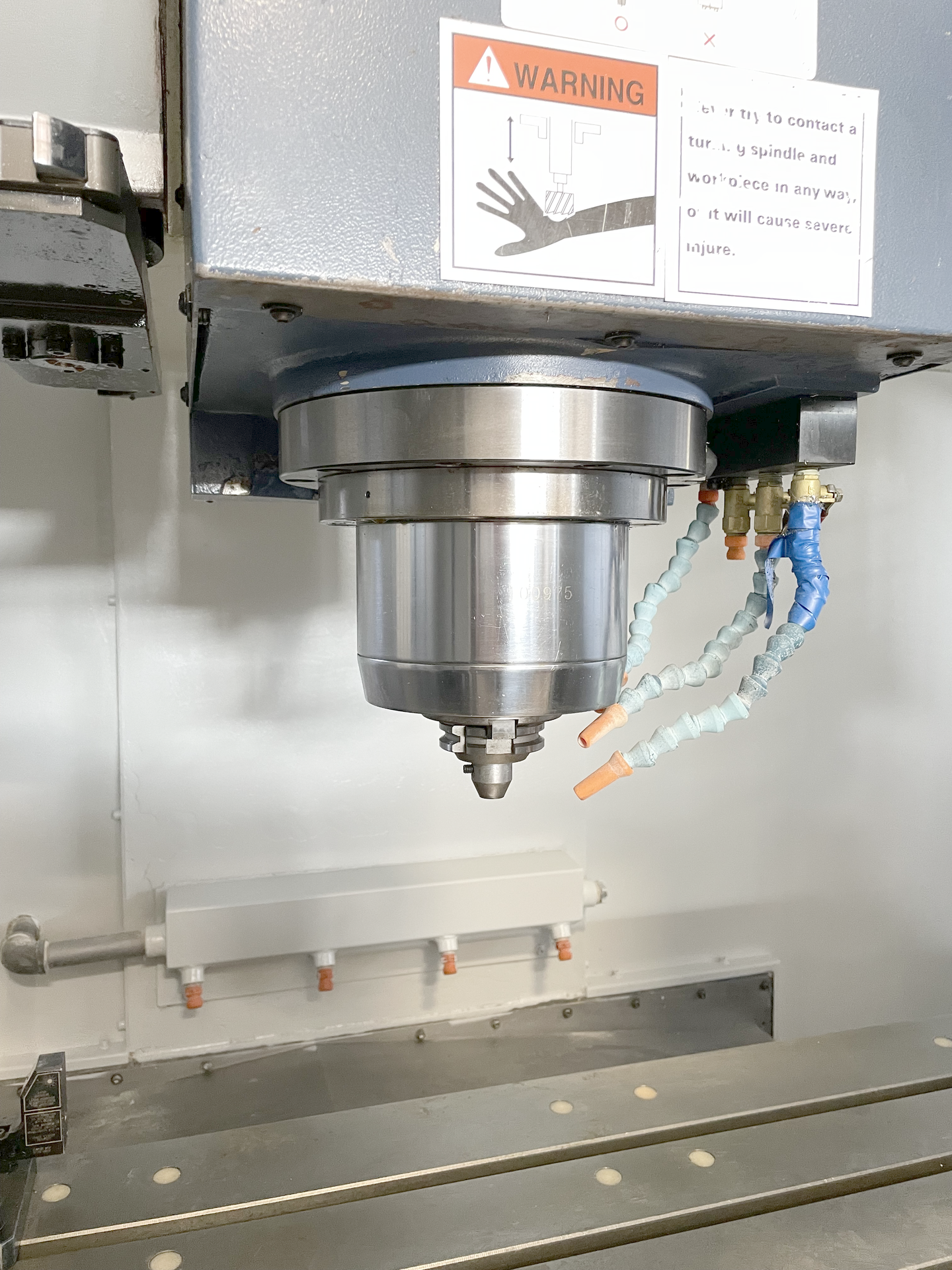

Spindle nose SK: 40.
Distance spindle nose to table: 150 - 650 mm.
up to: 15000 t/min.
Work feed rate: 12 m/min.
Rapid traverse: long.: 40 m/min.
Rapid traverse: transversal: 40 m/min.
Rapid traverse: vertical: 30 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 11 / 18.5 kW.
Total power required: 45 kVA.
Machine's weight about: 9710 kg.
Length: 3670 mm.
Width: 2200 mm.
Height: 3160 mm.
