MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:
  • 022699 - ACIERA 22 S
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

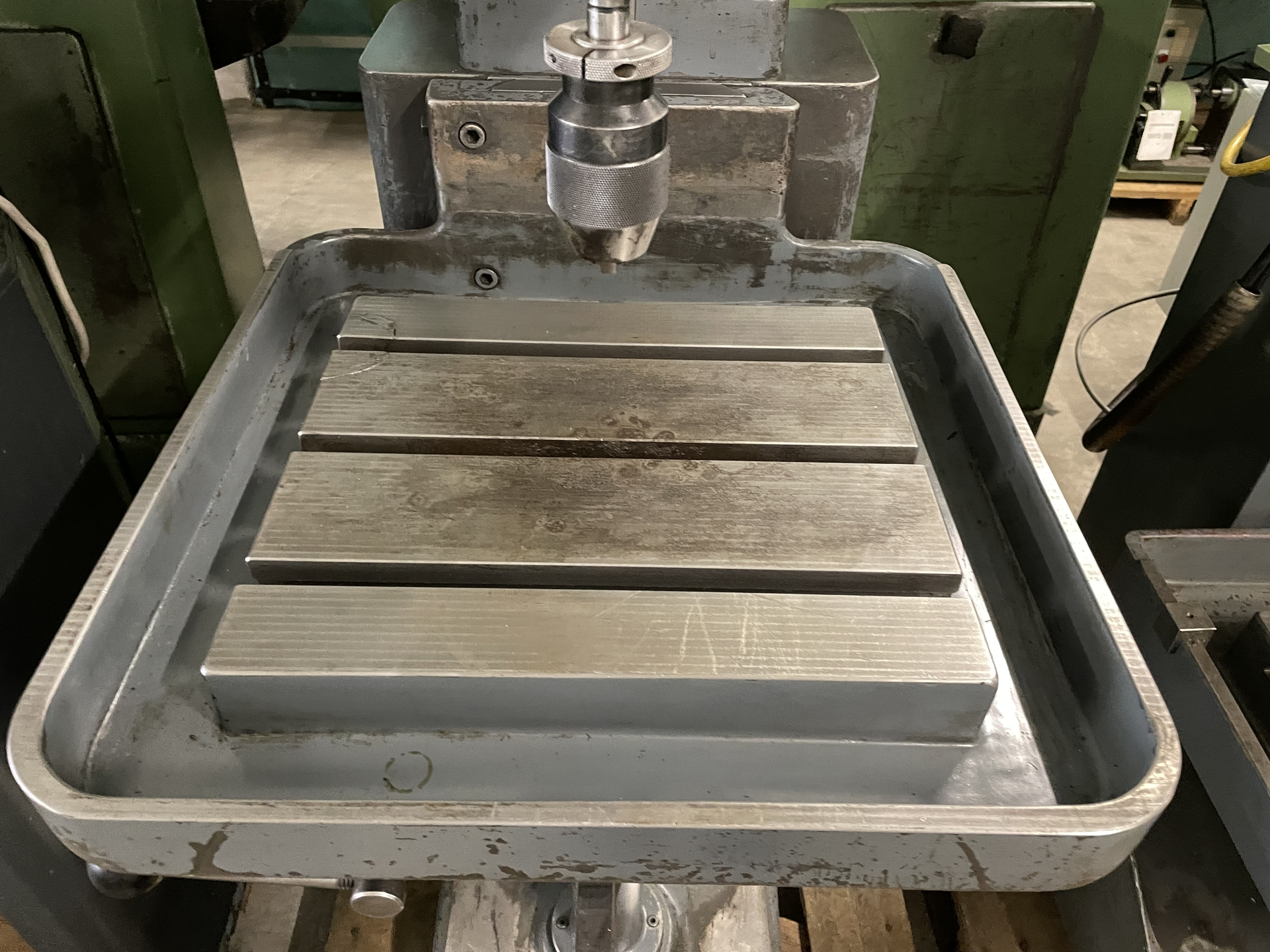

Table length: 500 mm.
Table width: 500 mm.
Length: 1100 mm.
Width: 600 mm.
Number of T-channels: 3.
Distance of the T-slots: 100 mm.
T-channel width: 16 mm.
Drill capacity in steel: 22 mm.
Drill capacity in cast-iron: 24 mm.
Taper in spindle: MT: 3.
Depth of throat: 300 mm.
Drill depth (spindle stroke): 120 mm.
Spindle head adjustment: 300 mm.
Longitudinal travel (X-axis): 330 mm.
Transversal travel (y-axis): 210 mm.
Vertical travel (z axis): 350 mm.
from: 0.02 mm/t.
up to: 0.25 mm/t.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.0 / 1.5 CV.
Machine's weight about: 900 kg.
Height: 2100 mm.
