MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • VARI
  • Model:

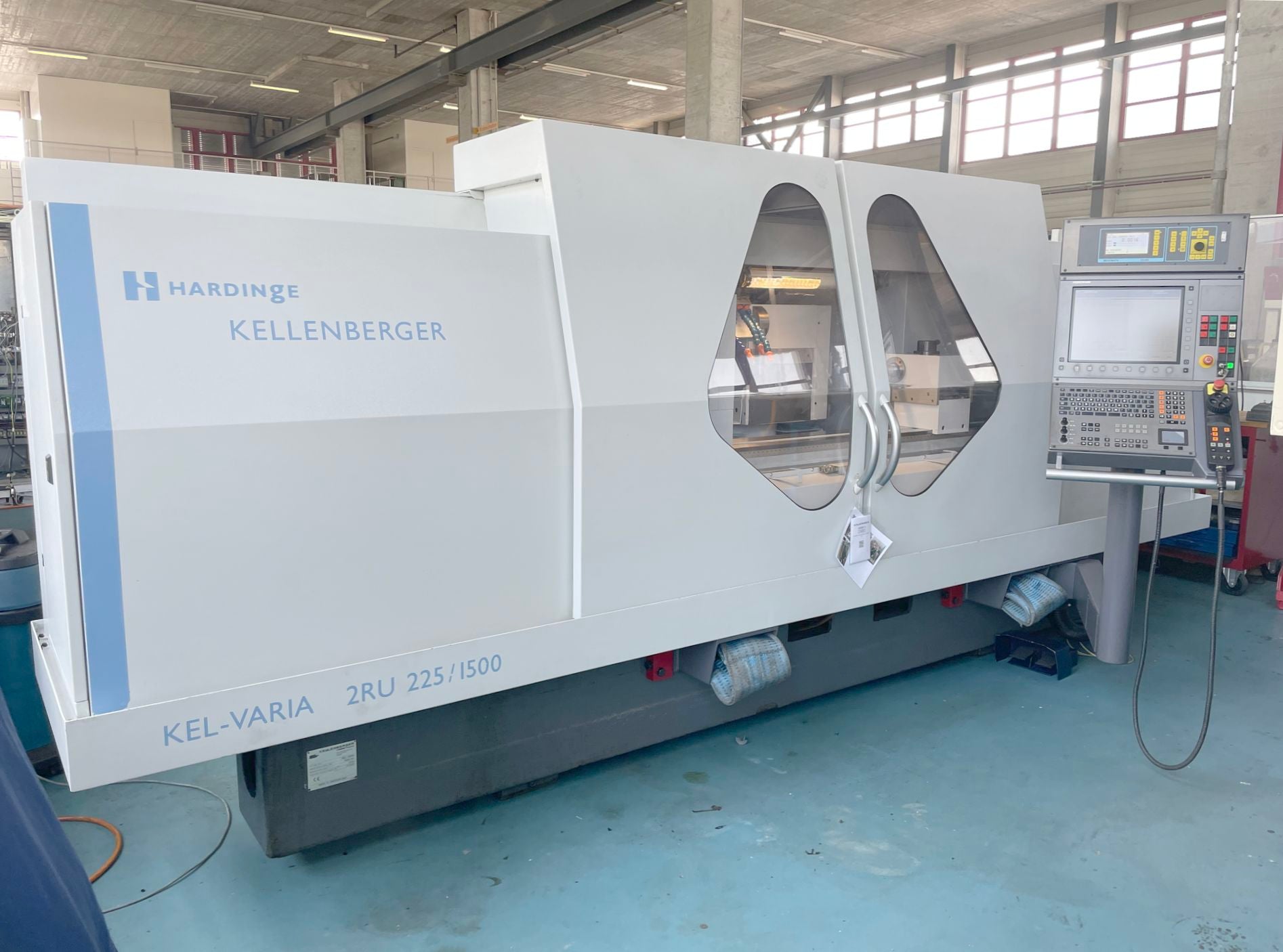

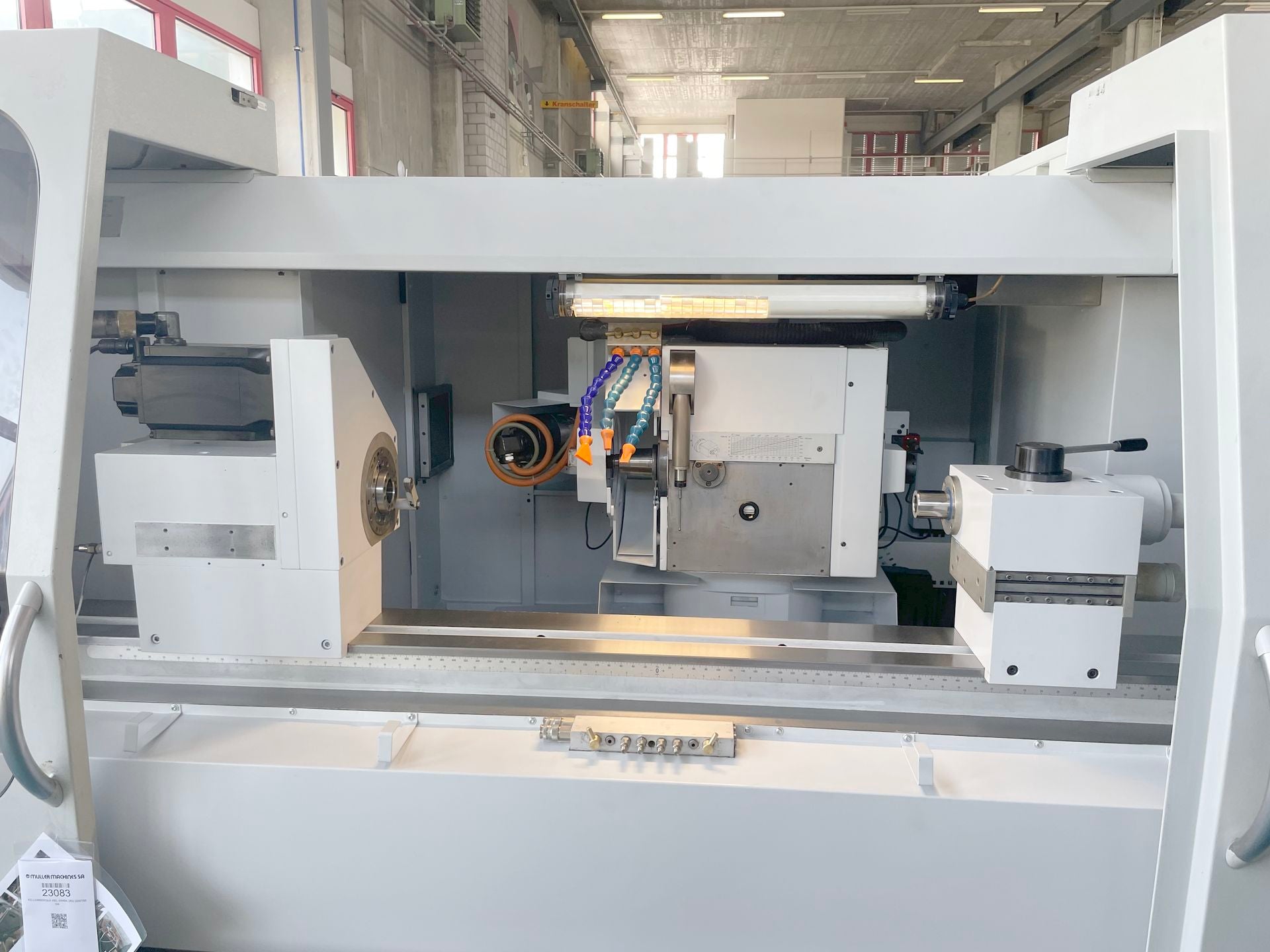

  • 023083 - KELLENBERGER KEL-VARIA 2RU 225/1500
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 225 mm.
Distance between centres: 1500 mm.
Max. grinding diameter: 432 mm.
Workpiece weight on centres max.: 150 kg.

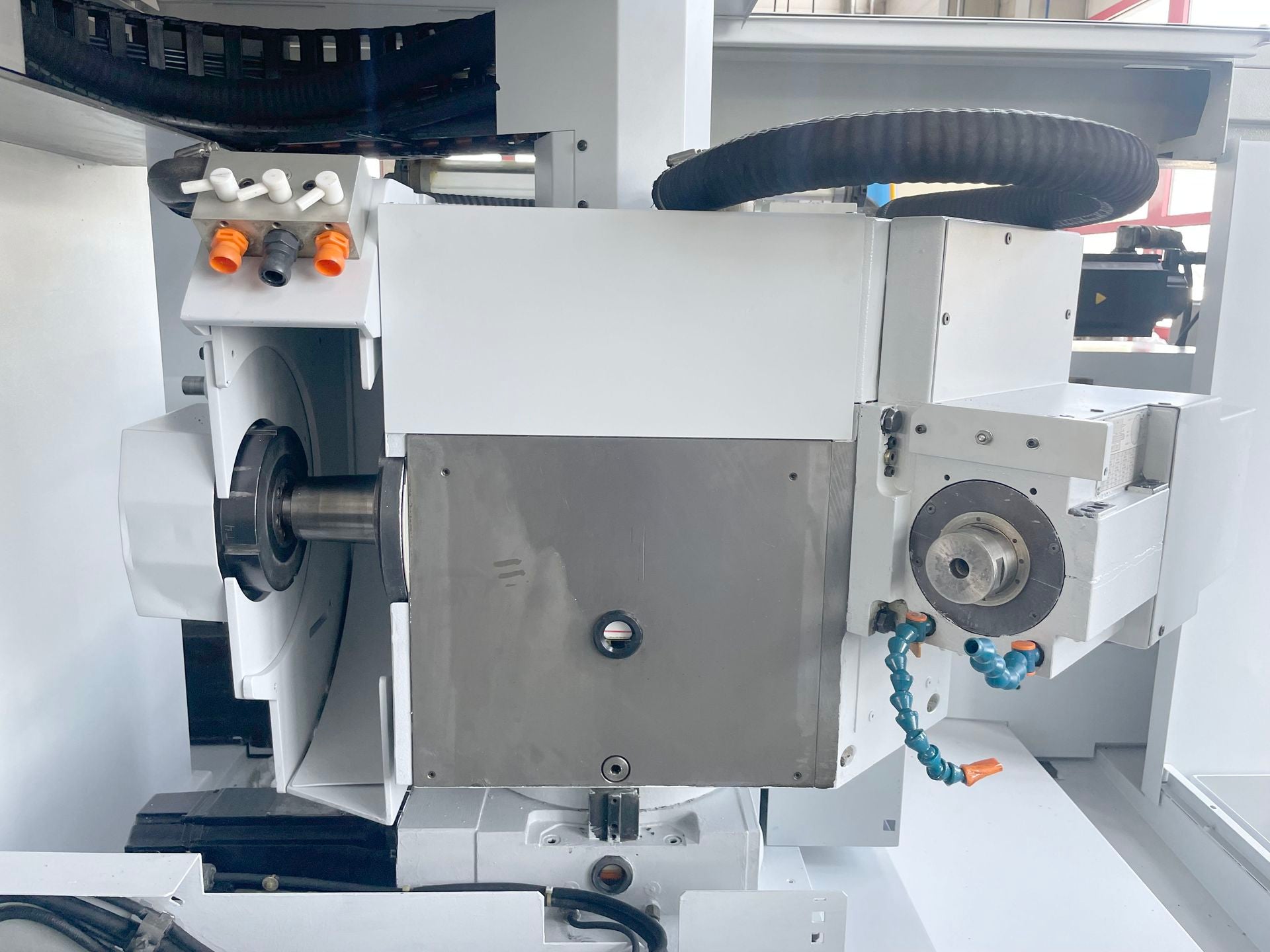

Diameter: 500 mm.
Width: 80 mm.
Bore: 127 mm.
B axis resolution max.: 0.1 °.
from: 8 t/min.
up to: 800 t/min.
Swivelling range: +10 / -230 °.
Peripheral speed: 45 m/s.
Holding taper:: 5 CM.
Permitted load capacity: 160 Nm.

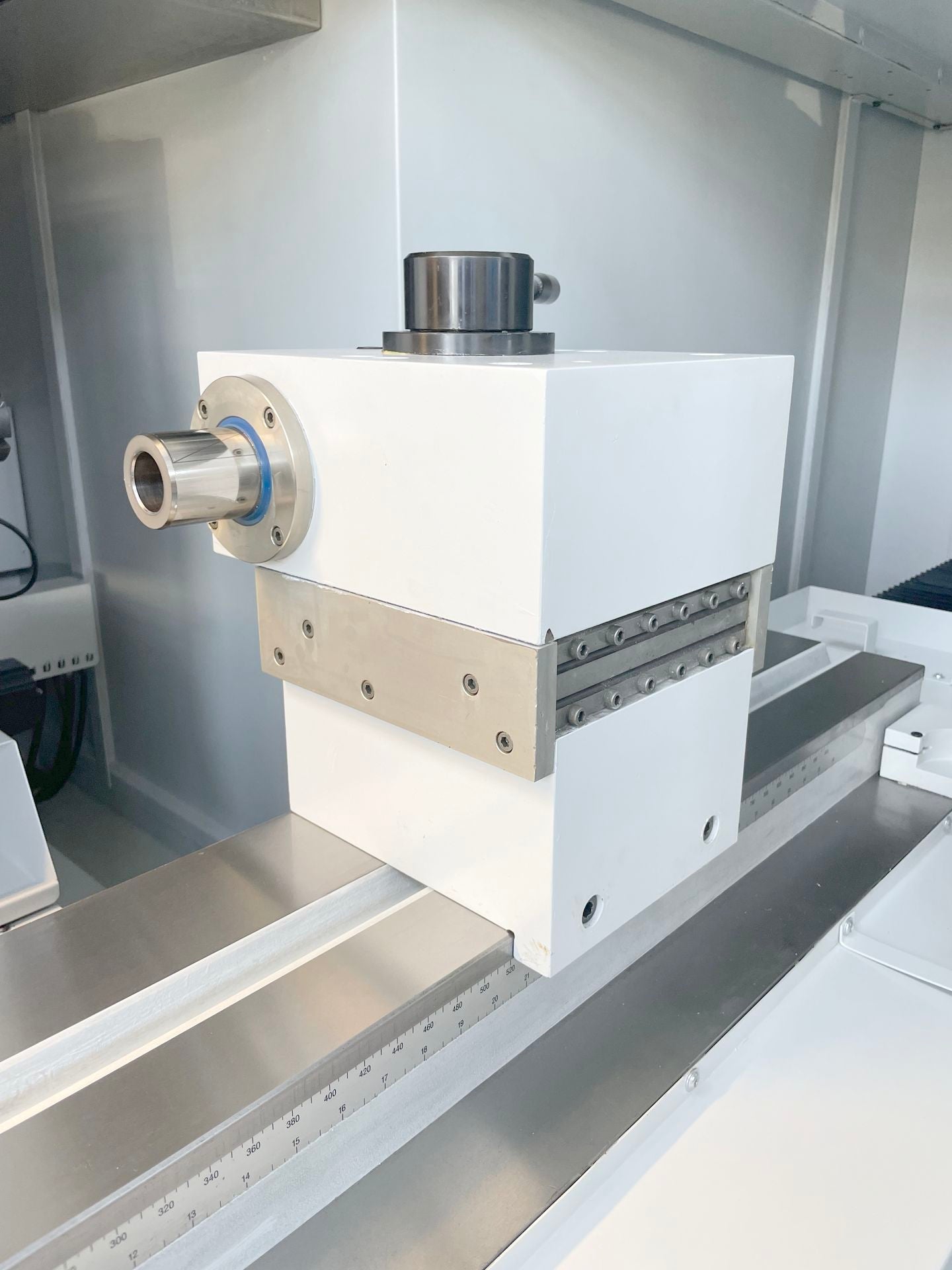

Taper in tailstock:: 4 CM.
Spindle stroke: 50 mm.
Pressure: 200 - 700 N.
Voltage 50 Hz 3x: 400 Volt.
Thread grinding cycles: KEL-ASSIST 100.
Electrical measuring instrum.: MOVOMATIC.
Tool measuring device: KEL-SET.

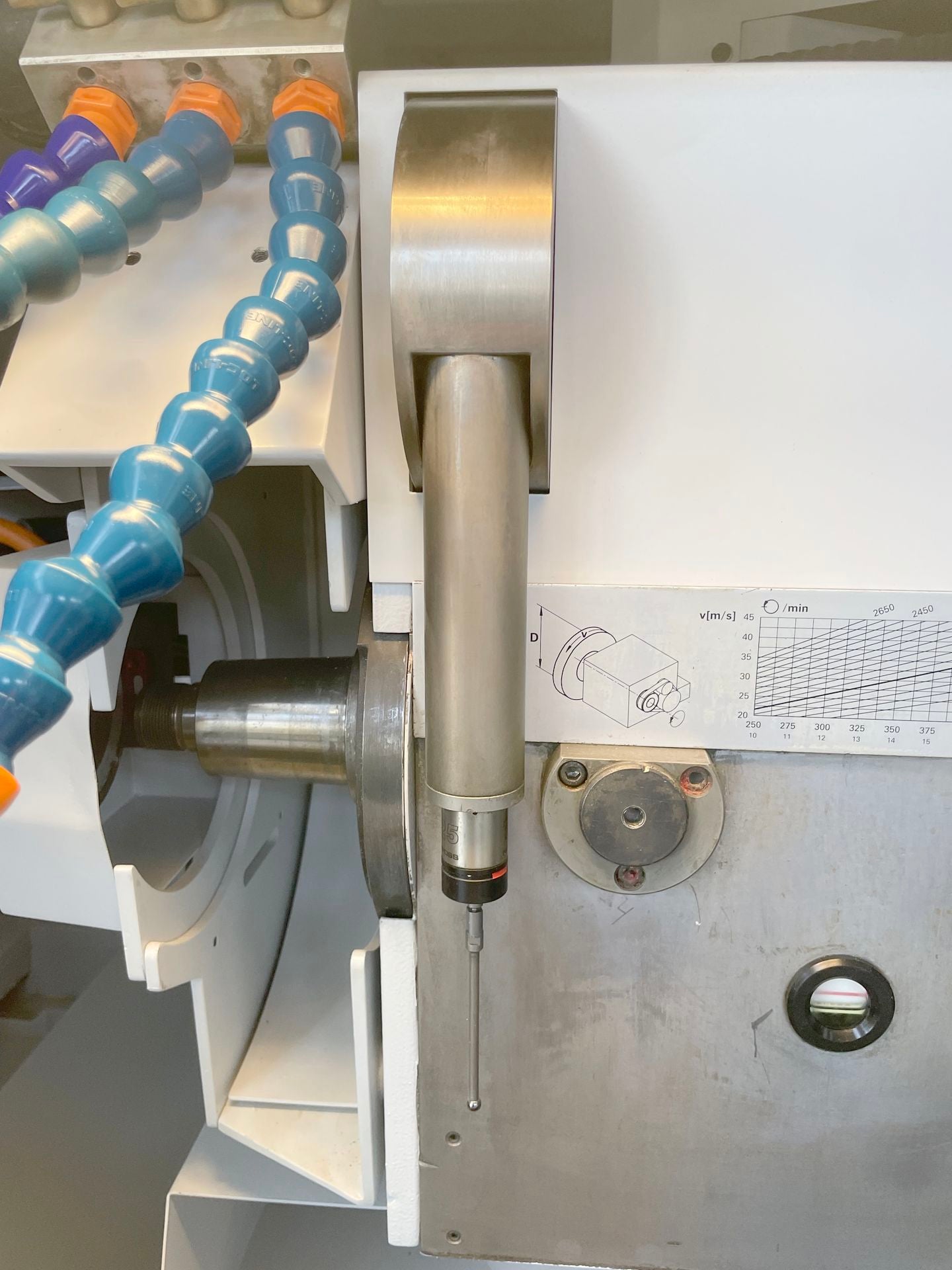

Measuring feeler gauge: MOVOMATIC C25.
Automatic balancing device: KEL-BALANCE.
Macnetic chuck diameter: 400 mm.
