MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • DMG
  • Model:

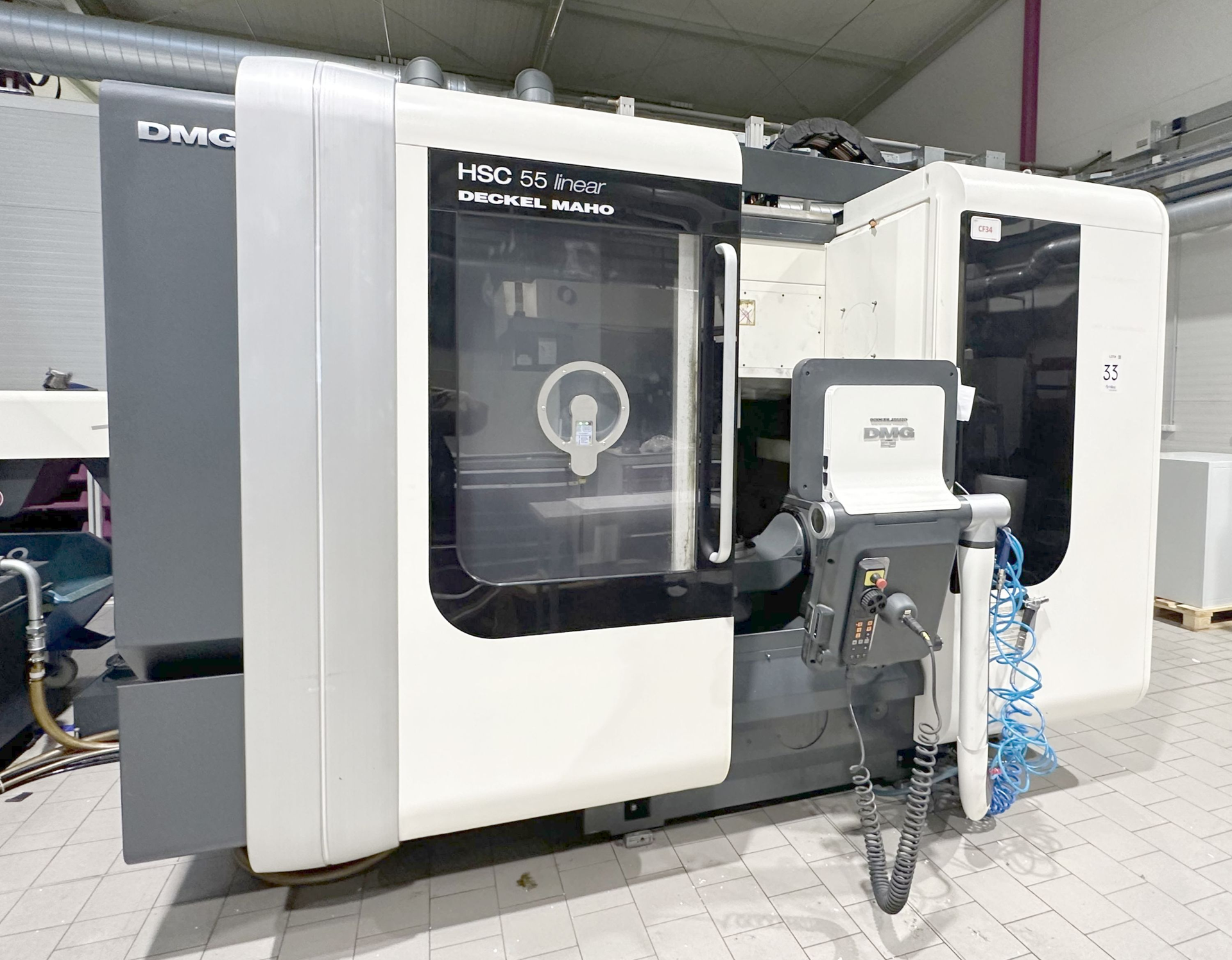

  • 022852 - DMG HSC 55 linear
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5.
Longitudinal travel (X-axis): 450 mm.
Transversal travel (y-axis): 650 mm.
Vertical travel (z axis): 460 mm.

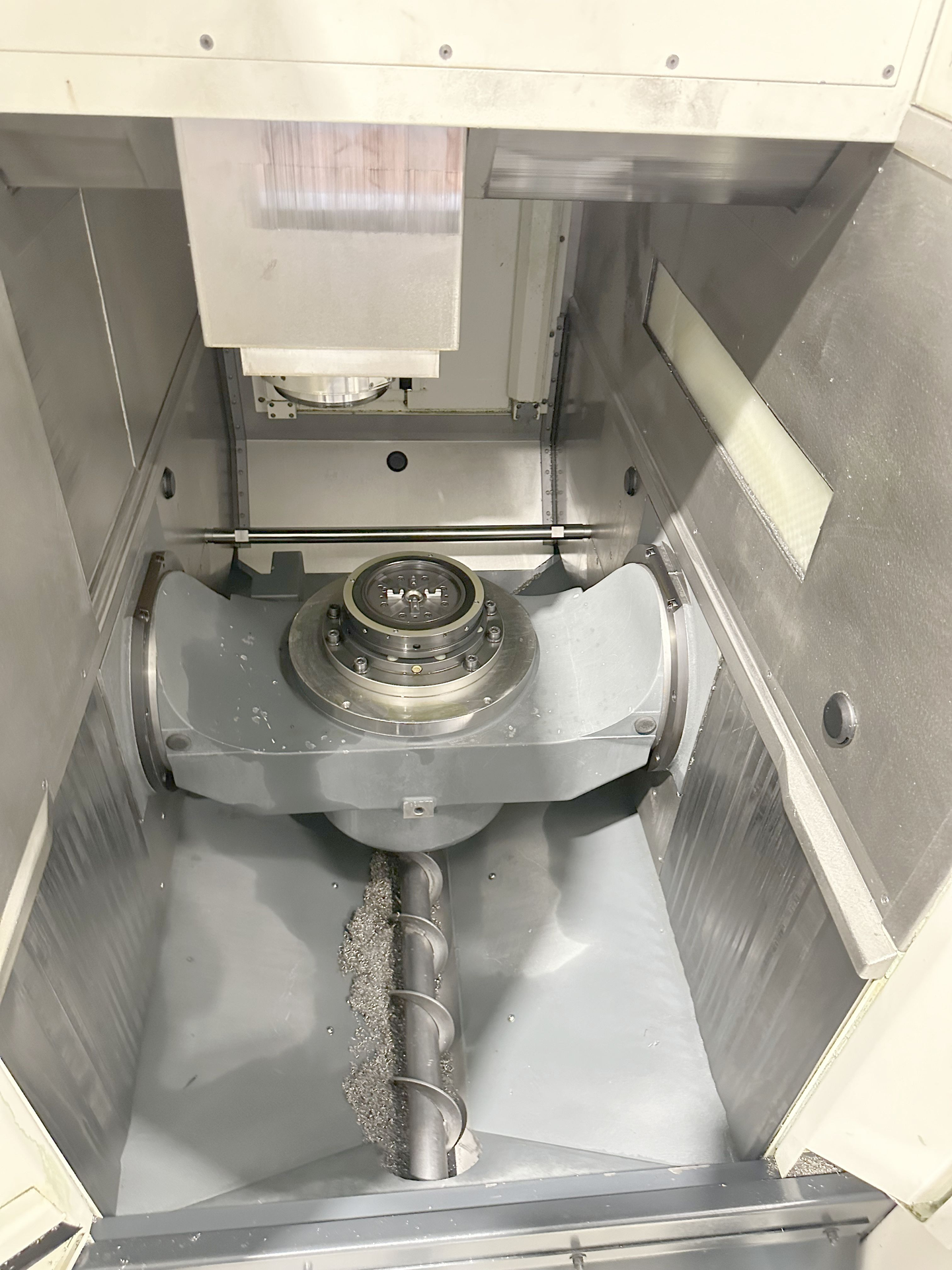

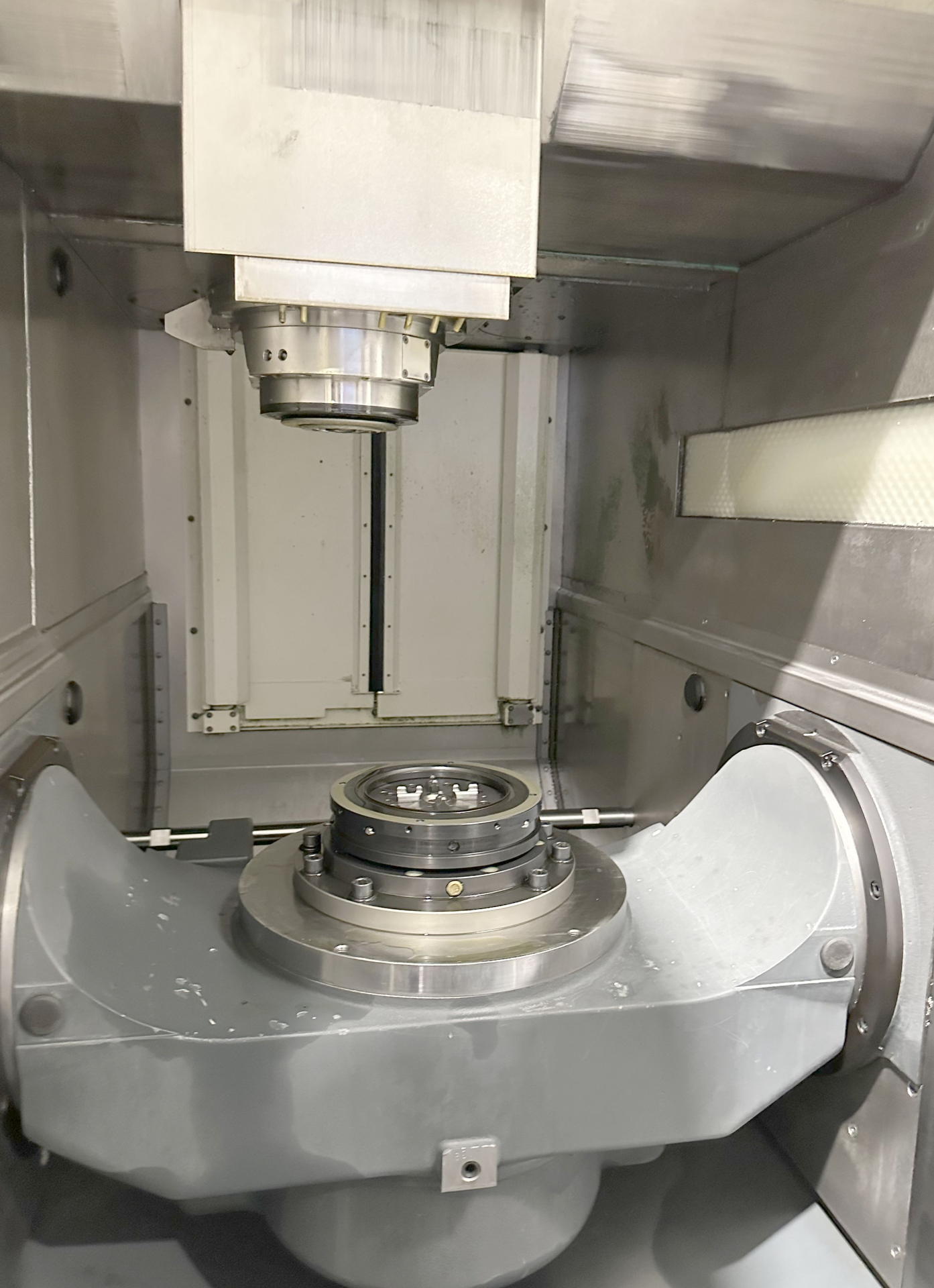

Swivel angle (a-axis): -10 / +110 °.

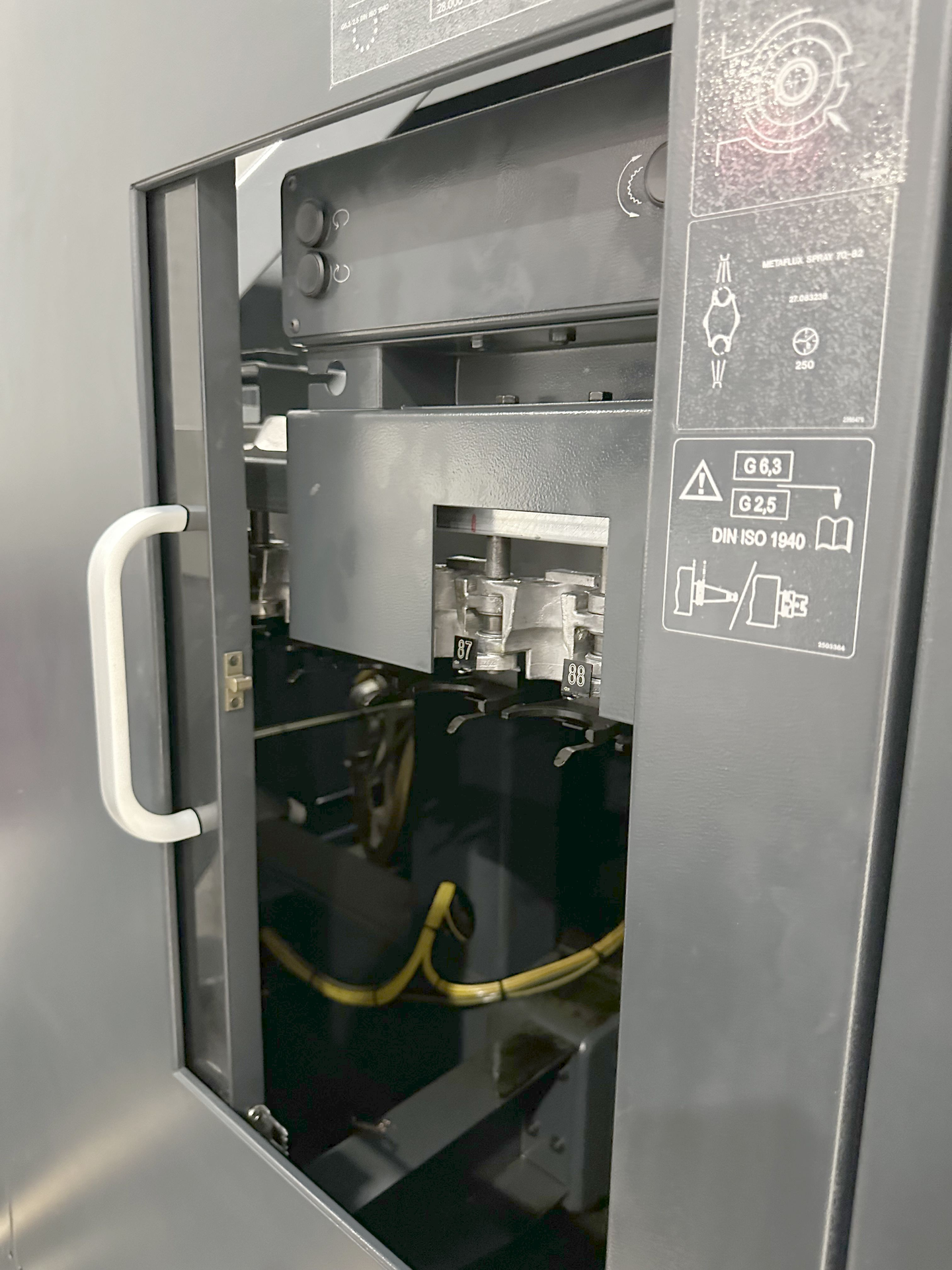

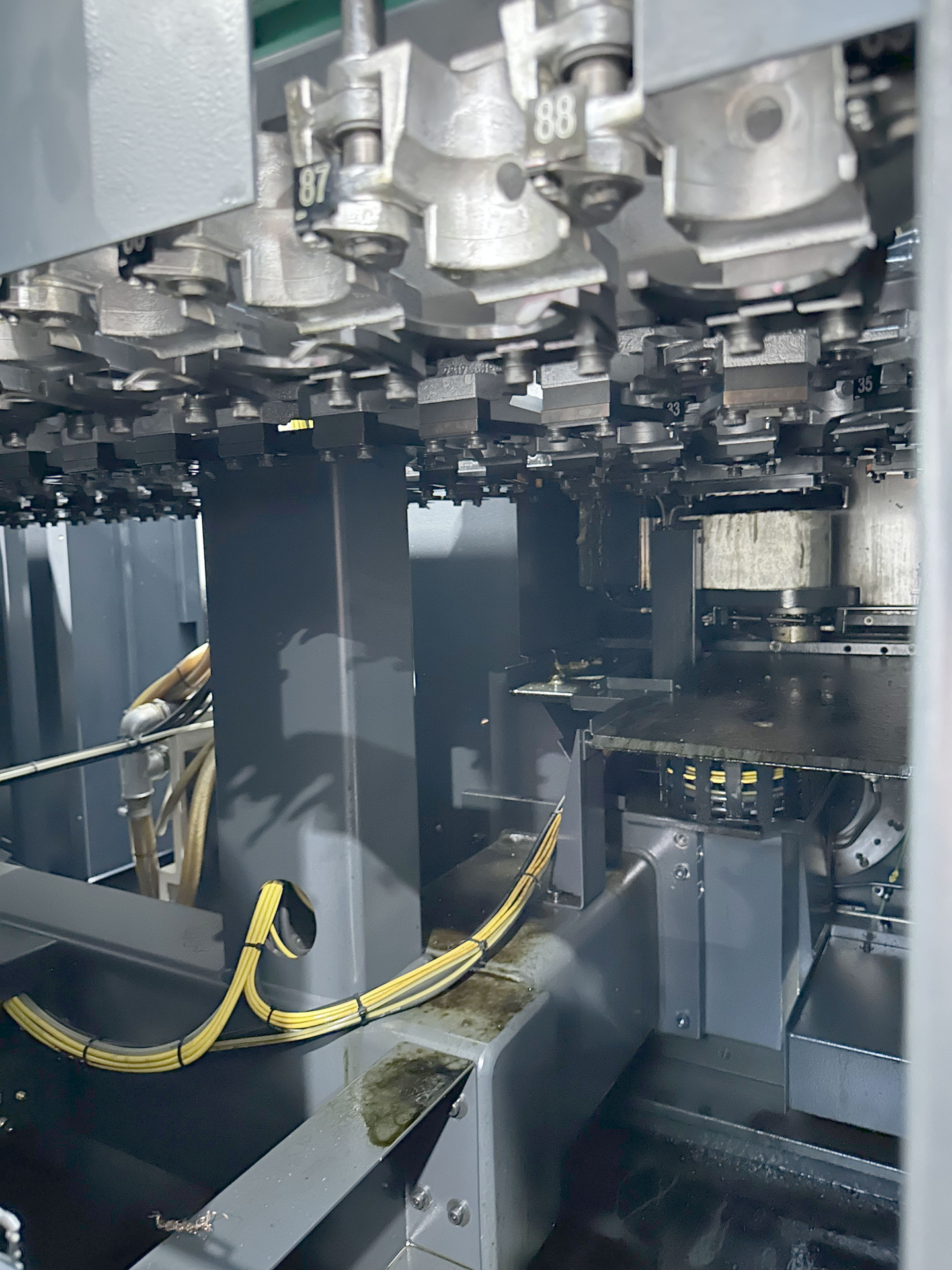

Tool magazine number of tool places: 120.
Tool diameter max.: 80 mm.
Tool lenght: 250 mm.
Max. tool-weight: 6 kg.
Spindle nose: HSK: 63.
from: 2 t/min.
up to: 28000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 38 / 28 kW.
Total power required: 70 kVA.
Machine's weight about: 9500 kg.
Length: 3210 mm.
Width: 2930 mm.
Height: 2900 mm.
