MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TORNOS
  • Model:

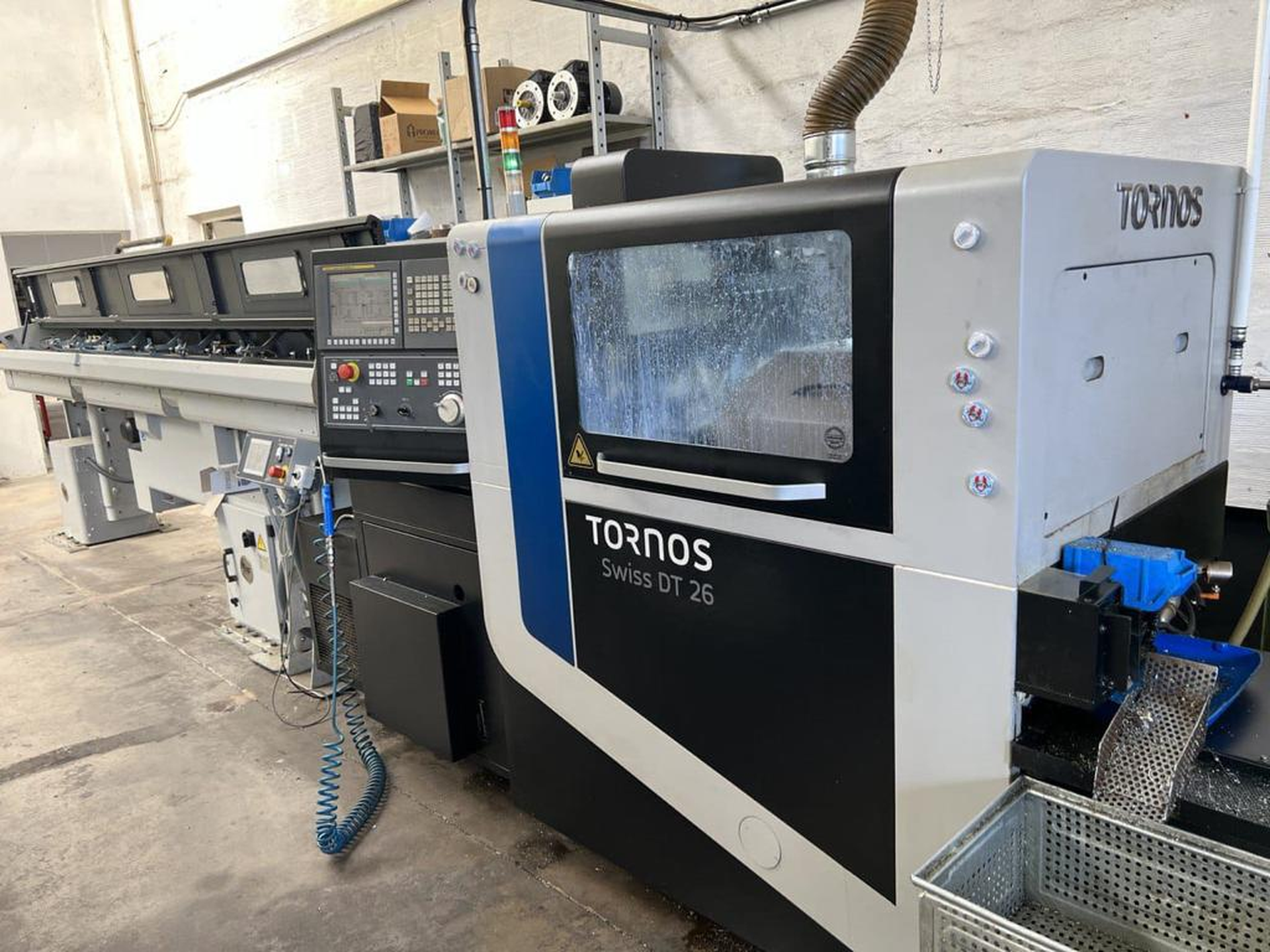

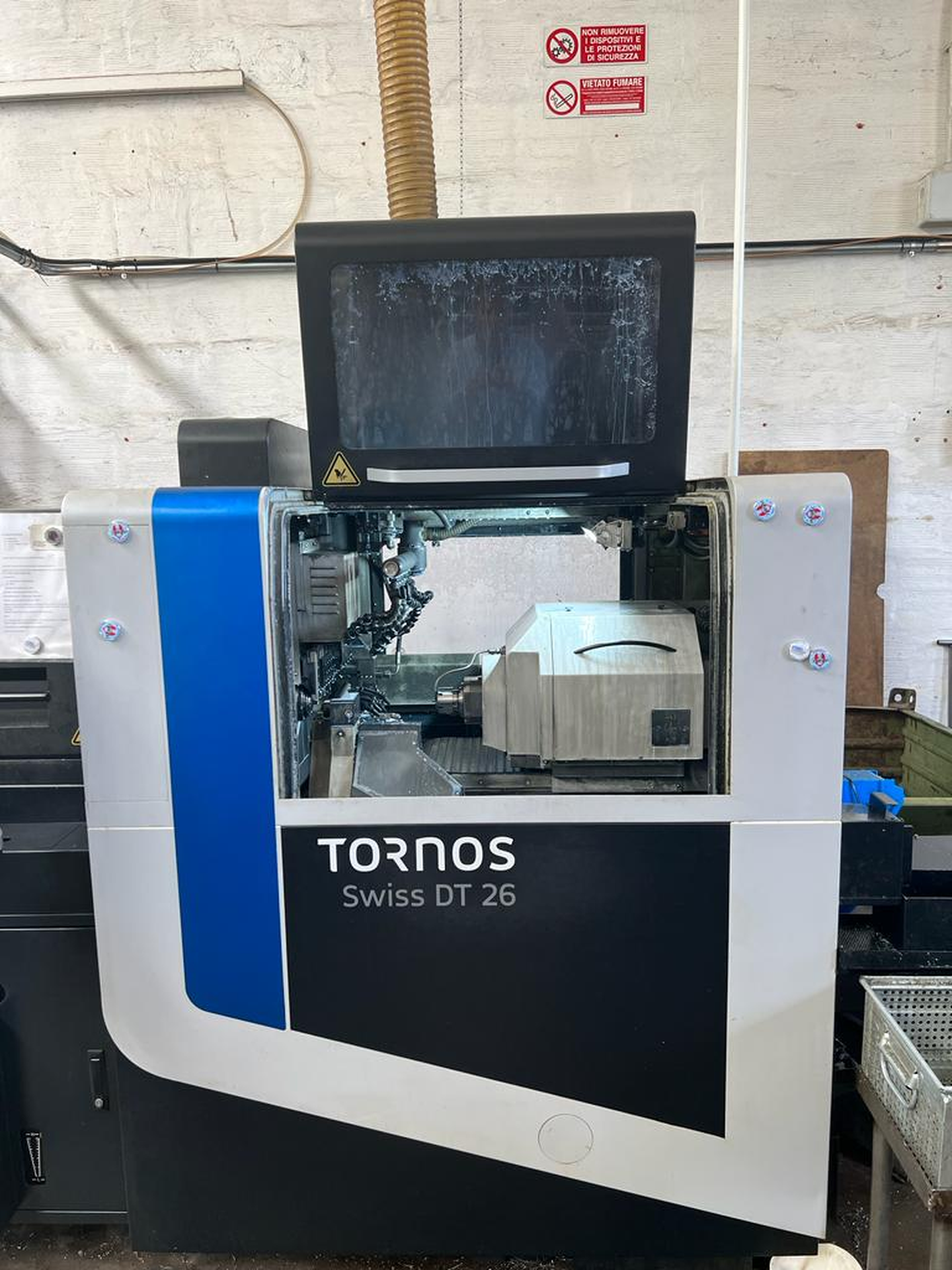

  • 022514 - TORNOS DT 26/5
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 5 + 2.
Number of spindles: 2.
Workpiece length max.: 195 mm.
Max. bar diameter: 25.4 mm.
from: t/min.
up to: 10000 t/min.
Spindle power: 8.2 kW.
numbers: 2.
Number of stations: 22.
Spindle speeds (turning tools): 5000 t/min.
Power of driven tools: 1 kW.
number of tools: 8.
number of driven tools: 4.
Turning tools: 4 pce.
Drilling tools: 4 pce.
Rapid traverse:: 32 m/min.

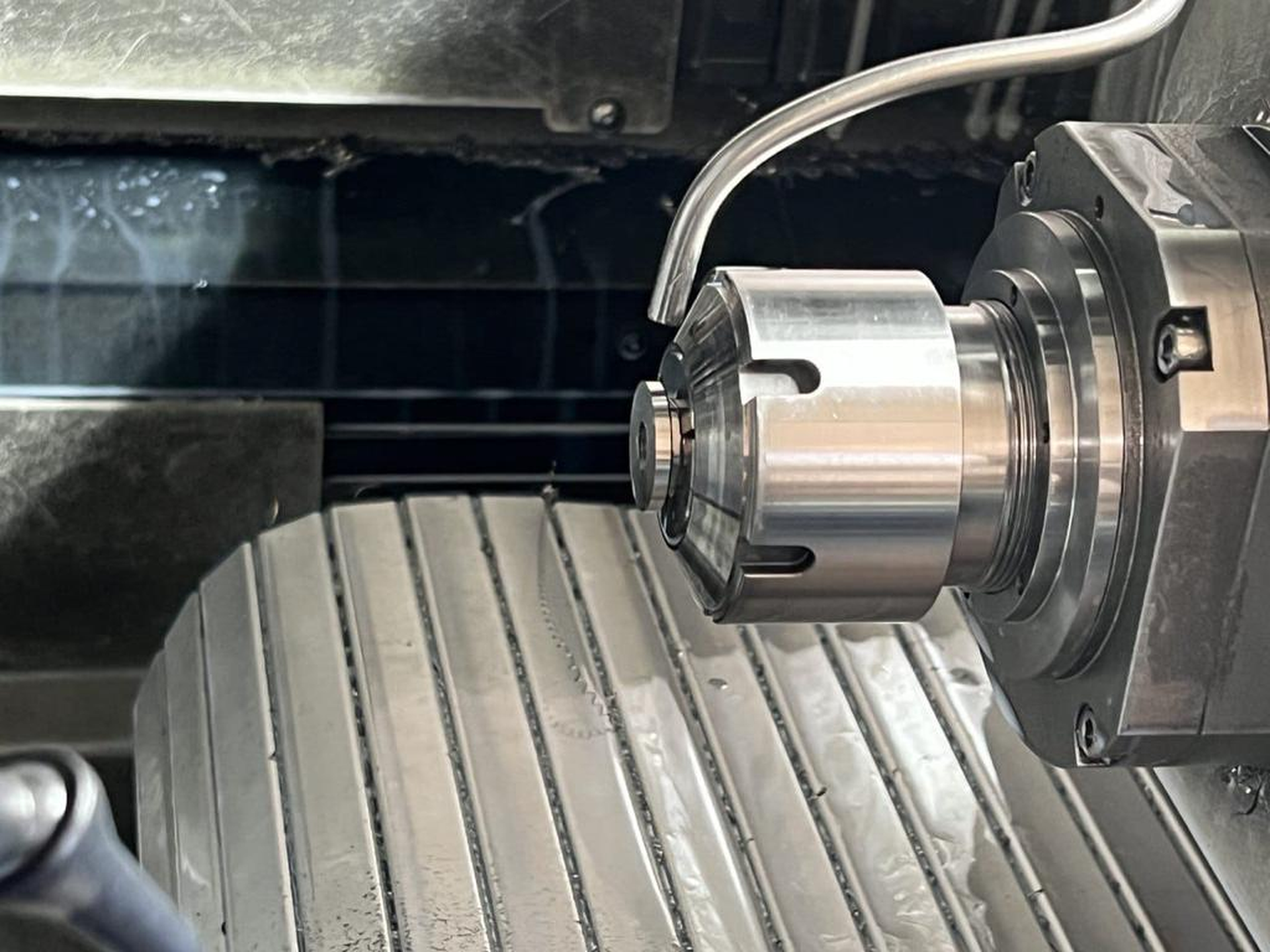

Power of back spindle: 8.2 kW.
Machine's weight about: 2400 kg.
Length: 2912 mm.
Width: 1300 mm.
Height: 1720 mm.

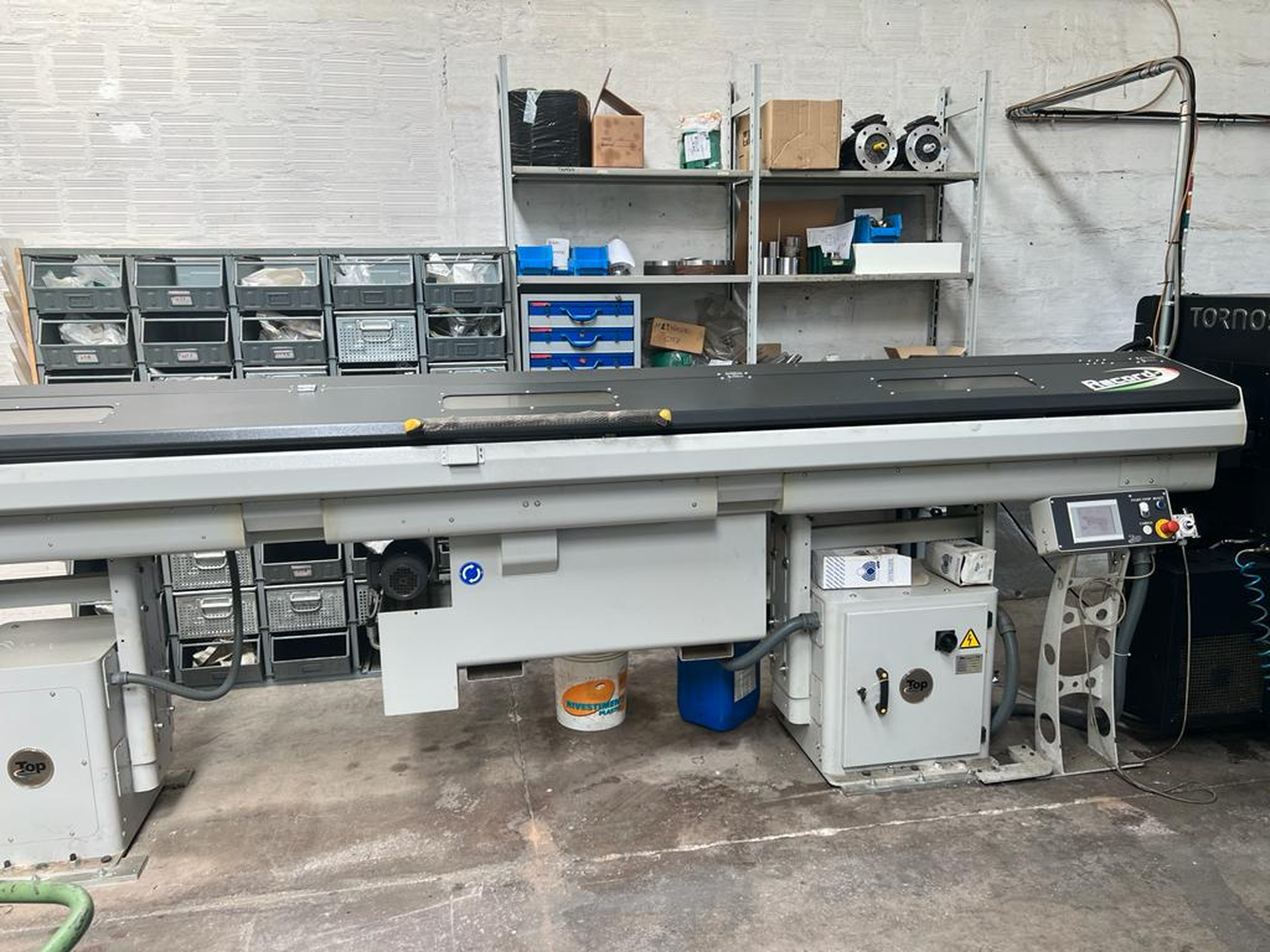

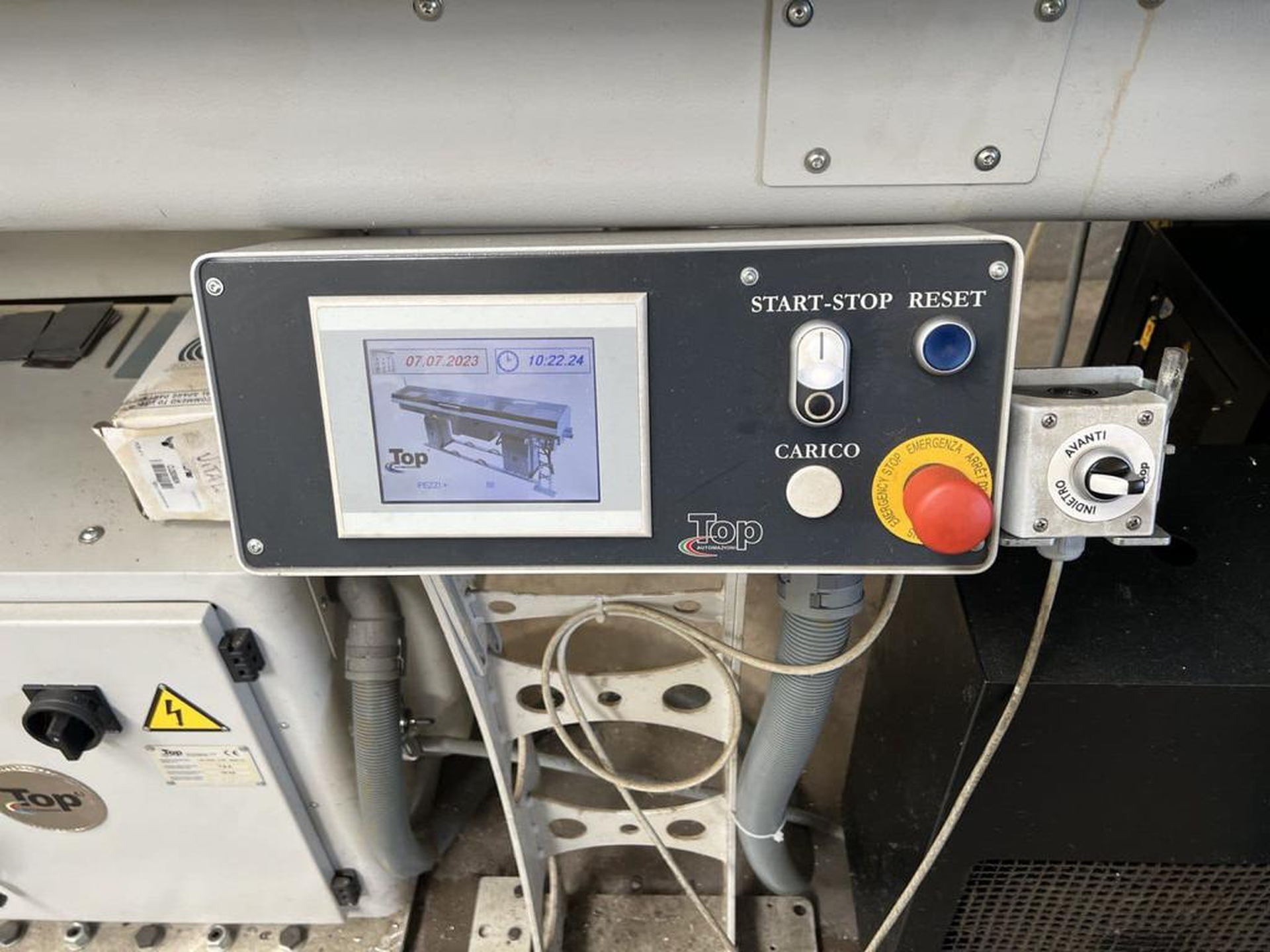

Bar loader number of bars: Top Automazioni.
High pression colant device: 20 bar.
