MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

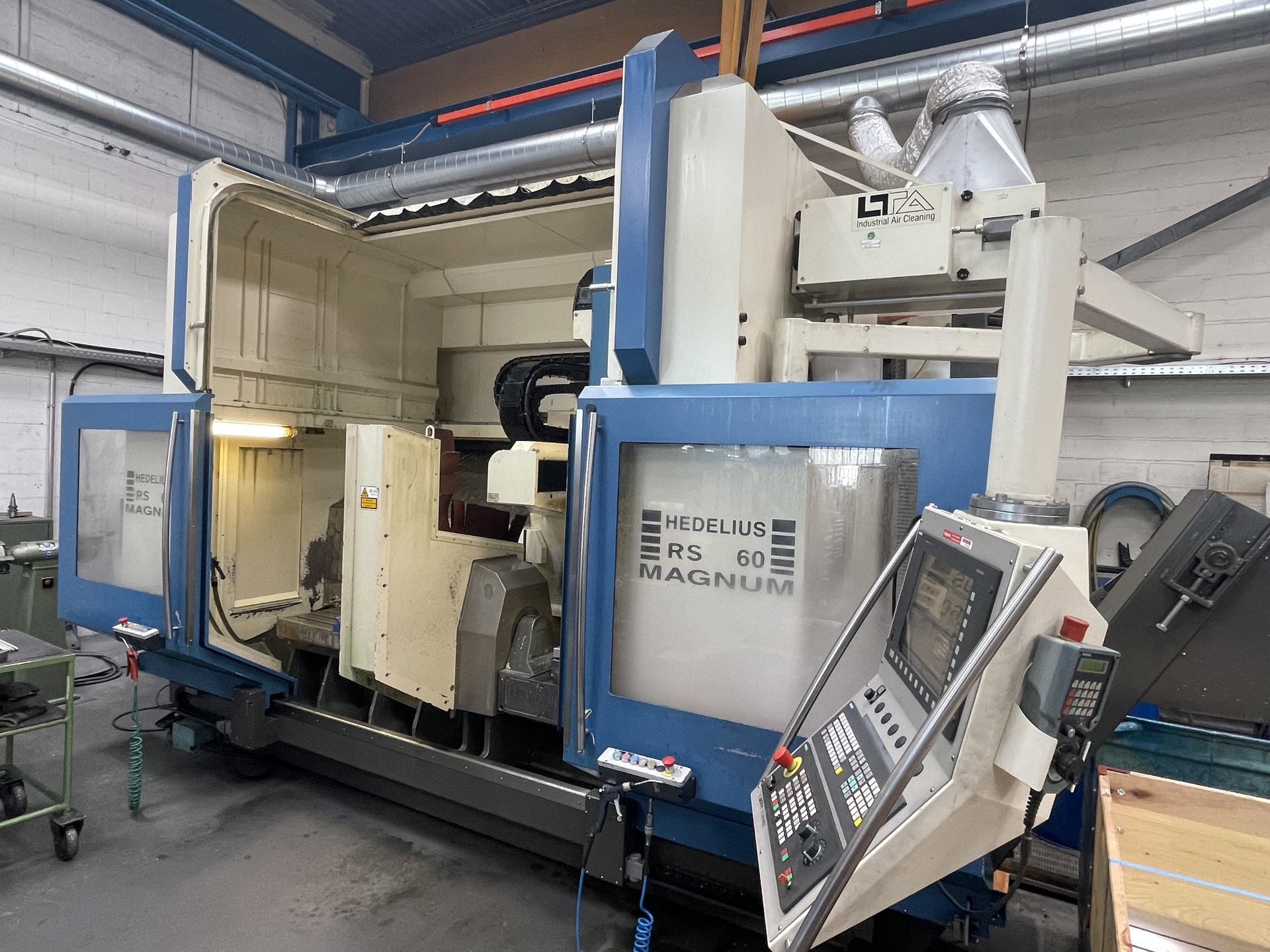

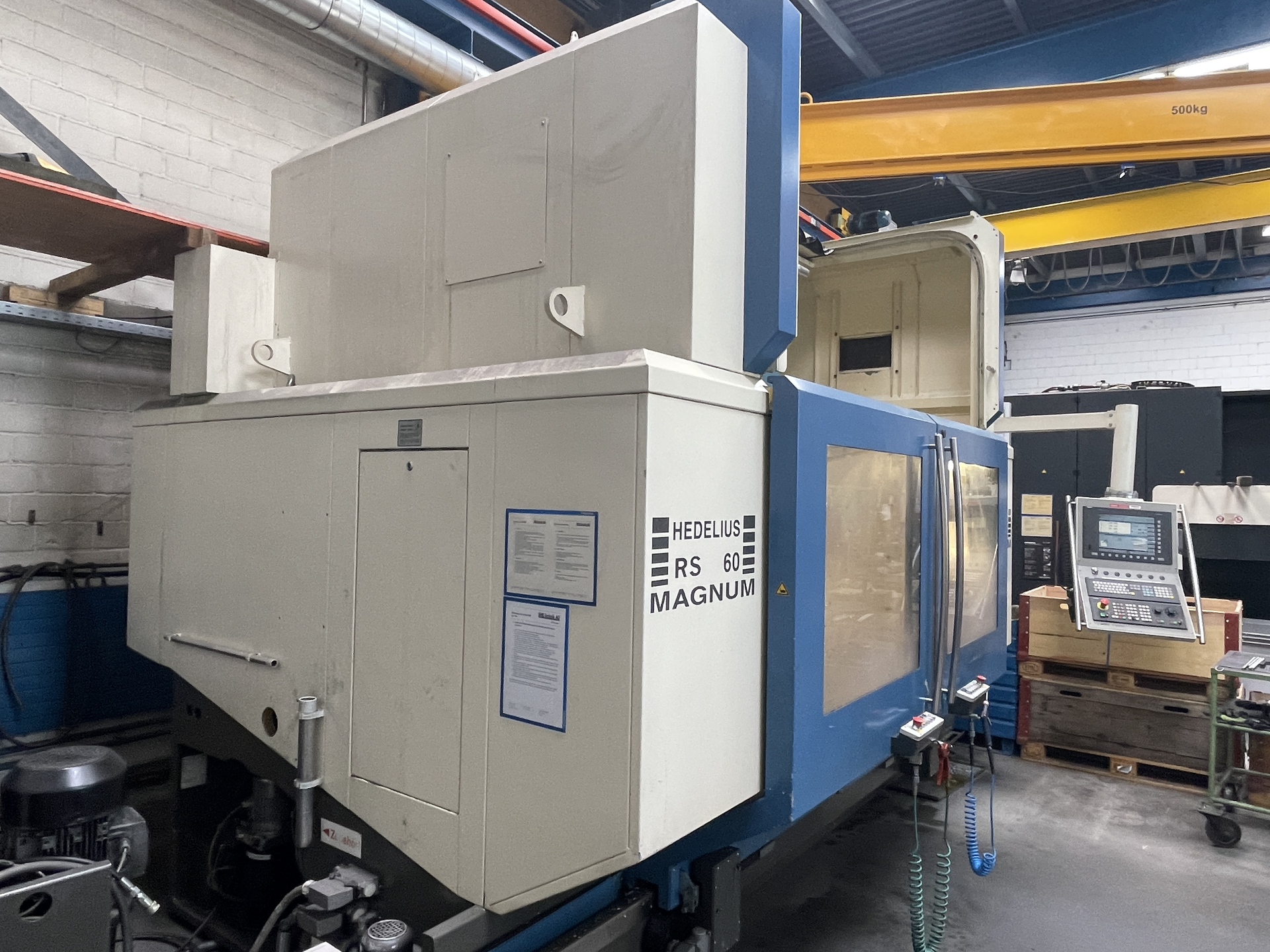

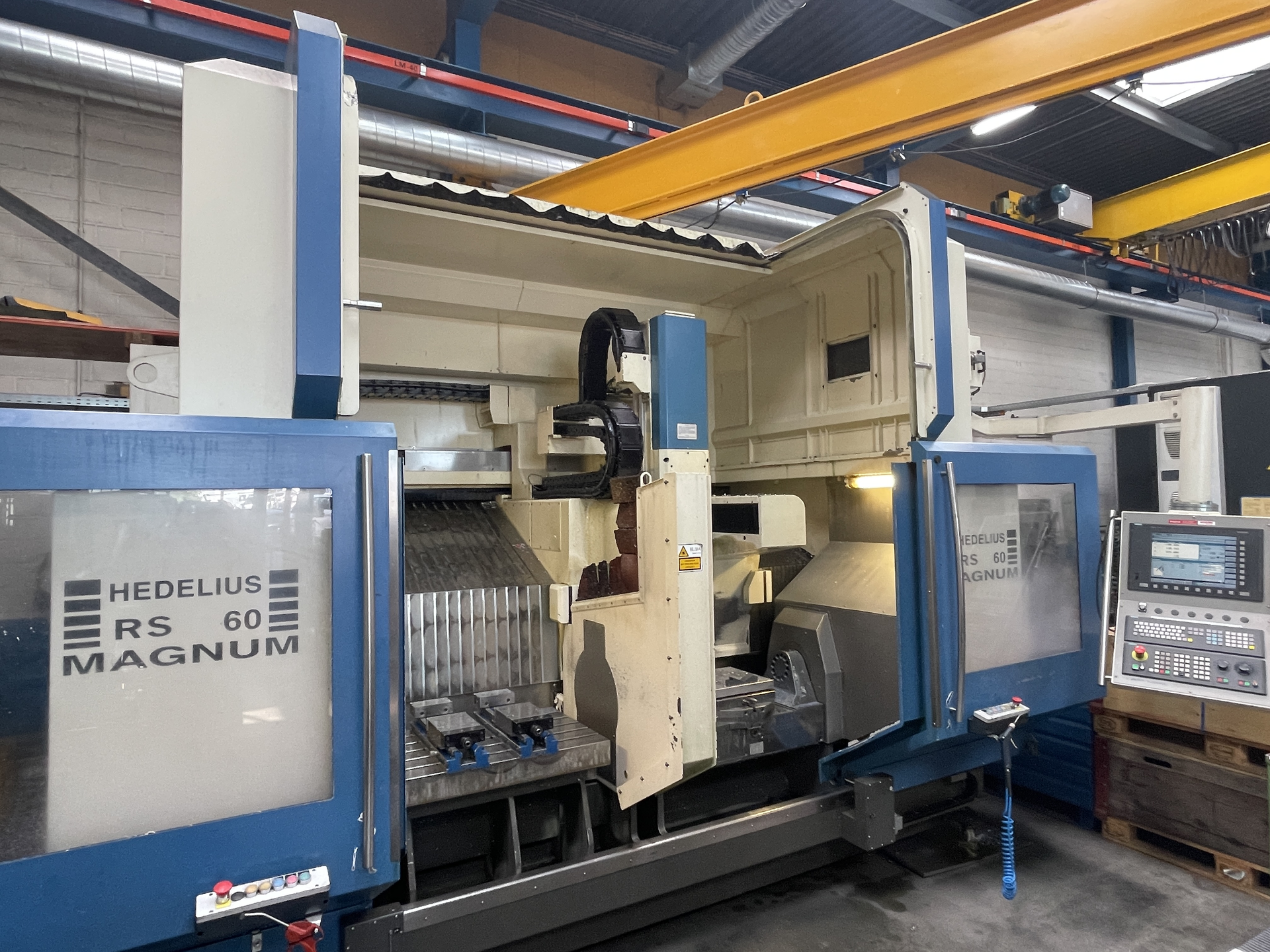

  • 022077 - HEDELIUS RS 60 MAGNUM-2000
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Time under power: 37627 Heures.
Operating time: 15344 Heures.
Number of axis total: 3 / 5.

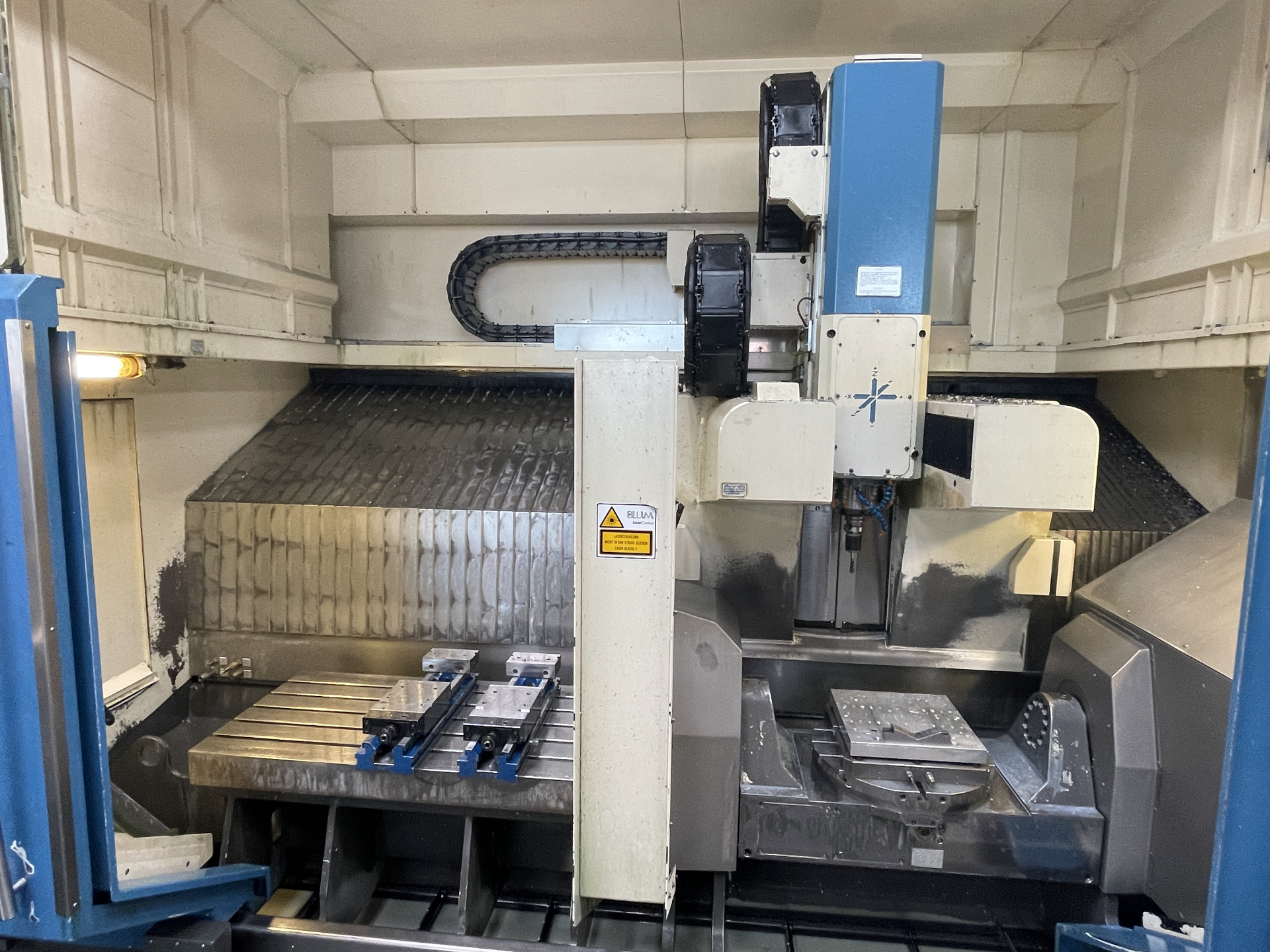

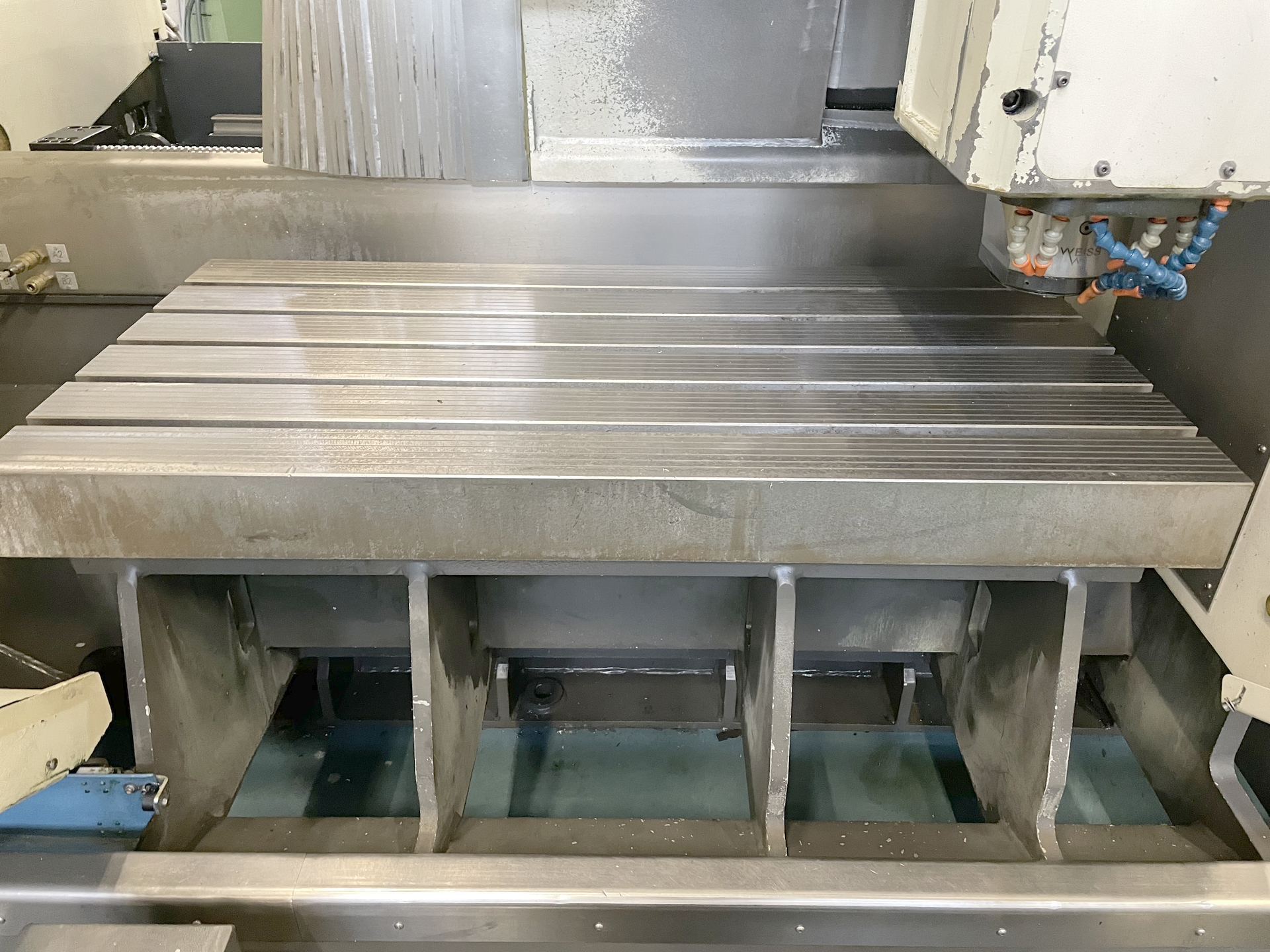

Table length: 1200 mm.
Table width: 600 mm.

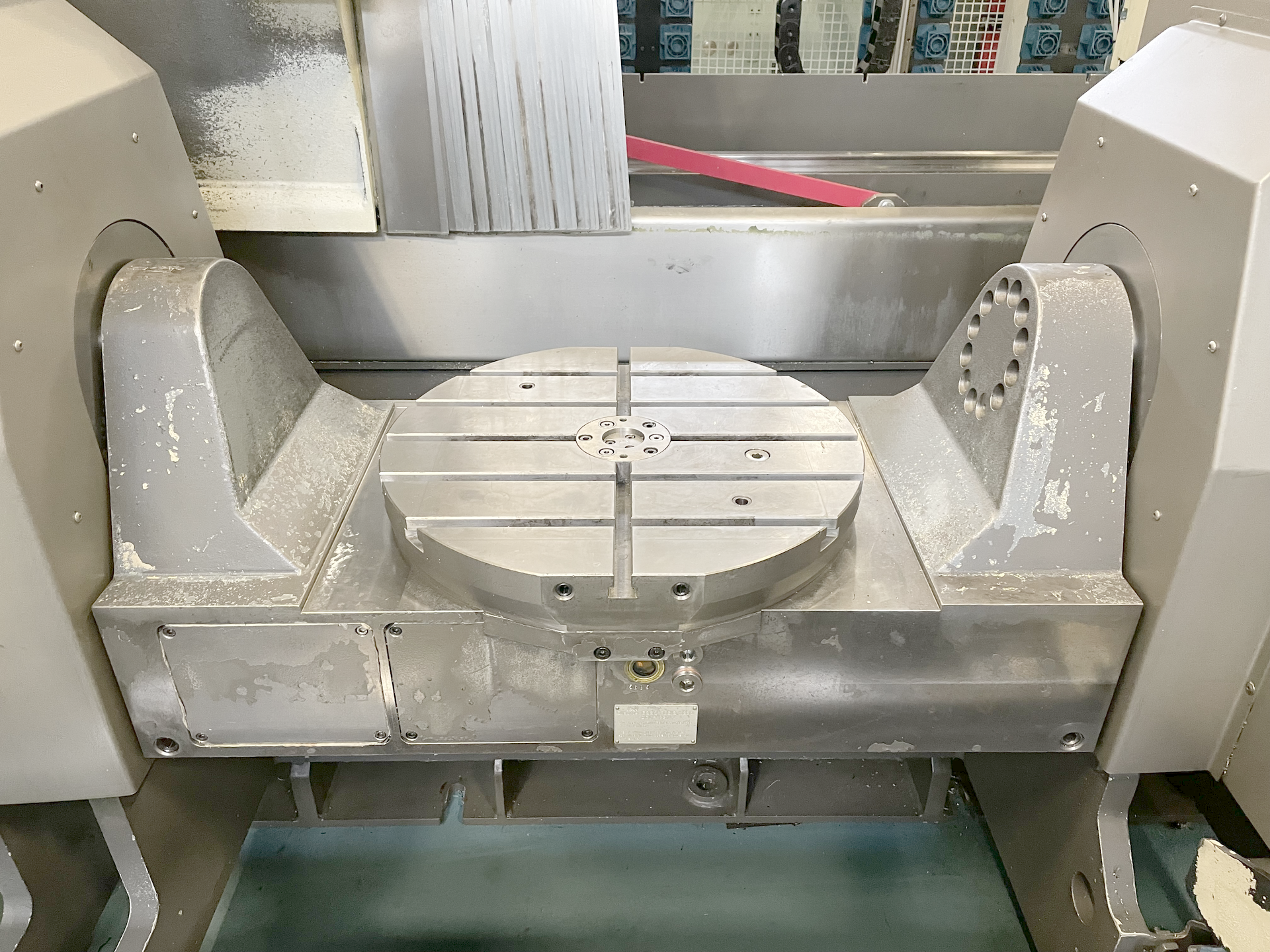

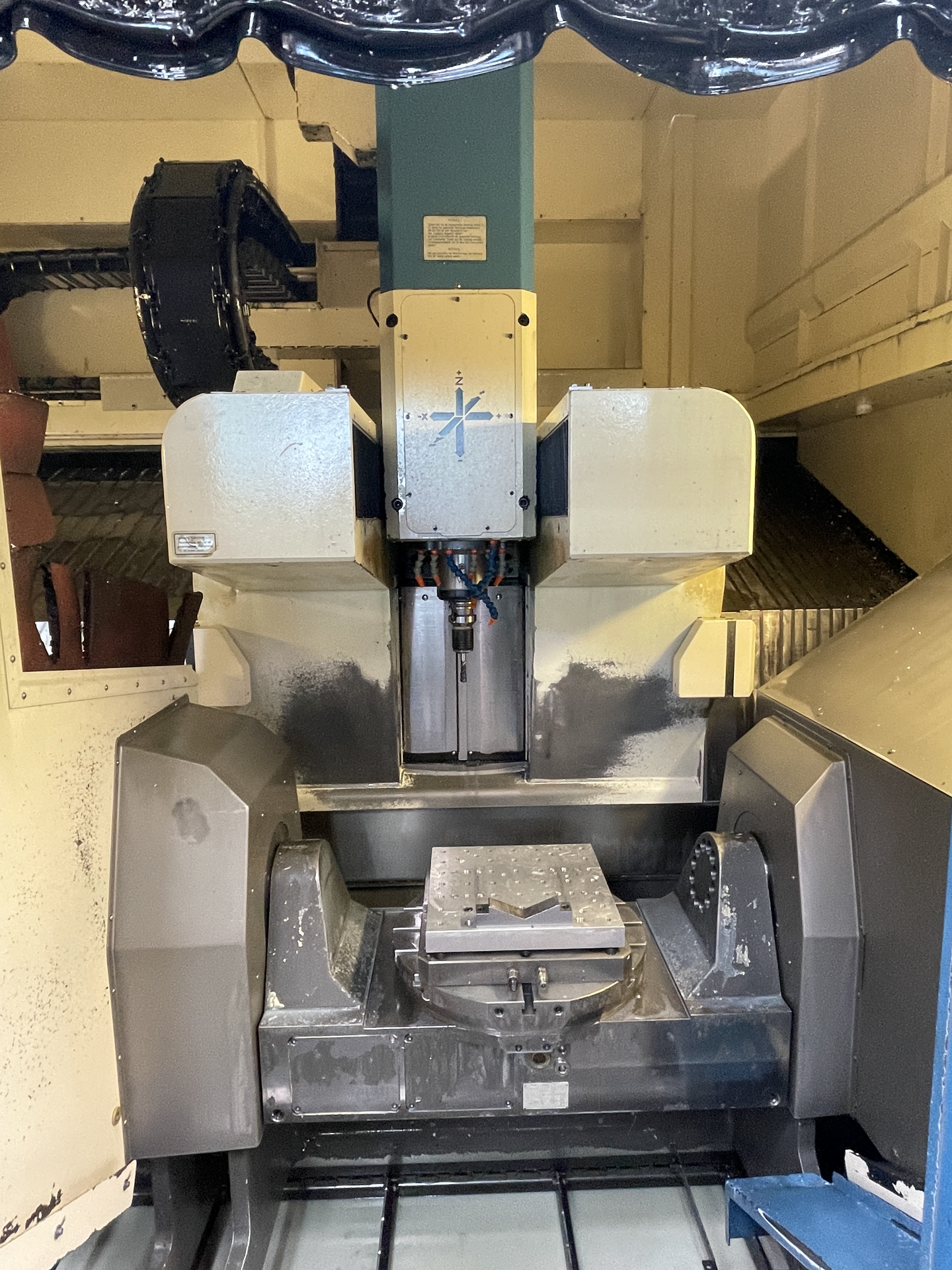

Circulary table diameter: 680 mm.
Table load max.: 300 kg.
Longitudinal travel (X-axis): 2000 (600) mm.
Transversal travel (y-axis): 620 mm.
Vertical travel (z axis): 520 mm.
Swivel angle (a-axis): +15 / -95 °.

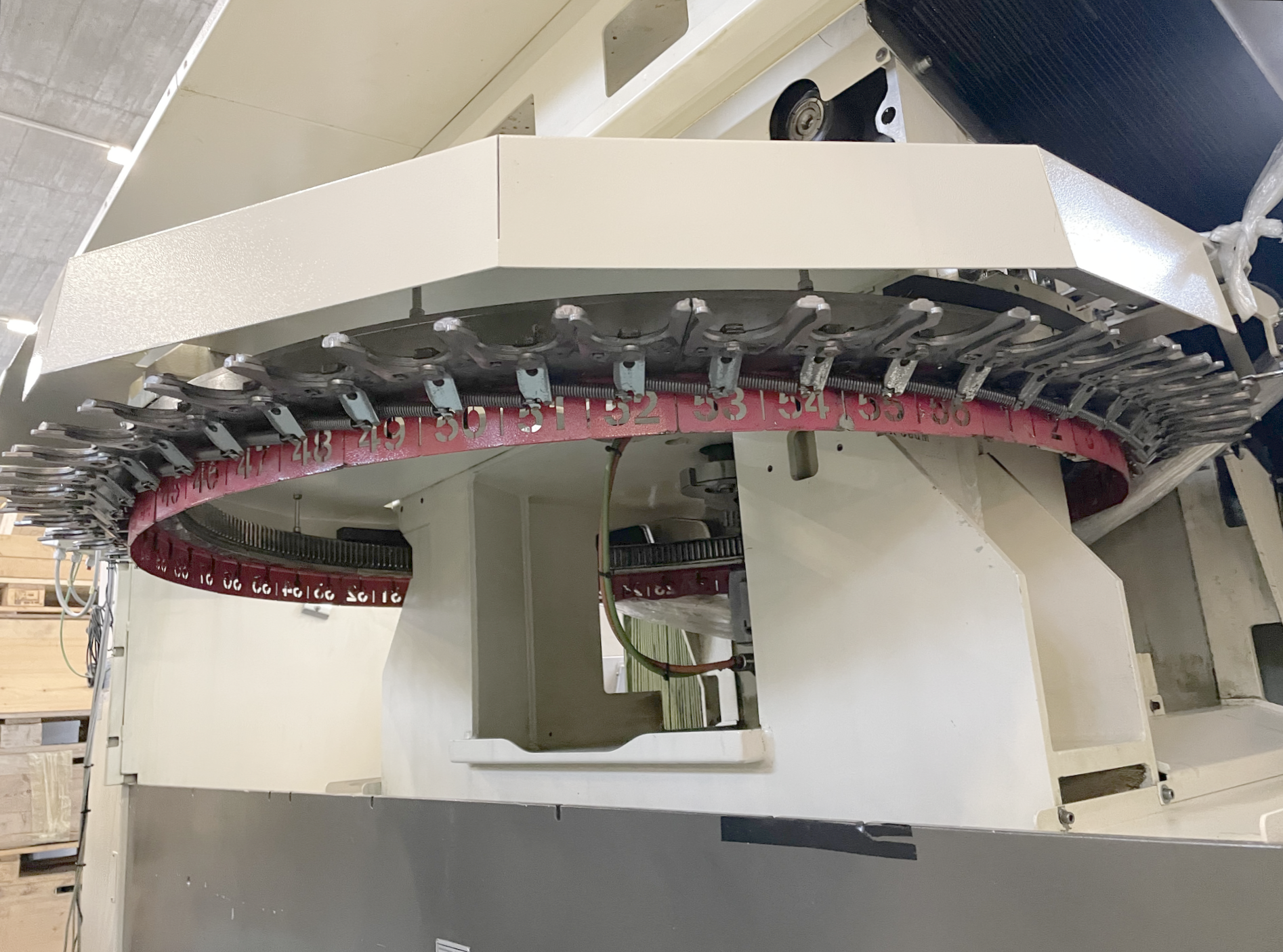

Tool magazine number of tool places: 56.
Tool diameter max.: 80 mm.
Tool lenght: 330 mm.
Max. tool-weight: 8 kg.
Time of tool changing: 3 s.

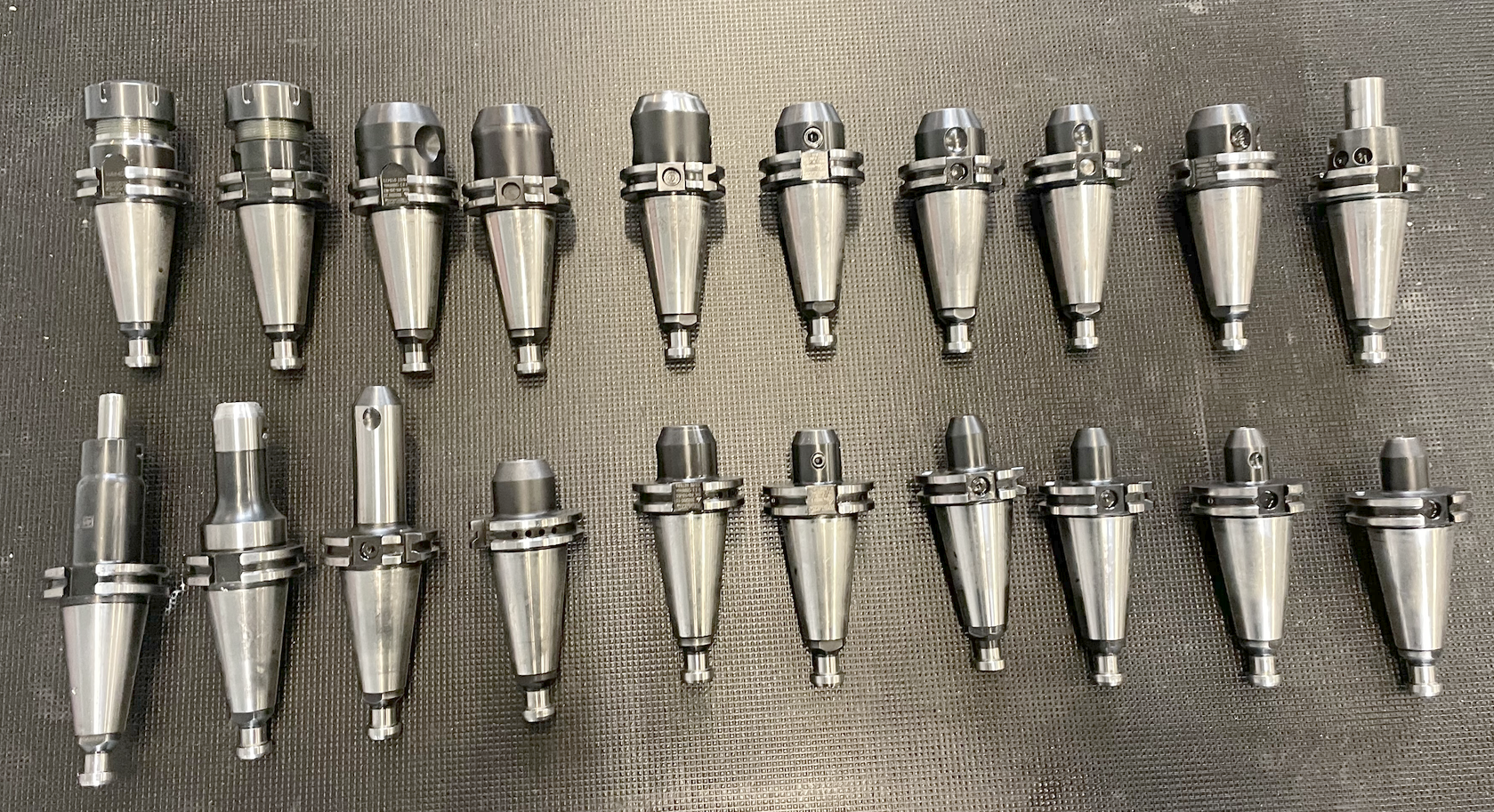

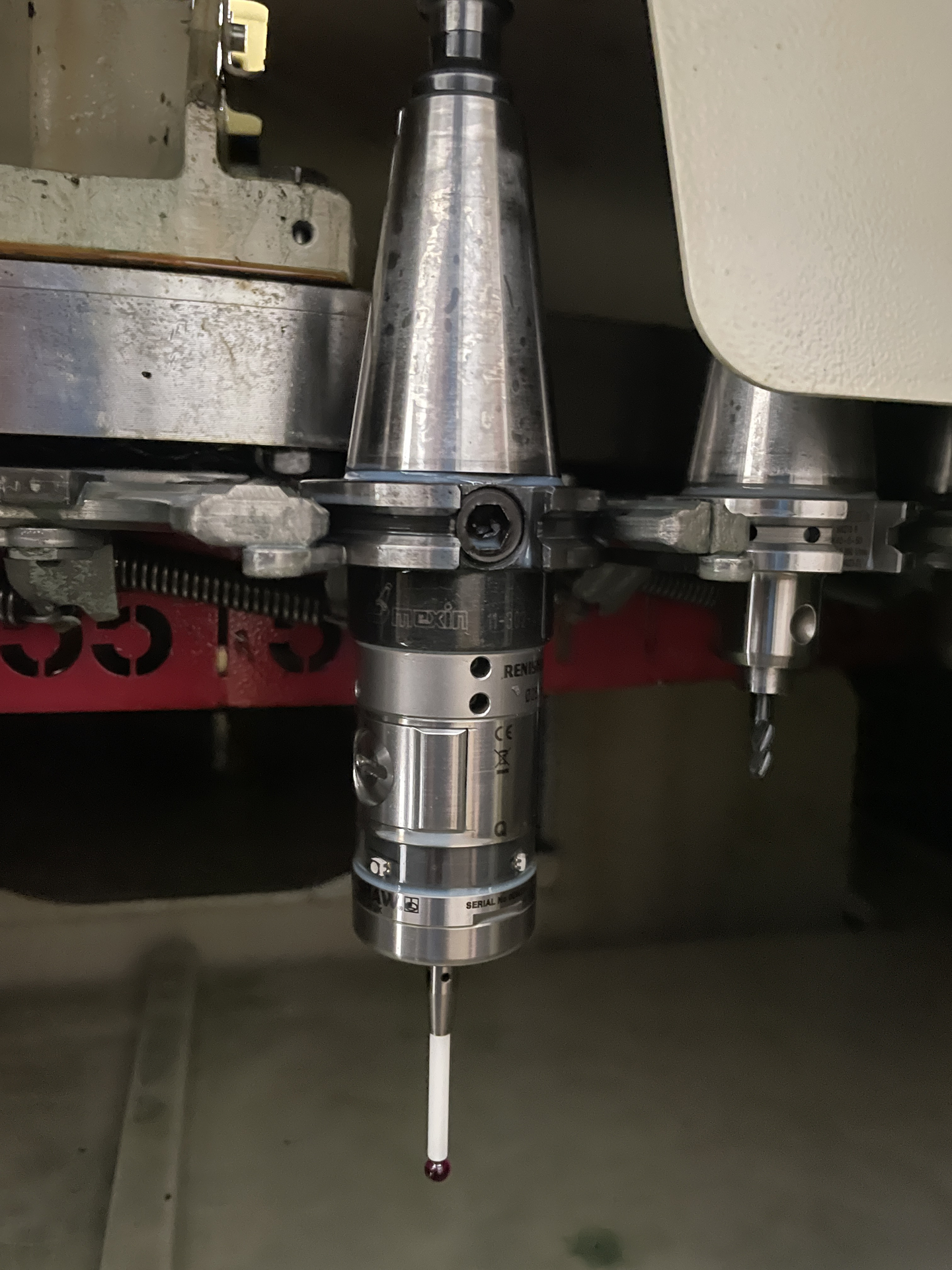

Spindle nose SK: 40 DIN 69871.
Distance spindle nose to table: 100 - 620 mm.
from: 50 t/min.
up to: 12000 t/min.
Torque max.: 121 Nm.
Feed range: 0 - 45000 mm/min.
Rapid traverse:: 45 m/min.
Max. Feed force: 7000 N.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 25 kVA.
Noise level: 77 dB (A).
Machine's weight about: 11000 kg.
Length: 5400 mm.
Width: 4300 mm.
Height: 3000 mm.

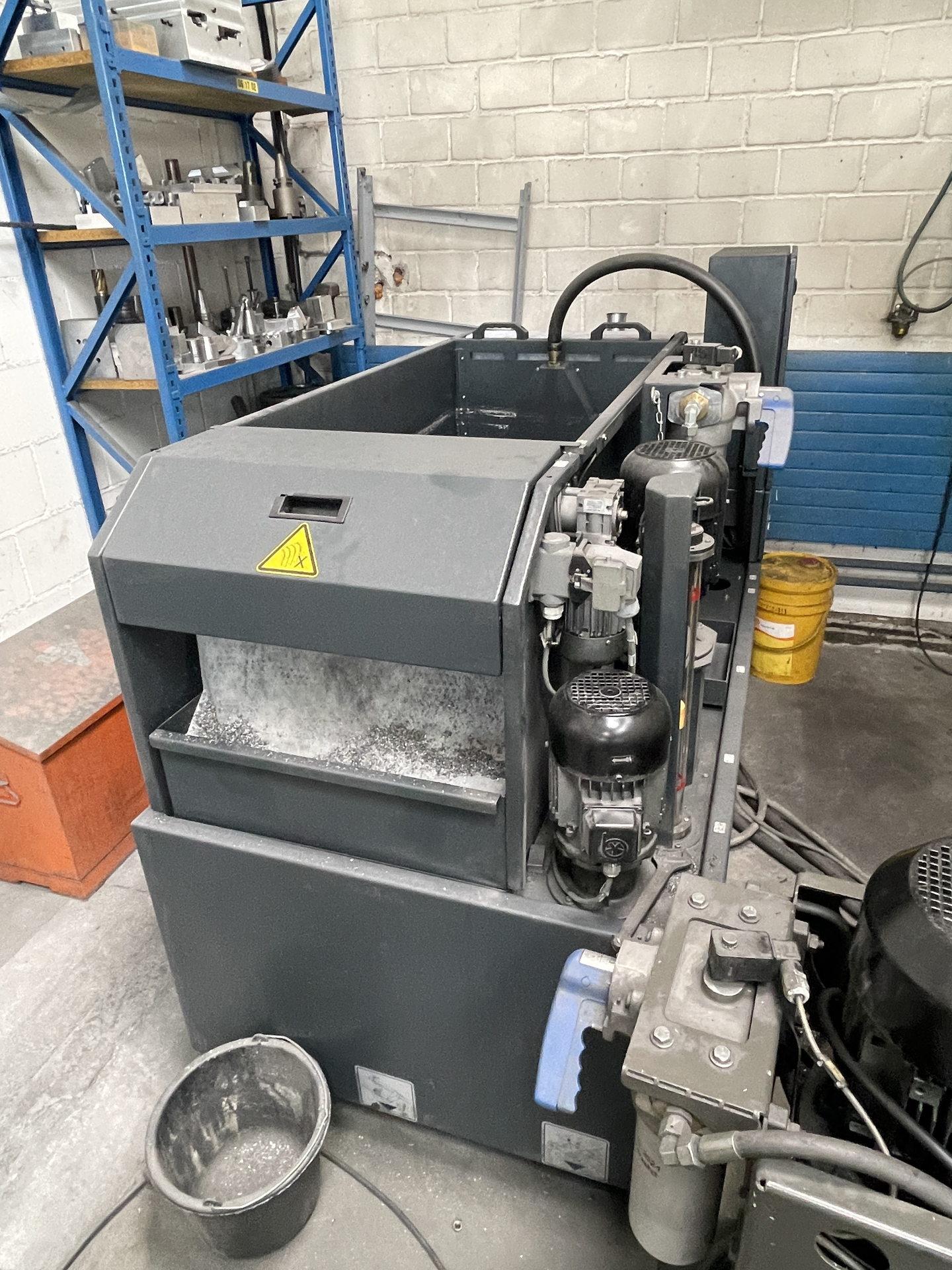

Coolant system: 1250 l.

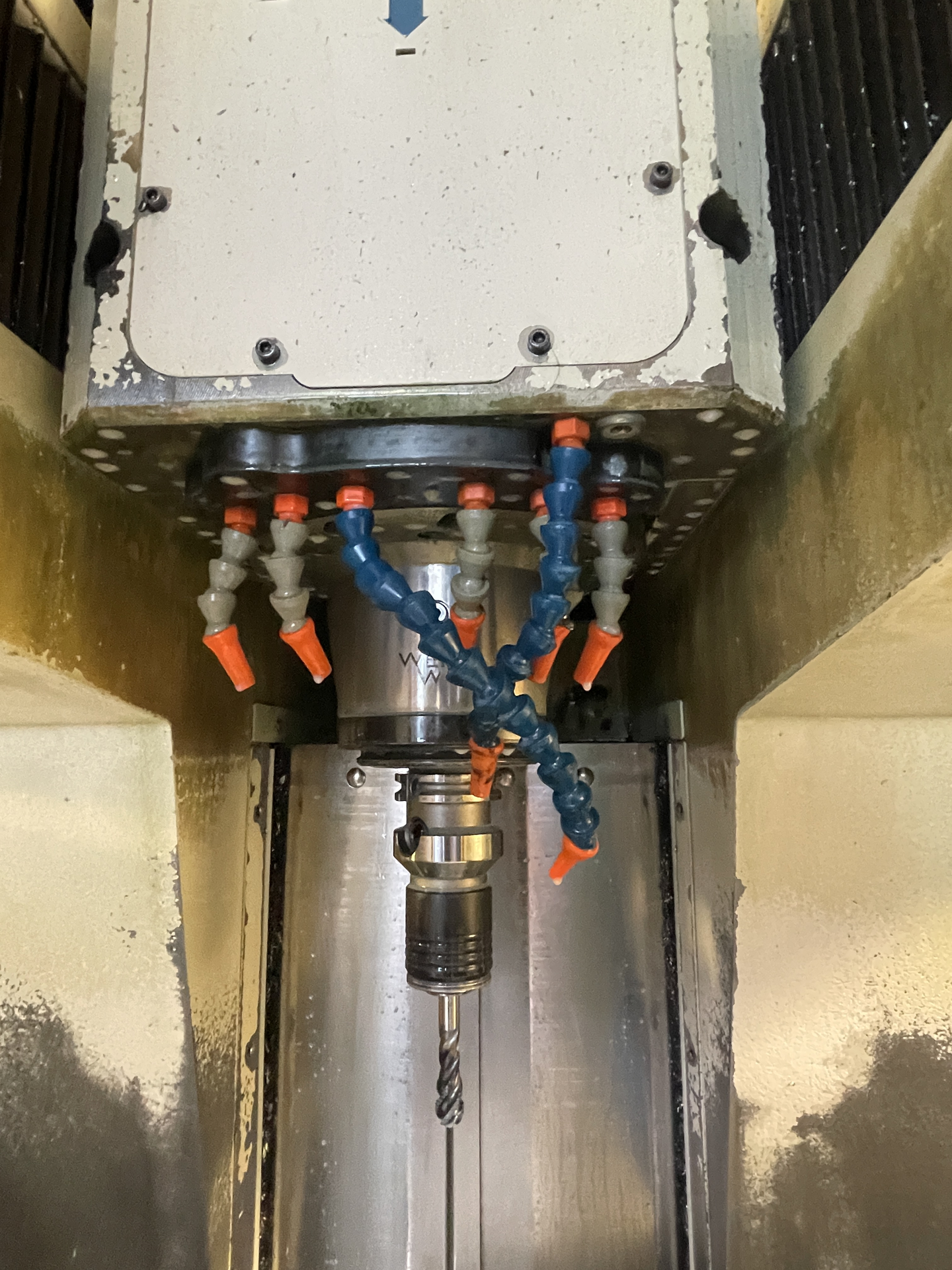

High pression colant device: 80 bar.
