REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
SCHAUBLIN

Model:

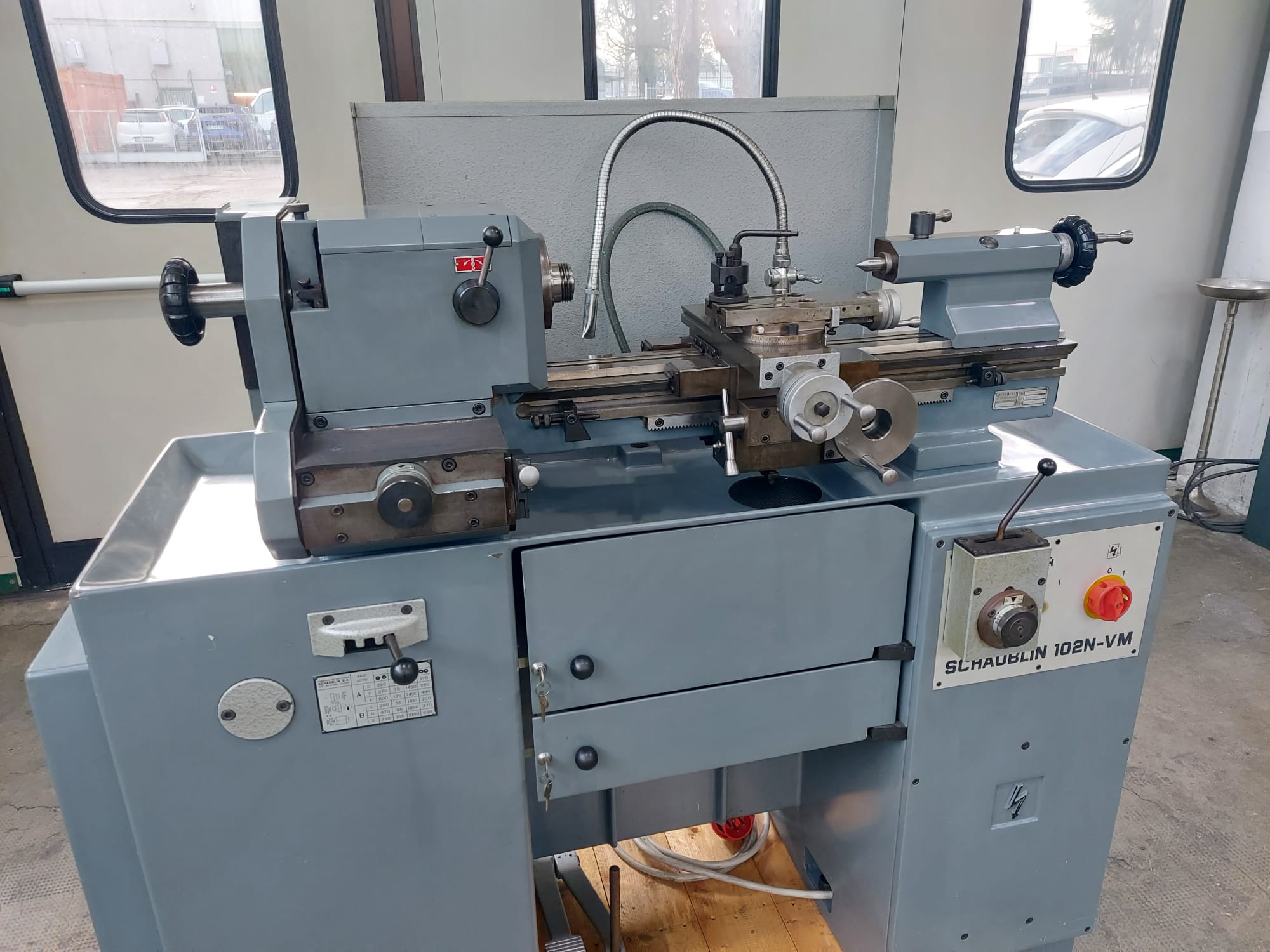

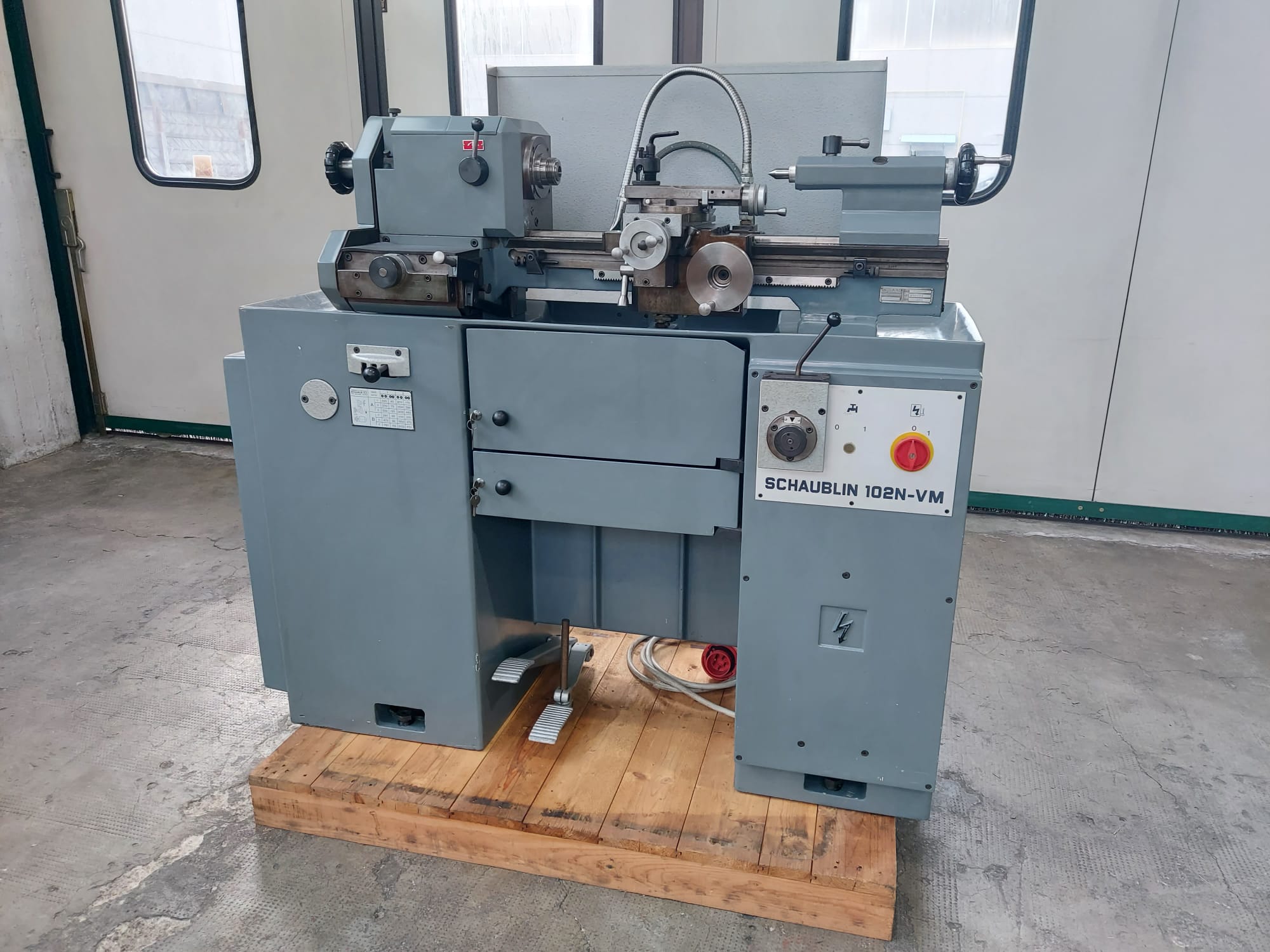

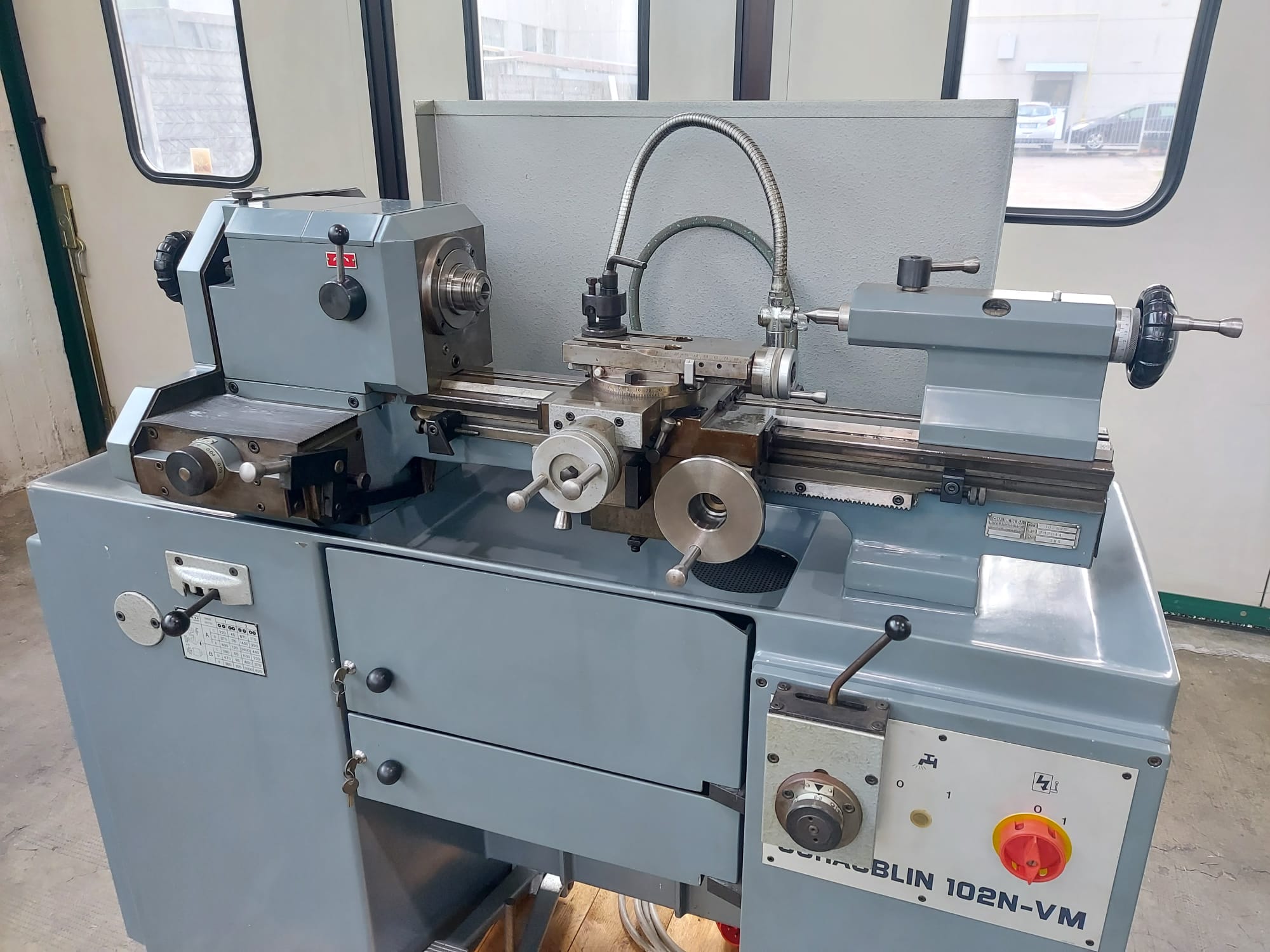

023100 - SCHAUBLIN 102N-80 VM

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 102 mm.
Distance between centres: 450 mm.
Swing over cross-slide: 120 mm.
Swing over bed: 200 mm.
number (steps): 8.
from: 0.020 mm/t.
up to: 0.3 mm/t.
Pitch of leadscrew: 4 mm.
Diameter of leadscrew: 40 mm.

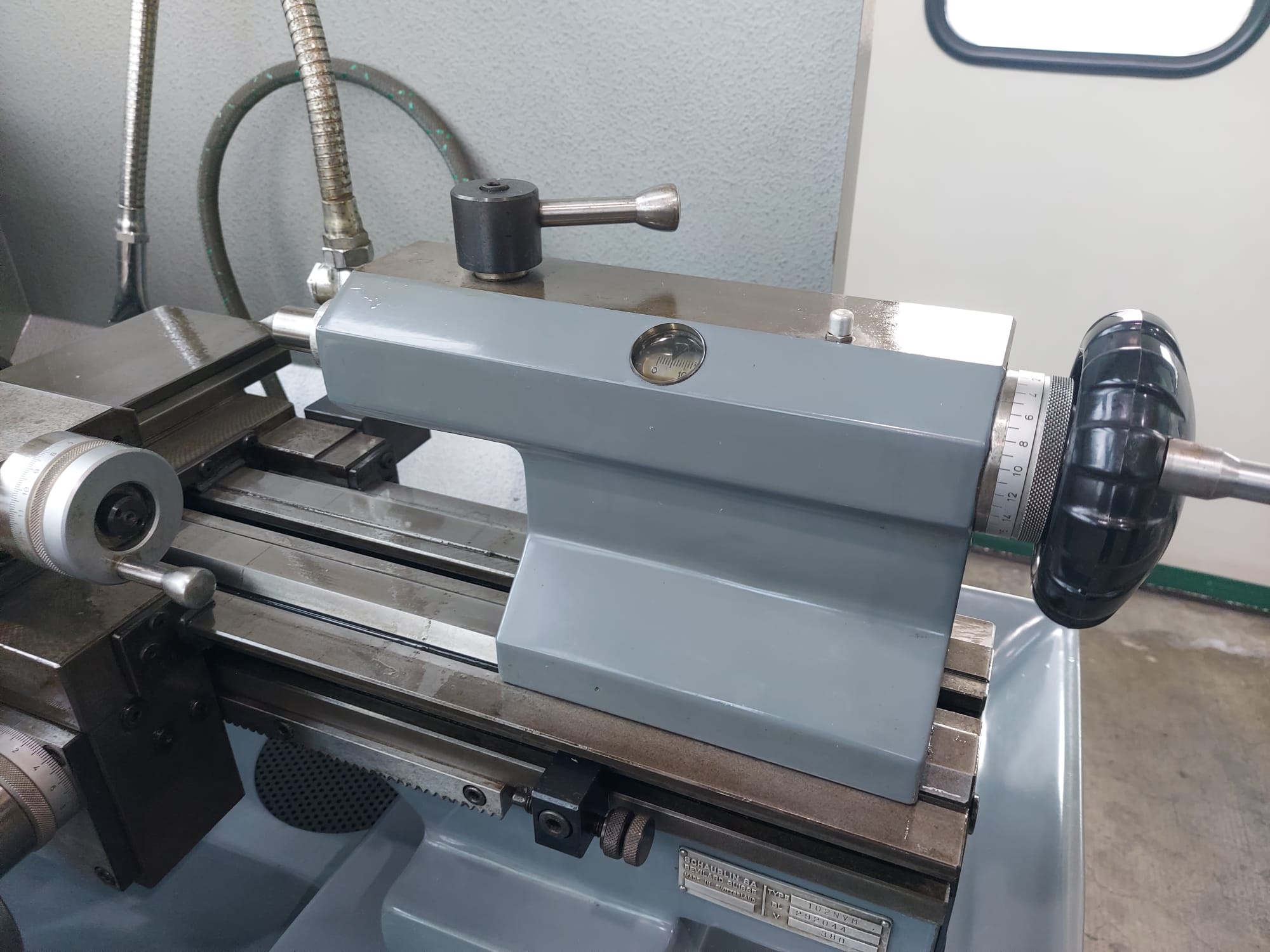

Taper in tailstock:: 2 CM.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 1.50 CV.
Machine's weight about: 550 kg.
Length: 1375 mm.
Width: 670 mm.
Height: 1210 mm.
6-jaw chuck diameter: mm.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY

Sellers

Muller Machines SA

Contact Name
Laurent Muller
