MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TORNOS
  • Model:

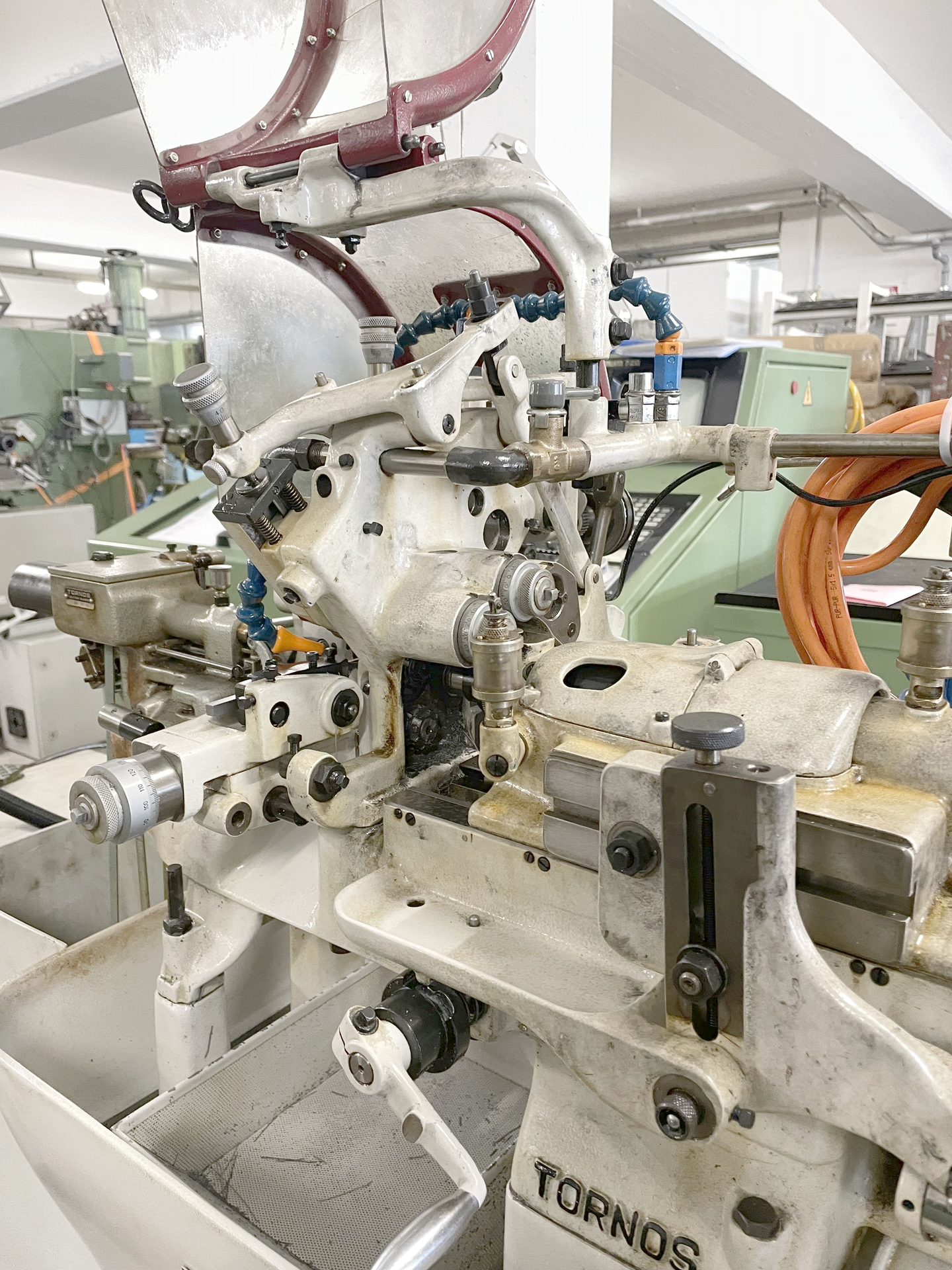

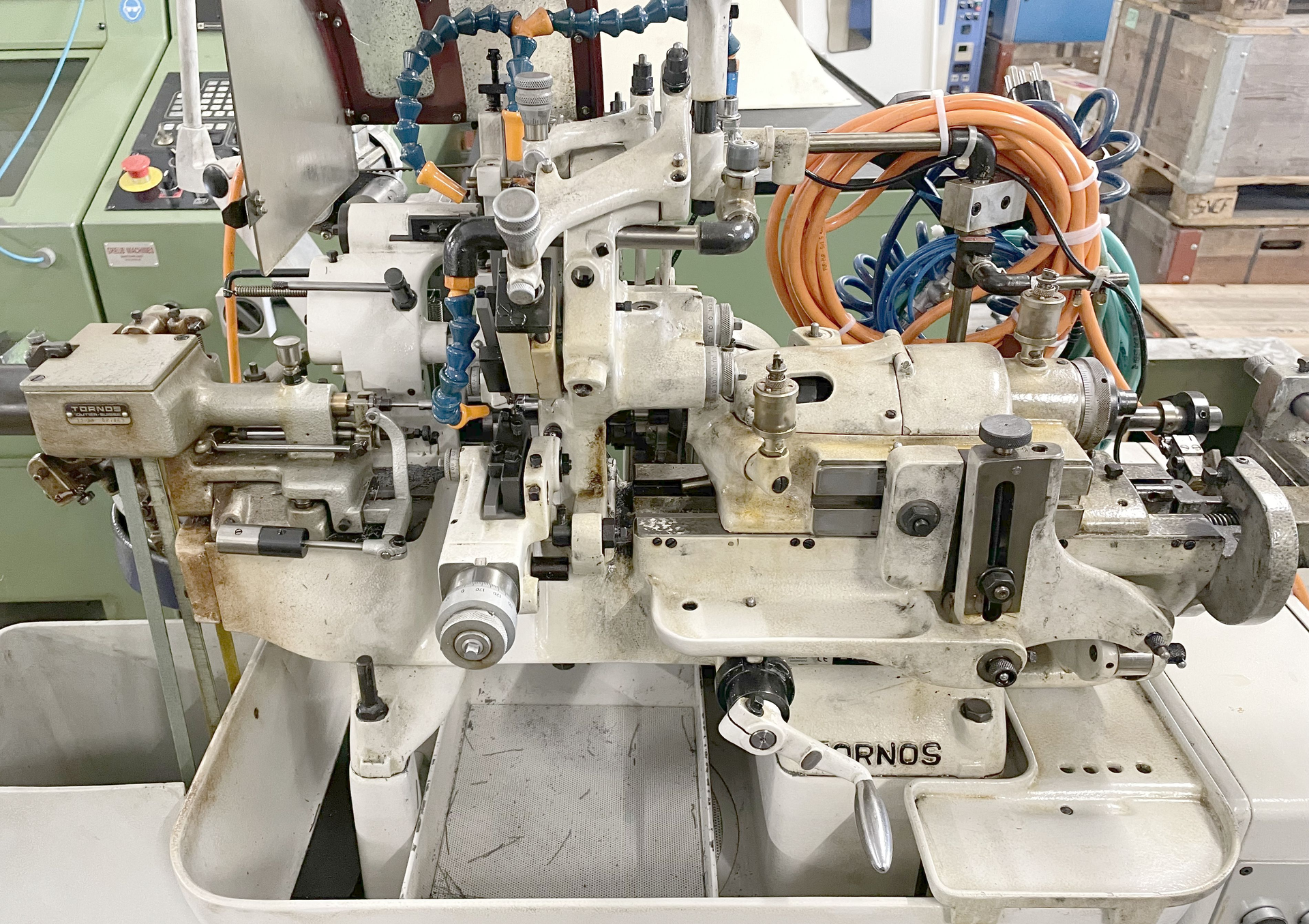

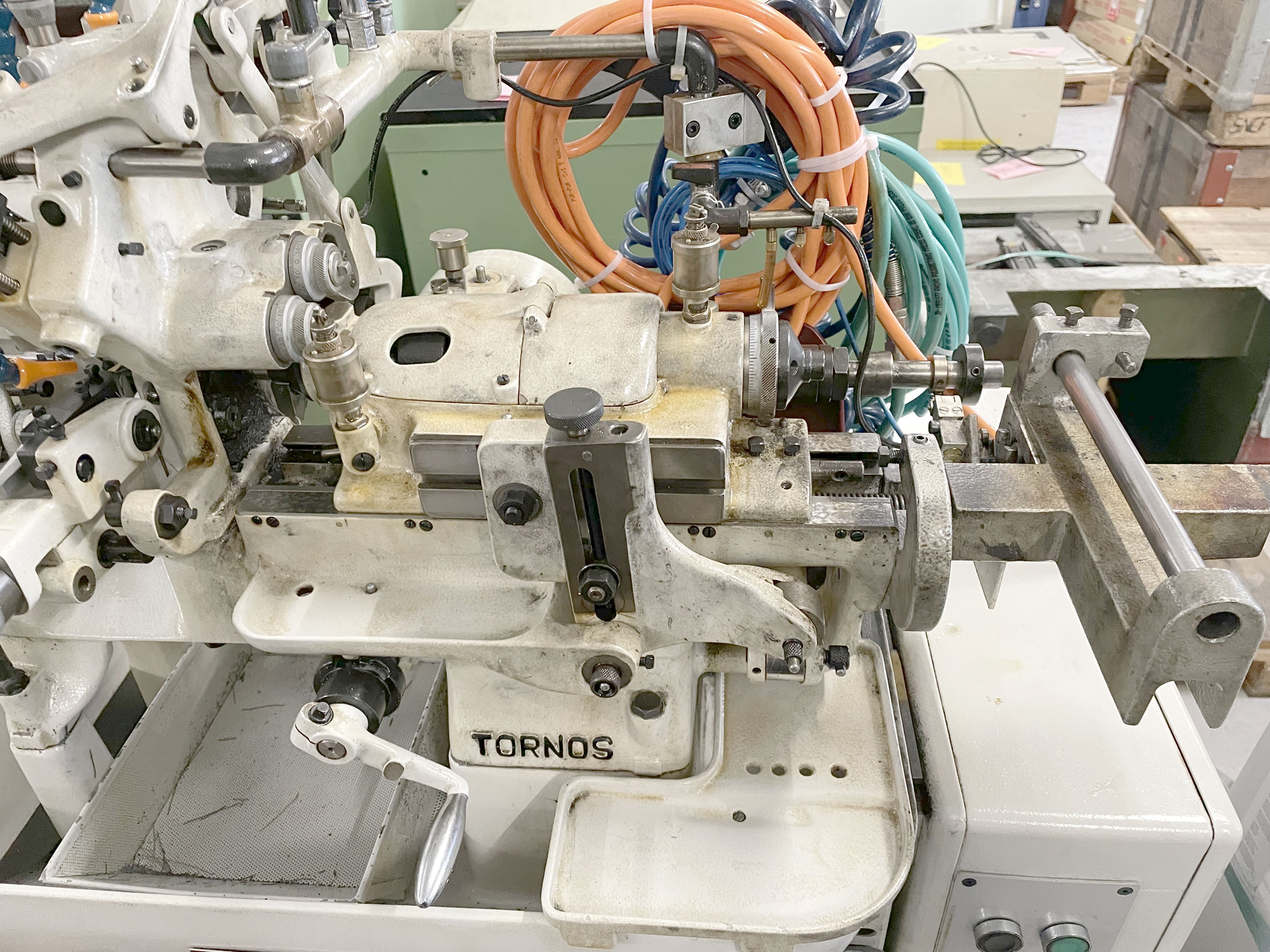

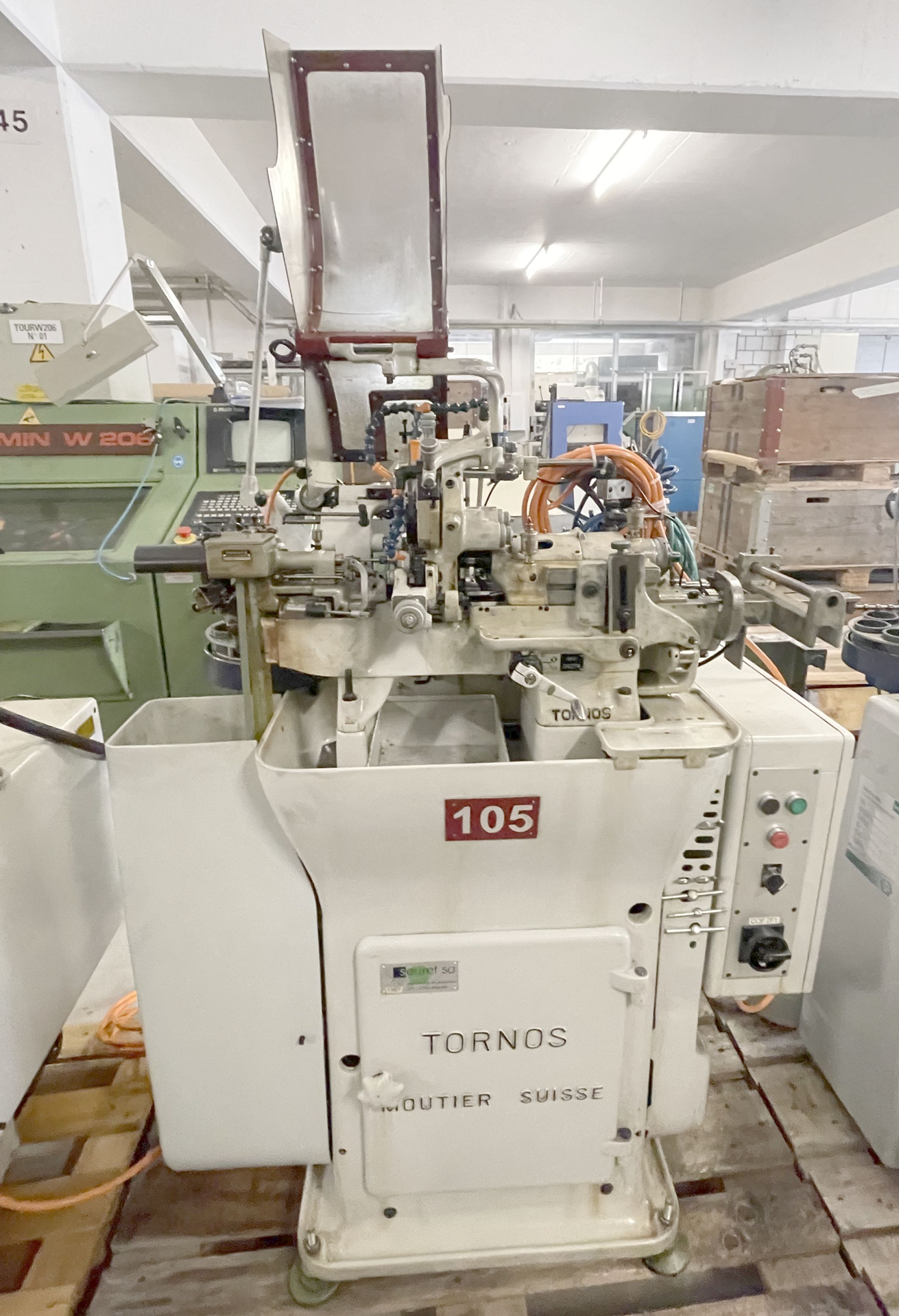

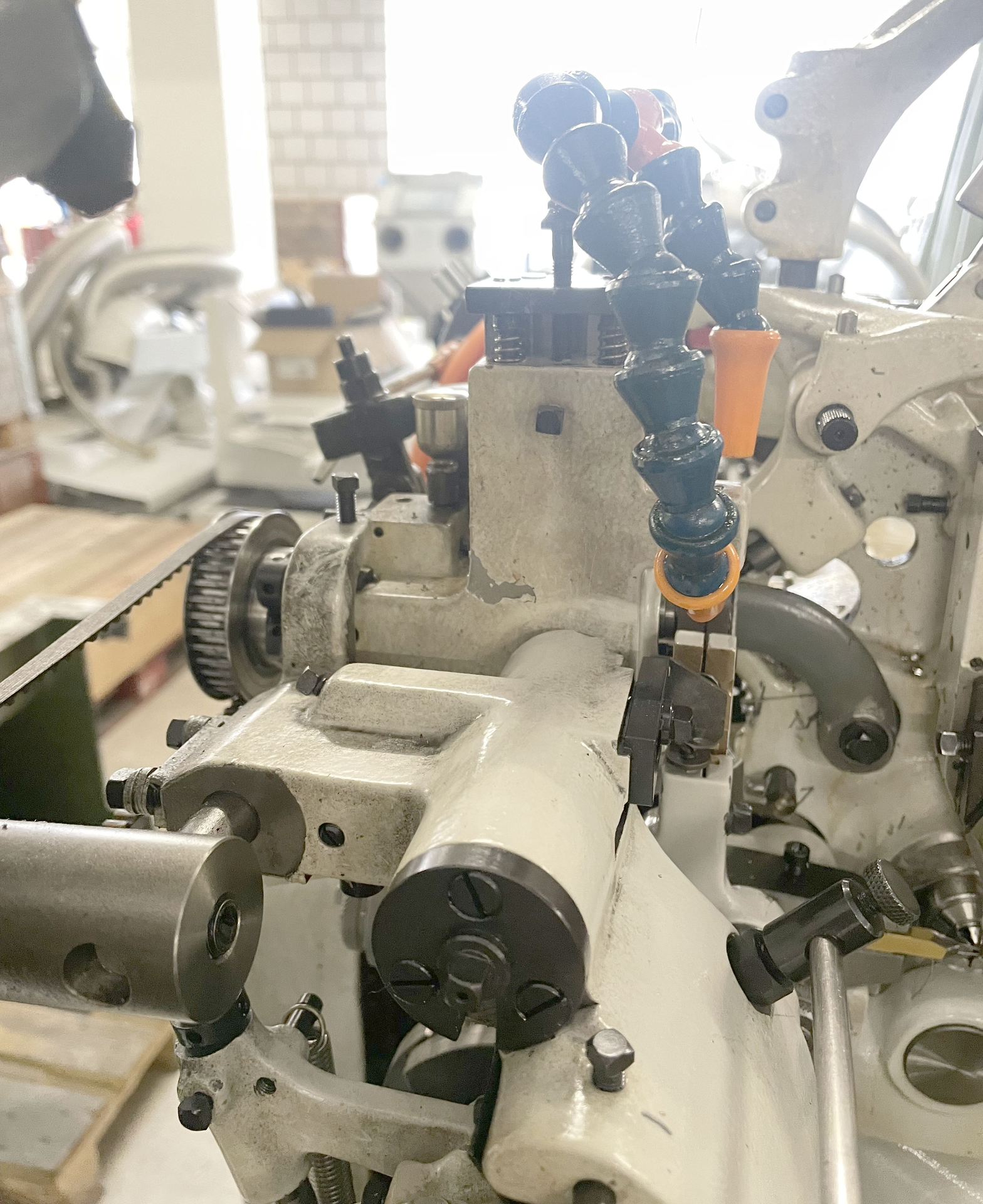

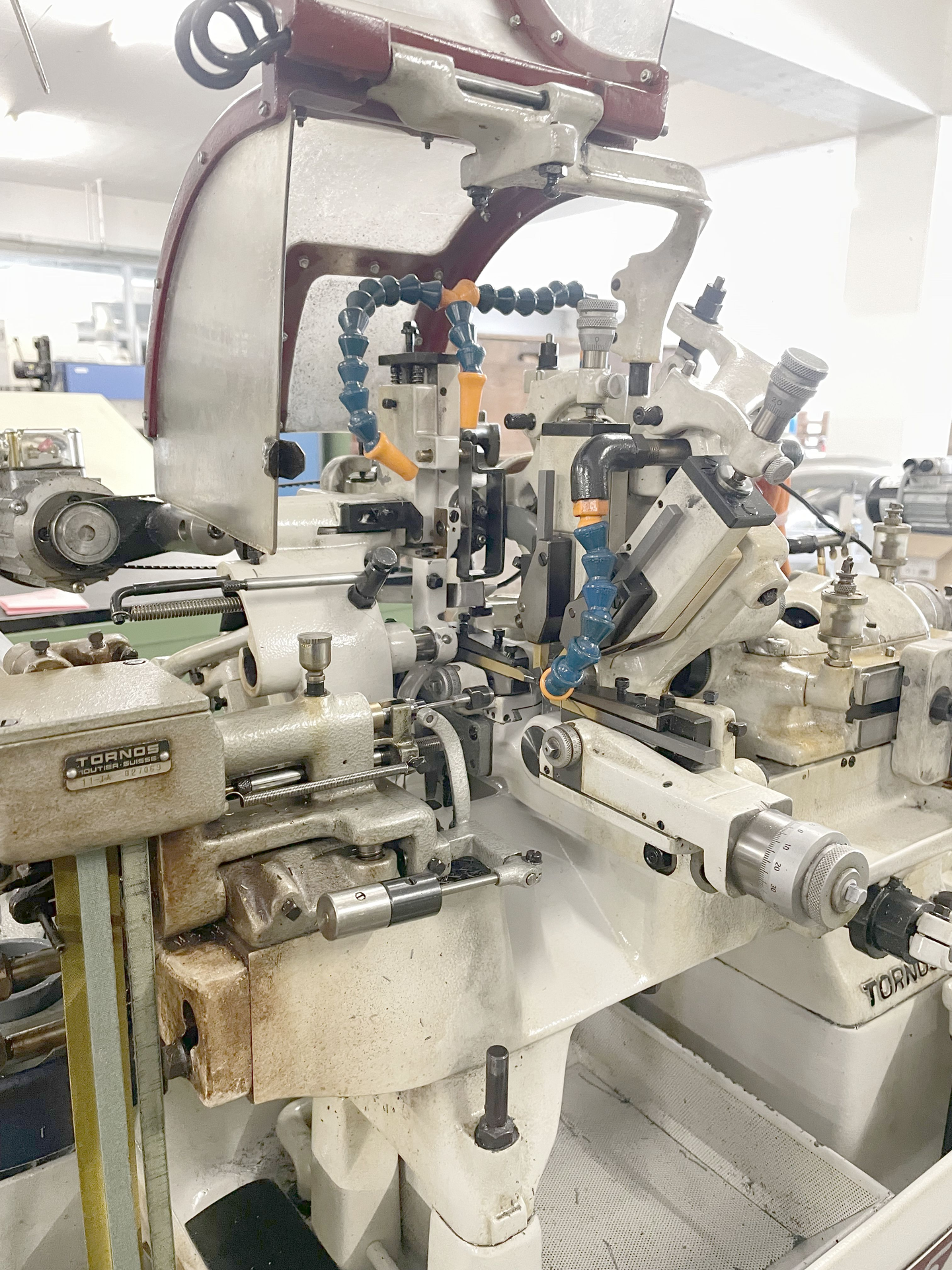

  • 022752 - TORNOS M 4
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Diameter of work admitted: 4 mm.
with flat cames: 28 mm.
Spindle hole: 6 mm.
Max. treading diameter: 4 M.
Number of tool cutters: 5.
Number of spindle speeds: 14.
from: 2000 t/min.
up to: 12000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 1.5 CV.
Machine's weight about: 350 kg.
Length: 1000 mm.
Width: 700 mm.
Height: 1300 mm.
Threading attachment: 11 TA.
