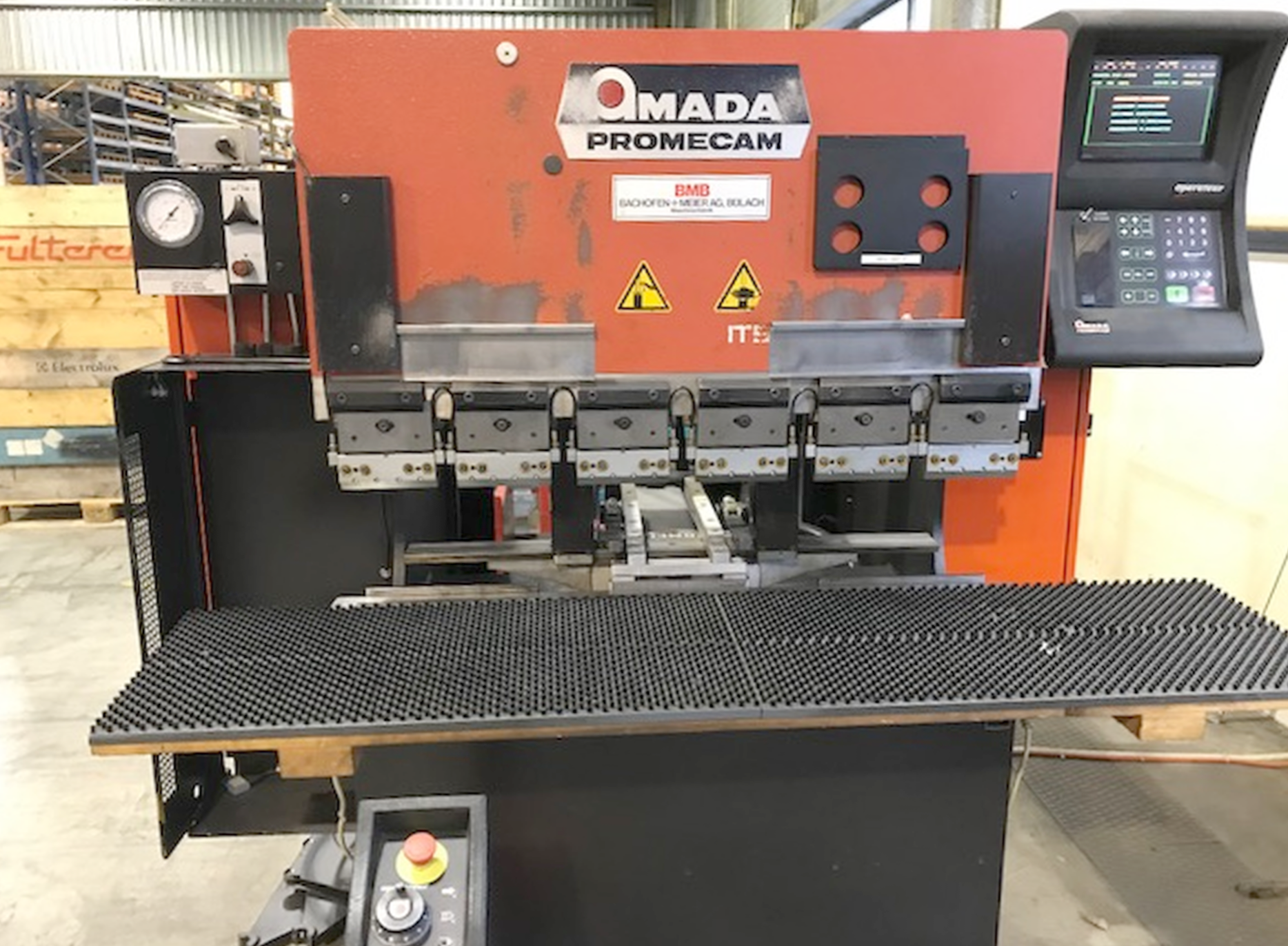

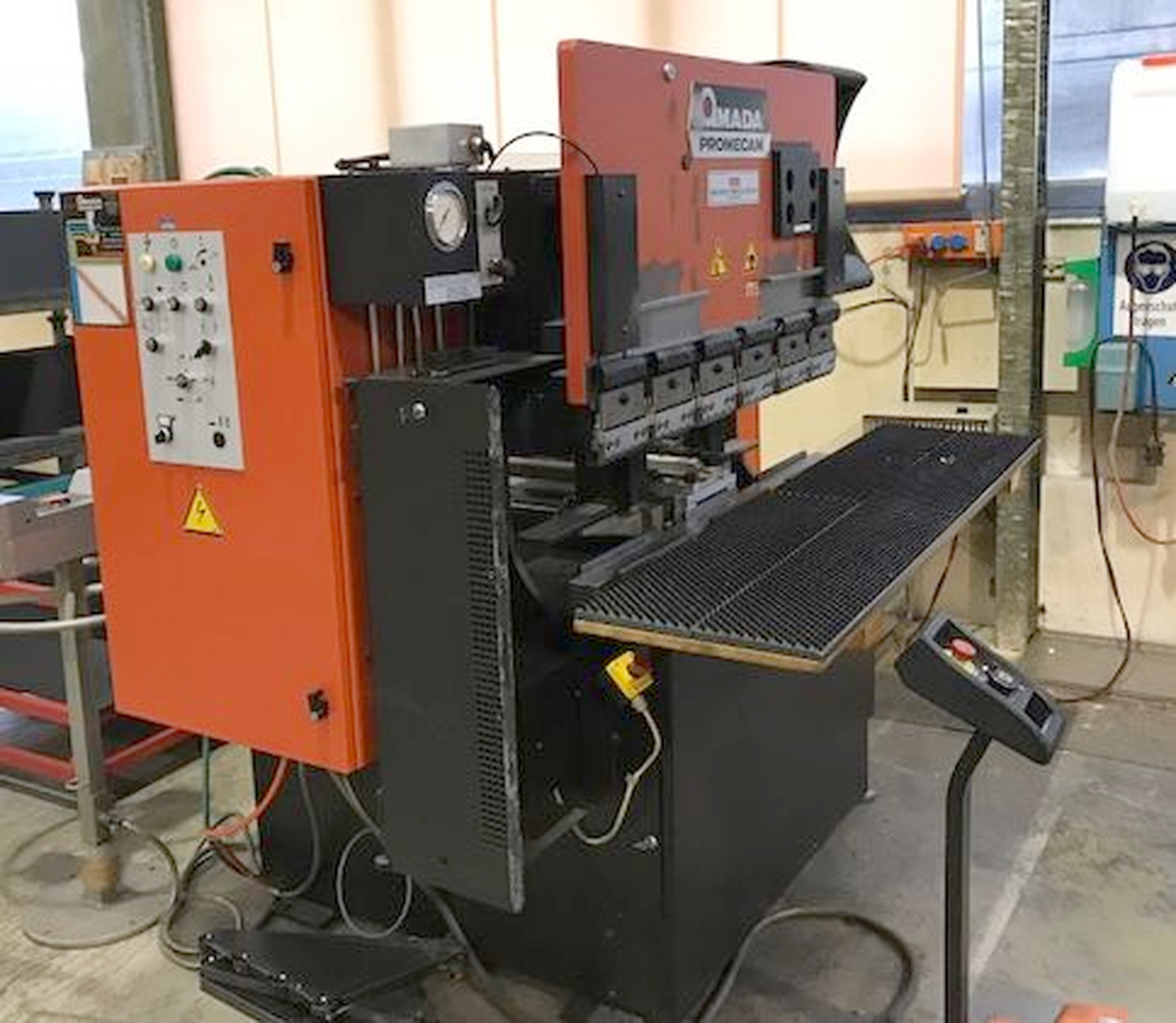

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Amada
  • Model:
  • 020228 - AMADA ITS2 2
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.
Pressure: 25 to.
Max. Bending length: 1250 mm.
Passage between press bars: 320 mm.
Distance between the: 1020.
Max. stroke: 100 mm.
Depth of throat: 200 mm.
Feed rate: 75 mm/s.
Working speed: 10 mm/s.
Return stroke speed: 80 m/min.
Table length: 1200 mm.
Table width: 60 mm.
Table height: 865 mm.
Number of spacers: 6 pce.
Height of the spacers: 120 mm.
Number of cylinder: 1 pce.
Oil capacity: 30 l.
Voltage 50 Hz 3x: 400 Volt.
Motor power: 4 kW.
Machine's weight about: 1600 kg.
Length: 1800 mm.
Width: 1200 mm.
Height: 2000 mm.
