MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

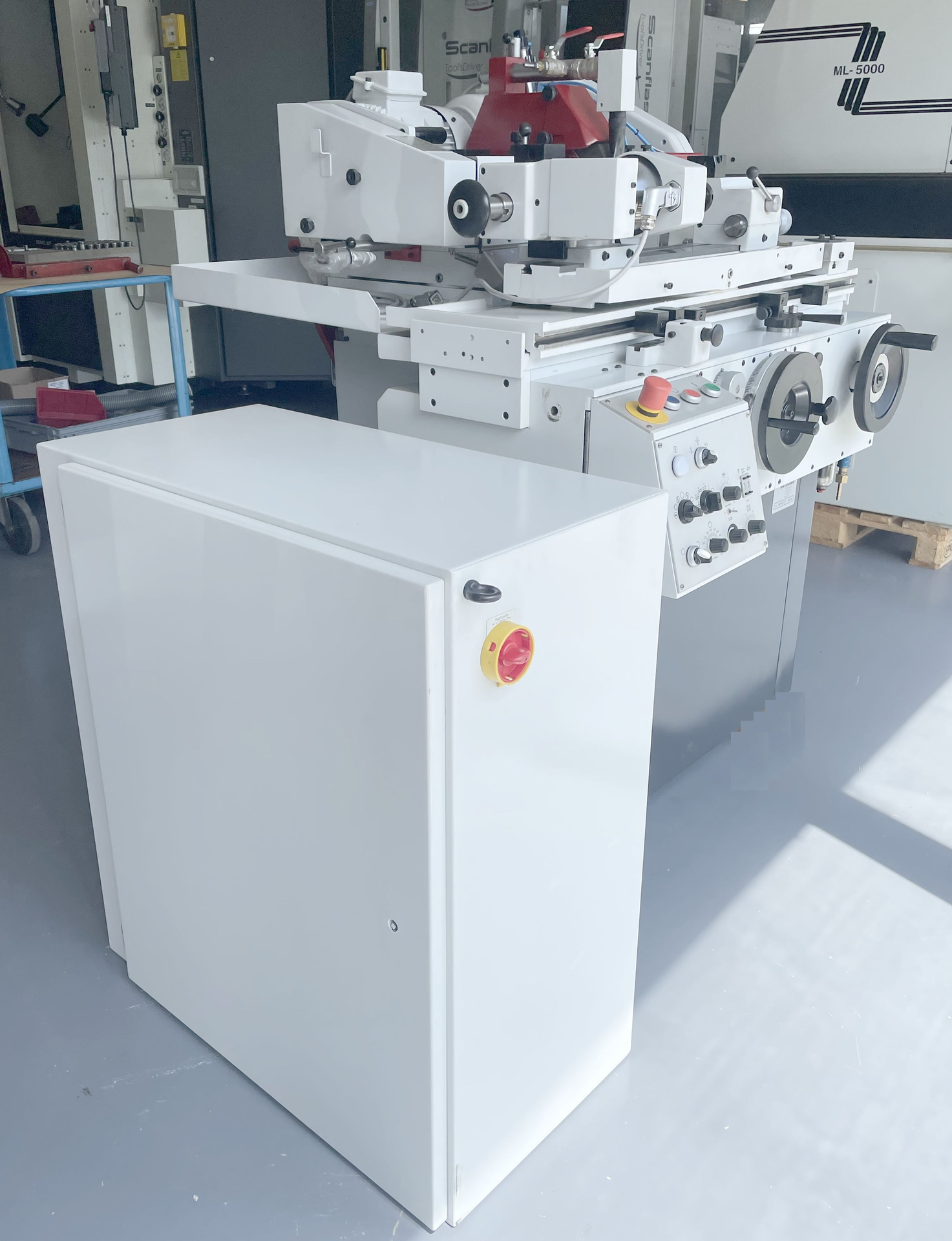

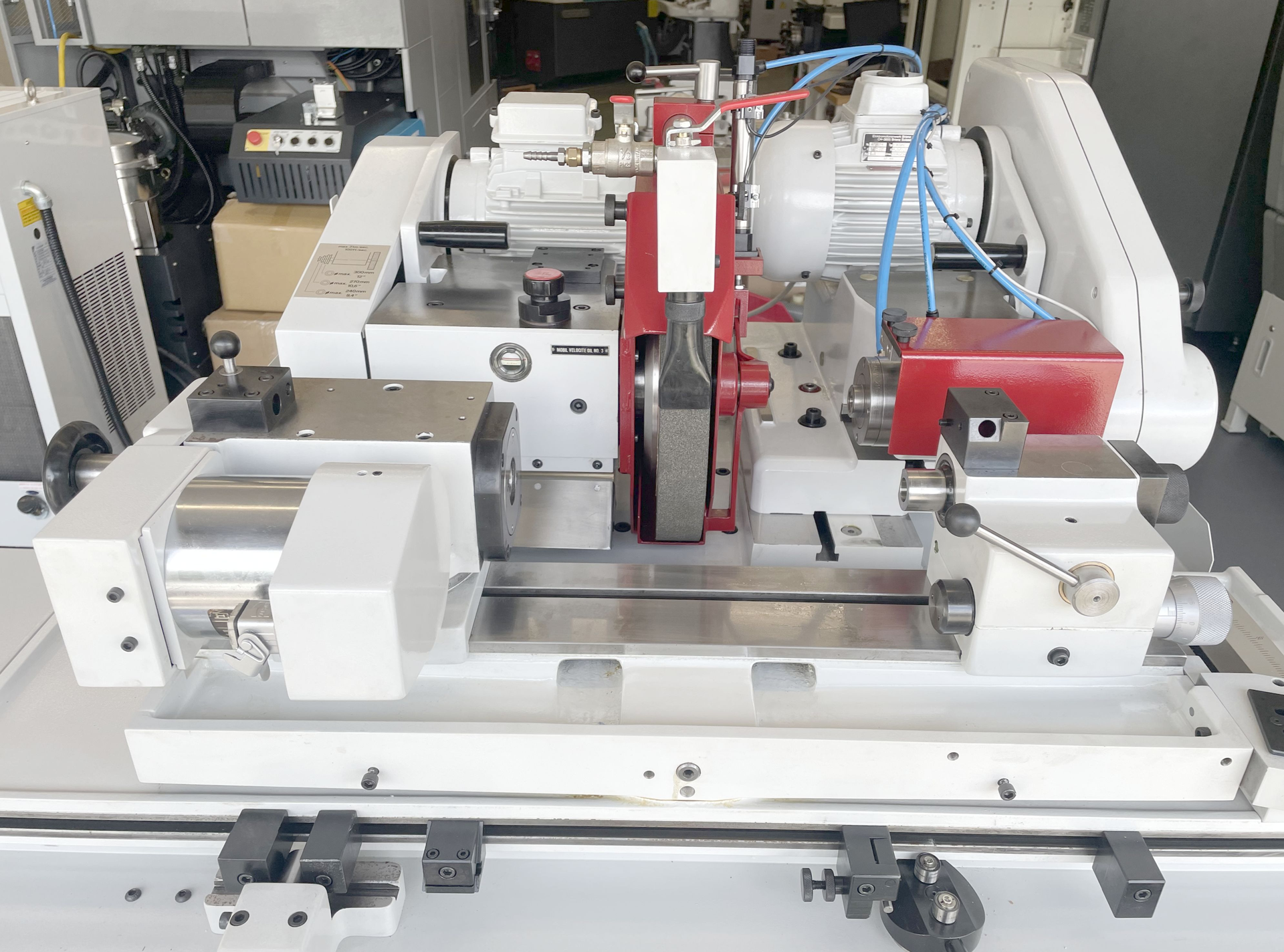

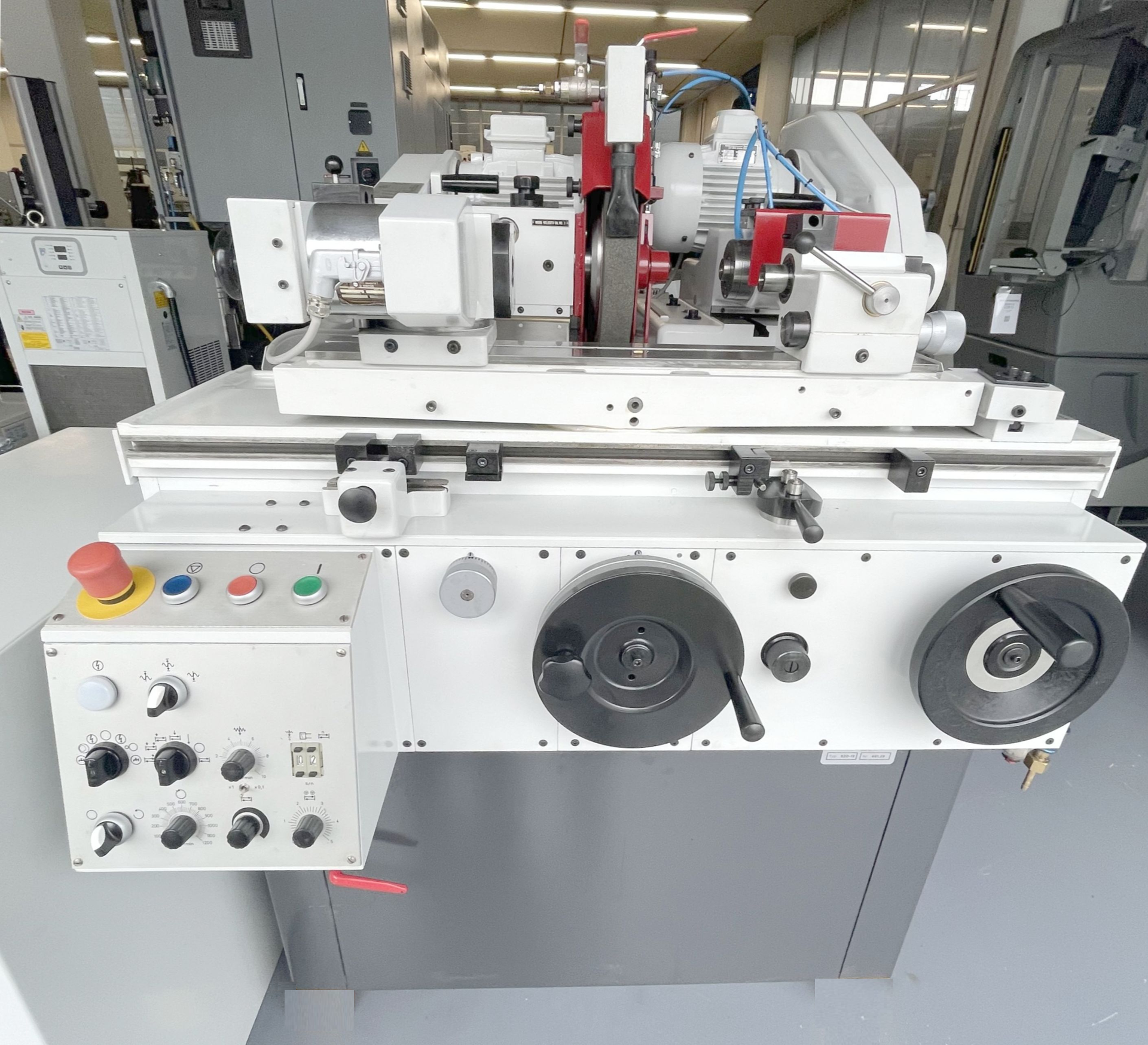

  • 022364 - STUDER S 20-12
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 100 mm.
Distance between centres: 400 mm.
Diameter: 300 mm.
Width: 1400 mm.
Bore: 127 mm.
Angular displacement: 30 °.
from: 100 mm/min.
up to: 3500 mm/min.
rotatable: 20 °.
Inner taper type: W20.
Spindle taper: 4 CM.
Taper in tailstock:: 2 CM.
Table angular displacement: 30 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 4.5 CV.
Machine's weight about: 1900 kg.
Length: 1500 mm.
Height: 1600 mm.
Spindle speeds: 45000 t/min.
Macnetic chuck diameter: 120 mm.
