MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

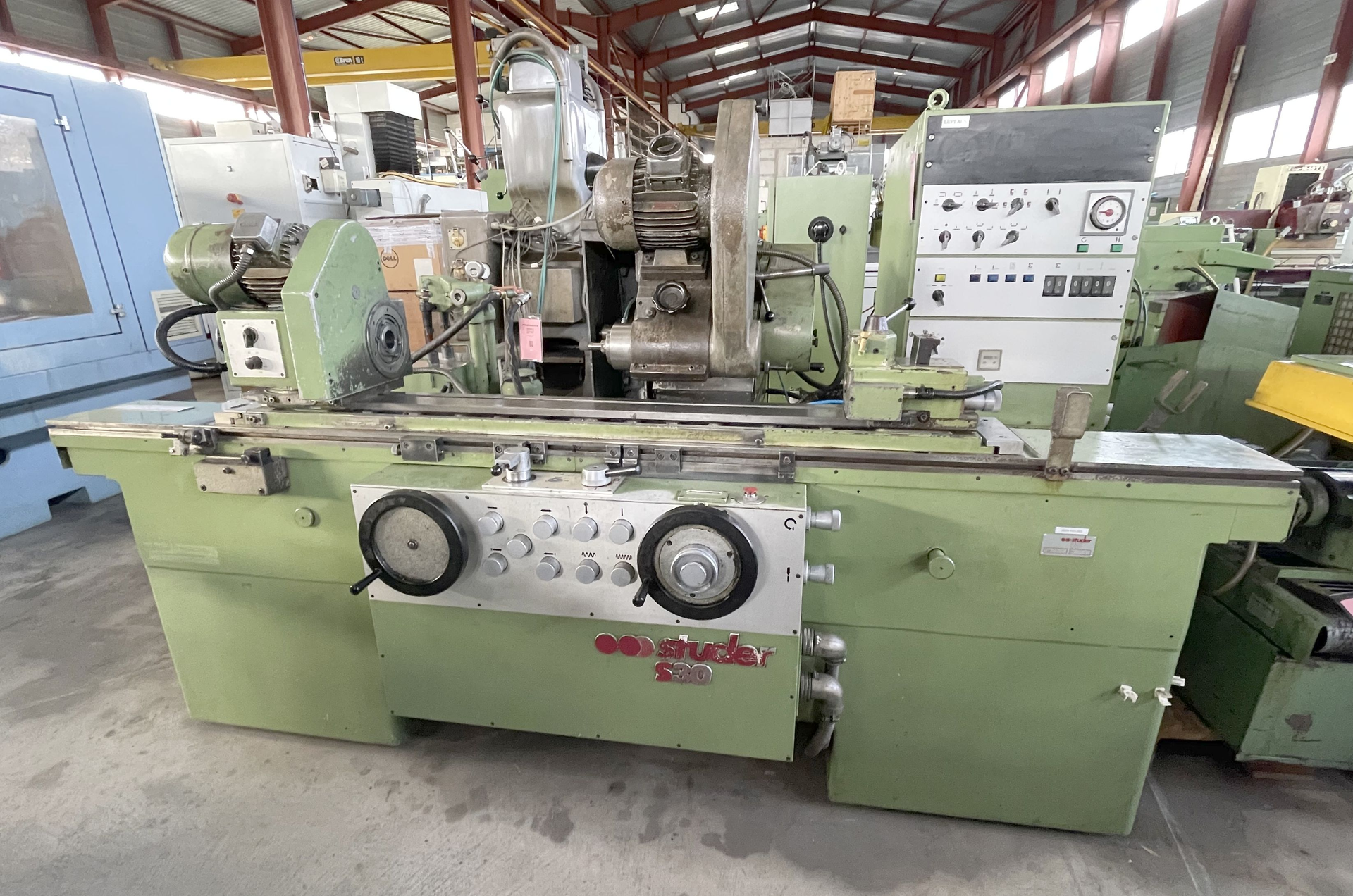

  • 022147 - STUDER S 30-12 F
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 125 mm.
Distance between centres: 1025 mm.
Max. Longitudinal travel: 800 mm.
Max. transversal travel: 150 mm.
Diameter: 450 mm.
Width: 500 mm.
Bore: 127 mm.
Workpiece weight on centres max.: 80 kg.
Swivelling range: +90 / 30 °.
number (steps): 6.
from: m/min.
up to: 6 m/min.
Hydraulic cross travel: 40 mm.
rotatable: 90 °.
Spindle taper: 5 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: 10 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 6.25 kW.
Internal Grinding wheel motor: 1 kW.
Machine's weight about: 2500 kg.
Length: 800 mm.
Height: 1600 mm.
Flange for outer pane: pce.
