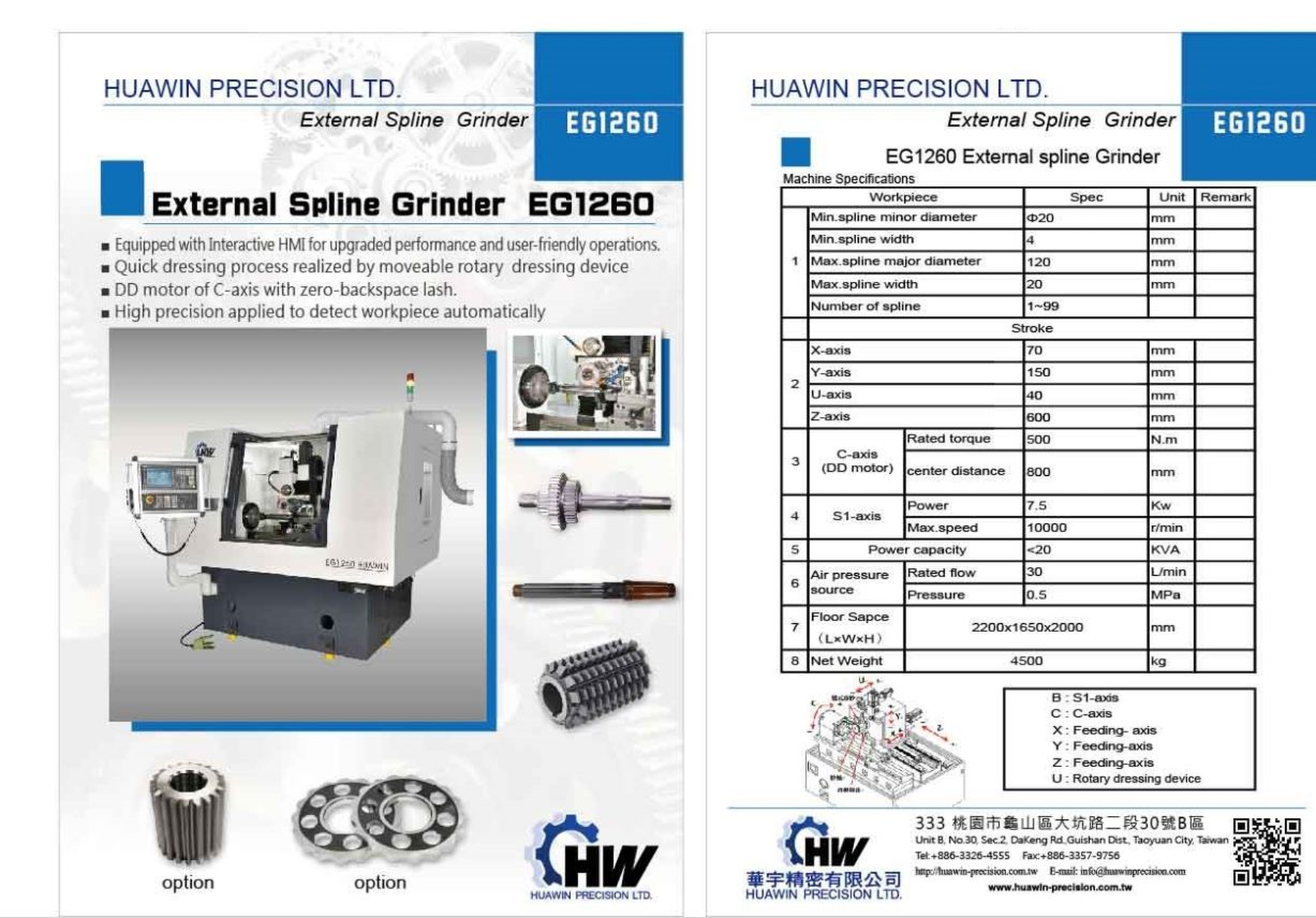

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • HUAWIN
  • Model:

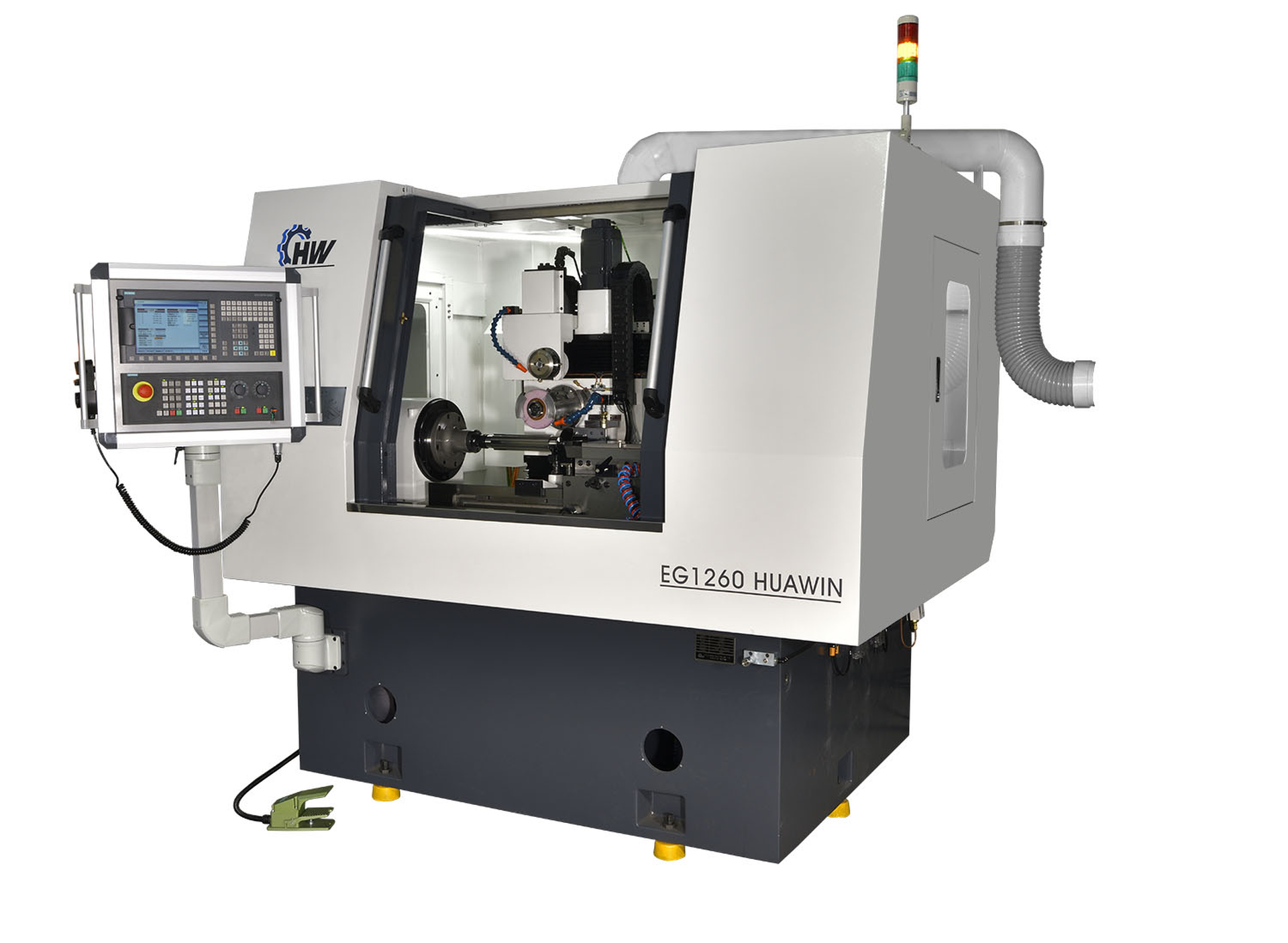

  • 021338 - HUAWIN EG 1260
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Max. Spline major diameter: 20 mm.
Max. spline major diameter: 120 mm.
Spline width min.: 4 mm.
Spline width max.: 20 mm.
Number of spline: 1 - 99.

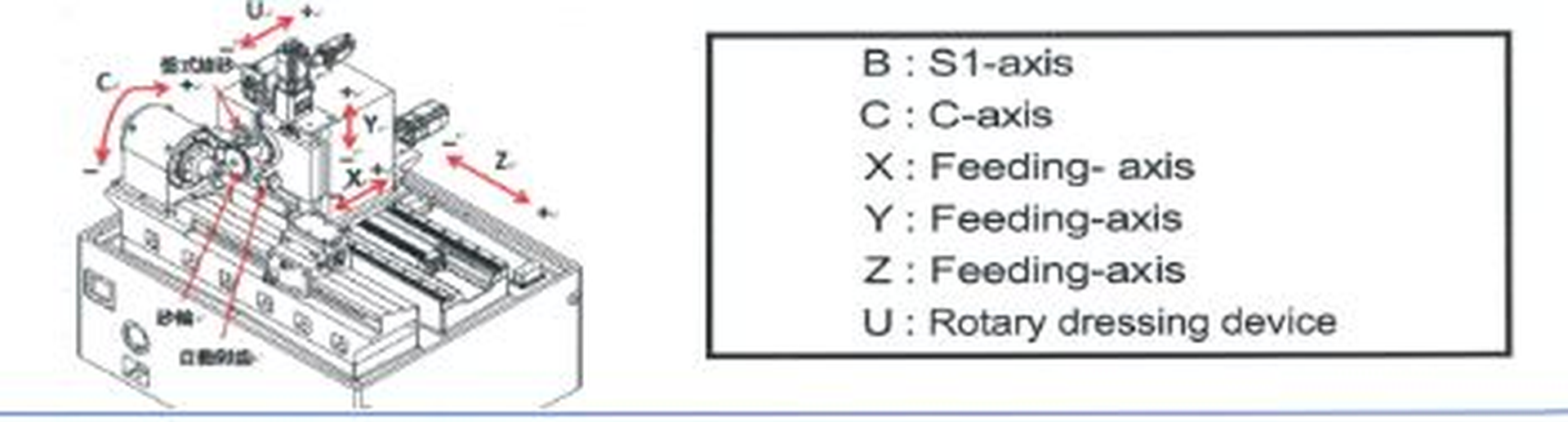

X axis: 70 mm.
Y axis: 150 mm.
Z axis: 600 mm.
U axis: 40 mm.
Spindle motor: 8 kW.
max. speed: 10000 t/min.
Torque max.: 500 Nm.
Air connect: 5 bar.
Total power required: 20 kVA.
Machine's weight about: 4500 kg.
Length: 2200 mm.
Width: 1650 mm.
Height: 2000 mm.
+ request more information
