MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Amada
  • Model:
  • Amada - FOL 3015 AJ FIBER 4000 NT / ASLUL 300FLCAJ
  • Condition:
  • Used
  • YOM:
  • 2012
  • Control:
  • AMNC 3i
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Working hours machine: 43120 h

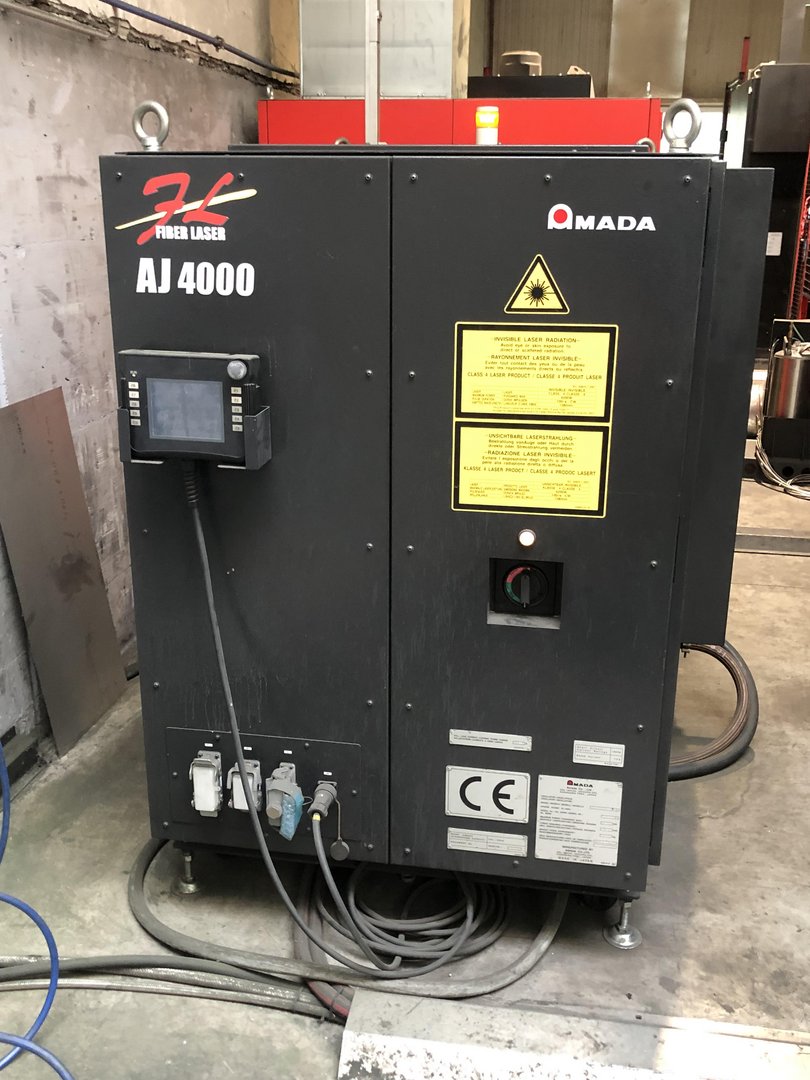

  • Laser power: 4000 Watt

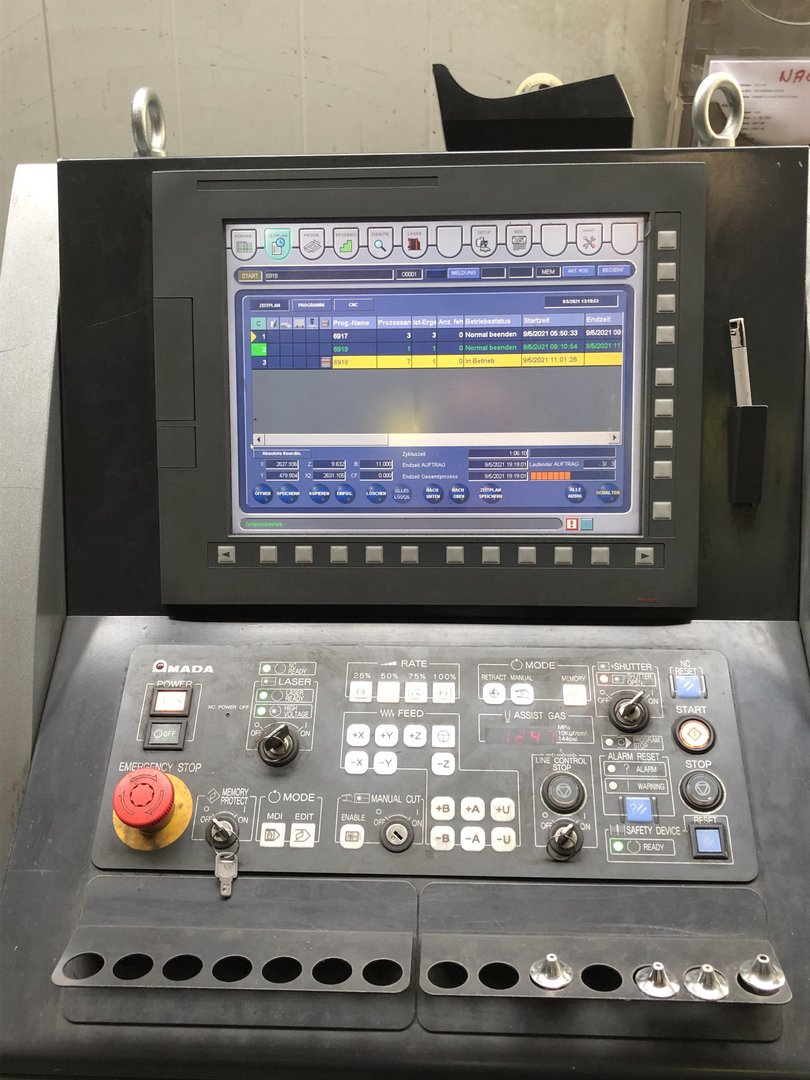

  • Control: AMNC 3i
  • Working range laser: 3070 x 1550 x 100 mm
  • Max. steel: 22 mm
  • Max. stainless steel: 18 mm
  • Max. aluminium: 16 mm
  • Max. copper: 8 mm
  • Max. brass: 8 mm
  • Length: 9930 mm
  • Width: 2990 mm
  • Height: 2000 (5400 mm tower) mm
  • Machine weight: 14200 kg
  • Standard configuration:
  • Sensor cutting head
  • WACS cutting area cooling
  • Cutting monitoring
  • quick lens change system
  • NC cutting gas pressure control
  • NC focus position control
  • high-pressure cutting function Cleancut
  • Aluminum cutting function Alucut
  • Beam path flushing KAMT6II
  • Automation:
  • ASLUL 3000FLCAJ
  • max. 3000x1500mm
  • min. 2000x1000mm
  • Sheet thickness 0.5 - 20 mm
  • max. stacking height of raw material 150 mm
  • max. stacking height products 220 mm
  • Number of pallets: 6
  • incl. loading / unloading unit for FOL3015AJ
.
