Home > Metal Forming > Laser Cutting Go Back
REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRUMPF
  • Model:

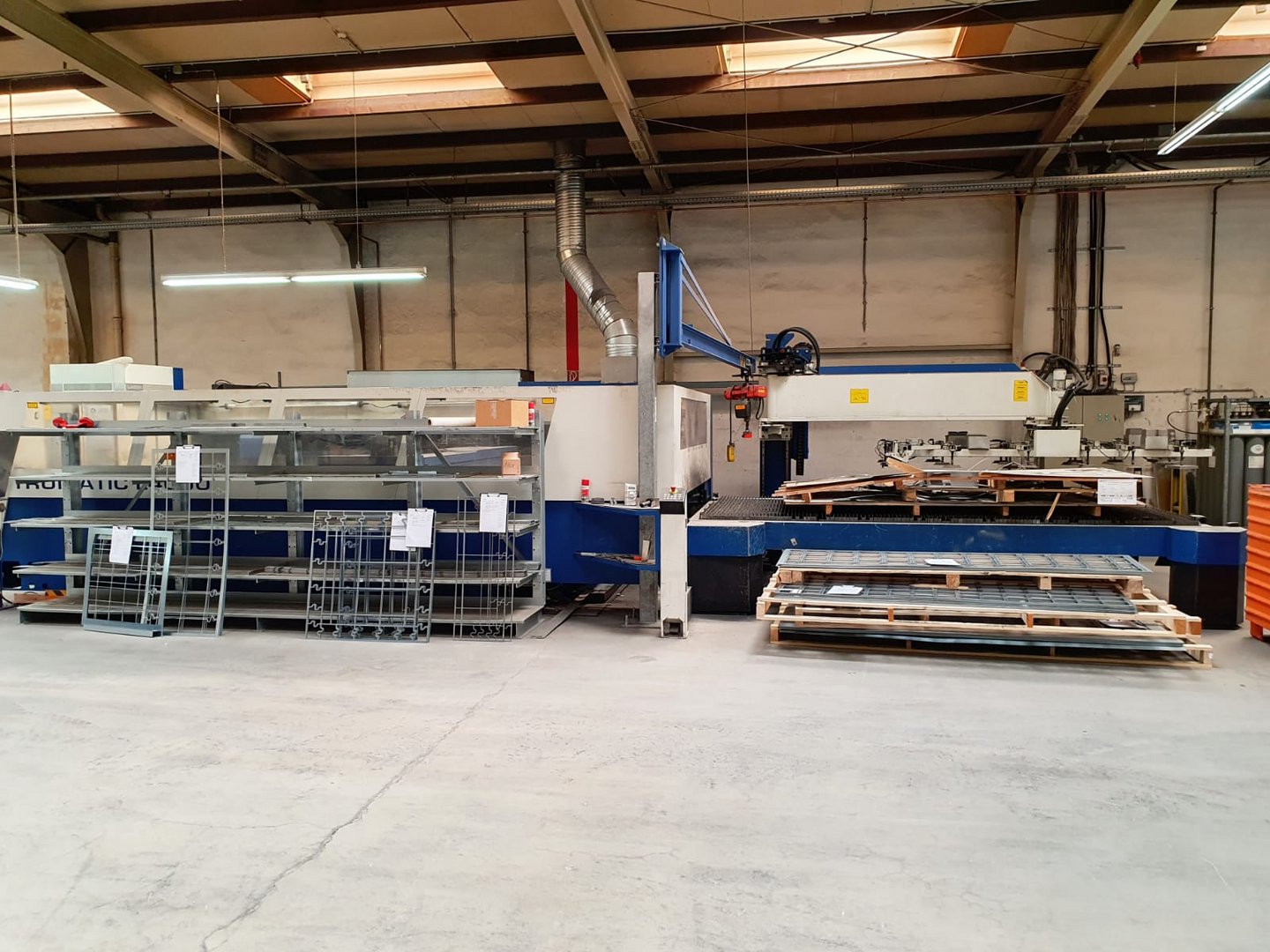

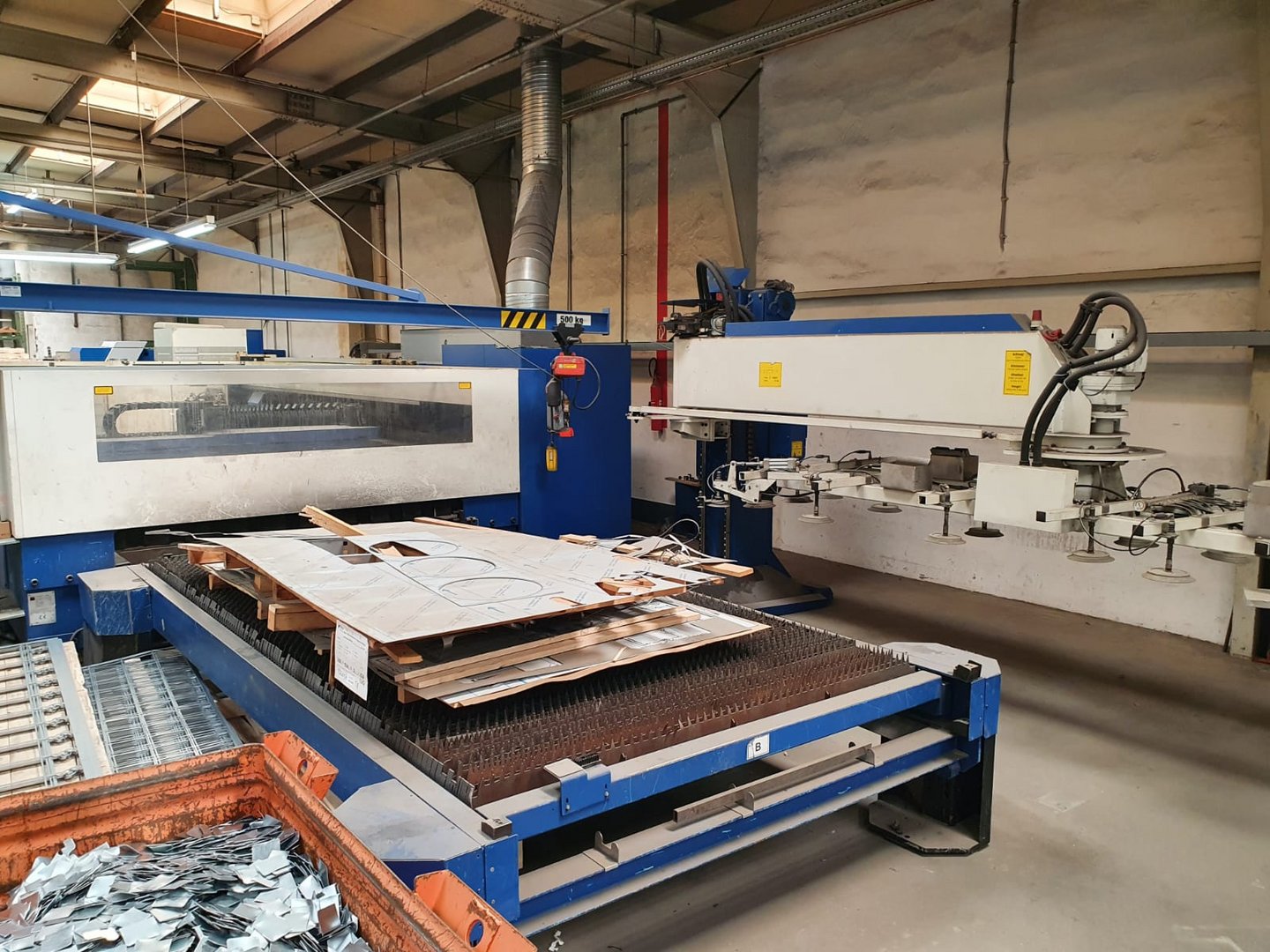

  • Trumpf - Trumatic L 4050 - 5 kW
  • Condition:
  • Used
  • YOM:
  • 2004
  • Control:
  • Siemens 840 D
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Working hours laser on: 73521 h
  • Working hours beam on: 31732 h
  • Laser power: 5000 Watt
  • Control: Siemens 840 D
  • Working range laser: 4000 x 2000 x 115 mm
  • Max. steel: 25 mm
  • Max. stainless steel: 20 mm
  • Max. aluminium: 12 mm
  • Length: 13000 mm
  • Width: 5400 mm
  • Height: 2400 mm
  • Machine weight: 14000 kg
  • Electrical connected load: 105 kVA
  • Standard configuration:
  •  Closed machine frame with integrated laser unit Laser unit
  •  CO2 laser TLF radio-frequency excited mirror telescope, chiller
  •  Automatic pallet change
  • HI-LAS high pressure cutting
  • Plasma sensor system
  • High-speed processing with SprintLas
  • ContourLas for producing small holes
  • Microweld
  • Programmable cutting gas pressure setting
  • Laser cutting head with 9” lens
  • Laser cutting head with 7.5” lens
  • Cutting head quick-change device
  • Programmable power cycles
  • Positioning laser diode
  • Automatic sheet edge detection
  • Automatic focus setting AutoLas Plus
  • Oil spray device for reliable thick plate machining
  • Laser logbook function
  • Automatic shutdown
  • Work area lighting
  • Sinumerik 840D control:
  • Open PC-based control system, easy to use, Online help, diagnostic functions, maintenance logbook, technology data, Teleservice, 3.5" disk drive, BNC-/RJ45 connection
  • Shopfloor programming ToPs 100 lite
  • Safety:
  • Multi-beam light barriers
  • completely encapsulated and purged beam delivery
  • monitoring system
  • safety cabin
  • Automation:
  • LoadMaster
