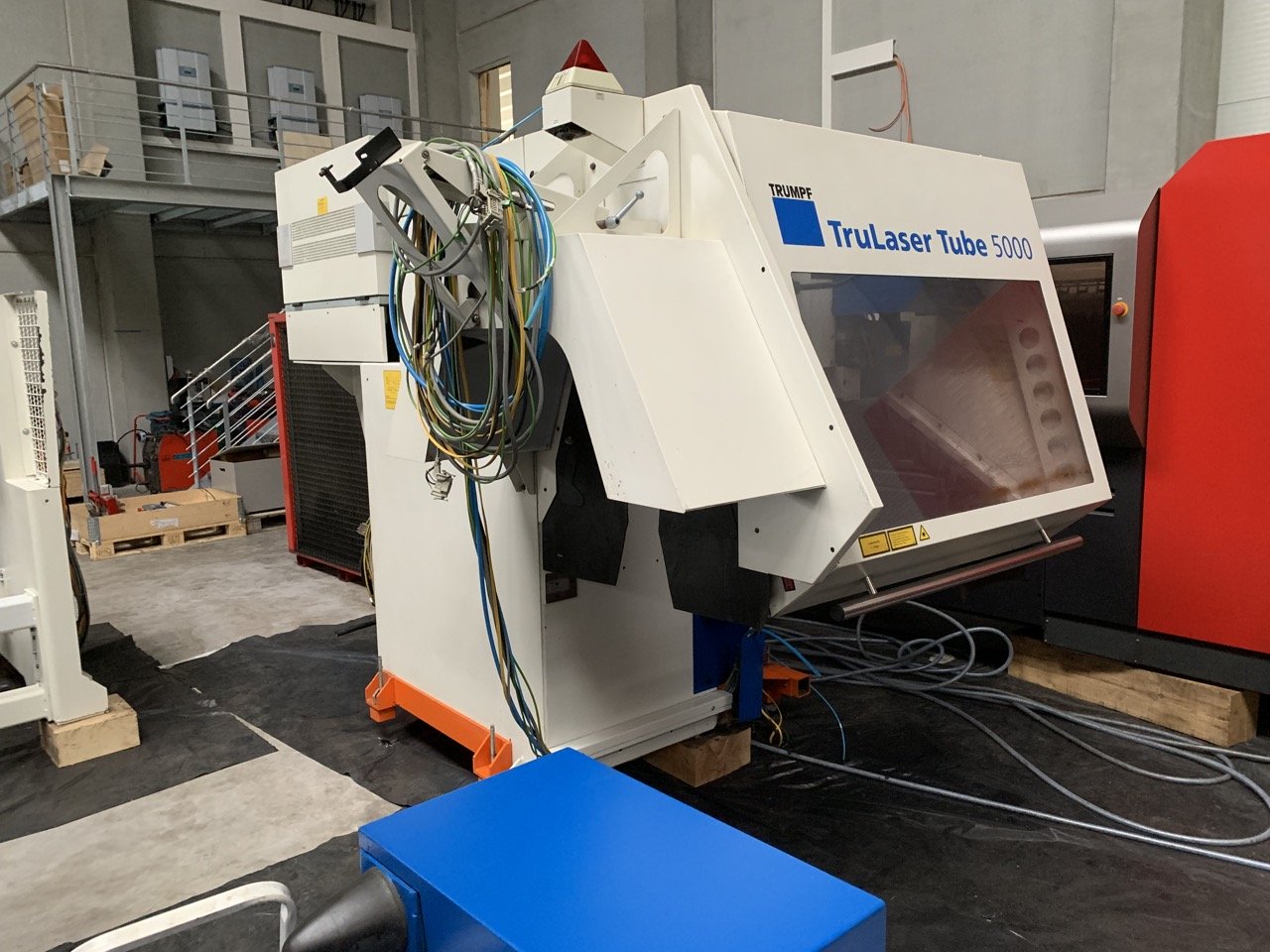

Laser Cutting/Trumpf - TruLaser Tube 5000

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Metal Forming

Subcategory:
Laser Cutting

Manufacturer:
TRUMPF

Model:
Trumpf - TruLaser Tube 5000

Condition:
Used

YOM:
2008

Control:
Sinumerik 840D

Price:
POA

Seller:
PTF-GmbH

Country:
Germany

DESCRIPTION

Working hours laser on: 36373 h
Working hours beam on: 10840 h
Laser power: 2700 kW
Working range laser: 6500 x 1500 mm
Max. steel: 8 mm
Max. stainless steel: 5 mm
Max. aluminium: 4 mm
Length: 18000 mm
Width: 9000 mm
Height: 2800 mm M
achine weight: 17700 kg
max. wall thickness: 6,4 mm
max. tube length: 6500 mm
min. tube length (automatic): 3000 mm
max. tube diameter: 150 mm
min. tube diameter: 15 mm
max. length finished parts: 6500 mm
max. tube weight: 20 kg/m
max. tube bundle
weight: 4000 kg
max. speed: 100/5/40/40 mm / min
Smallest programmable increment: +/- 0,1 mm
Standard configuration:
Solid machine frame with integrated laser unit
CO2 laser TLF 2700, radio-frequency excitation, chiller
Motors: maintenance-free 3-phase servo motors
NitroLine High pressure cutting
High-speed processing with SprintLine
Programmable cutting gas pressure
Laser cutting head with 5″ lens, DIAS III
Cutting head
quick change device
Laser power control
Laser logbook function
Automatic shutdown
Work area lighting

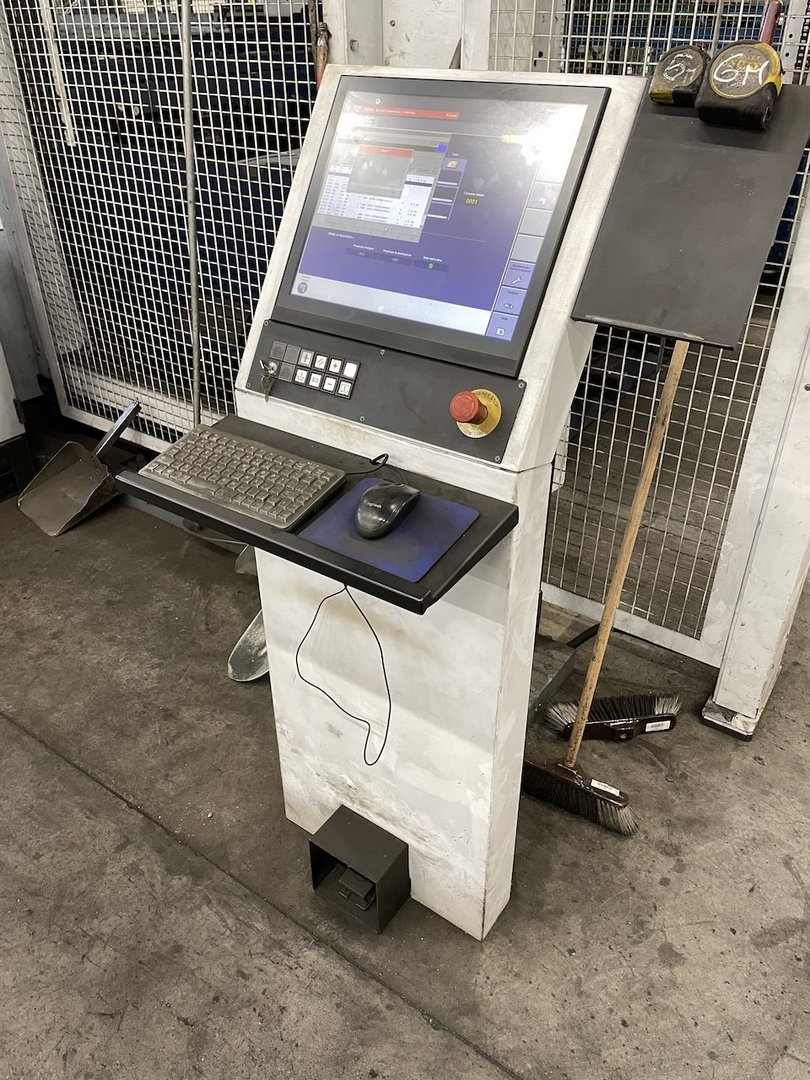

Sinumerik 840D control: Open PC-based control system, easy to use
Online help, diagnostic functions, maintenance logbook, technology data, Teleservice, 3.5″ floppy drive, RJ45/BNC network connection
Safety: Multi-beam light barriers, completely encapsulated and purged beam delivery, monitoring system, multi-chamber exhaust system and compact dust extractor, safety cabin - Part removal station PRS 3001 with brush table
Clamp set D 20-85 mm and D 85-150 mm
V-shaped form cups and guide rollers for round tubes
U-shaped form cups and guide rollers with outer circle diameter 120 mm
Extended machine accessories:
SeamLine
Automation:

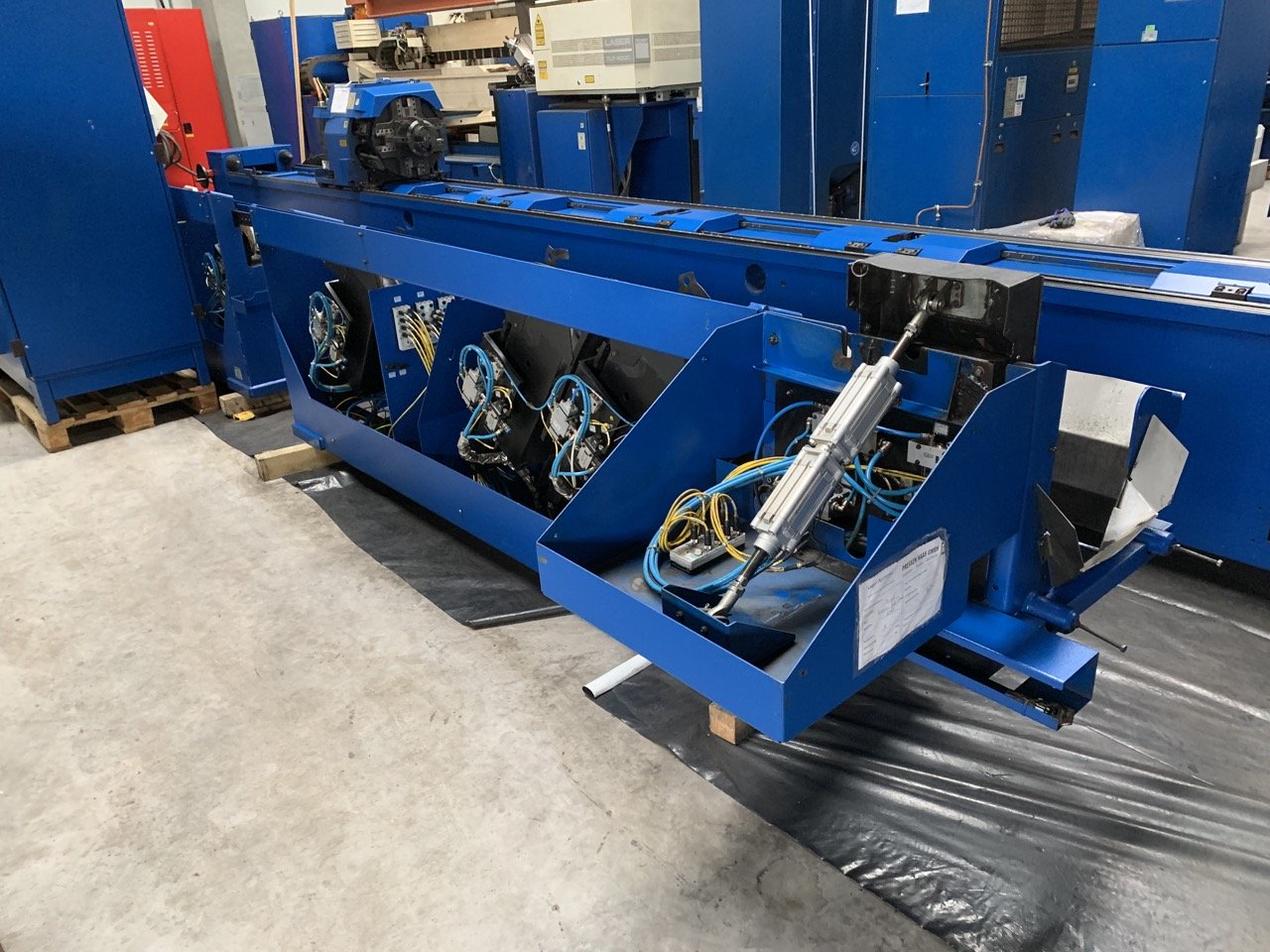

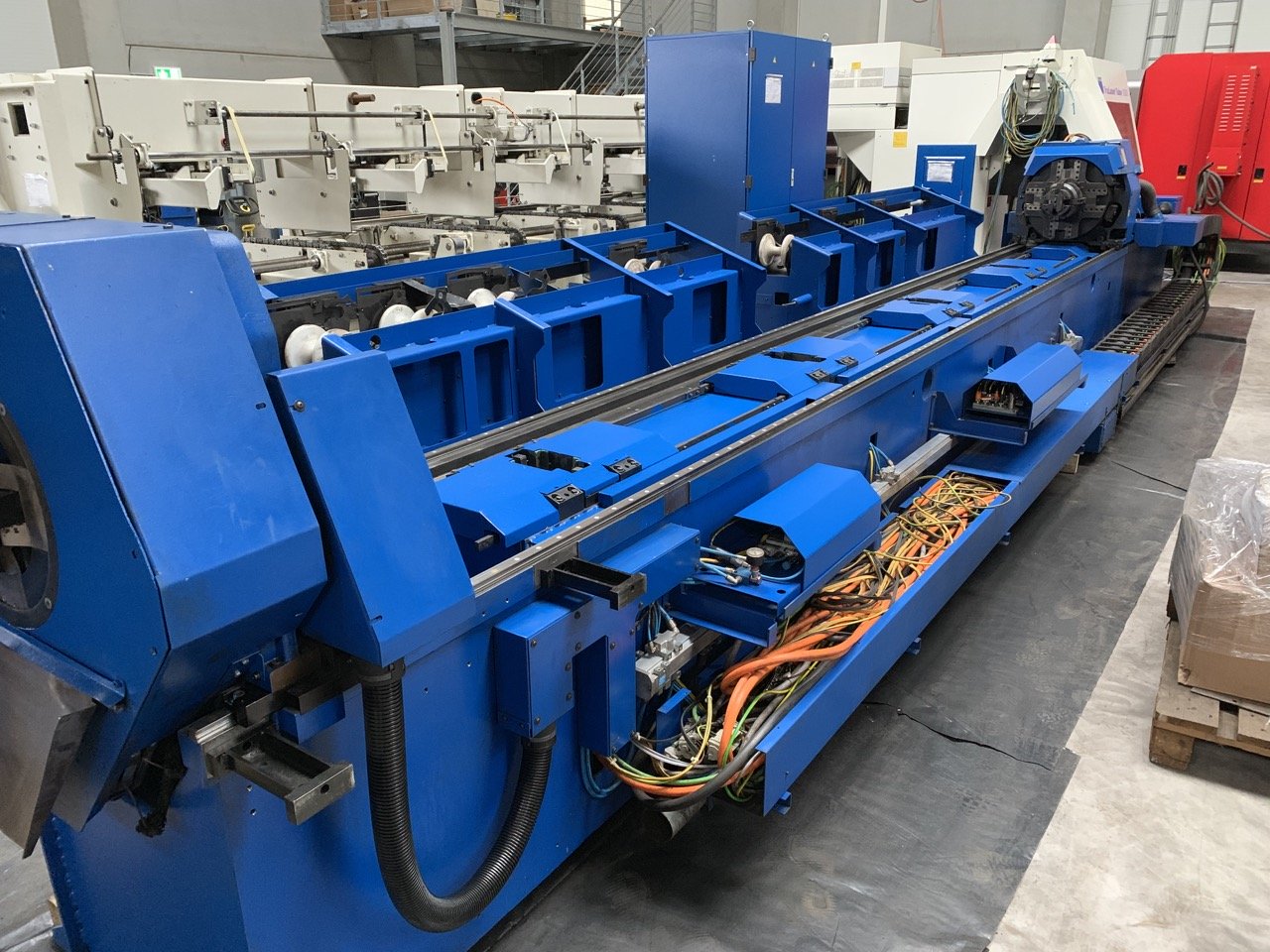

LoadMaster Tube with bundle magazine LD 6000
Description:
This reliable all-around machine replaces conventional, sepa- rate manufacturing operations such as sawing, drilling, milling and punching, and enables the ideal entry into the laser tube processing industry. It owes its high productivity to the perfectly coordinated operation of its components, from the laser unit and its beam guidance system to the clamping units and system control software as well as the tube and profile handling modules.
