MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
EWAG

Model:

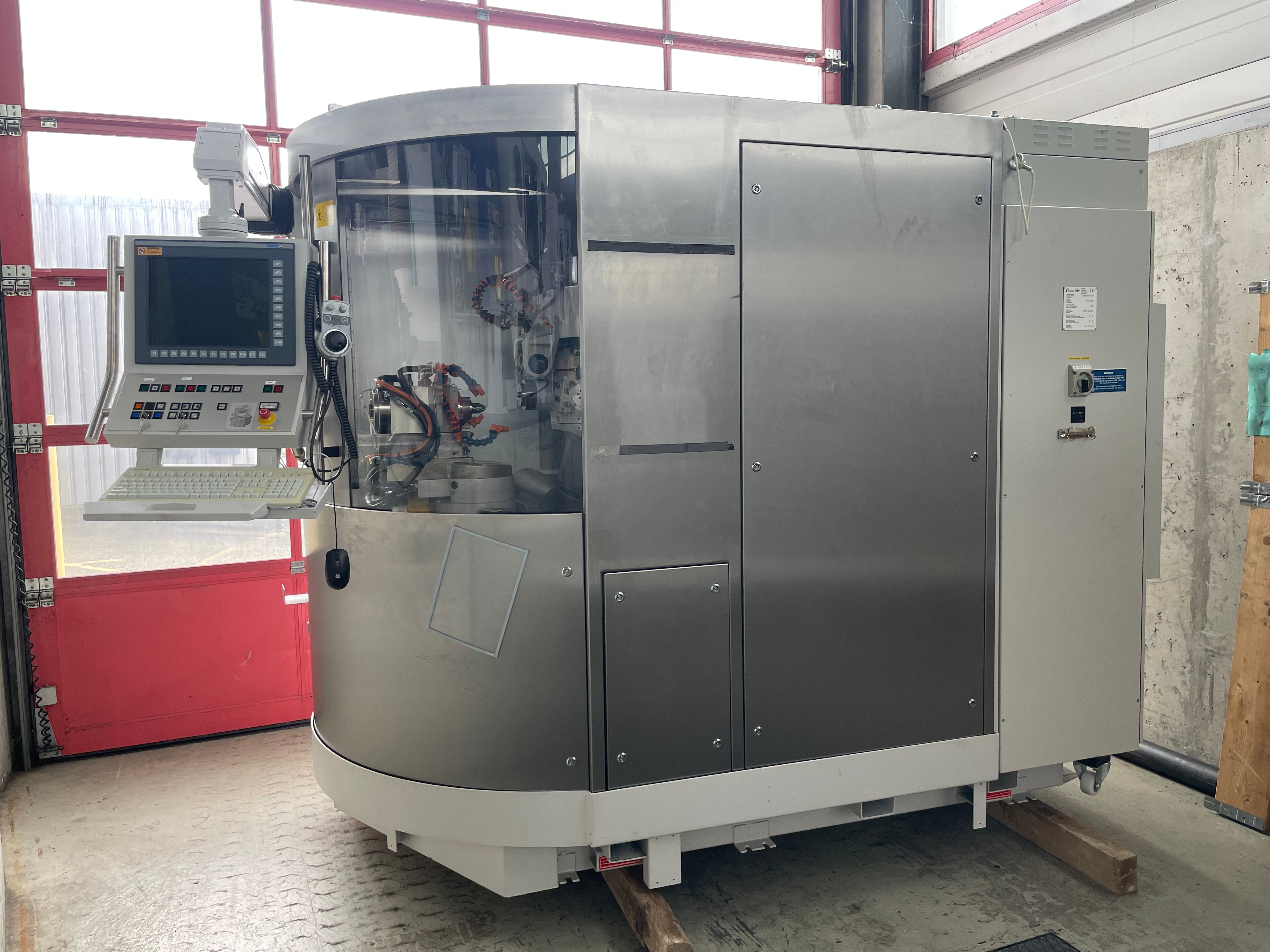

023151 - EWAG EWAMATIC

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Number of axis total: 6.
X axis: 360 mm.
Y axis: 240 mm.
Z axis: 240 mm.
B axis (grinding head rotation): +/- 135 °.

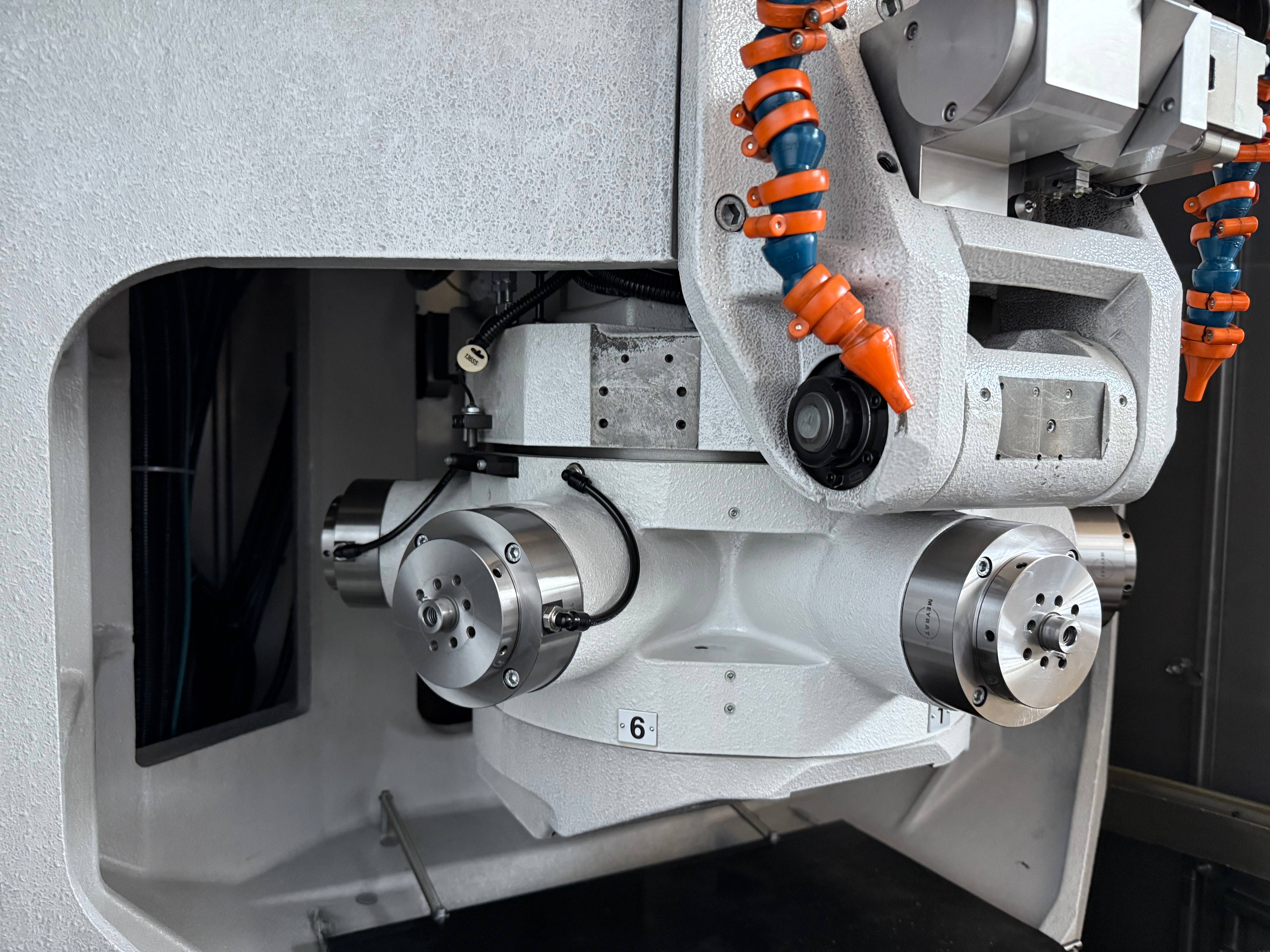

spindles:: 6.
Max forwarding speed: 10 m/min.
Max. forwarding speed cross: 10 m/min.
Max forwarding speed vertical: 10 m/min.

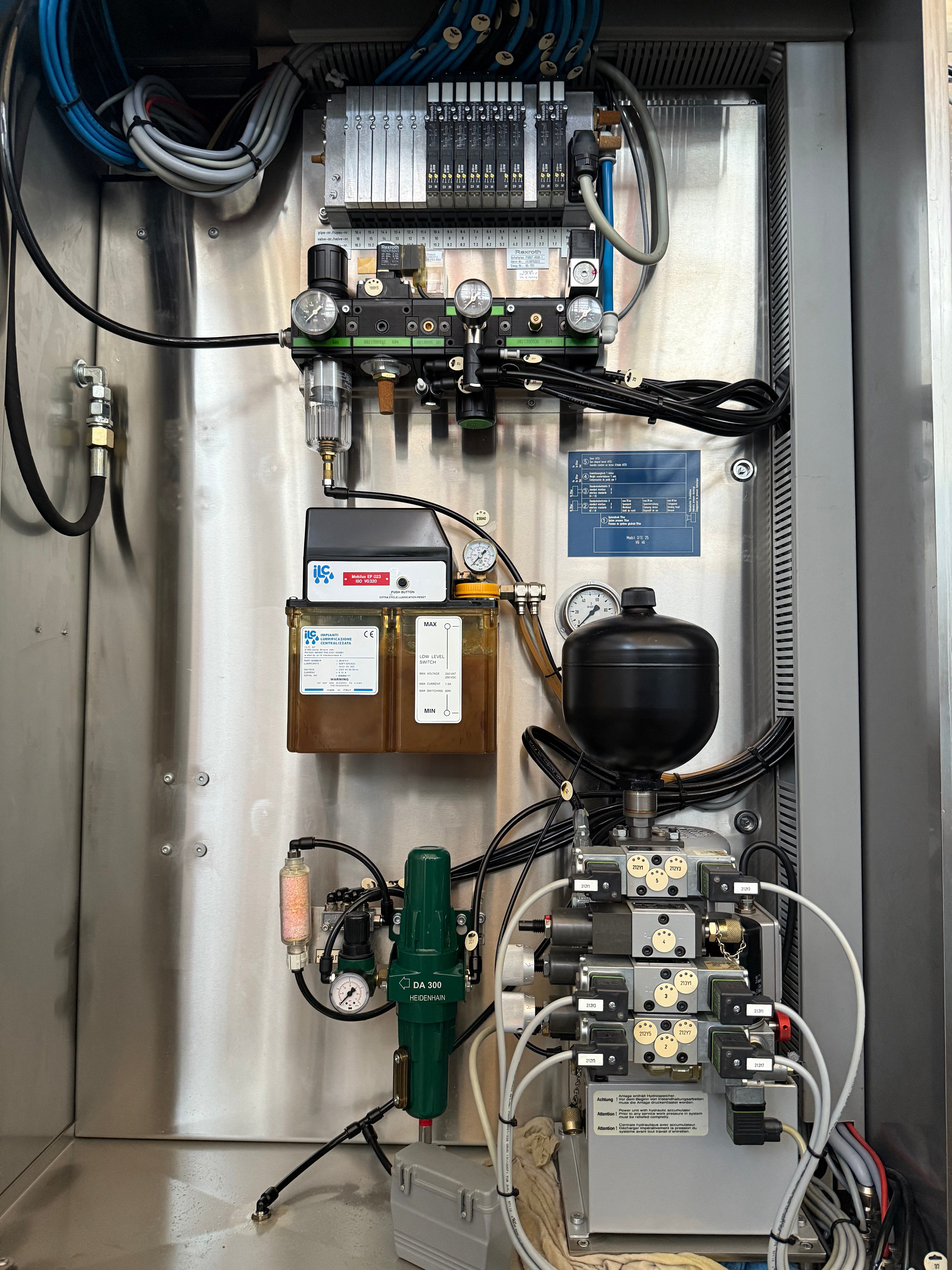

Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 7.5 kW.
Total power required: 16 kVA.
Machine's weight about: 4000 kg.
Length: 3400 mm.
Width: 2200 mm.
Height: 2500 mm.

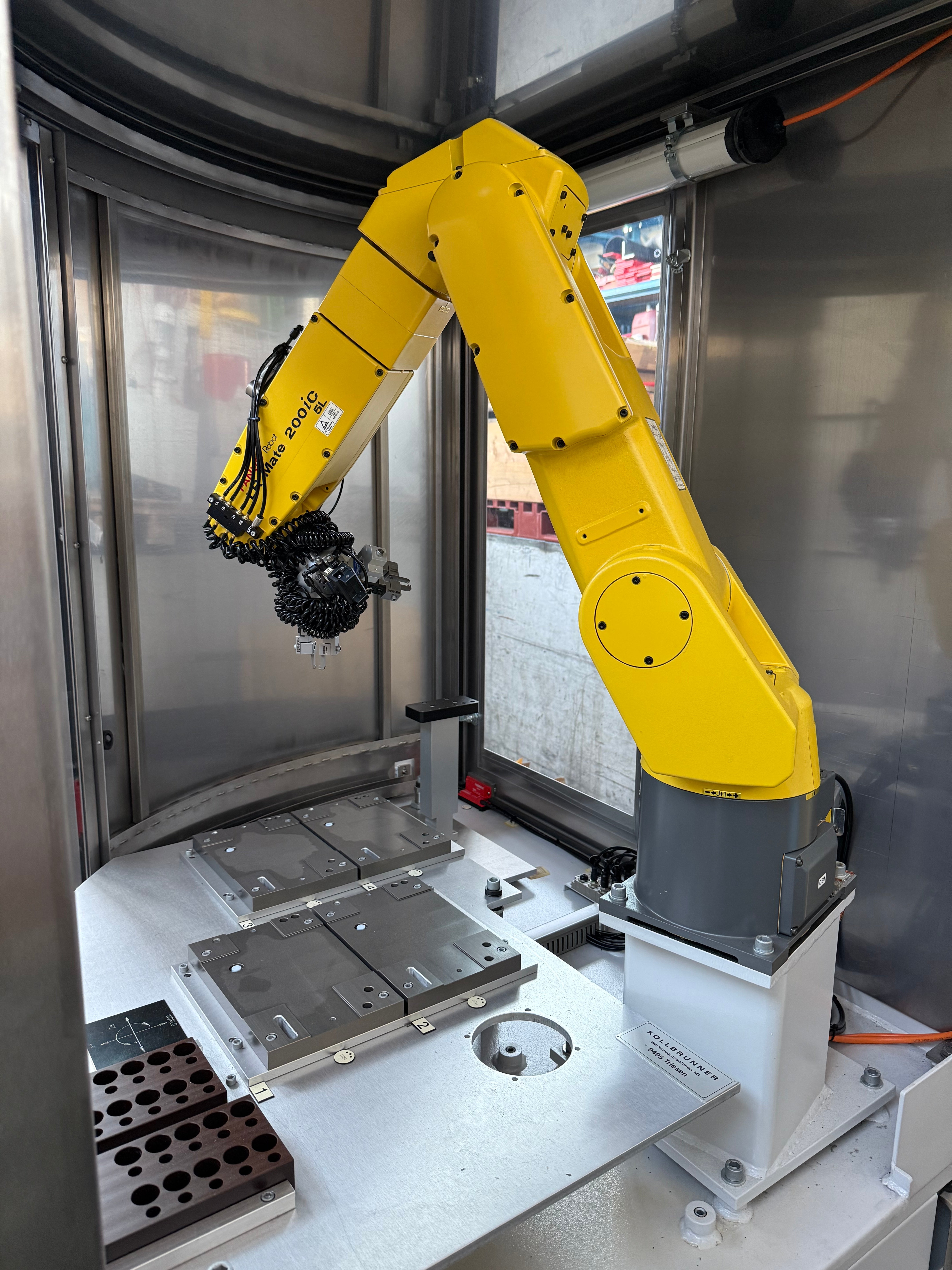

Loading roboter: Fanuc LR Mate 200iC.
