MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Kellenberger

Model:

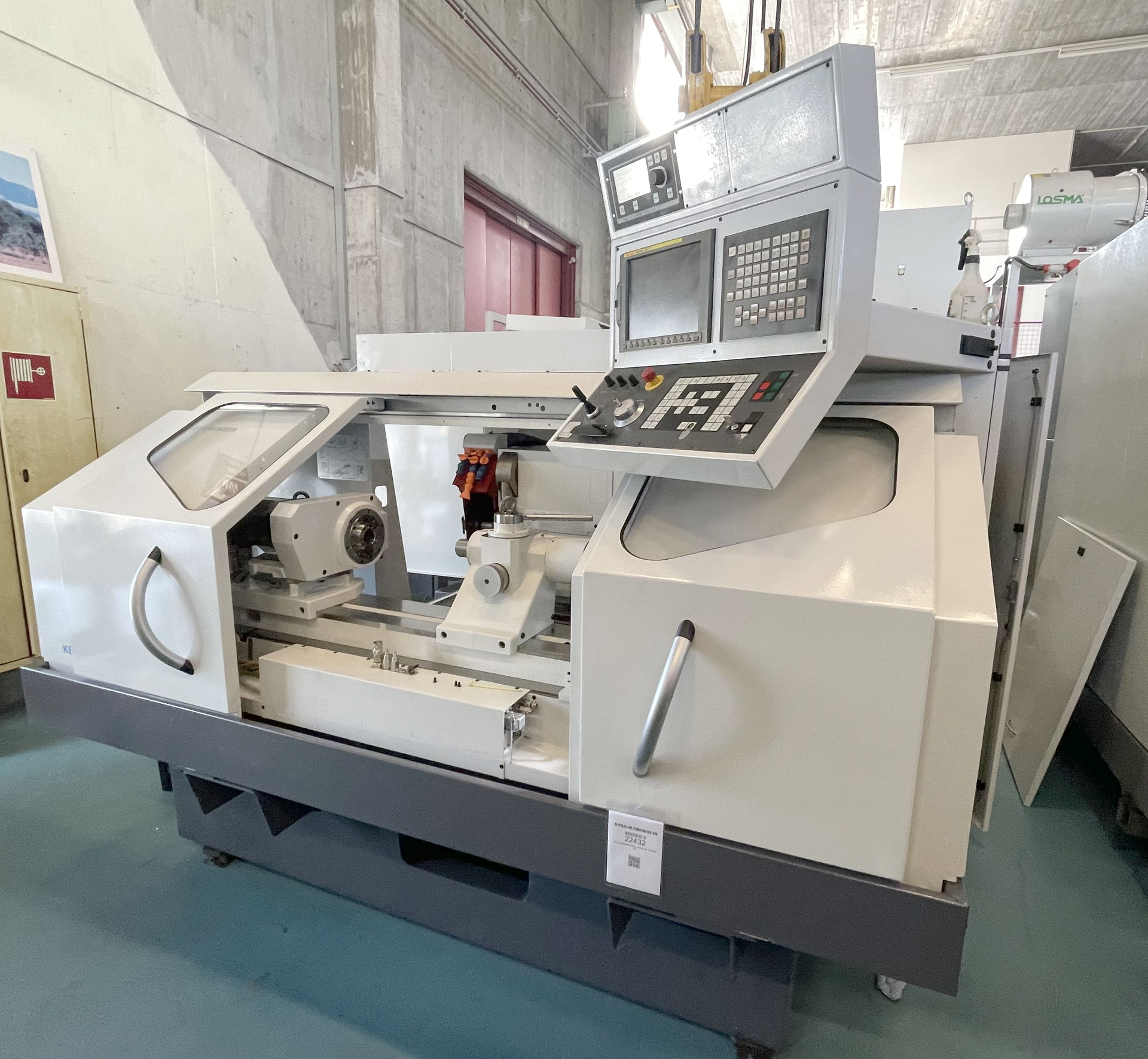

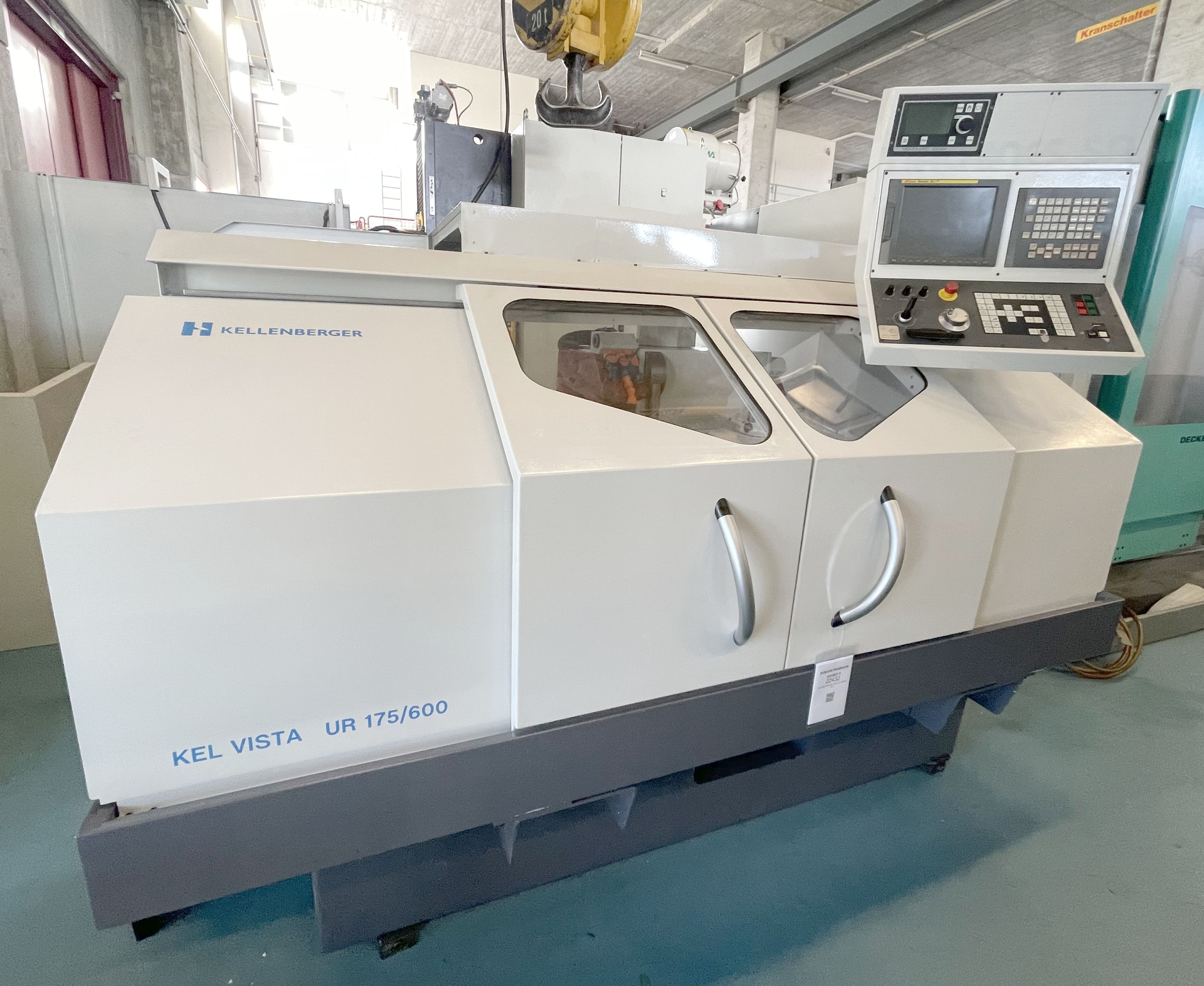

022432 - KELLENBERGER KEL-VISTA UR 175X600

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

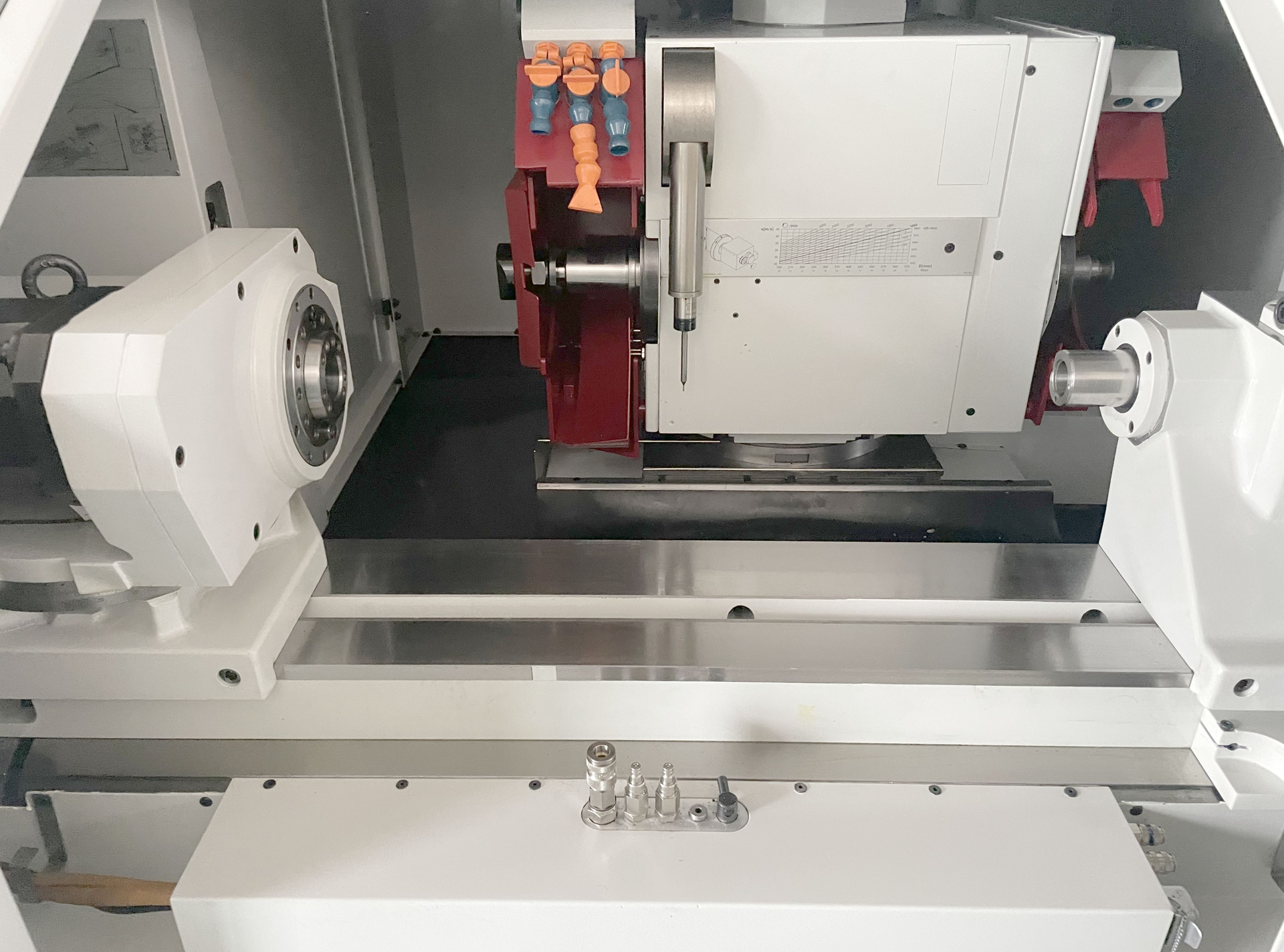

Centre height: 175 mm.
Distance between centres: 800 mm.
Grinding length: 600 mm.
Max. work piece diameter: 349 mm.
Z axis: 750 mm.
X axis: 320 mm.
Workpiece weight on centres max.: 100 kg.
Diameter: 300 mm.
Width: 1700 mm.
Bore: 127 mm.
from: 8 t/min.
up to: 42000 t/min.

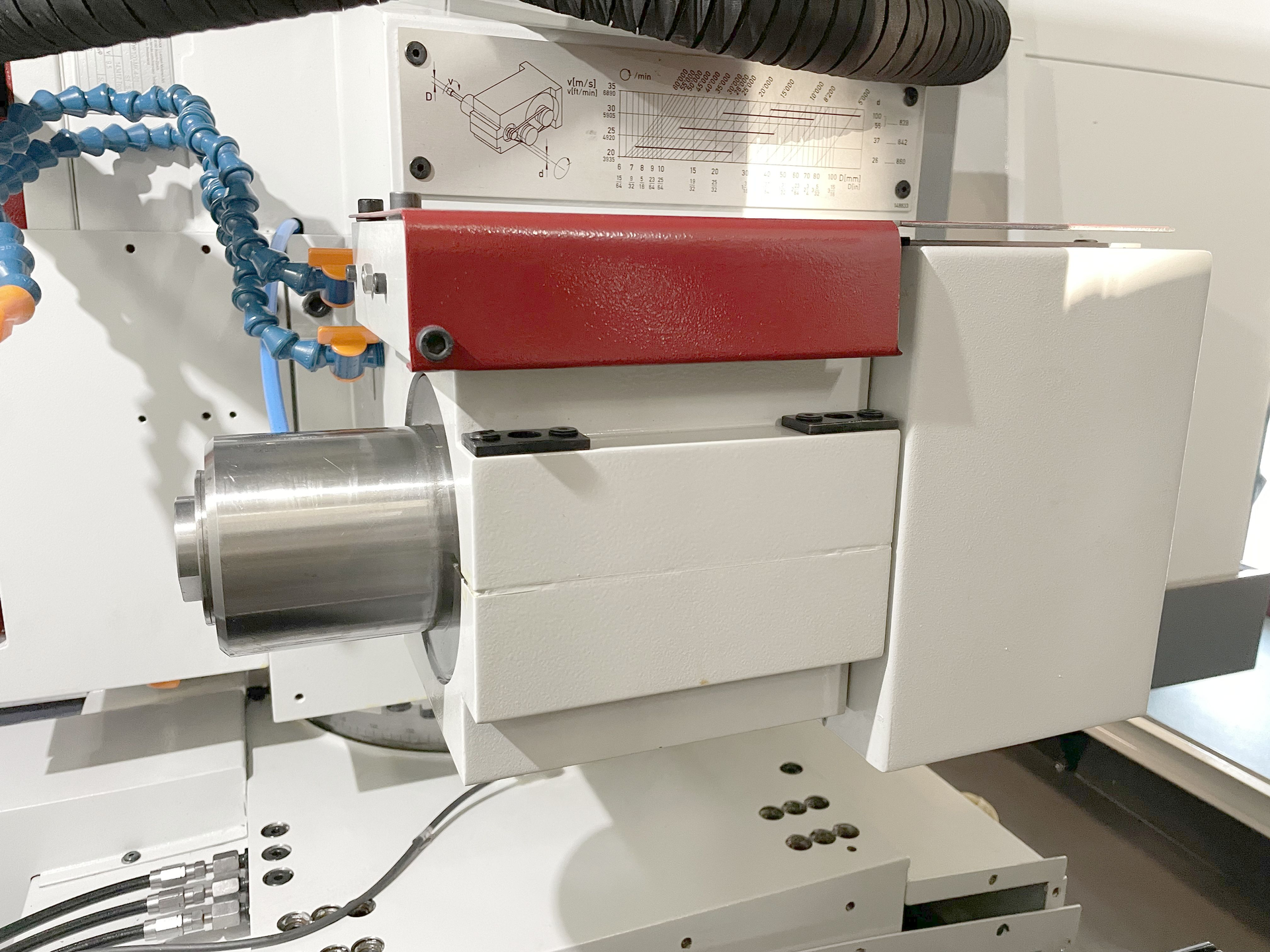

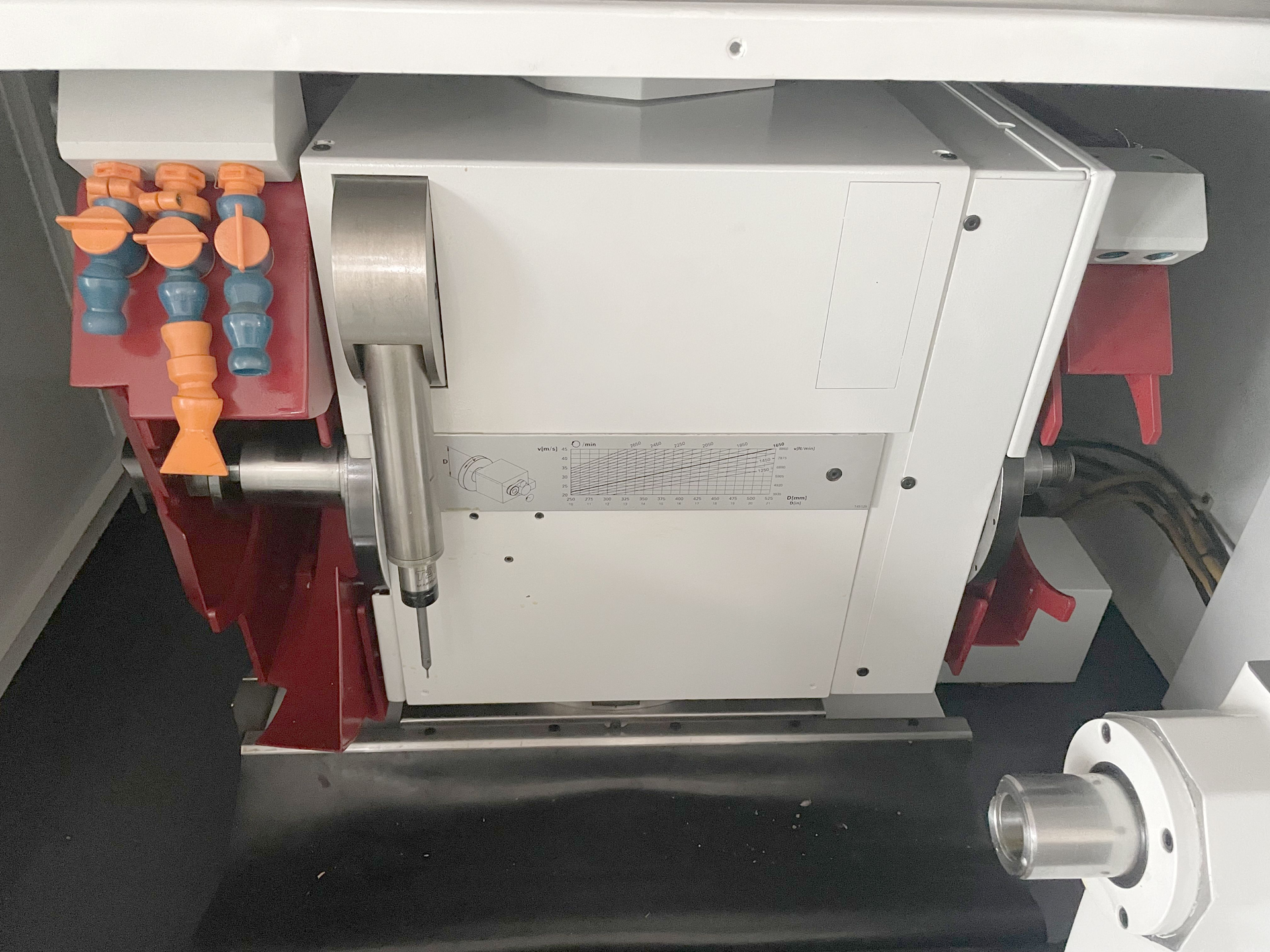

Rotatable grinding spindle head (b-axis): +10 / -210 °.
Automatic swivelling axis Hirth (B1): 3 °.
Fine adjustment (B2): °.
Peripheral speed: 35 m/s.
Holding taper:: 5 CM.
rotatable: +100 / -10 °.

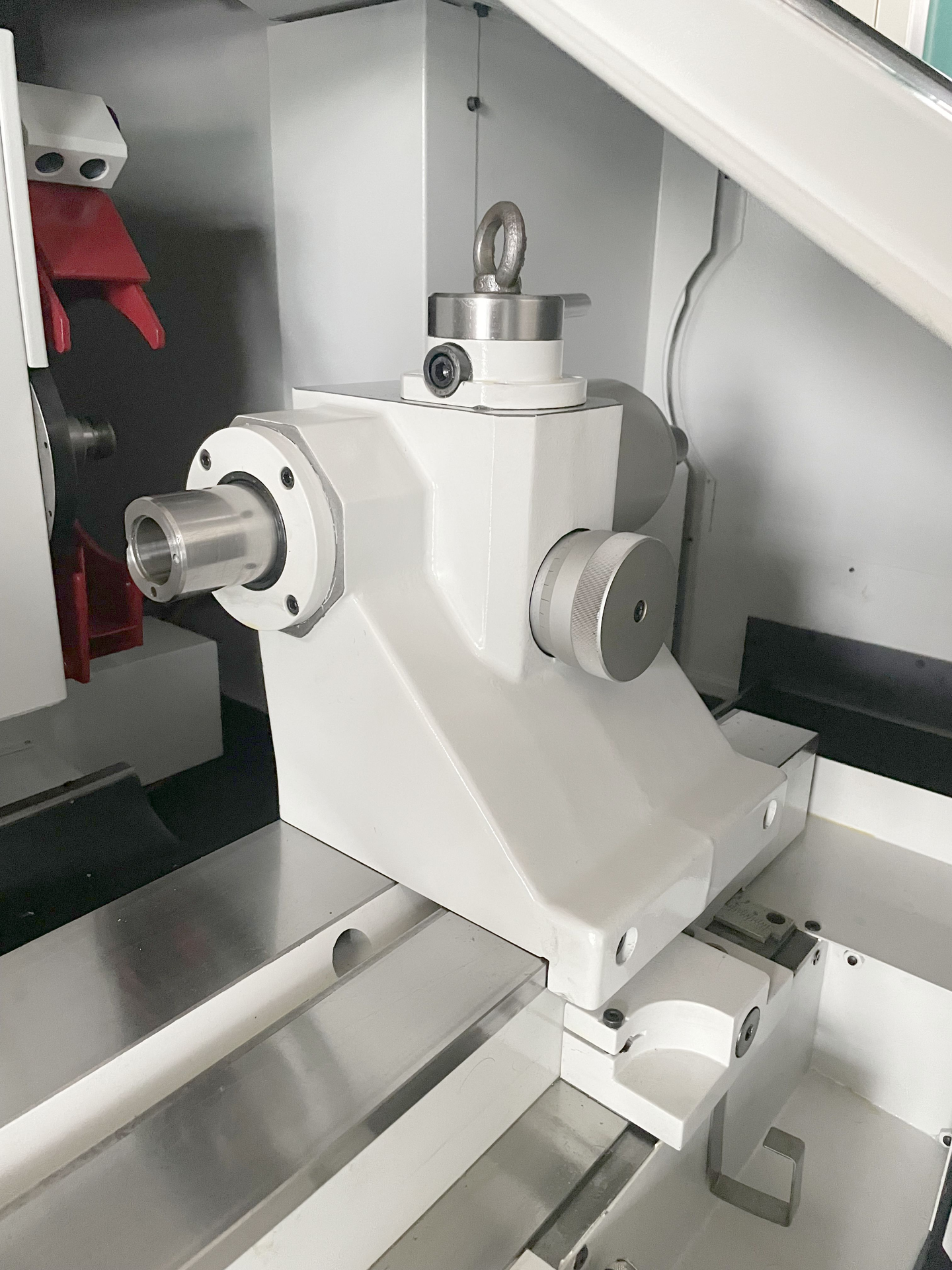

Taper in tailstock:: 4 CM.
Tailstock travel of barrel: 50 mm.
Rapid motion: 12 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 5 kW.
Machine's weight about: 3000 kg.
Length: 3200 mm.
Height: 2000 mm.

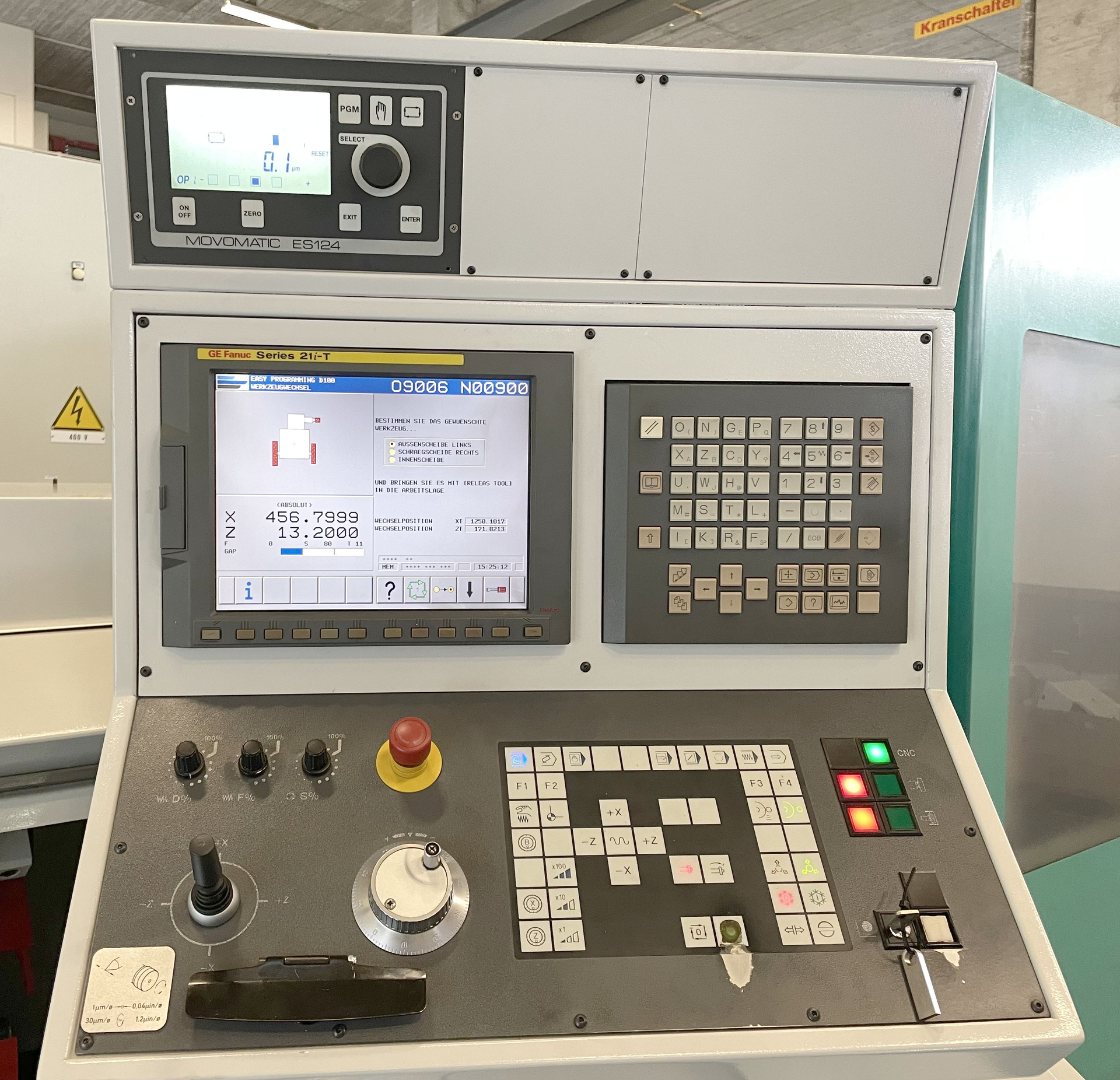

Measuring control: MOVOMATIC.
Number of spindles: 1.

+ request more information

SEND ENQUIRY

REQUEST MORE INFORMATION

SEND ENQUIRY

Sellers

Muller Machines SA

Contact Name
Laurent Muller
