MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

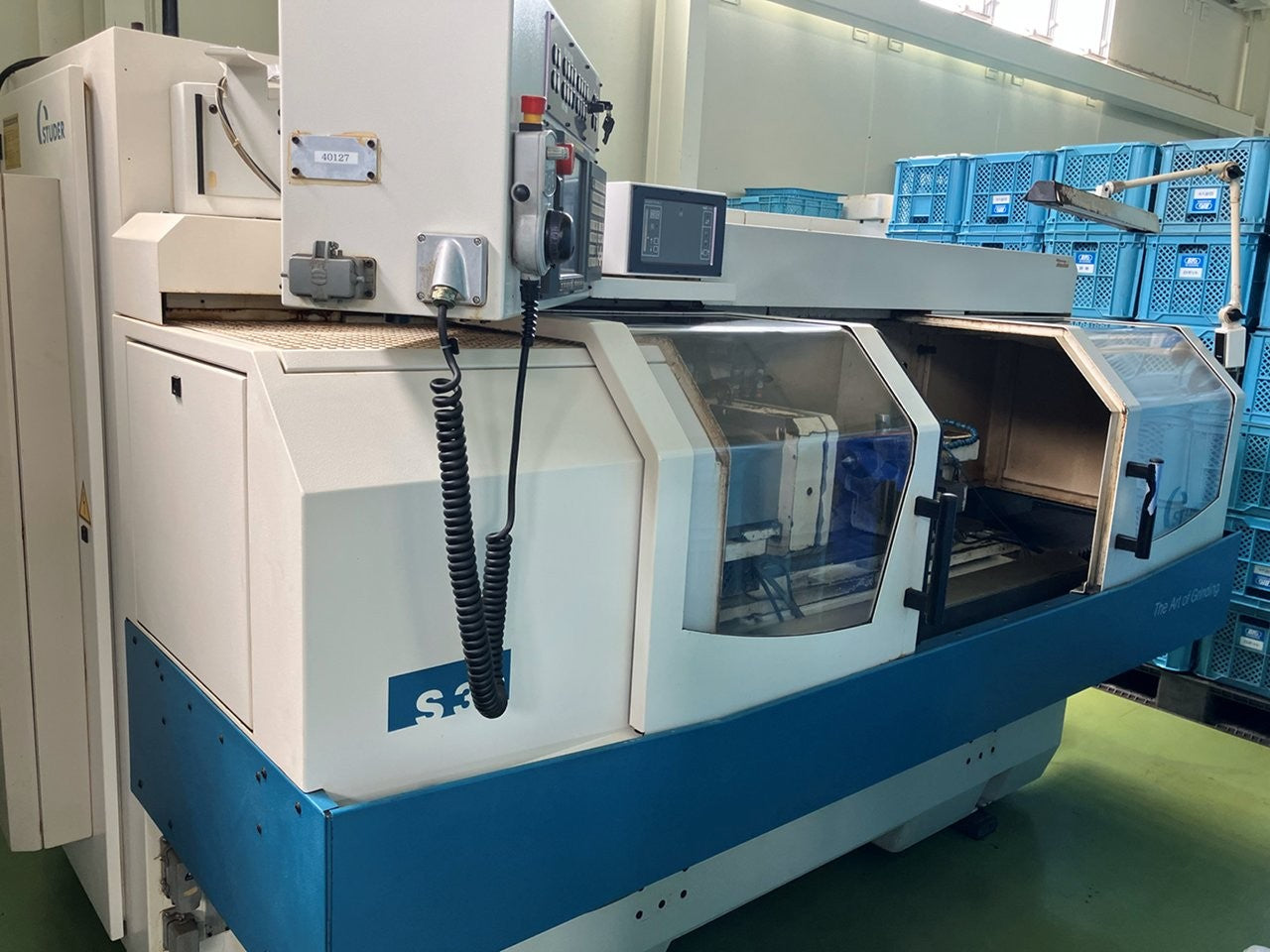

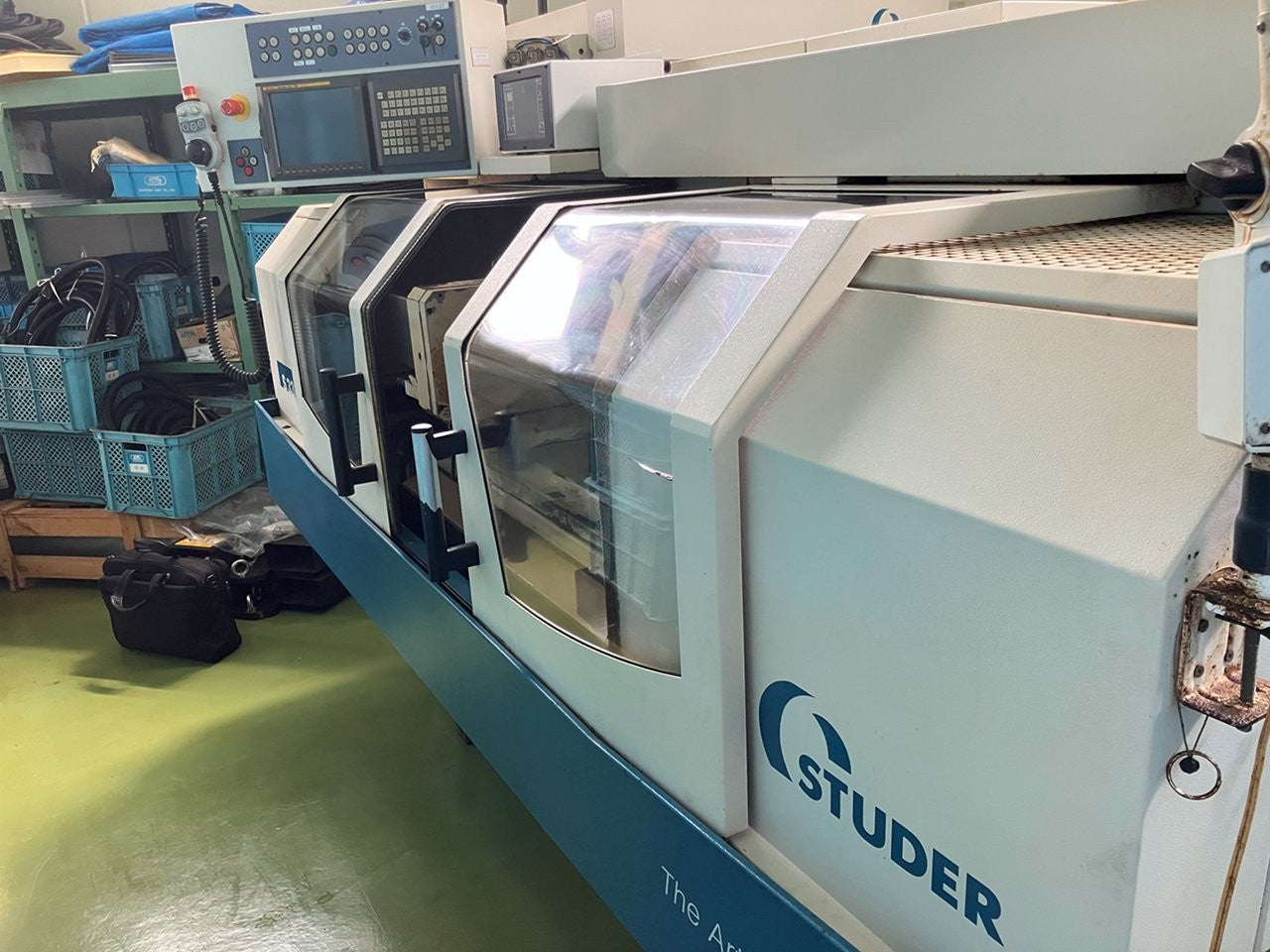

  • 023248 - STUDER S 33 CNC
  • Condition:
  • 1
  • YOM:
  • NA

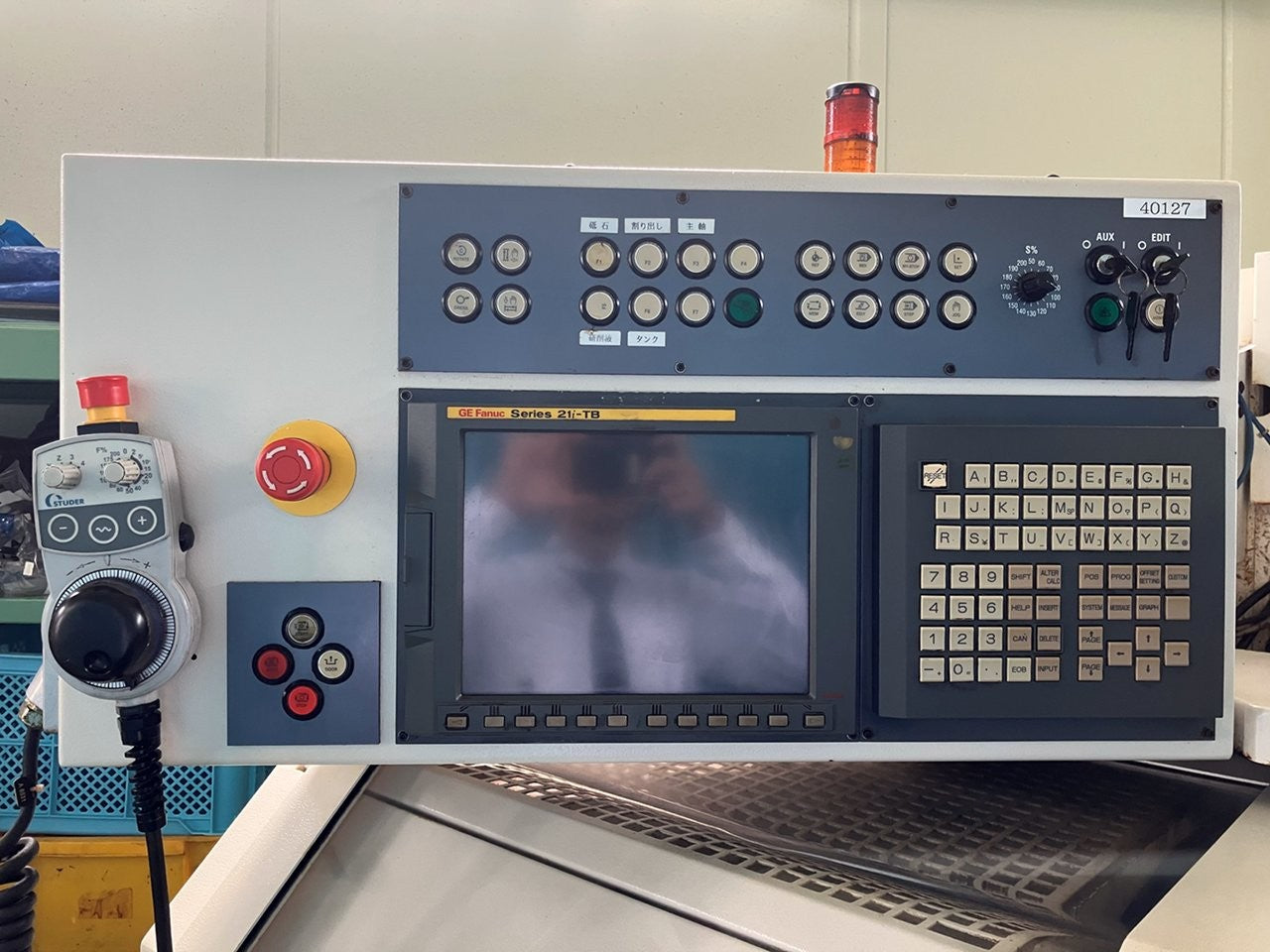

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.

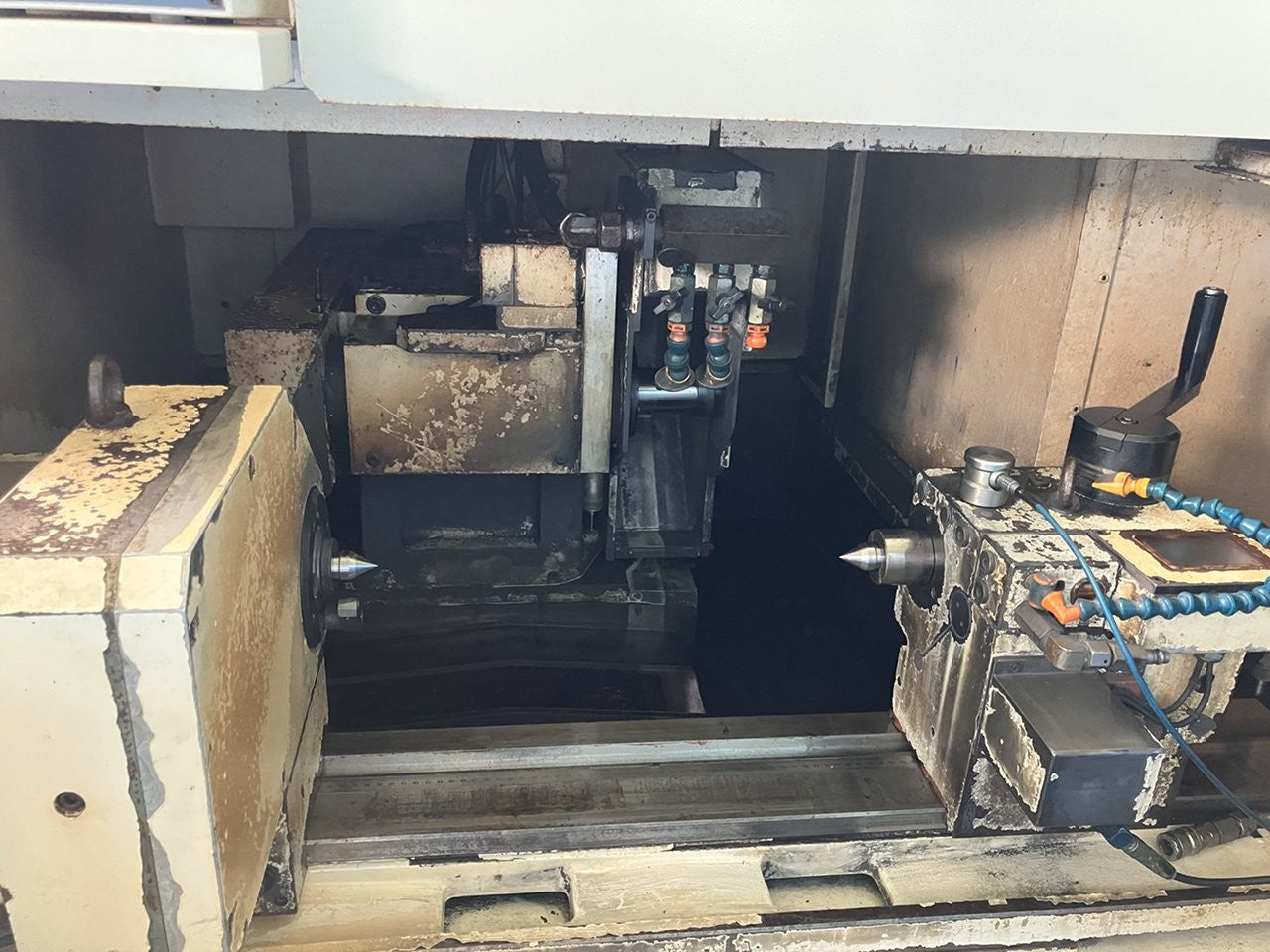

Distance between centres: 1000 mm.
Workpiece weight on centres max.: 120 kg.
Diameter: 500 mm.
Width: 2090 mm.
Bore: 203 mm.
max. width: 80 mm.
Rotatable grinding spindle head (b-axis): -15 / + 195 °.
Peripheral speed: 44/35 m/s.
Max. travel: 1150 mm.
from: 1 t/min.
up to: 1500 t/min.

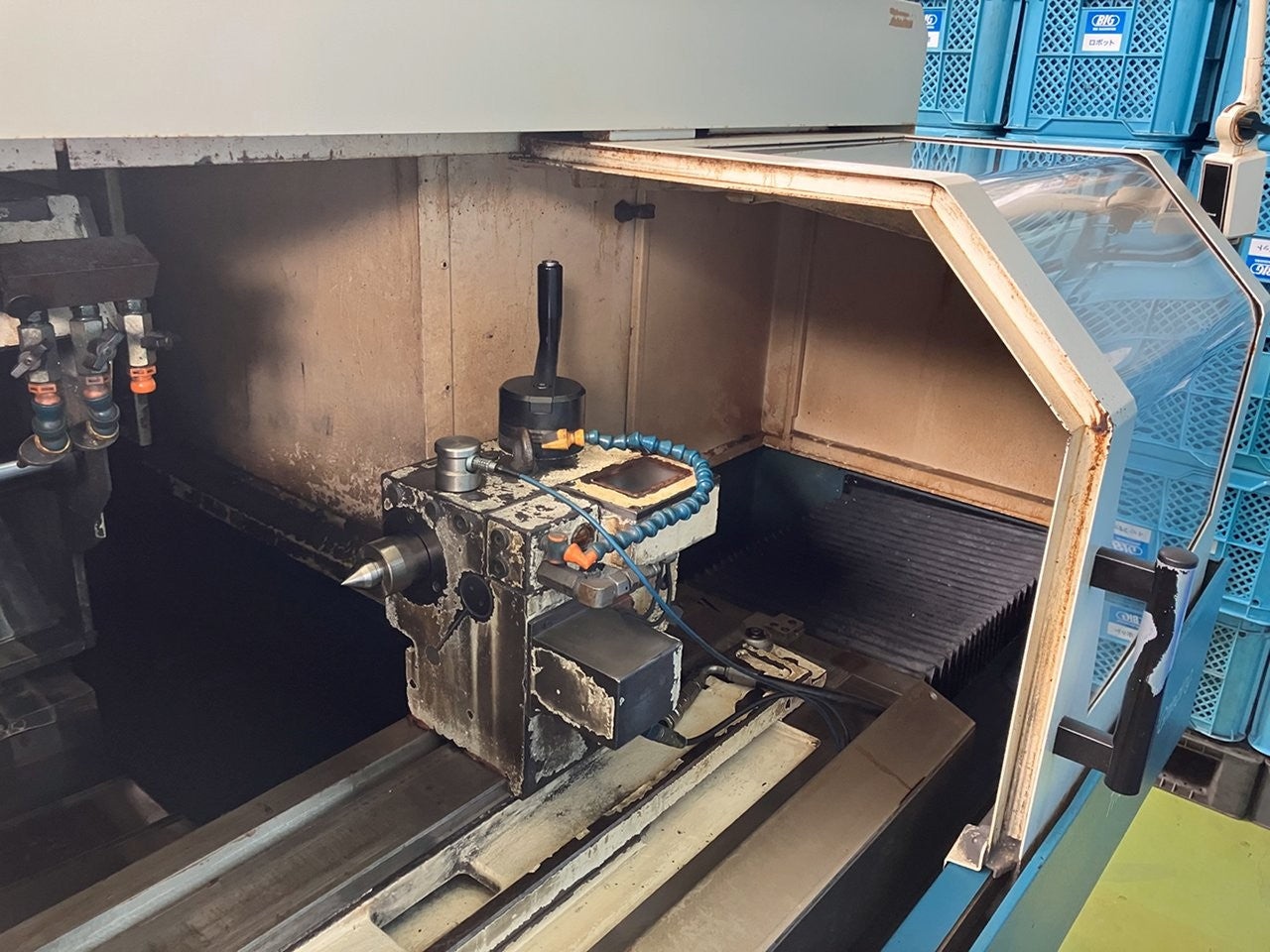

Tailstock travel of barrel: 35 mm.
Max. table angular displacement: 8.5 °.
Air connect: 5.5 bar.
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 7.5 kW.
Total power required: 20 kVA.
Machine's weight about: 5000 kg.
Length: 2620 mm.
Height: 2000 mm.
