MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

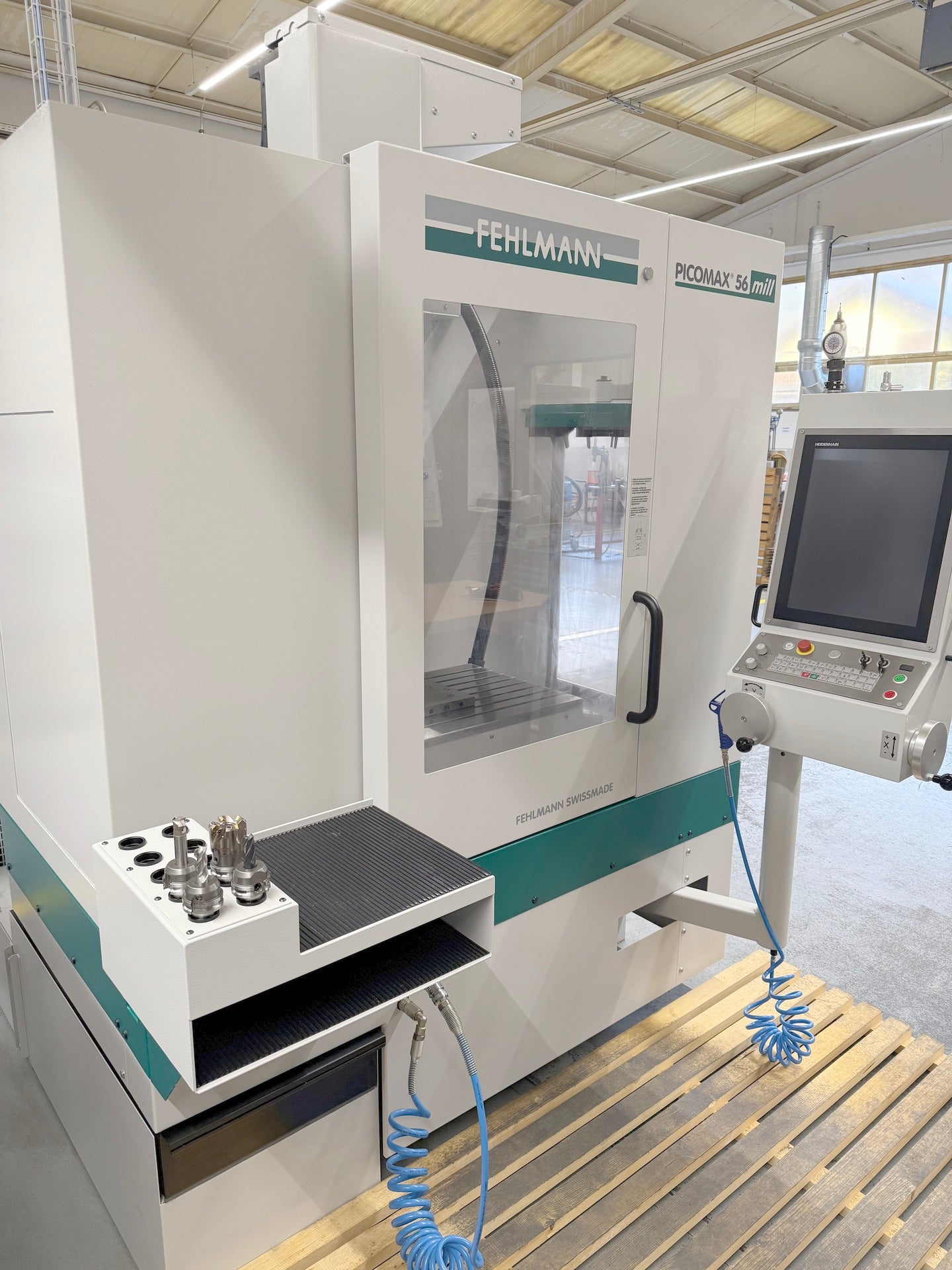

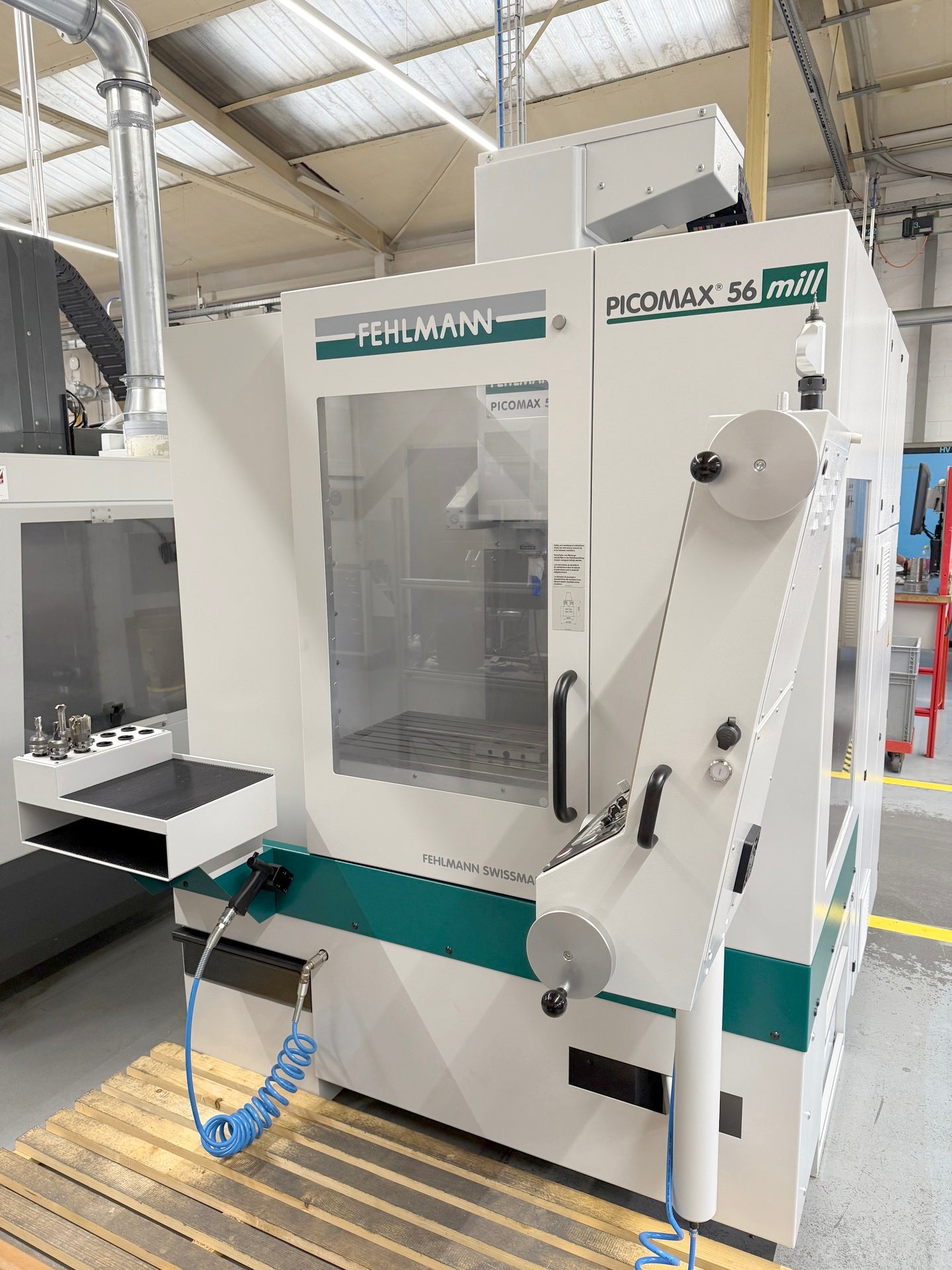

  • 023117 - FEHLMANN Picomax 56 mill
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

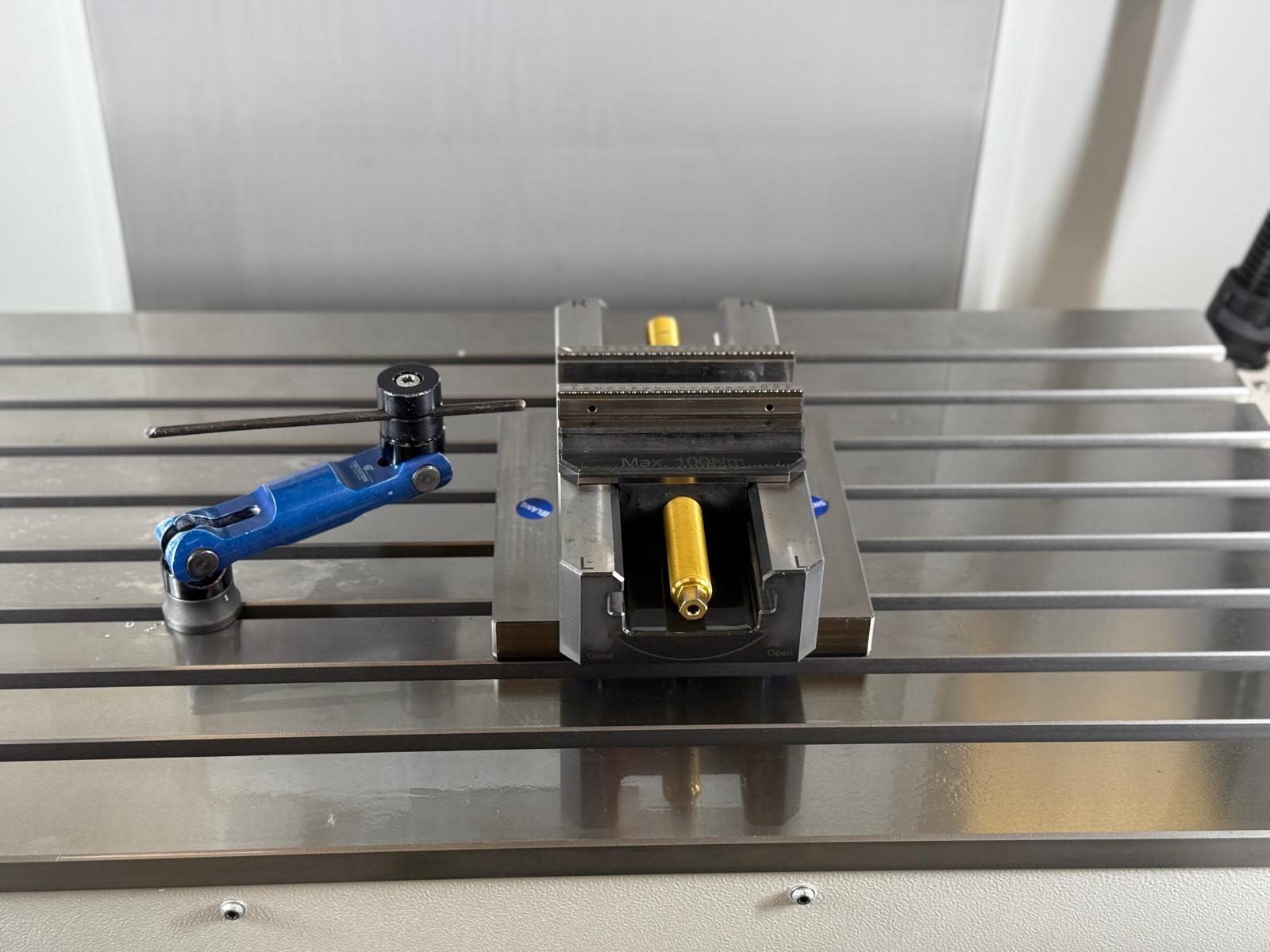

Table length: 908 mm.
Table width: 480 mm.
Number of T-channels: 8.
T-channel width: 12 mm.
Distance of the T-slots: 50 mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y axis): 400 mm.
Vertical travel (z axis): 400 mm.
from: 50 t/min.
up to: 12000 t/min.

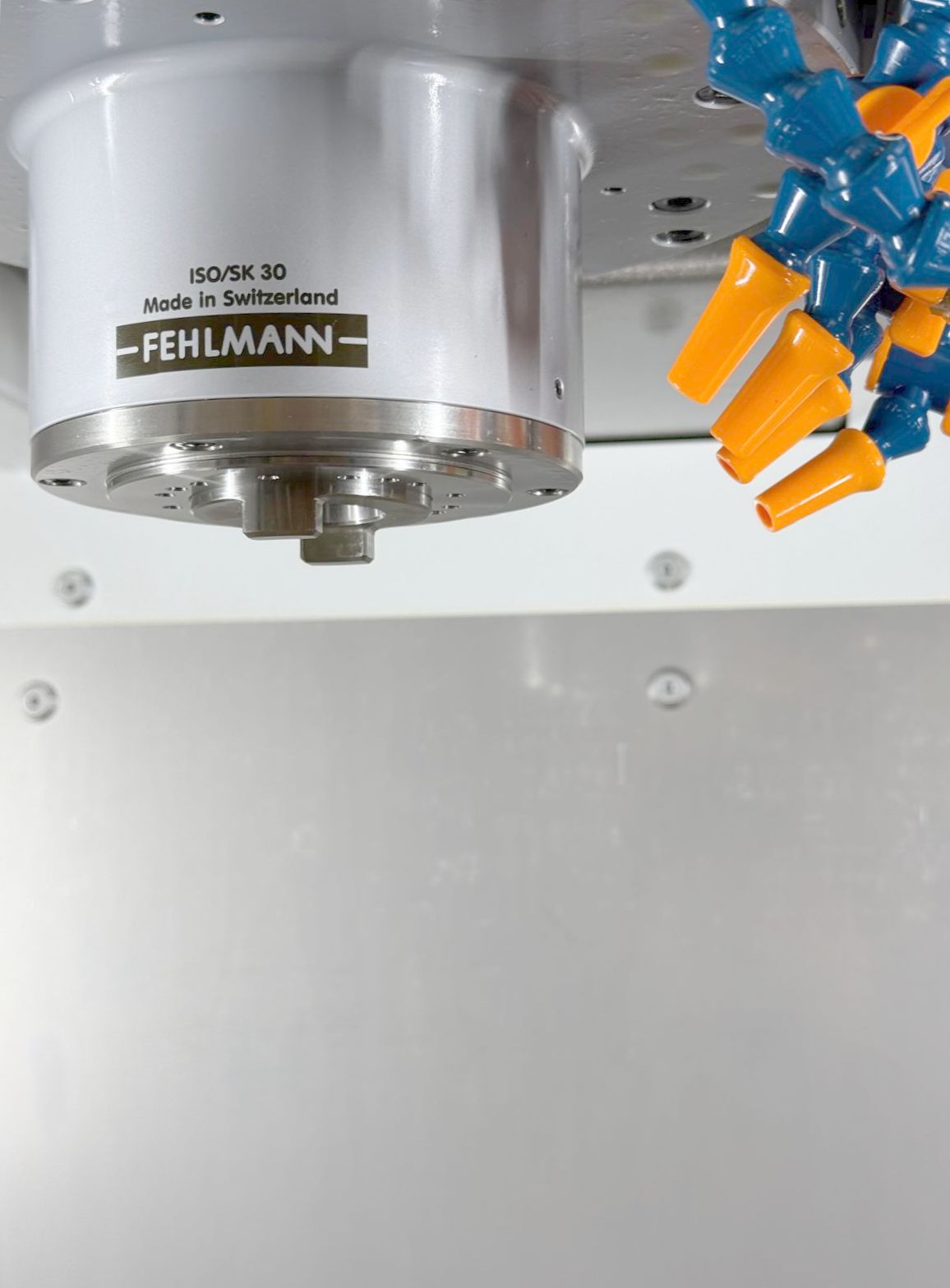

Spindle nose SK: 30.
Feeds (X, Y, Z): 1 - 20000 mm/min.
Rapid traverse:: 20 m/min.
Voltage 50 Hz 3x: 400 Volt.
Milling spindle motor: 9.7 kW.
Torque max.: 61 Nm.
Machine's weight about: 3250 kg.
Length: 1900 mm.
Width: 1700 mm.
Height: 2500 mm.

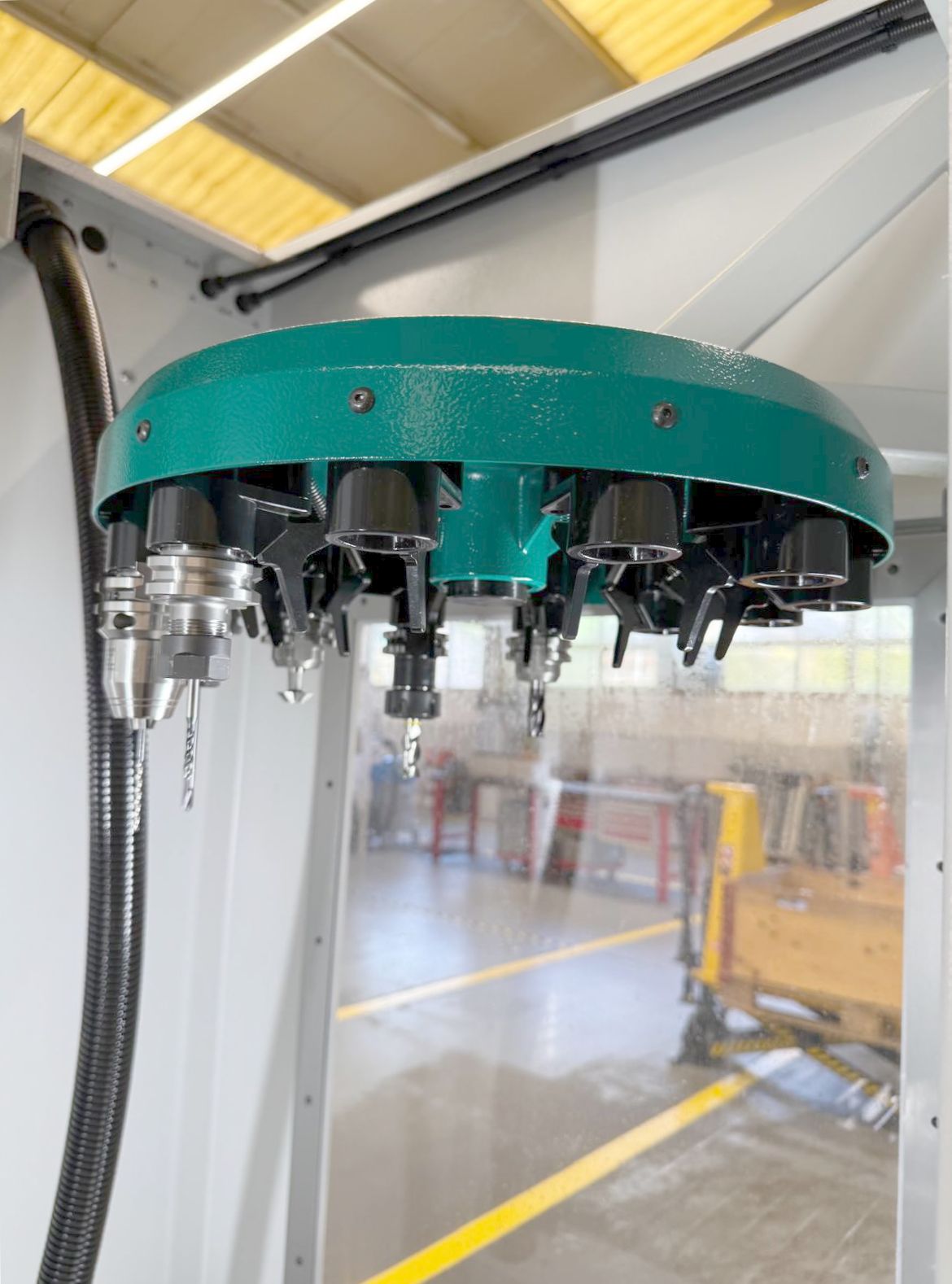

Tool magazine manual, Number of tools: 12.
