MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STAMA
  • Model:

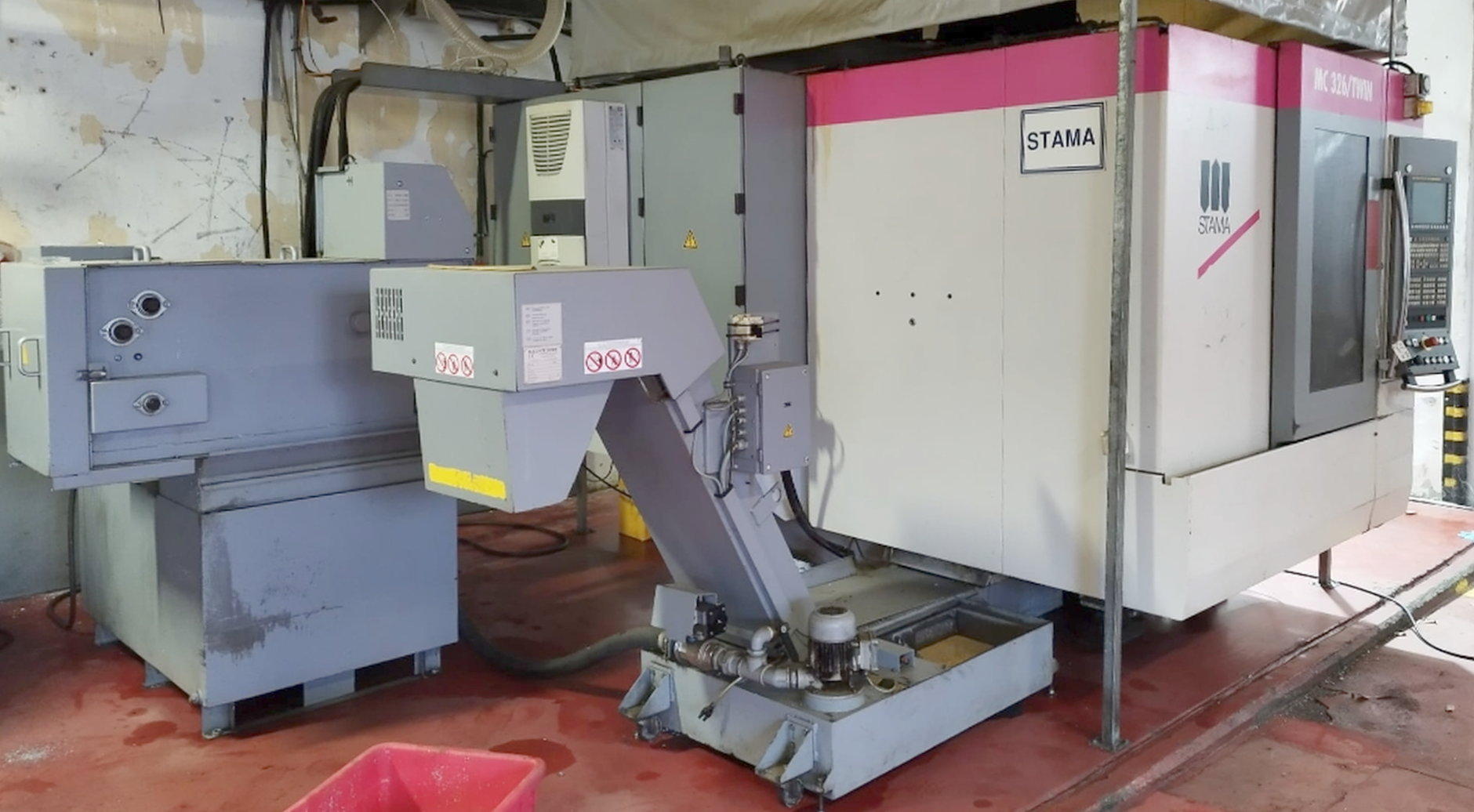

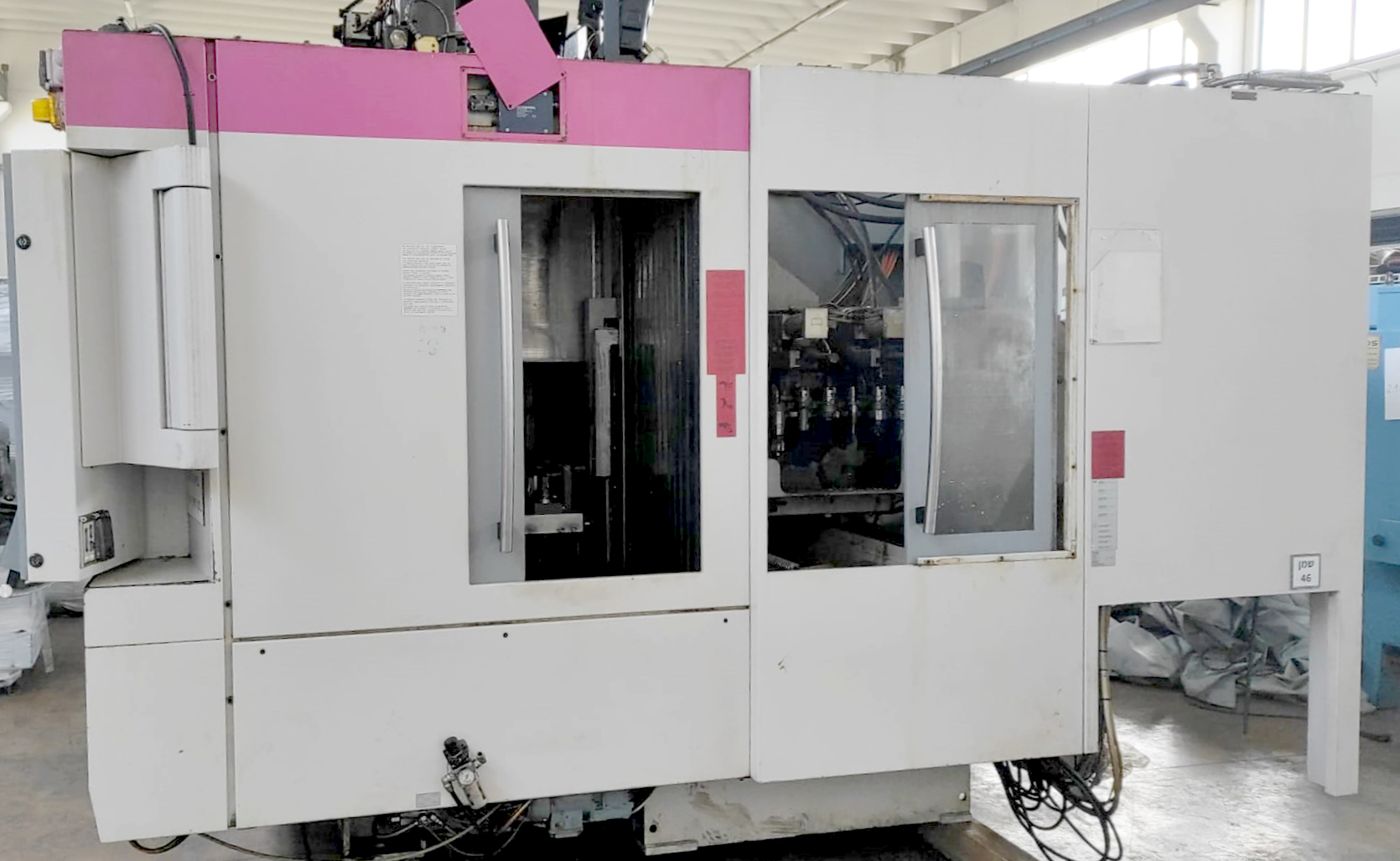

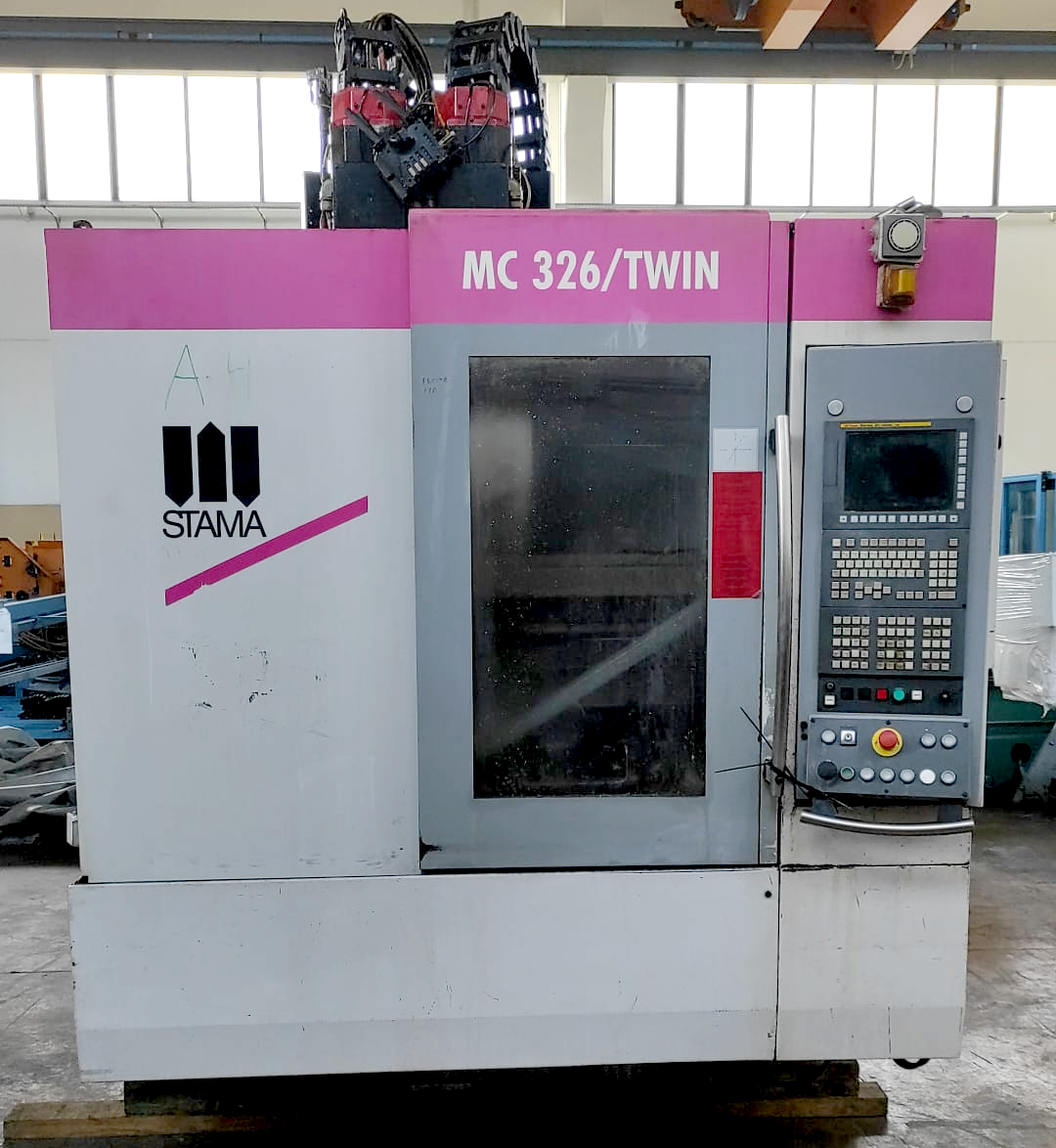

  • 022166 - STAMA MC 326 / TWIN
  • Condition:
  • 1
  • YOM:
  • NA

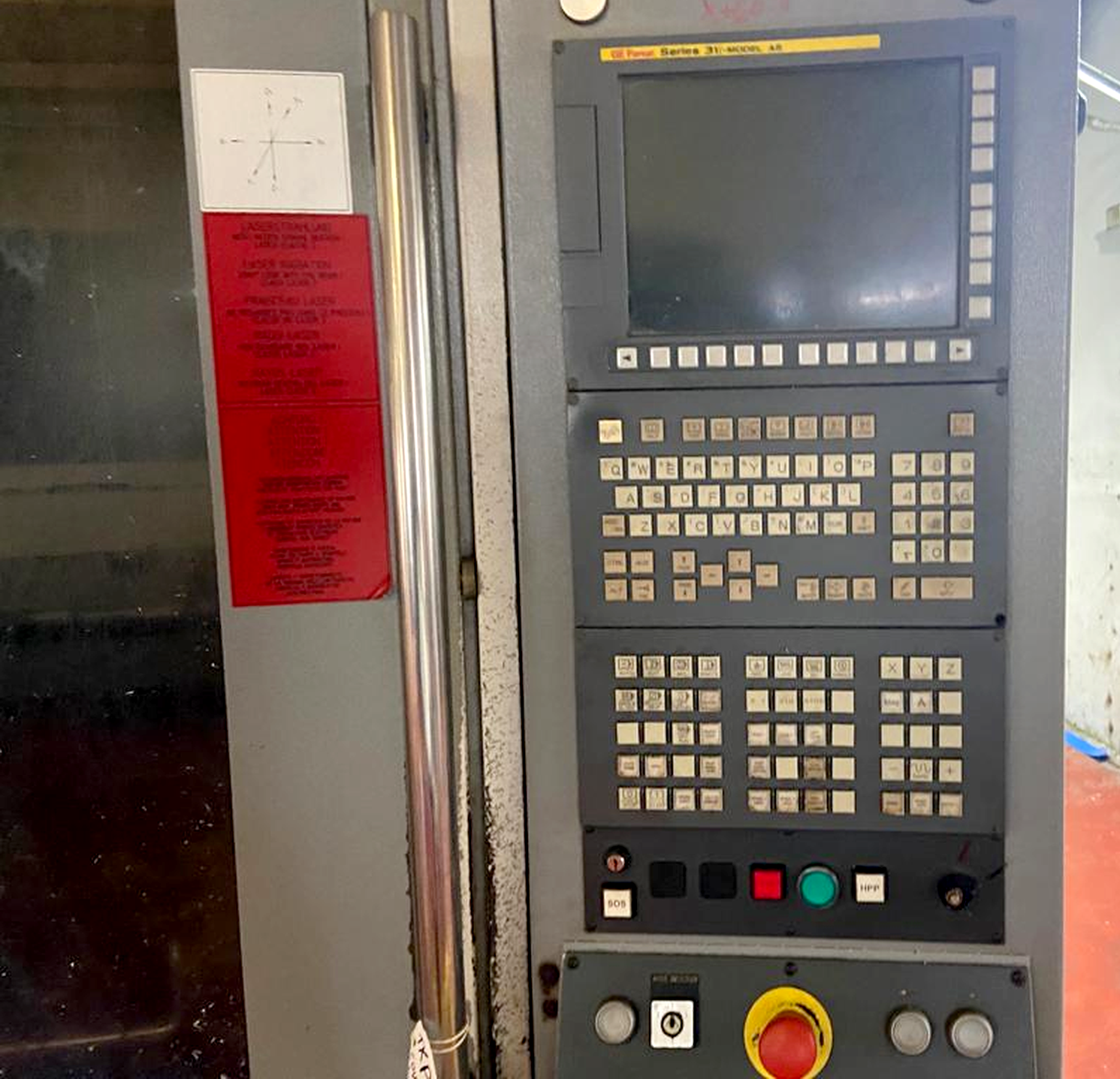

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.
Number of spindles: 2.

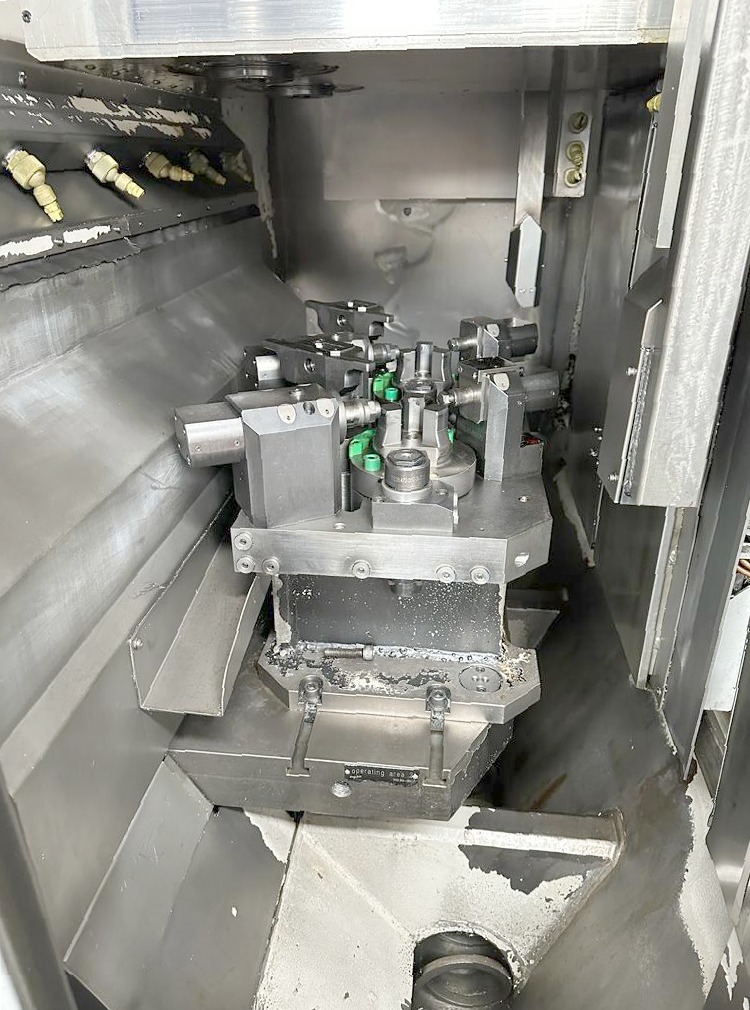

Number of tables: 2.
Table length: 700 mm.
Table width: 350 mm.
Number of T-channels: 2.
T-channel width: 14H12 mm.
Table load max.: 450 kg.
Longitudinal travel (X-axis): 520 mm.
Transversal travel (y-axis): 360 mm.
Vertical travel (z axis): 360 mm.

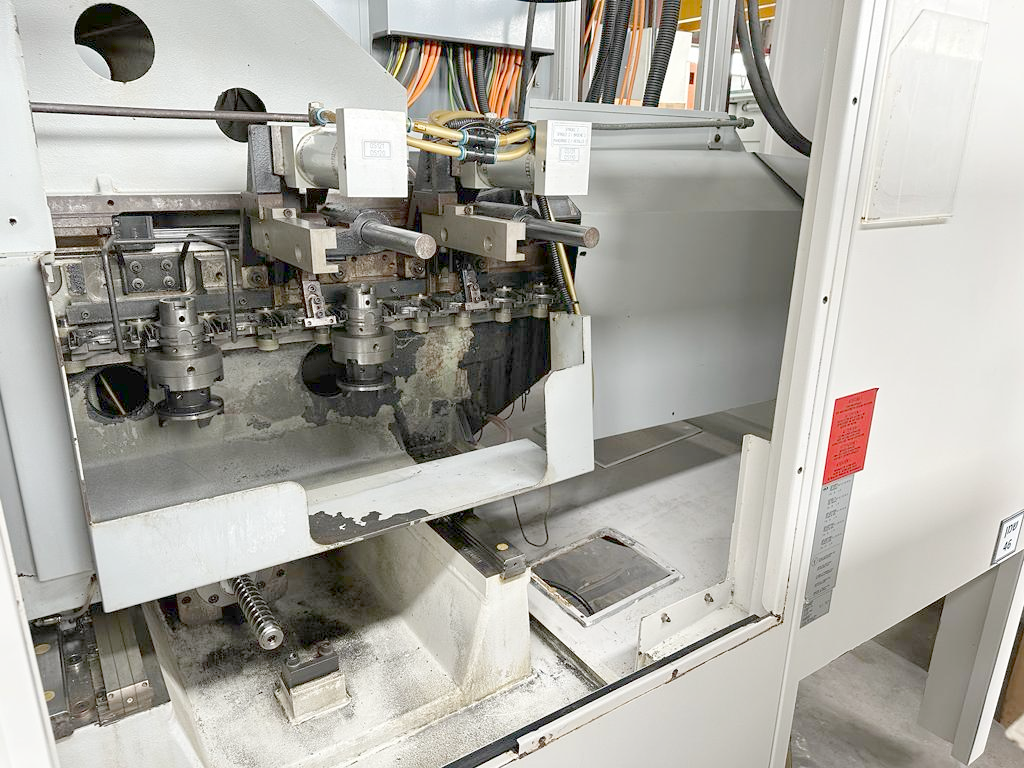

Number of tools: 2 x 21.
Tool diameter: 88 mm.
Diameter with free adjacent pockets: 125 mm.
Tool lenght: 300 mm.
Max. tool-weight: 5 kg.
Average chip-to-chip time: 2.4 s.
Spindle nose: HSK-A: 63.
Distance spindle nose to table: 200 - 560 mm.
distance between spindles: 266 mm.
from: 36 t/min.
up to: 12000 t/min.
Rapid traverse:: 60 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 18.5 kW.
Total power required: 40 kVA.
Machine's weight about: 5600 kg.
Length: 3300 mm.
Width: 3300 mm.
Height: 3200 mm.
