MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

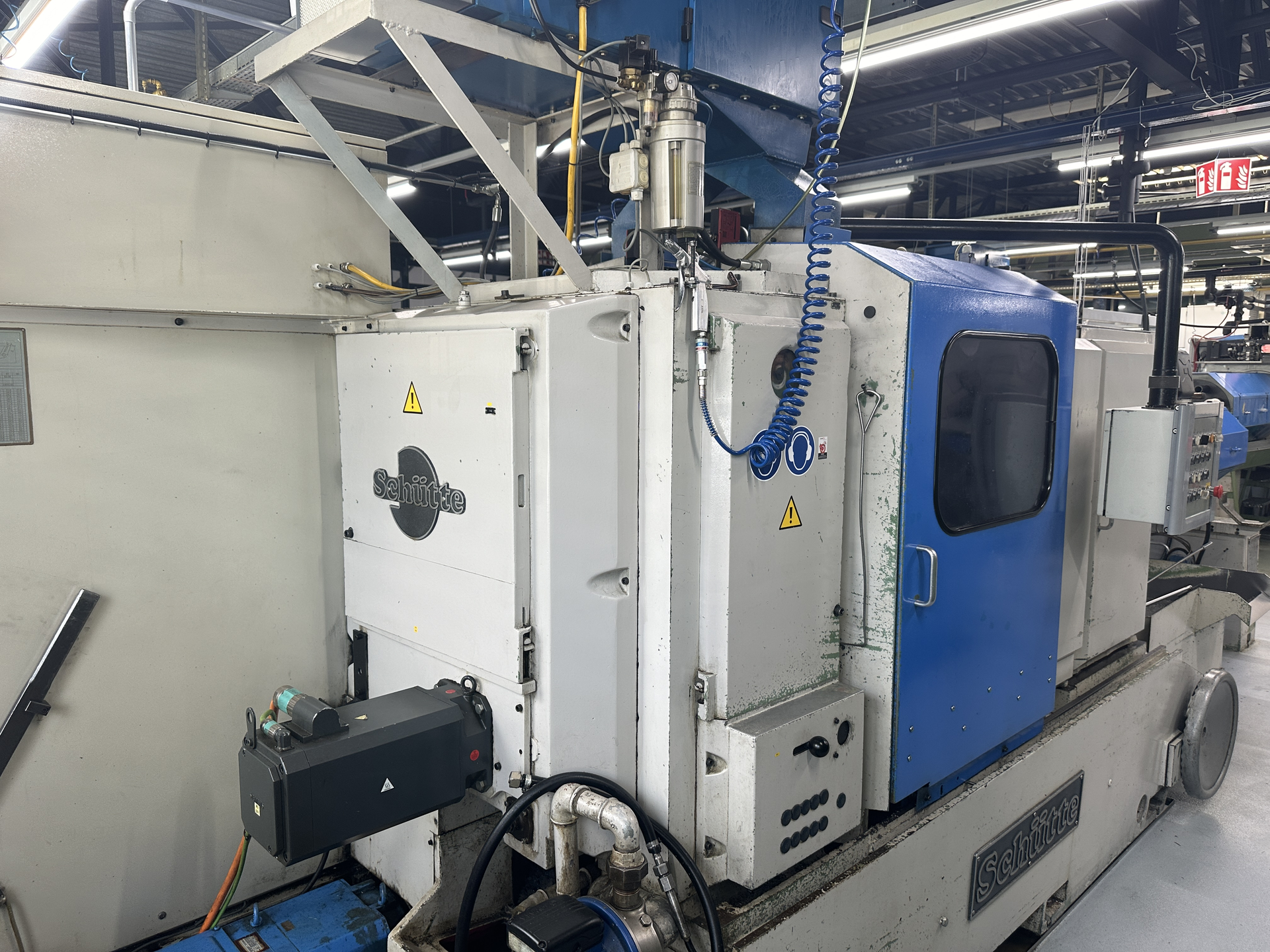

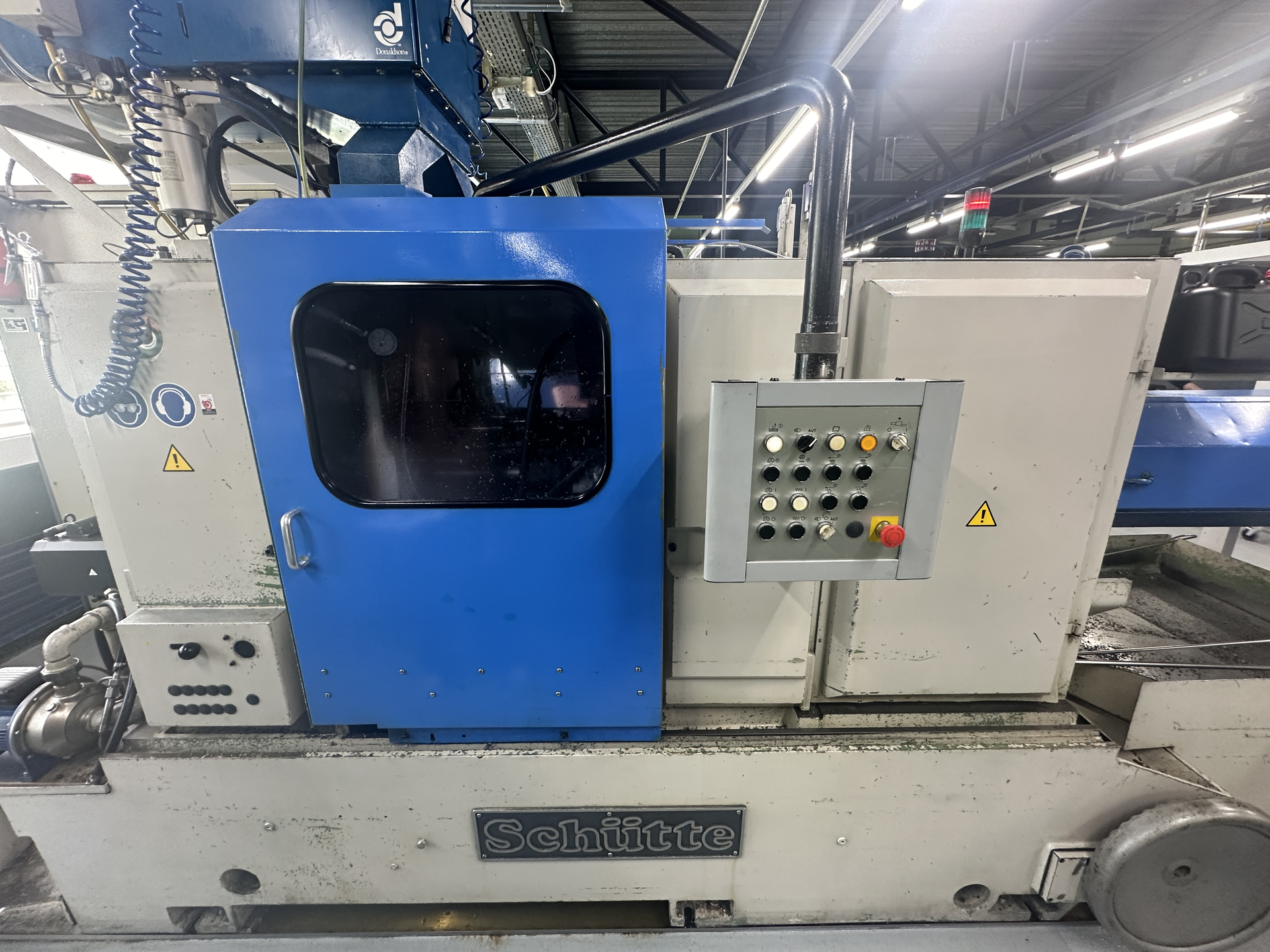

  • 023053 - SCHÜTTE SF 32
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 6.
Capacity round bar: 32 mm.
Capacity square bar: 22 mm.
Capacity hexagon bar: 27 mm.
Max. advance of bar: 125 mm.
Max. stroke of long slide: 100 mm.
Number of possible pieces: 35.
from: 200 t/min.
up to: 3150 t/min.
number (steps): 49.
Voltage 50 Hz 3x: 380 Volt.
Power: 18.5 kW.
Machine's weight about: 7800 kg.
Length: 3850 mm.
Width: 1510 mm.
Height: 2100 mm.
Machine refurbished: 2019.
