MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

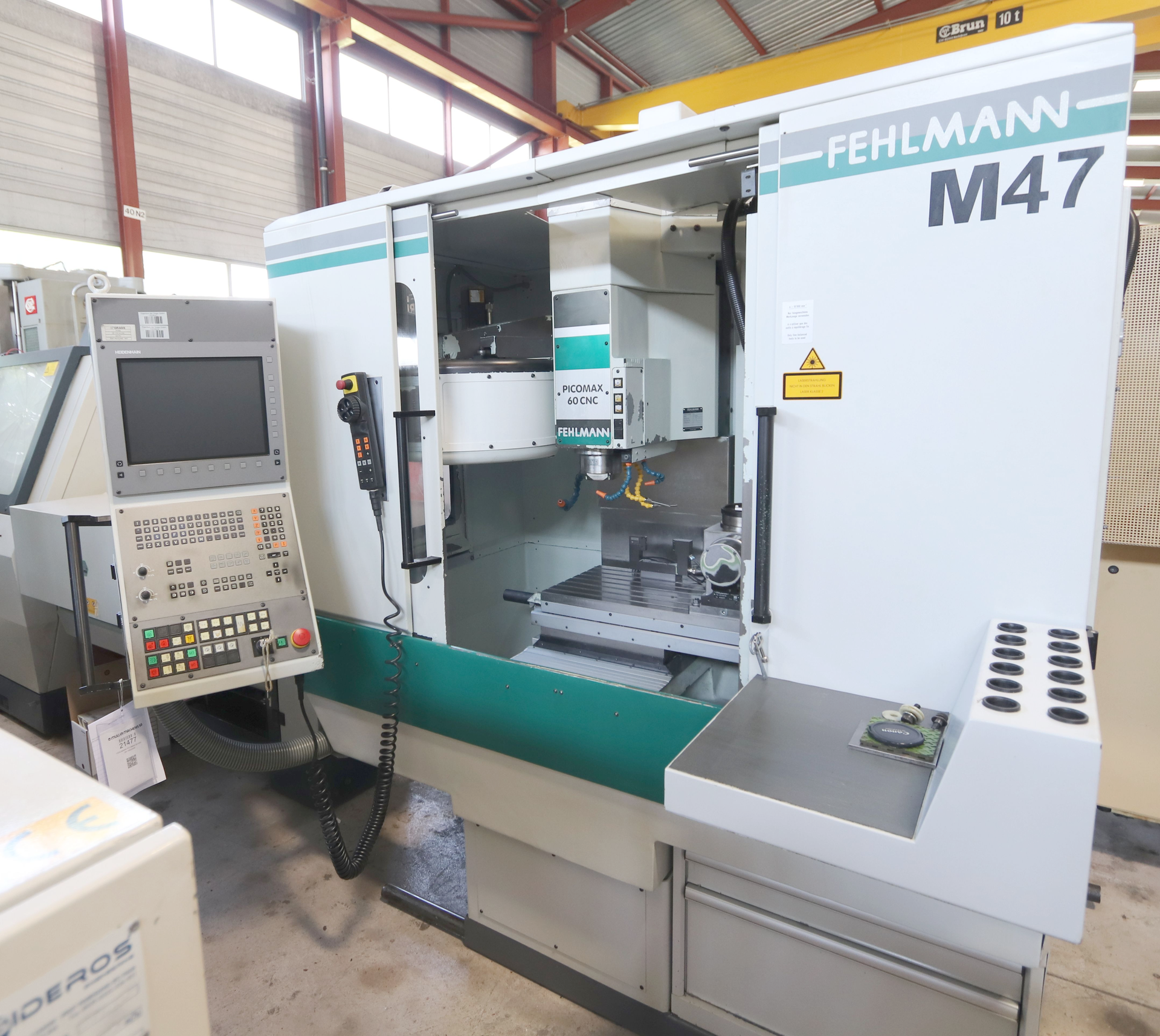

  • 021477 - FEHLMANN PICOMAX 60-HSC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Time under power: 99418 Heures.
Spindle run time: 23546 Heures.
Number of axis total: 5.
Table length: 920 mm.
Table width: 380 mm.
Number of T-channels: 7.
Distance of the T-slots: 50 mm.
T-channel width: 12H8 mm.
Table load max.: 250 kg.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y-axis): 350 mm.
Vertical travel (z axis): 610 mm.

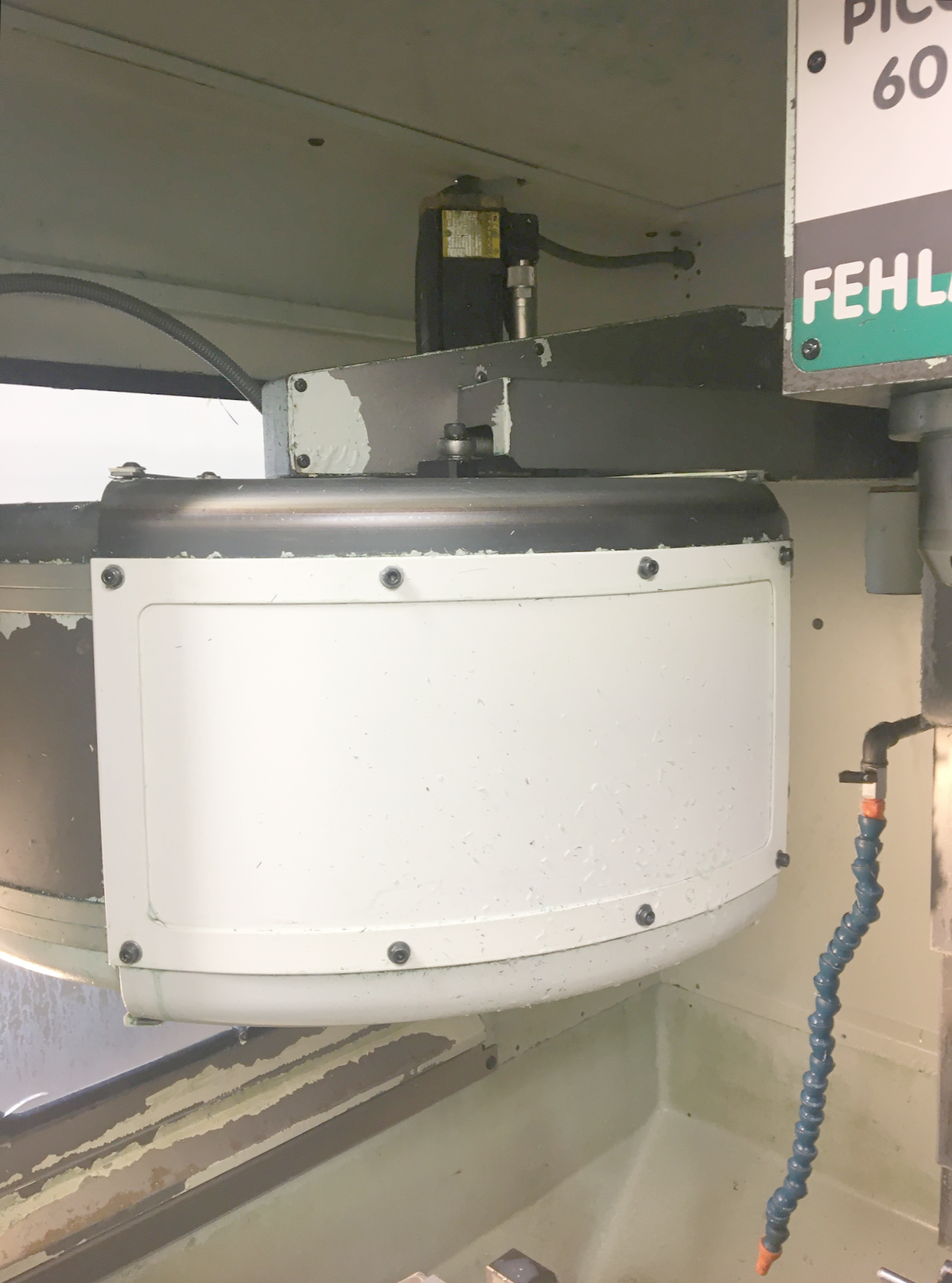

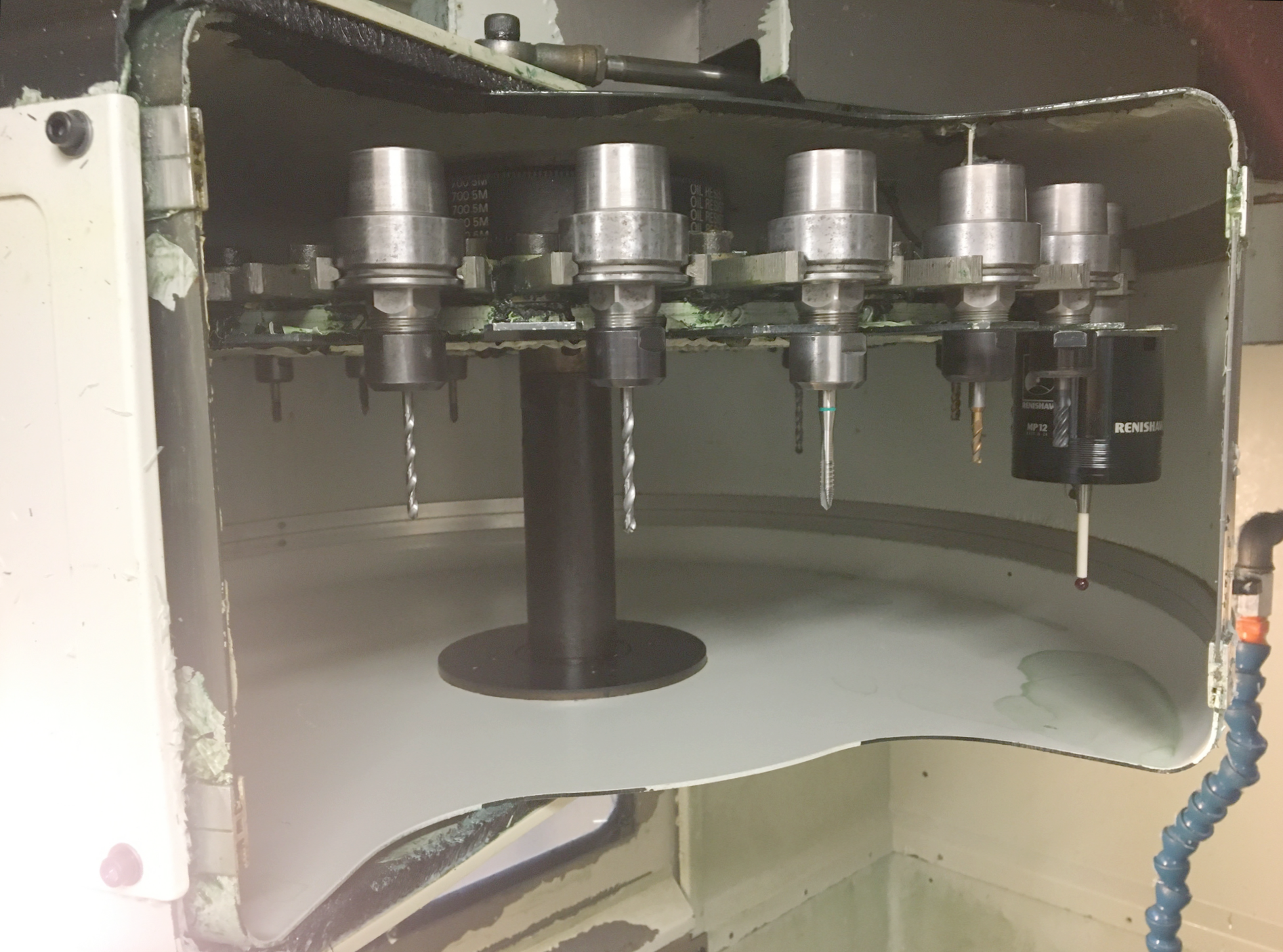

Tool magazine number of tool places: 24.
Tool diameter max.: 63 mm.
Diameter with free adjacent pockets: 100 mm.
Tool lenght: 175 mm.
Max. tool-weight: 1.5 kg.
Time of tool changing: 6 s.
Average chip-to-chip time: 8 s.
Spindle nose: HSK: E40 / DIN 69893.
Distance spindle nose to table: 97 - 704 mm.
from: 30 t/min.
up to: 30000 t/min.
Feed range: 1 - 20000 mm/min.
Rapid traverse:: 20 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 16 / 13 kW.
Machine's weight about: 3200 kg.
Length: 2000 mm.
Width: 1700 mm.
Height: 3000 mm.

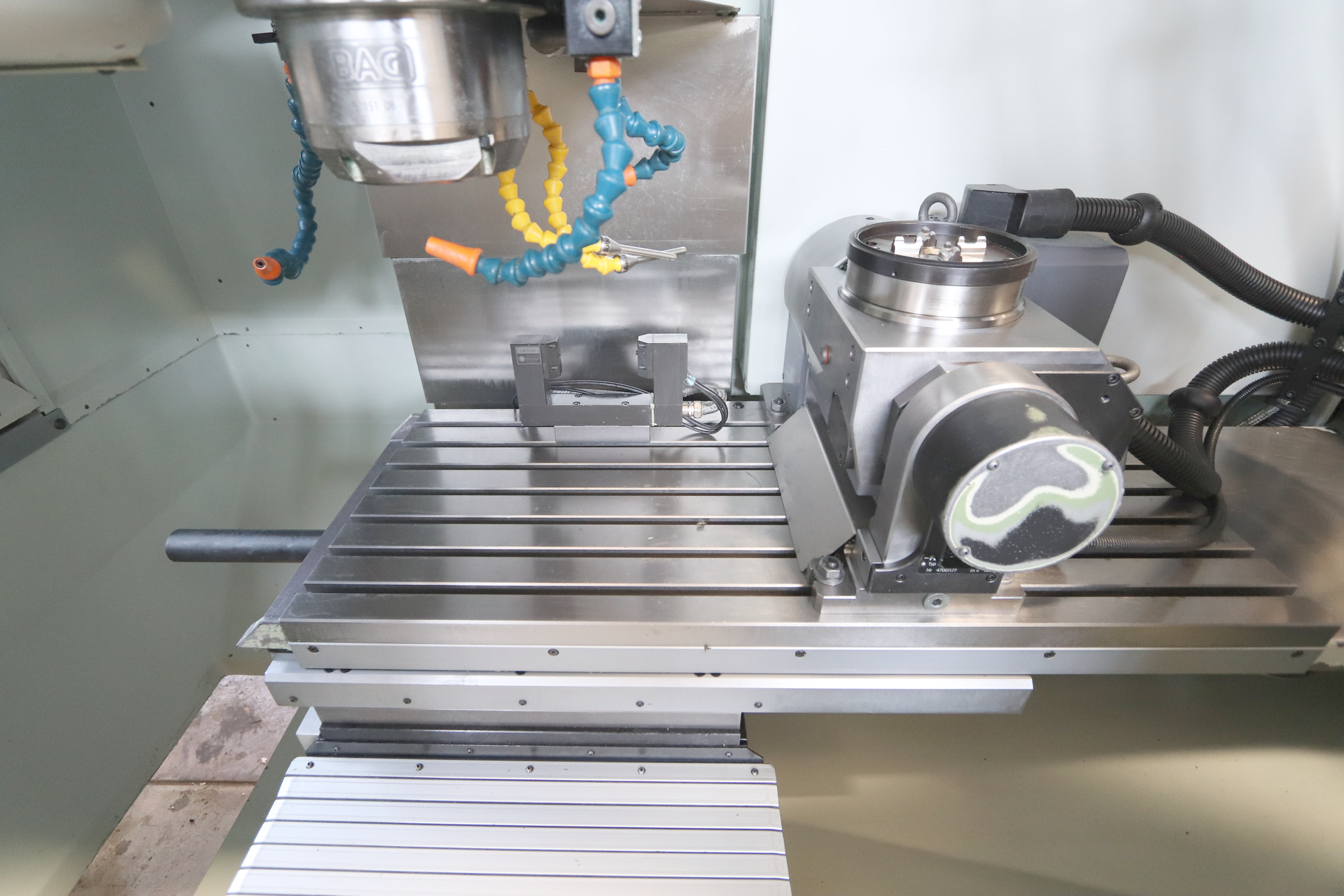

Dividing attachment 4th and 5th axis: ATS 160.
