MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

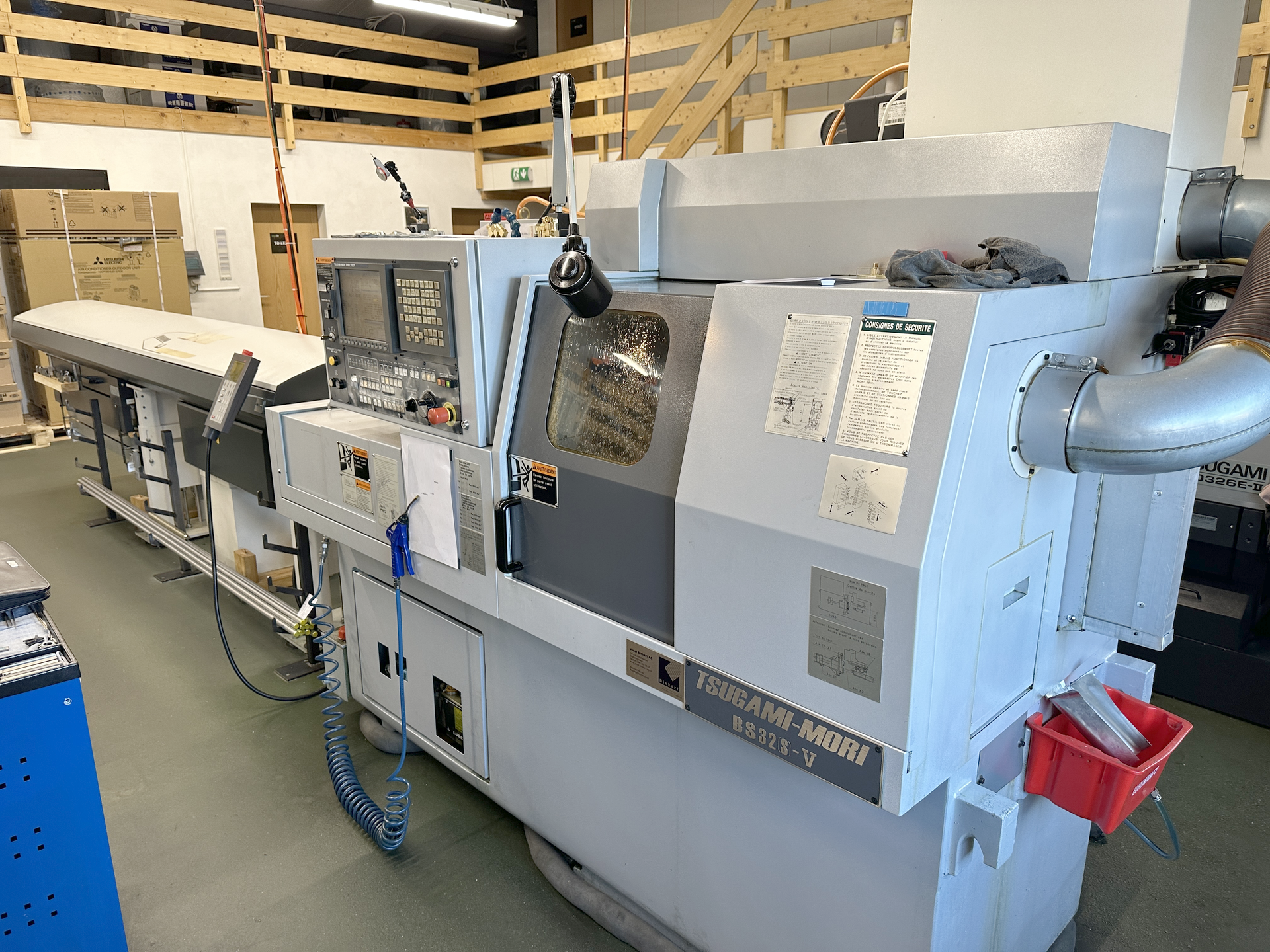

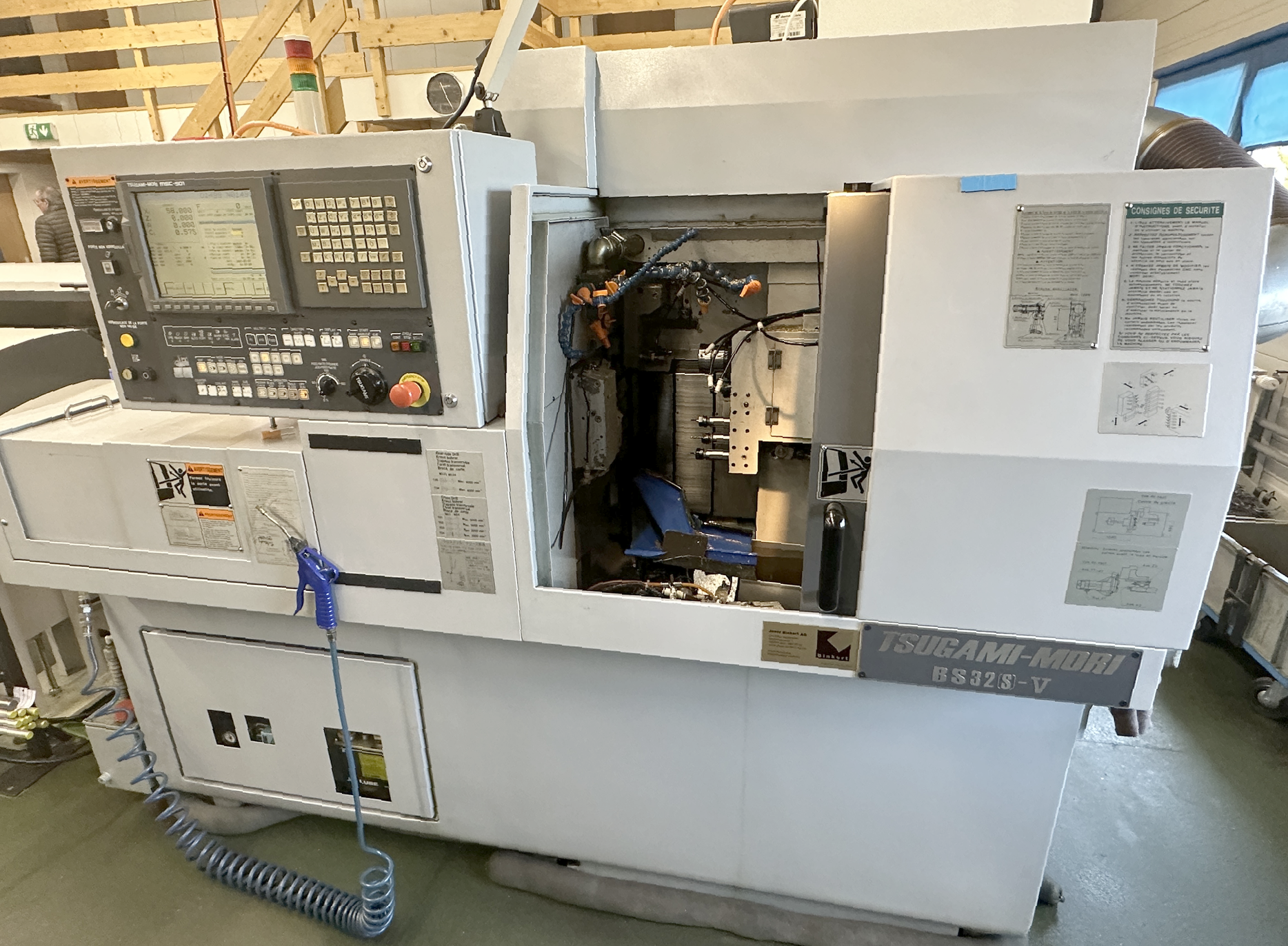

  • 022346 - TSUGAMI-MORI BS32CE(S)-V
  • Condition:
  • 1
  • YOM:
  • NA

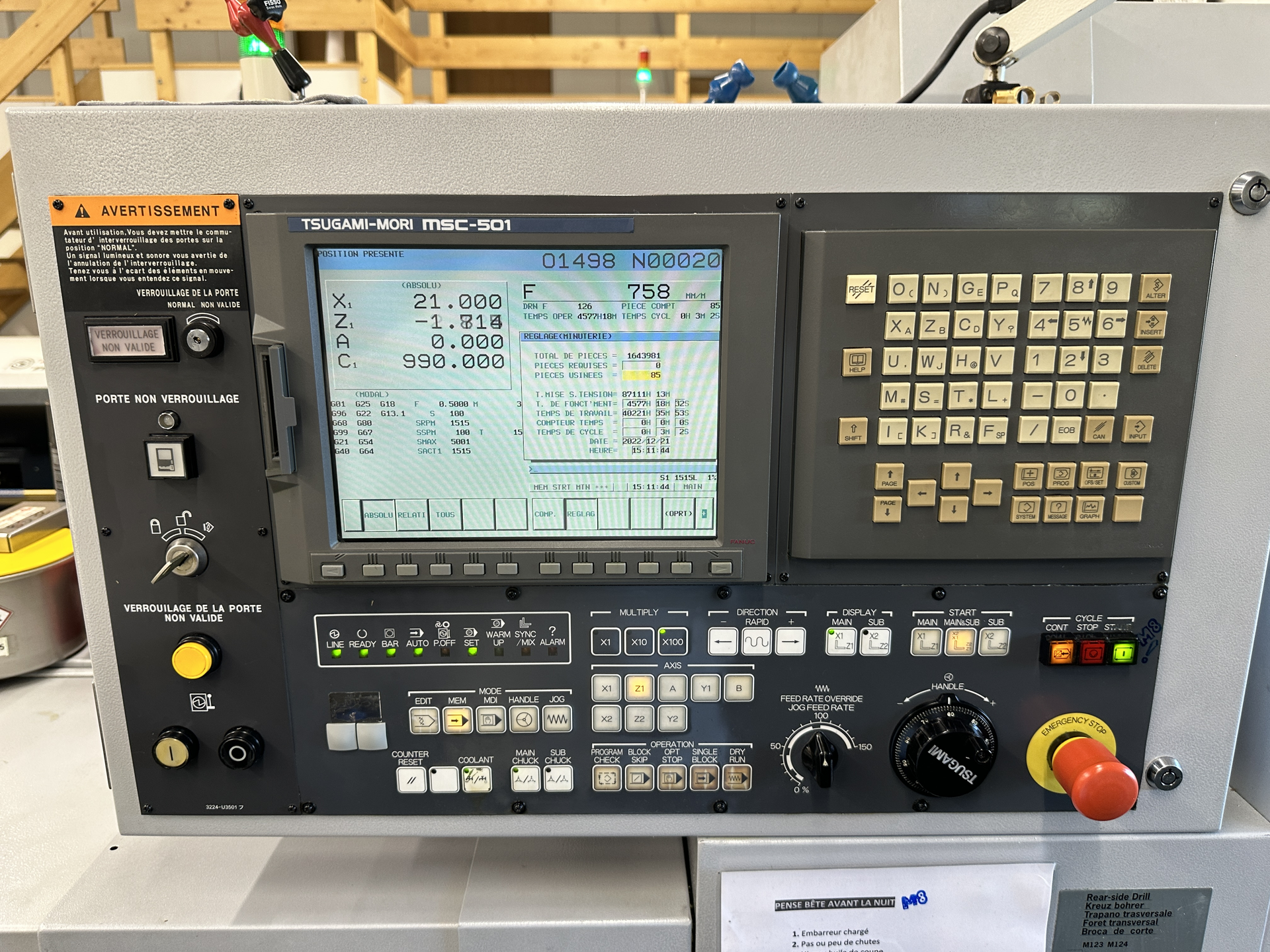

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 7.
Number of spindles: 2.
Max. turning diameter: 8 - 32 mm.
Maximum turning length: 250 mm.
Max. drilling diameter: 12 mm.
Max. threading diameter: 10 M.
from: 1 mm/min.
up to: 6000 mm/min.
Inner taper type: F37.

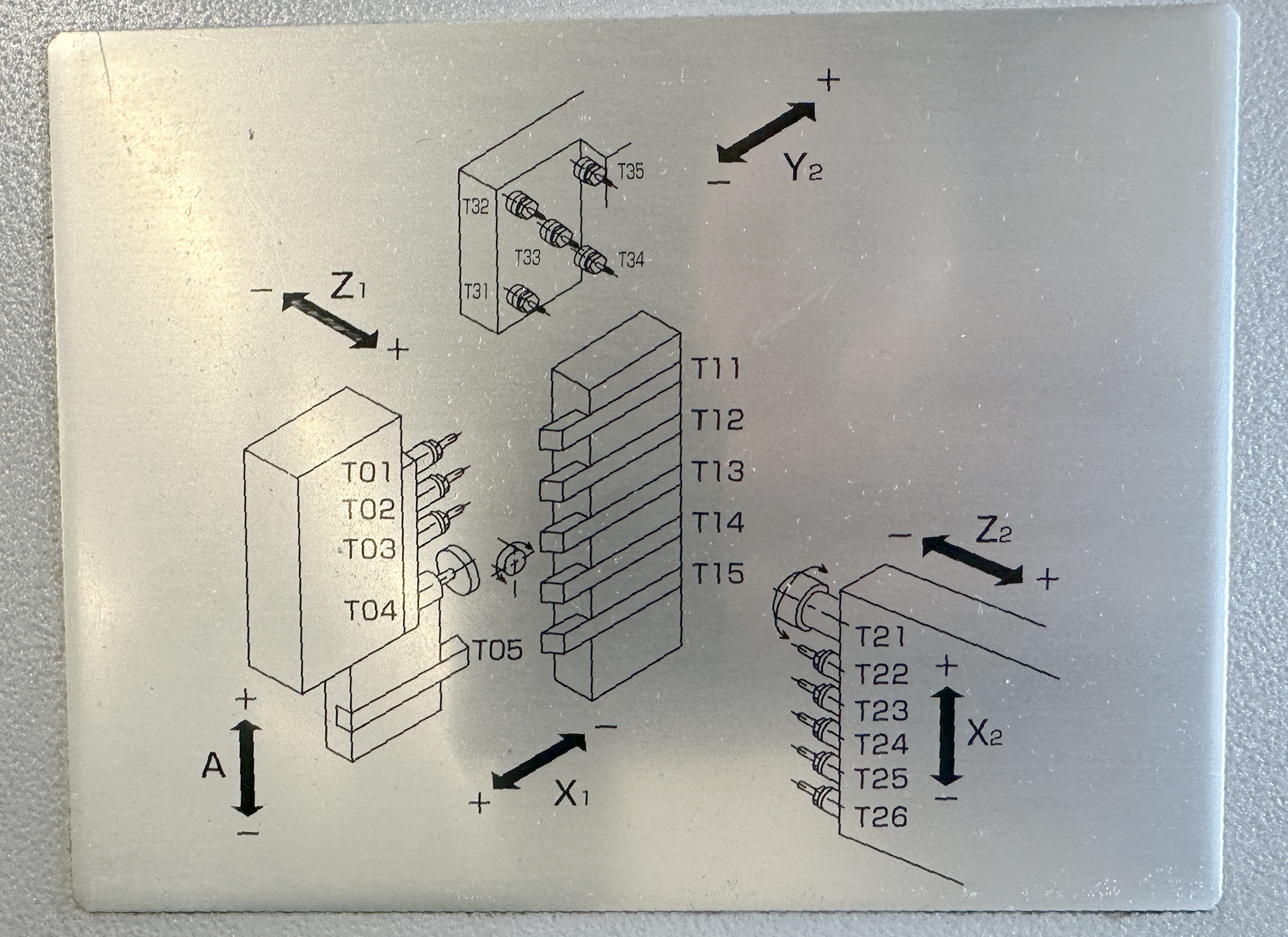

Number of stations: 4.
number of tools: 20.

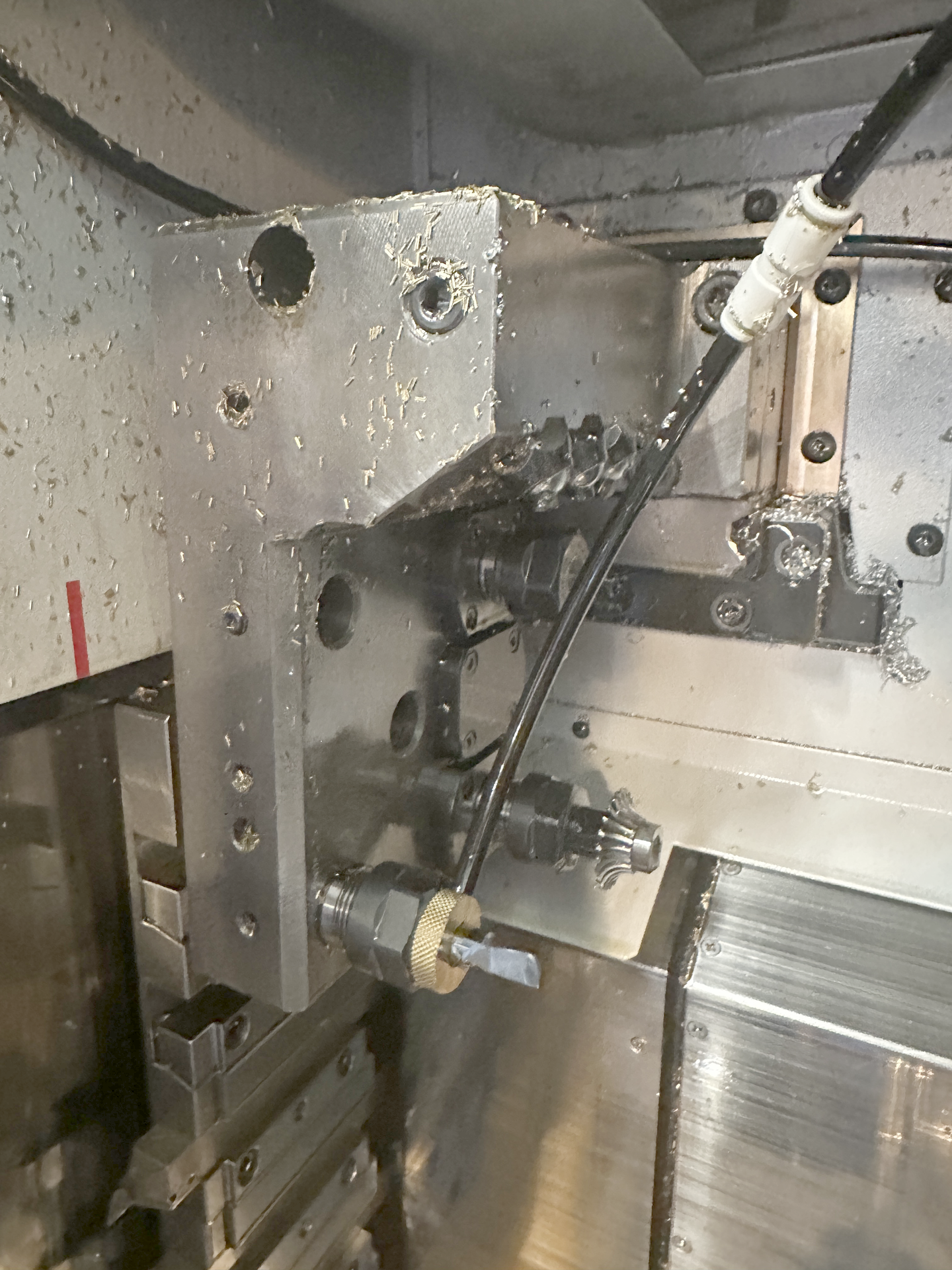

number of driven tools: 5.

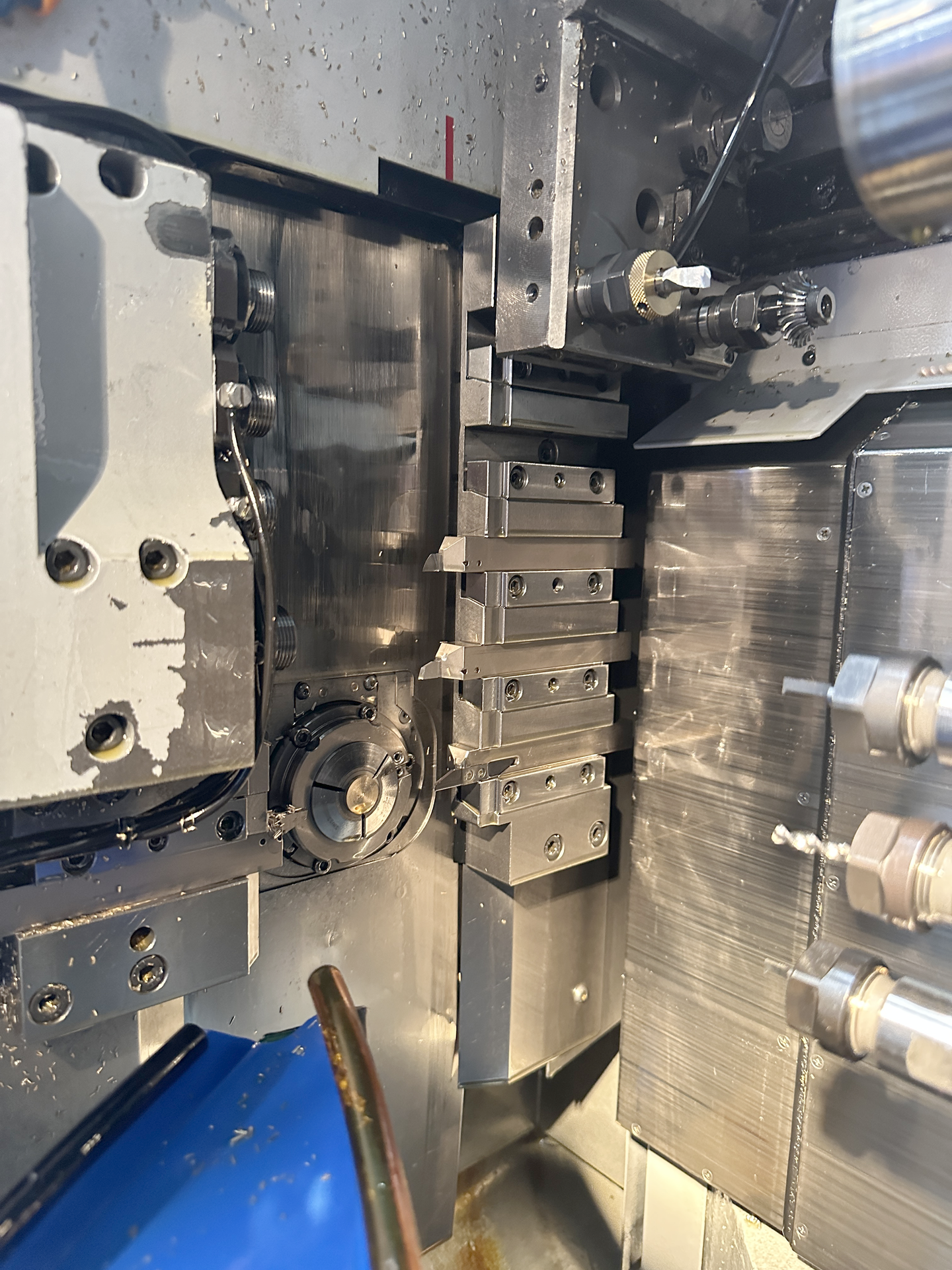

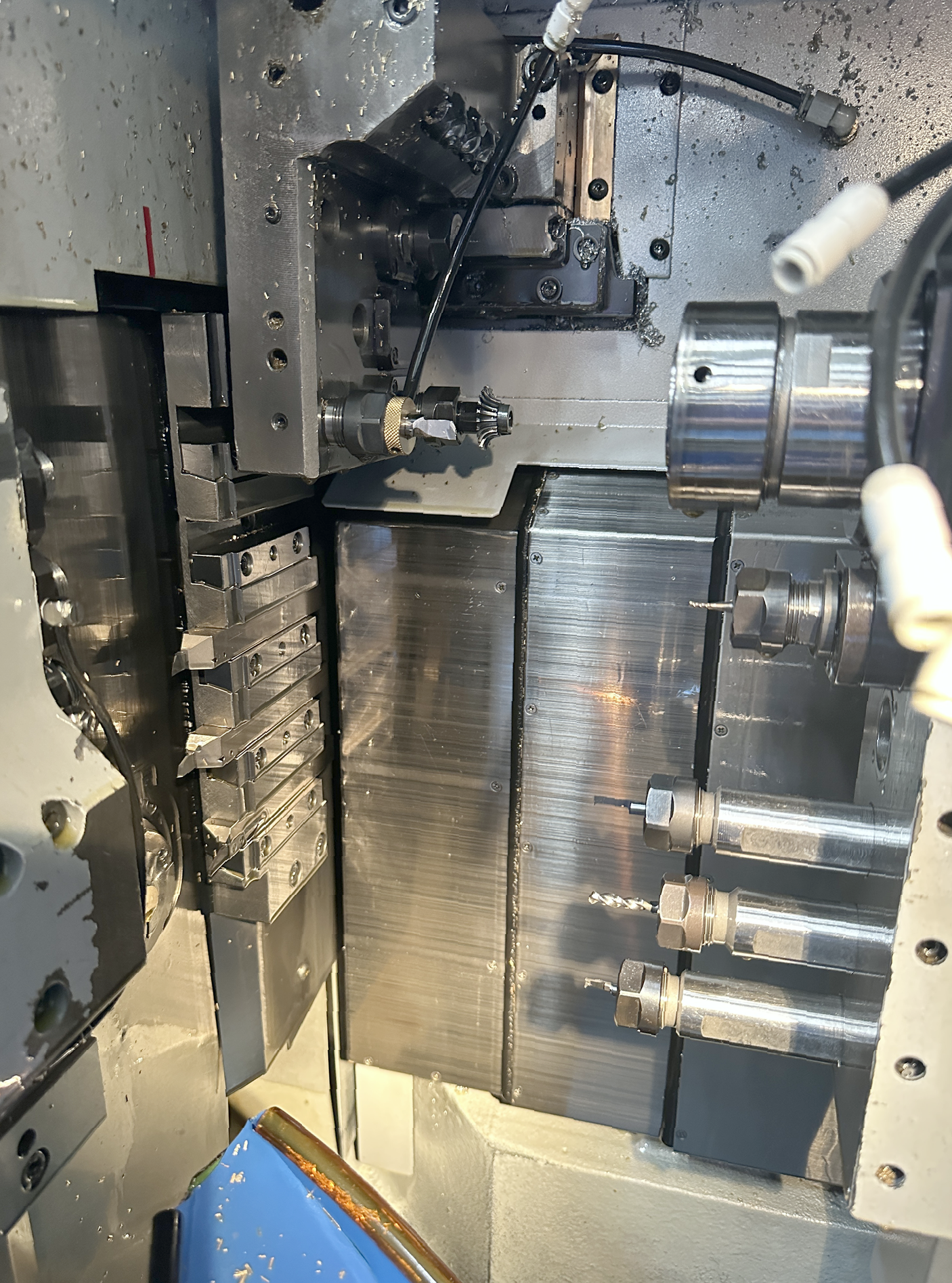

Turning tools: 5 pce.
Drilling tools: 6 pce.
Transverse processing tools: 4 pce.
Spindle speeds (turning tools): 200 - 5000 t/min.
Power of driven tools: 0.9 kW.
Rapid traverse:: 20 m/min.
Spindle motor: 5.5 kW.

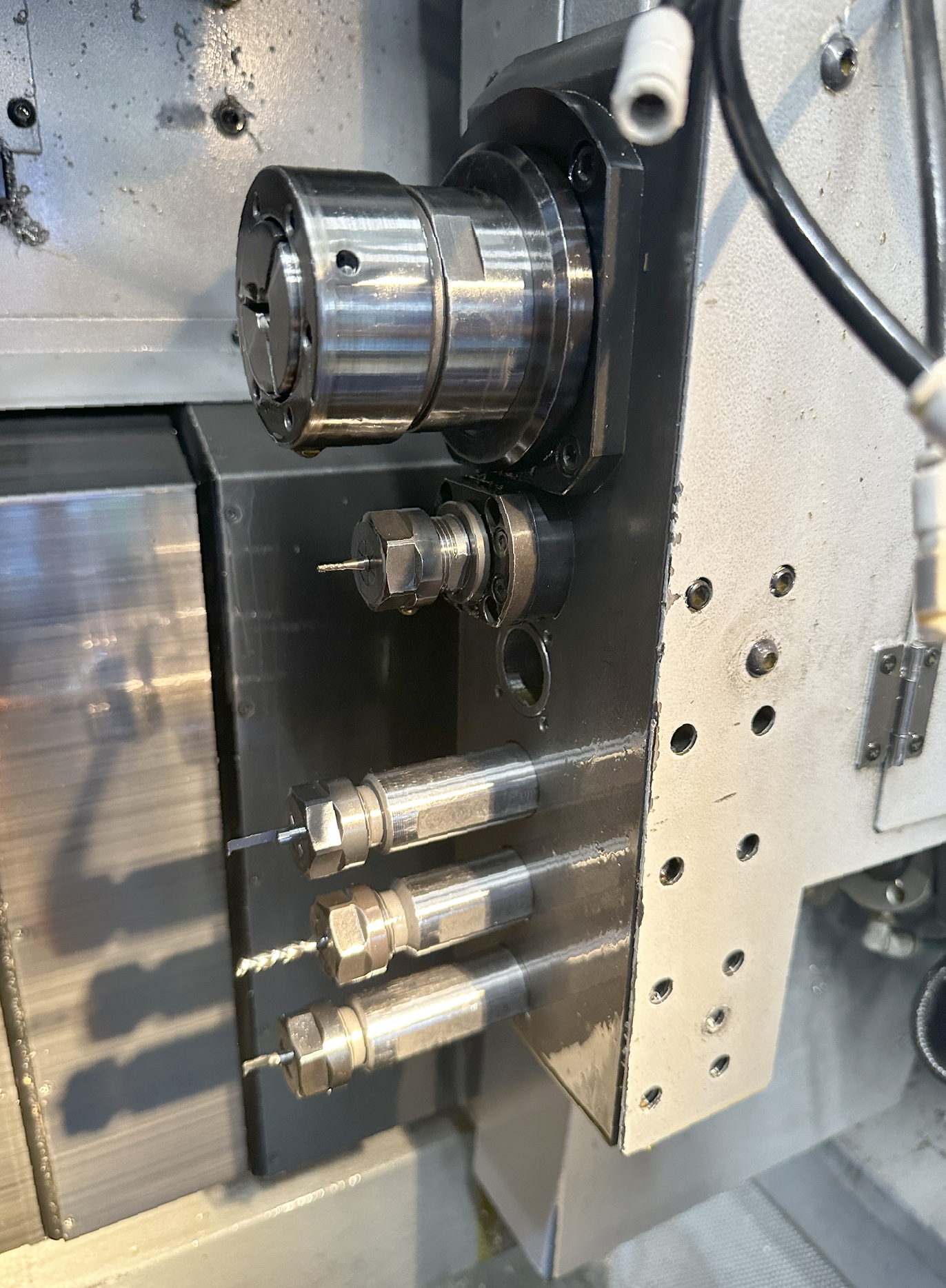

Power of back spindle: 2.2 kW.
Air connect: 5 bar.
Machine's weight about: 2800 kg.
Length: 2150 mm.
Width: 1500 mm.
Height: 1800 mm.

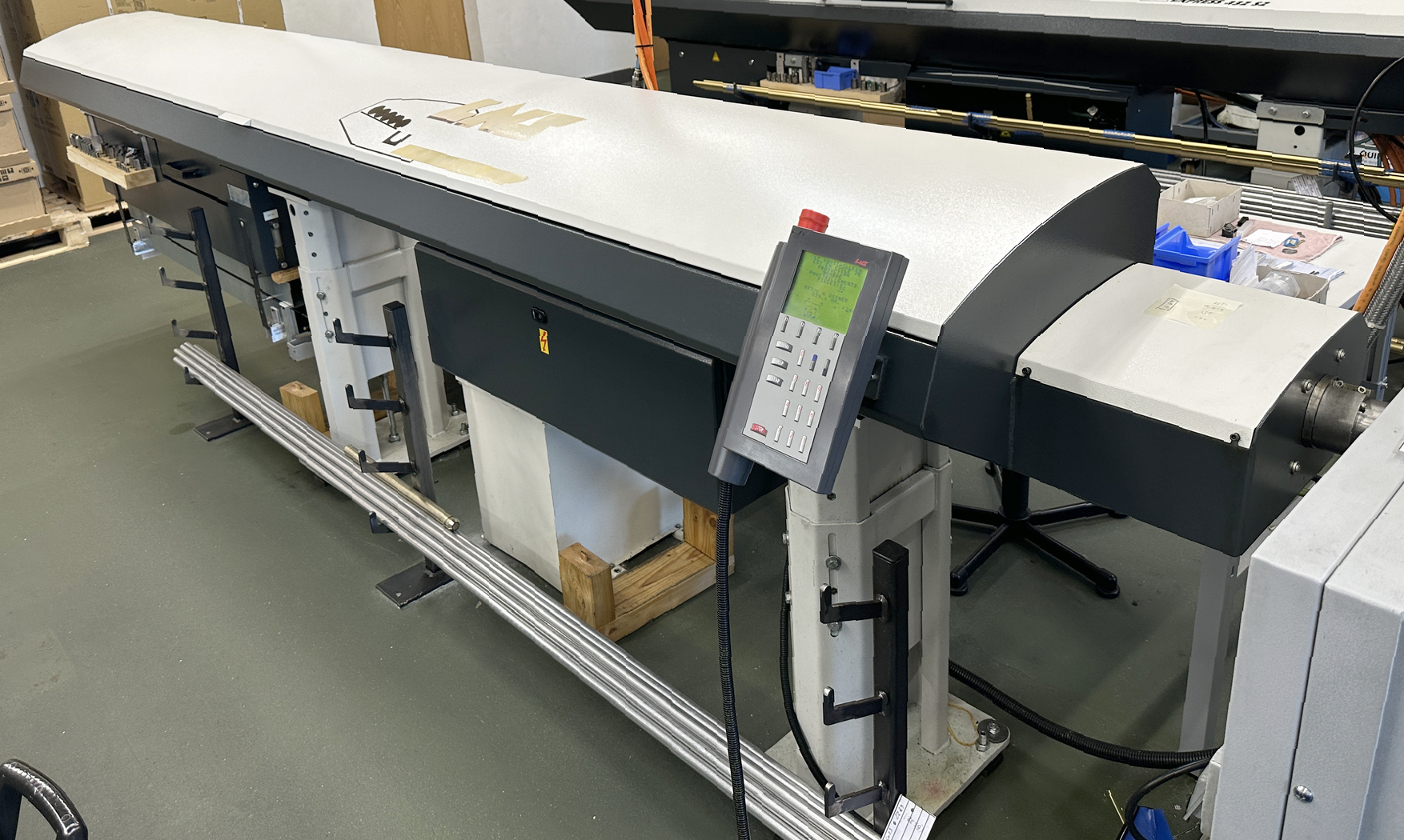

Manufacturer: LNS.
Type: Express 332.
Length of bars max.: 3000 mm.
Bar diameter: 3 -32 mm.
