MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Charmilles
  • Model:

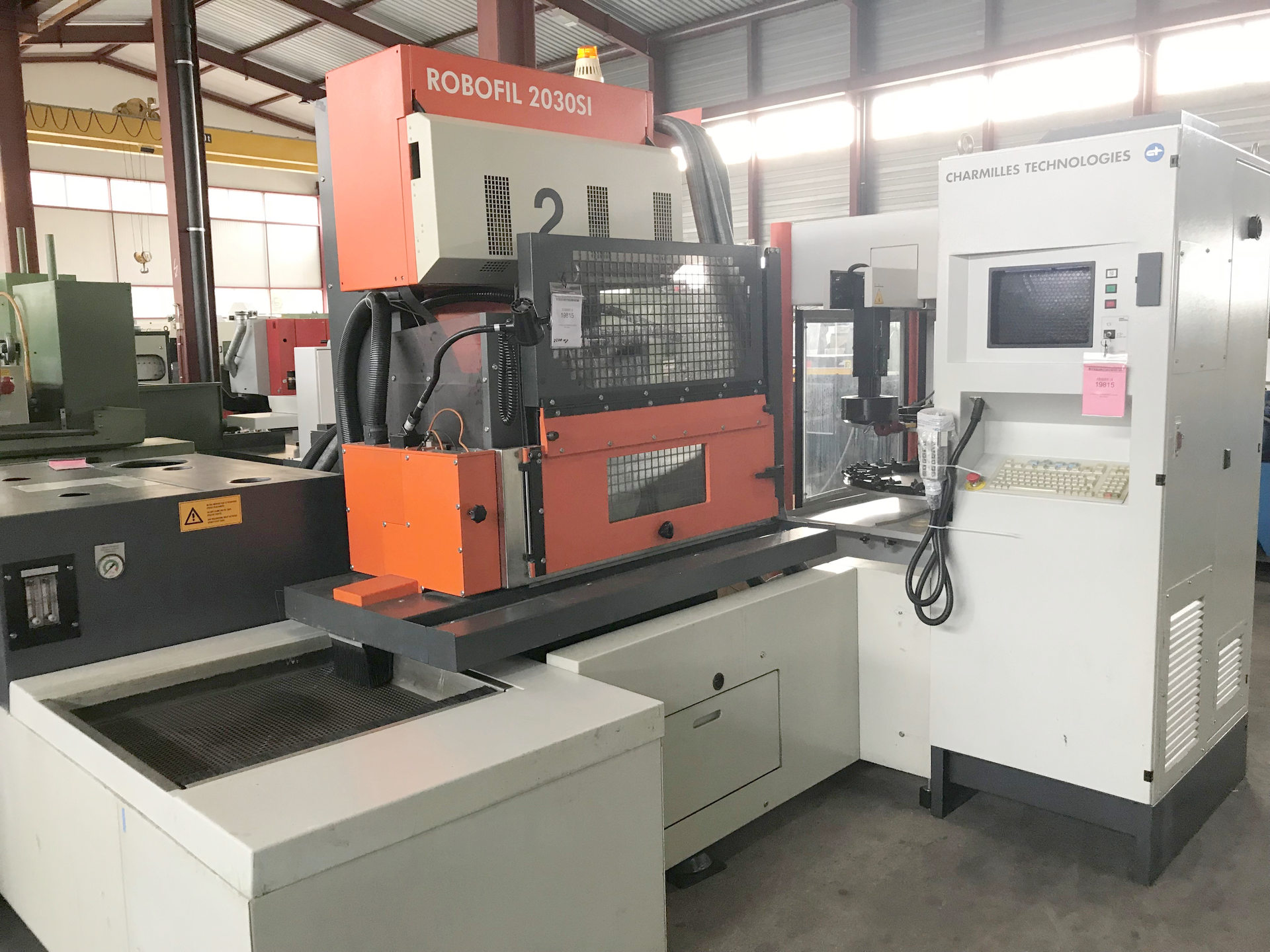

  • 019815 - AGIE CHARMILLES ROBOFIL 2030 SI
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Length: 3700 mm.
Width: 2600 mm.
Height: 2300 mm.
Table load max.: 500 kg.
Longitudinal traverse (X-axis): 318 mm.
Cross traverse (Y-axis): 218 mm.
Vertical travel (Z axis): 114 mm.
U axis: +/-48 mm.
V-axis: +/-48 mm.
U/V axis travel: 48 mm.
Taper-cut +/-: 30/65mm °.
from: m/min.
up to: 15 m/min.
Max. coil weigth: 16 kg.
Empty weight: 4400 kg.
Contents: 240 l.
Cut capacity max. from: 300 mm2/min.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 12 kVA.
Weight total installation approx.: 4500 kg.

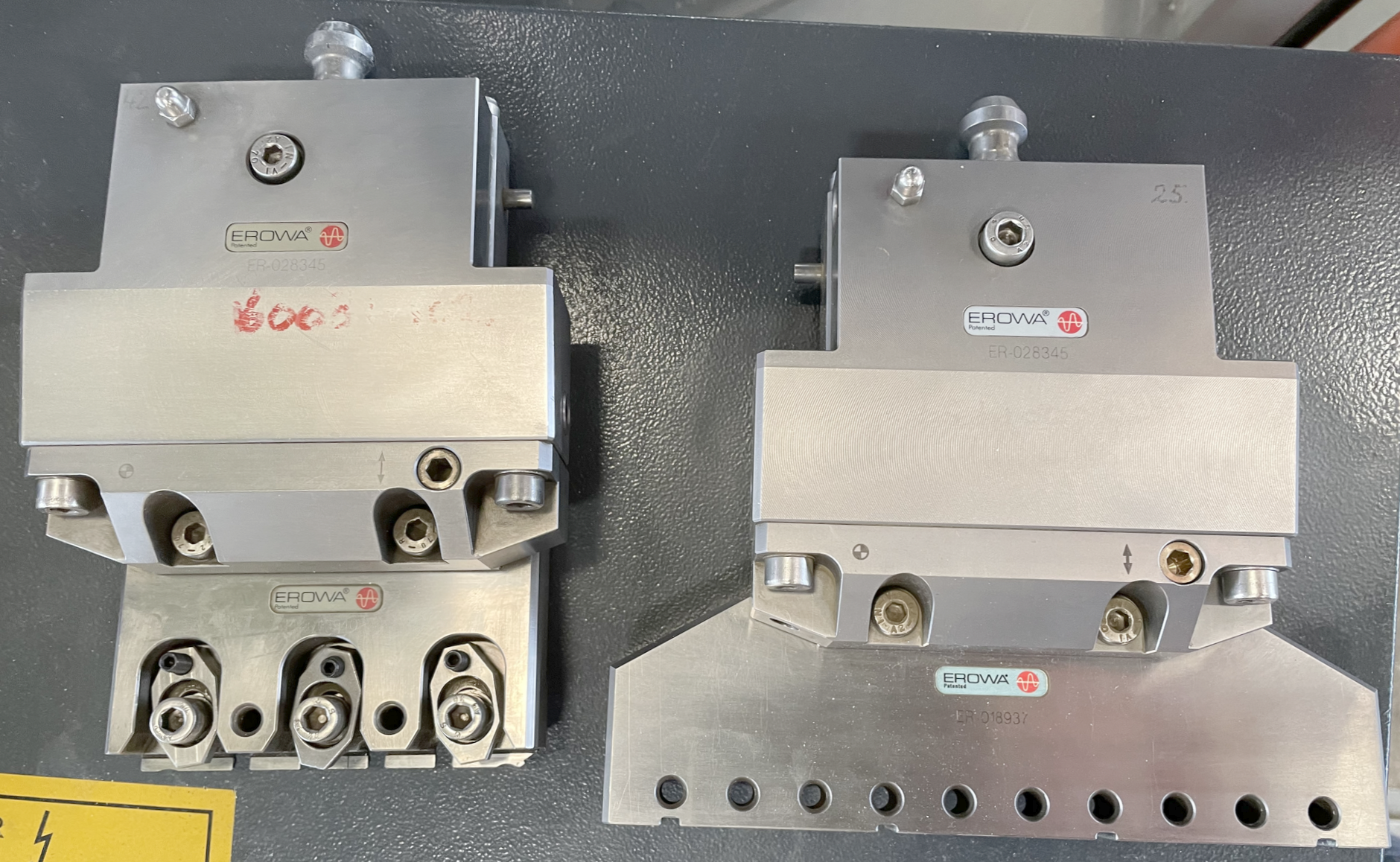

Clamping set: 3 pce.

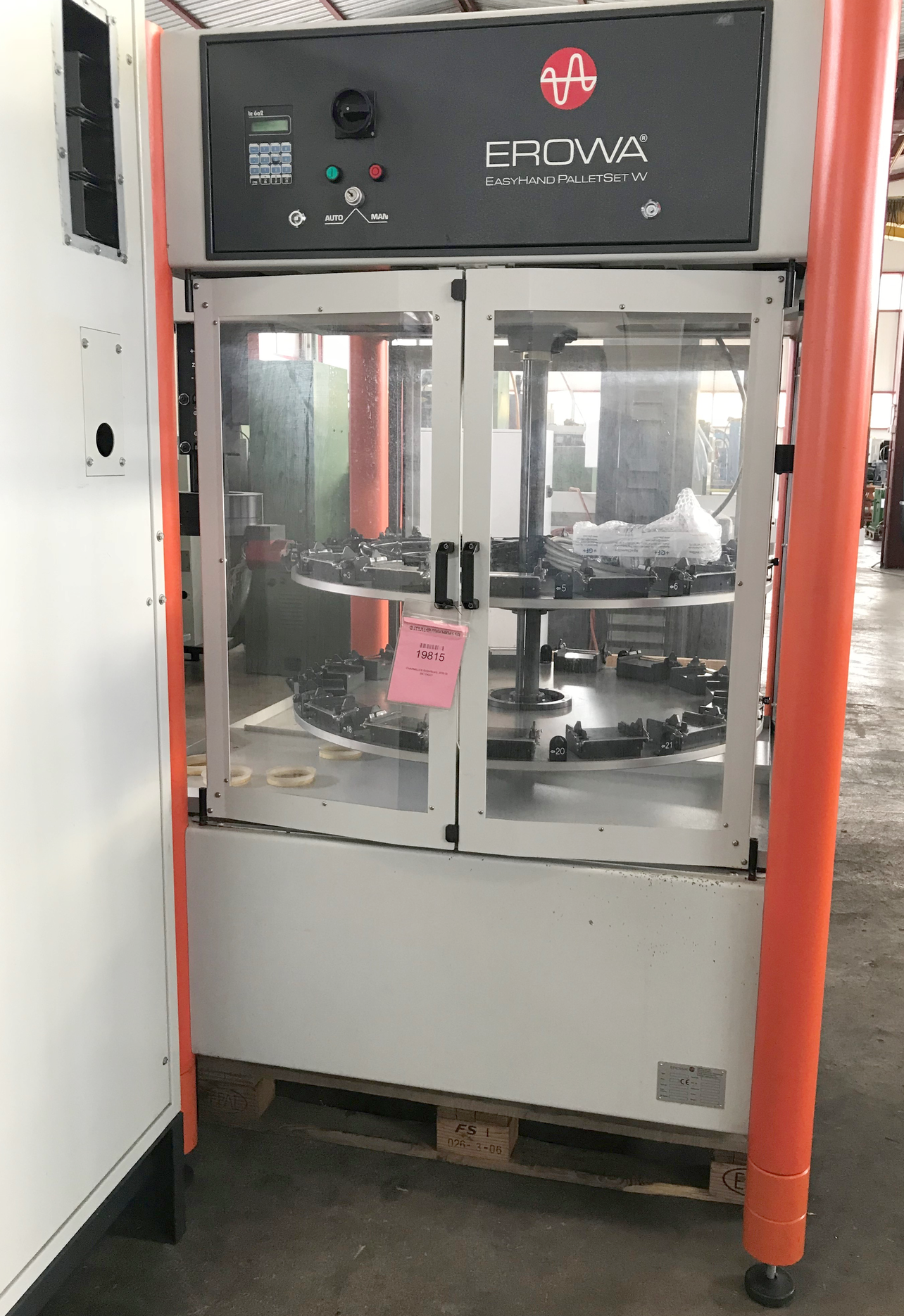

Pallets chanching device:: EROWA.

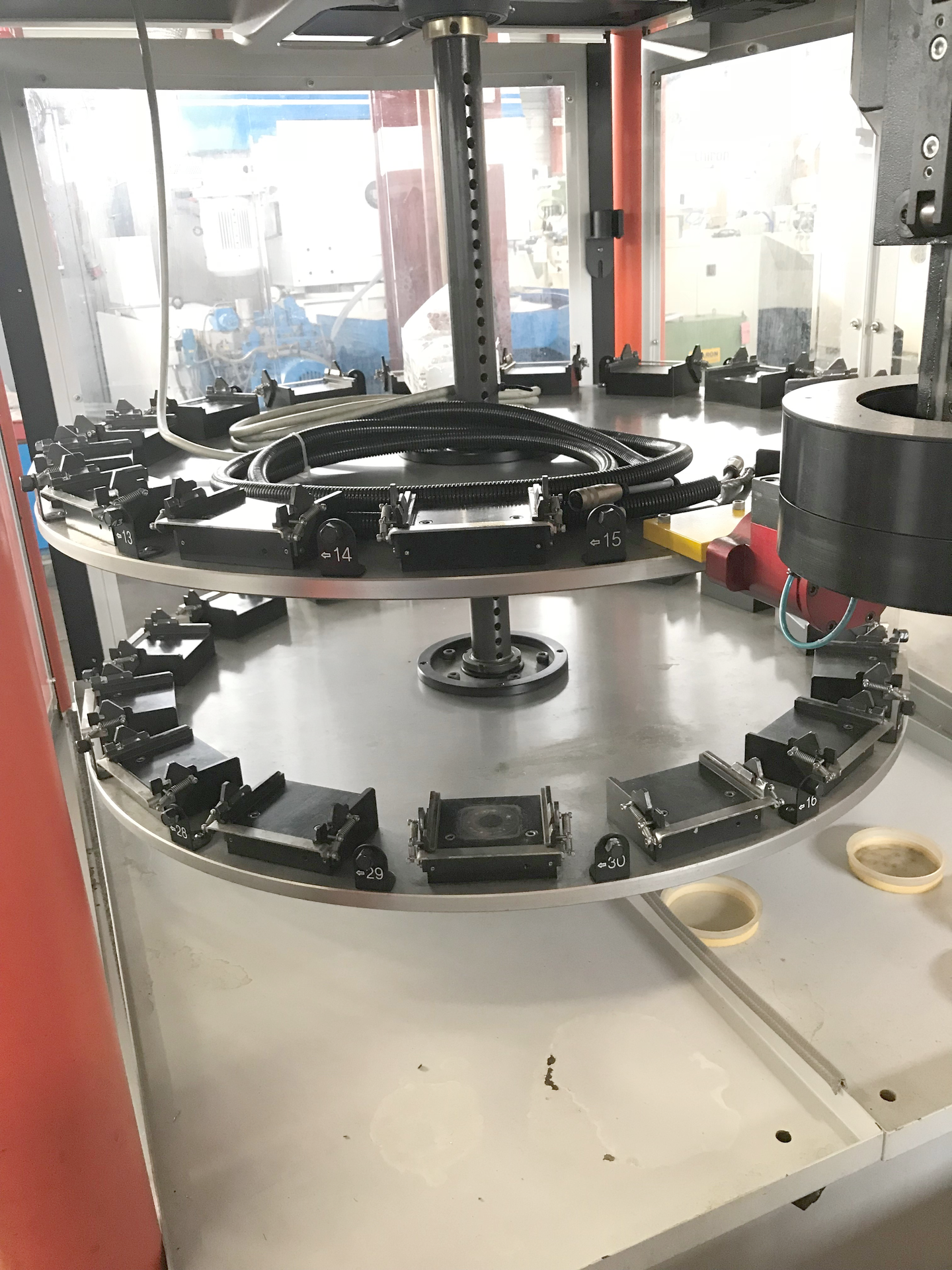

Number of positions: 30.

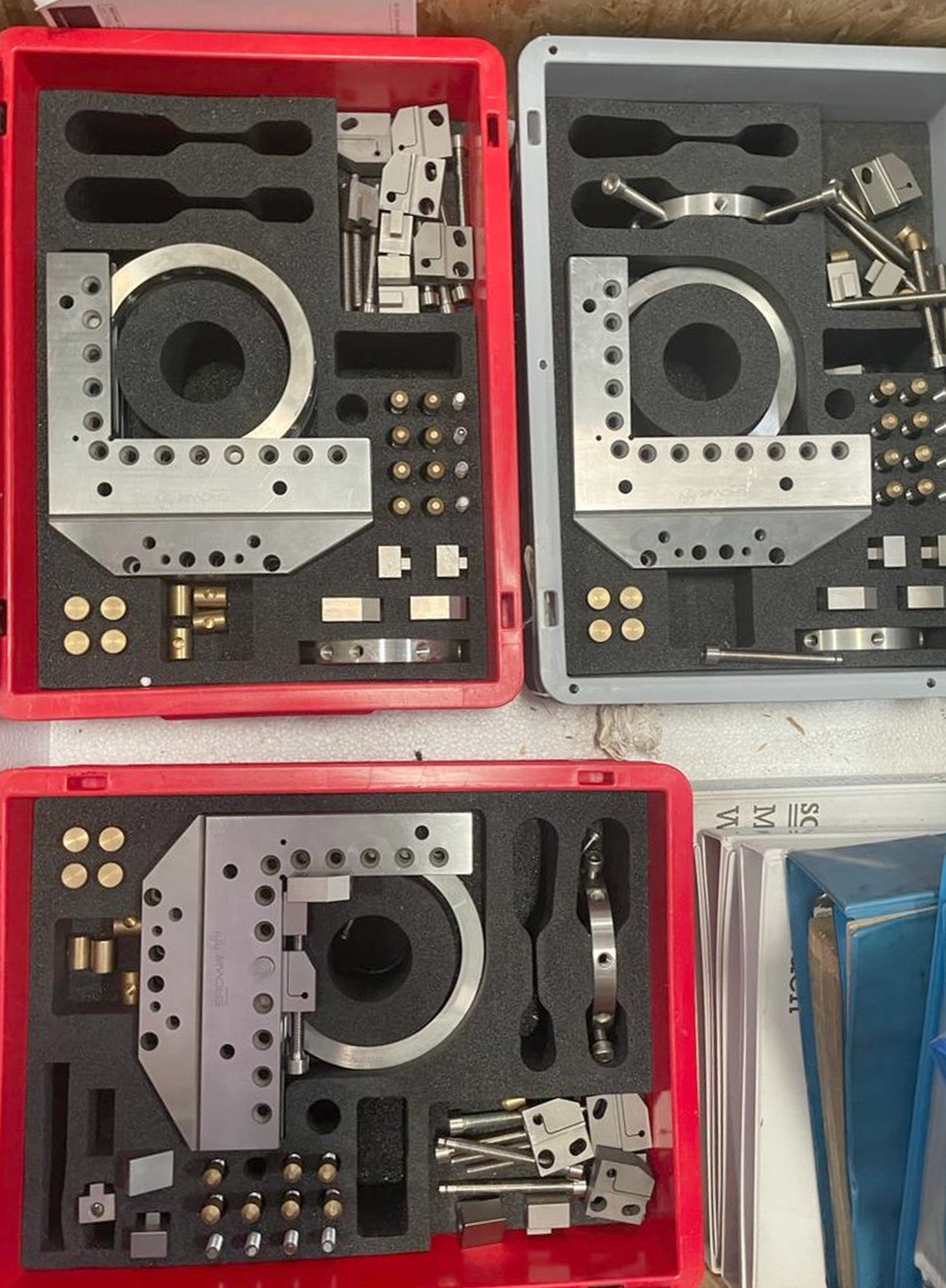

Work piece holder: 3 pce.
