MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • CARNAGHI
  • Model:
  • 021903 - CARNAGHI PIETRO AFT 16 TM/SH
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

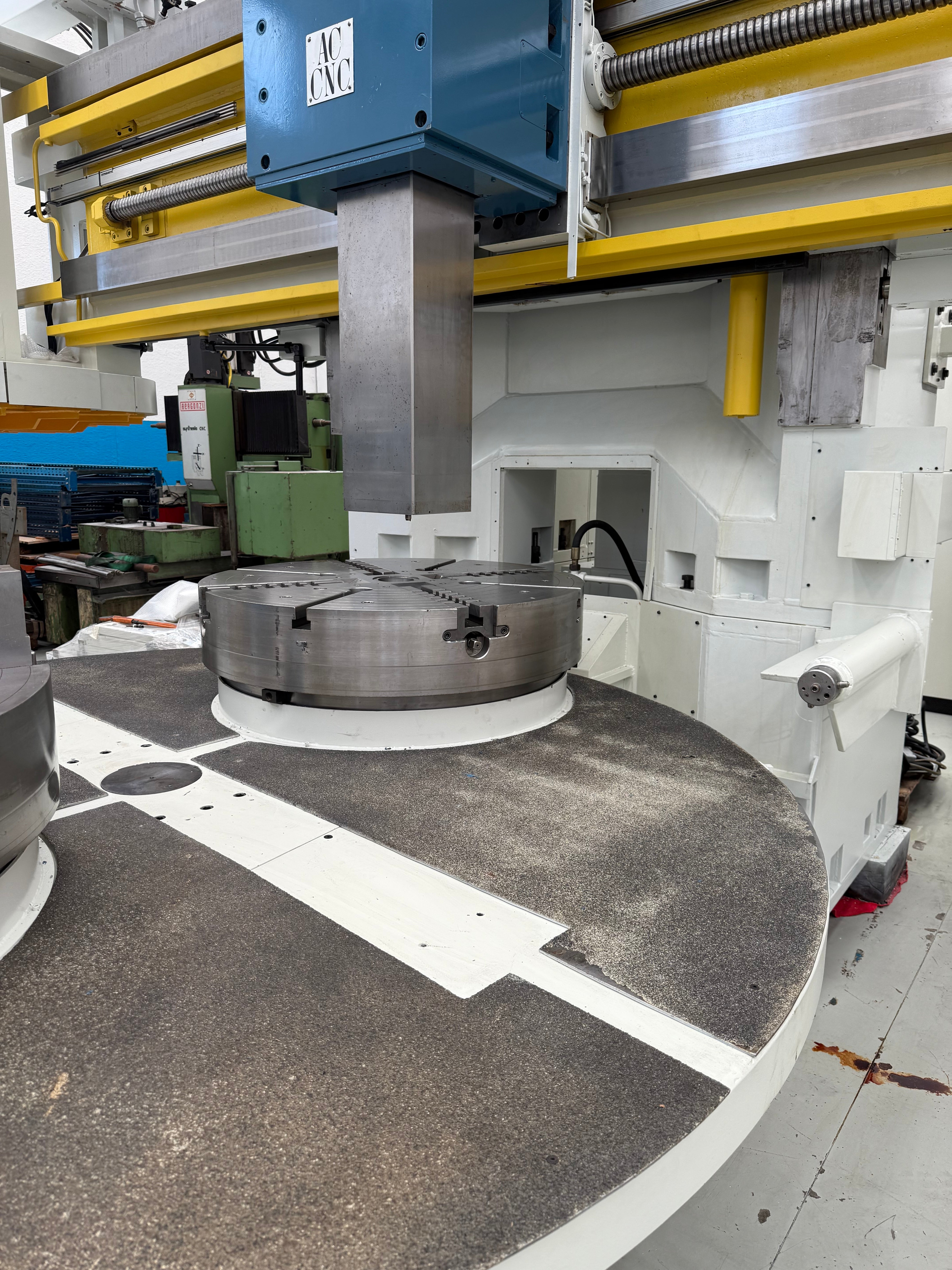

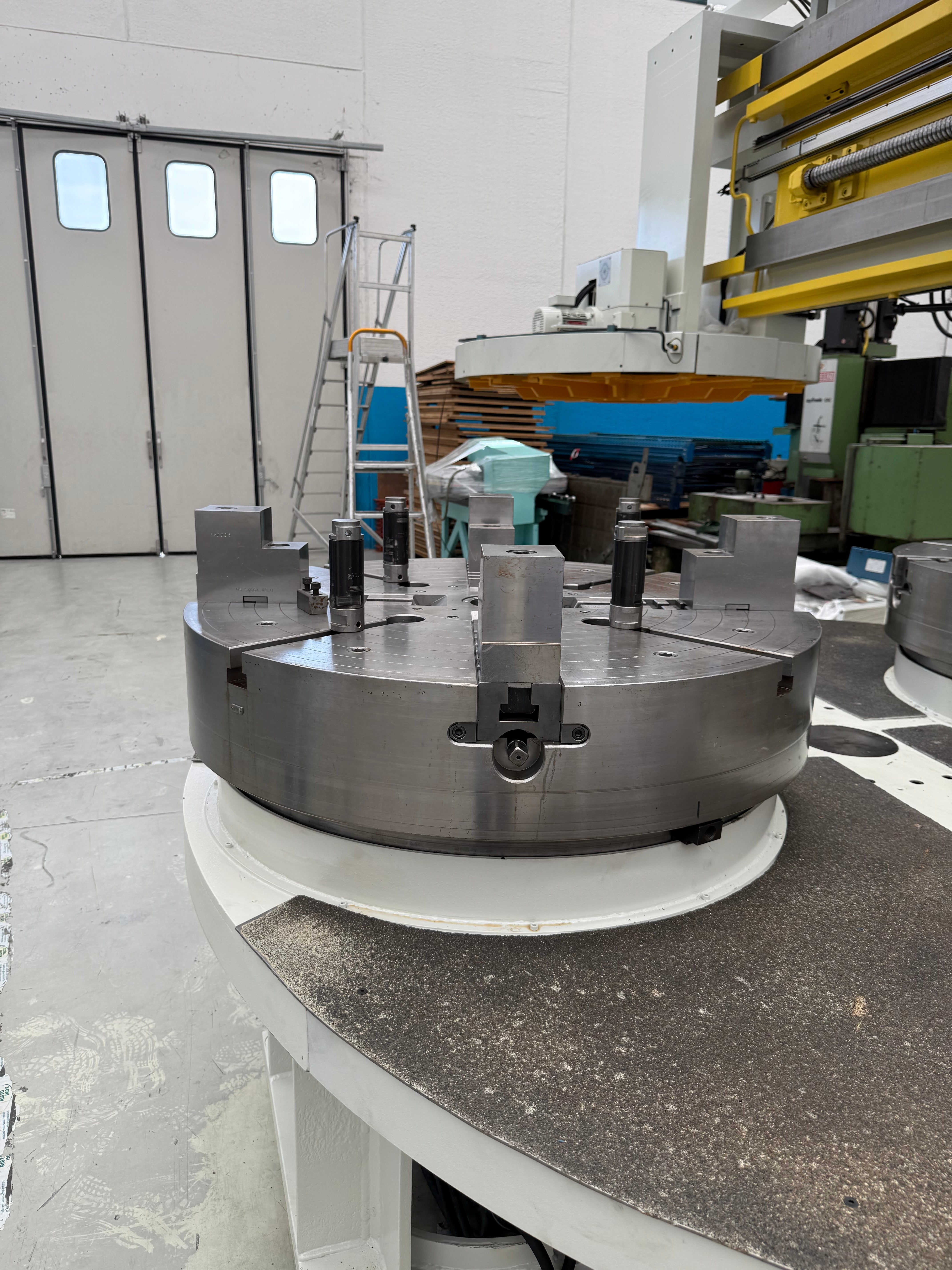

Surface plate diameter: 1000 mm.
Swing diameter: 1650 mm.
Max. turn height: 1100 mm.
X axis: -1010 / +1010 mm.
Y axis: 600 mm.
Z axis: 1250 mm.
C axis: 360 °.

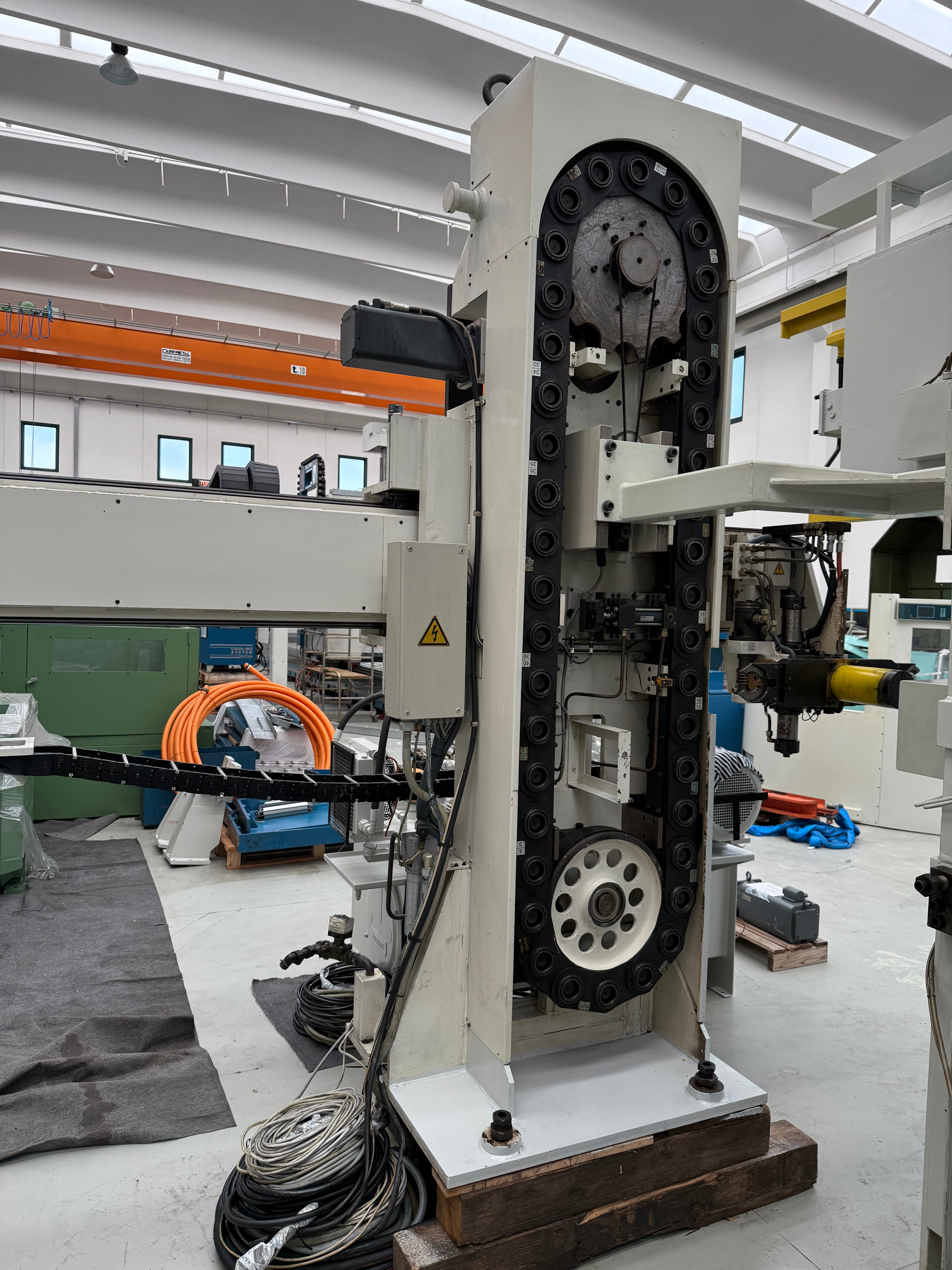

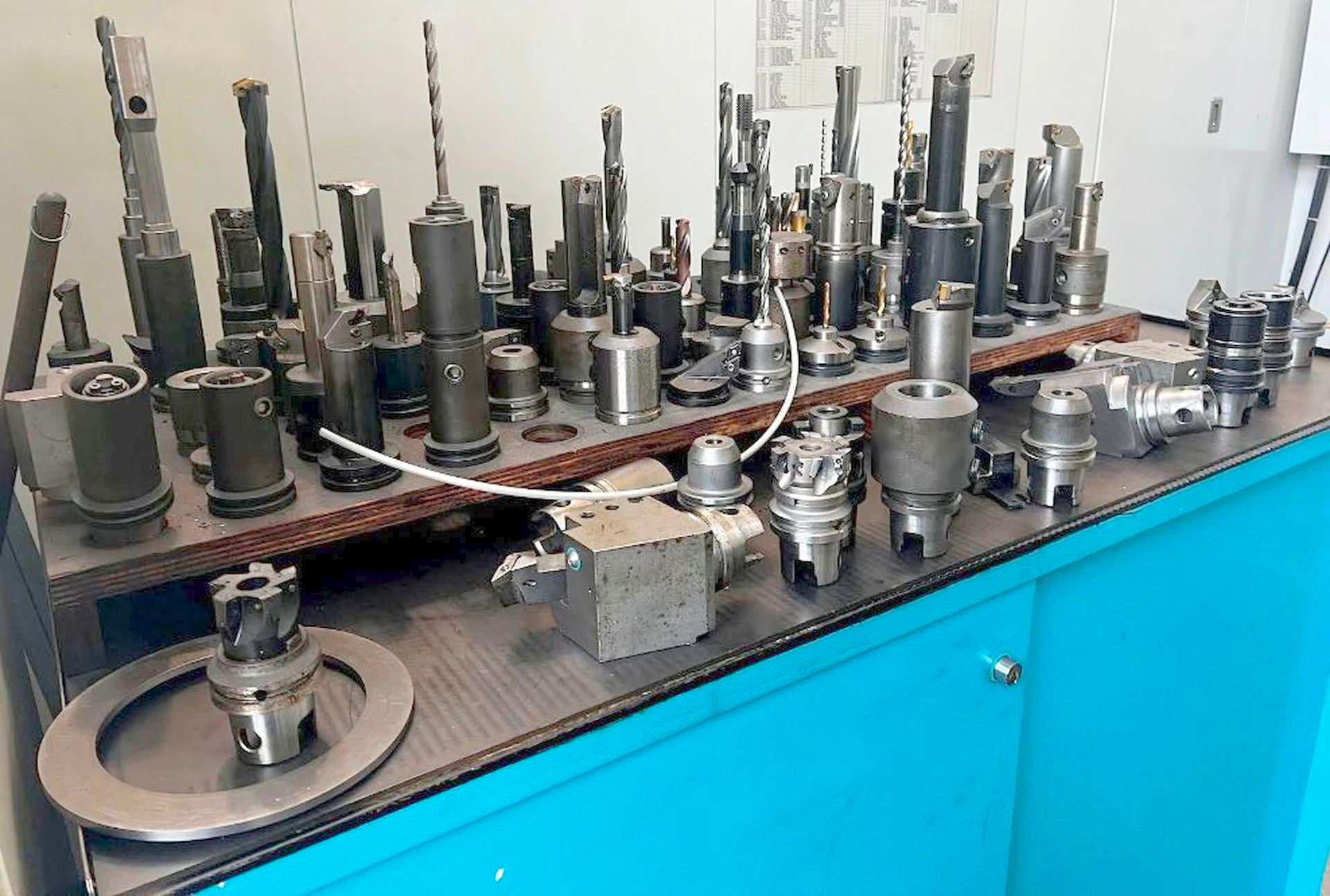

Tool magazine number of tool places: 40.
Spindle nose:: KM63.
Tool section: 40 mm.
from: 5 t/min.
up to: 800 t/min.
Torque max.: 1000 Nm.
Power: 31 kW.
Table load max.: 3000 kg.
Engine power: 60 kW.
Feeds: 0.1 - 3000 mm/min.
Rapid traverse:: 10 m/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 196 kW.
Machine's weight about: 35000 kg.
Floor space required:: 12500.
Length: 7225 mm.
Width: 8735 mm.

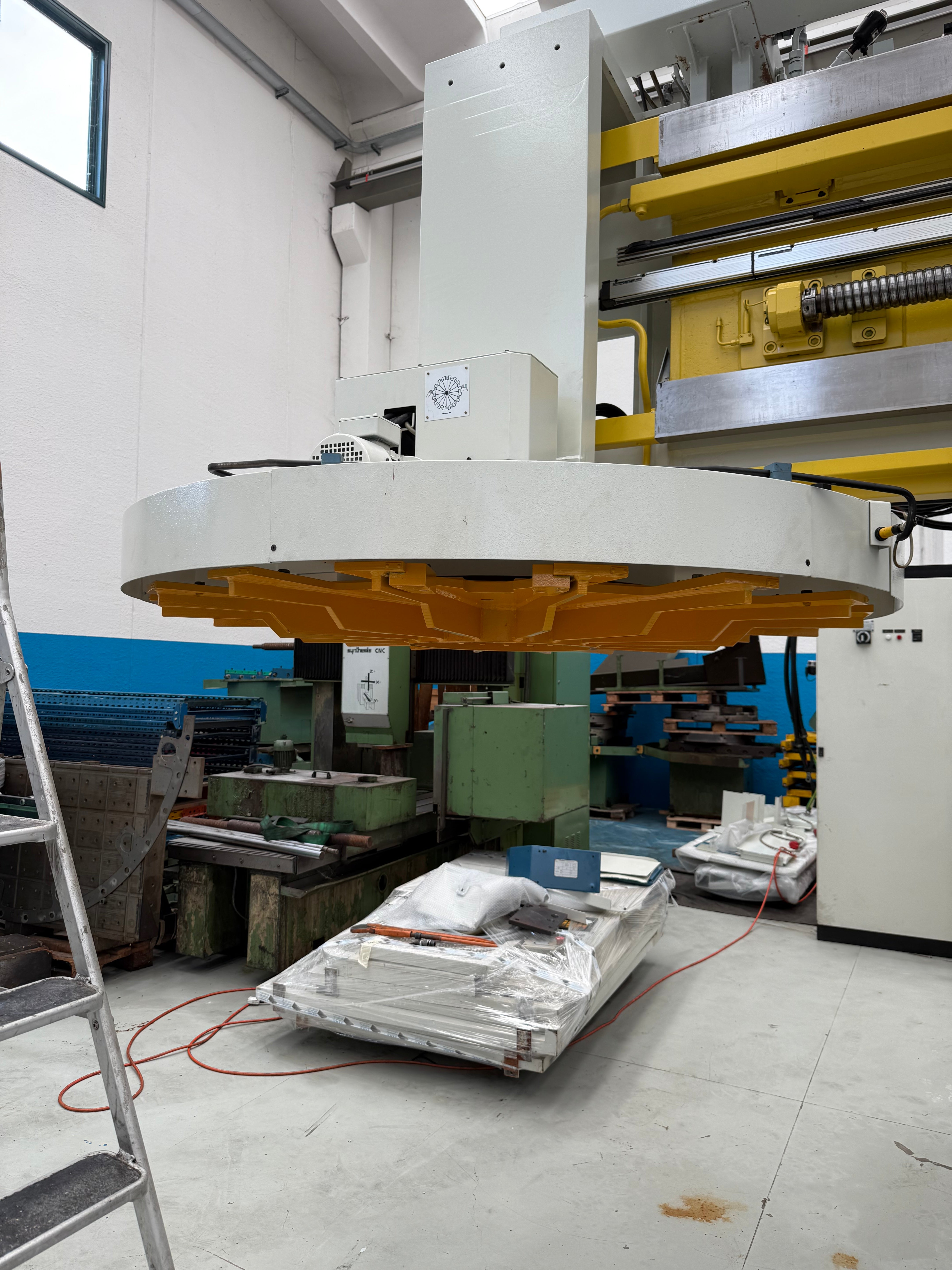

Pallets: number: 2.
