MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

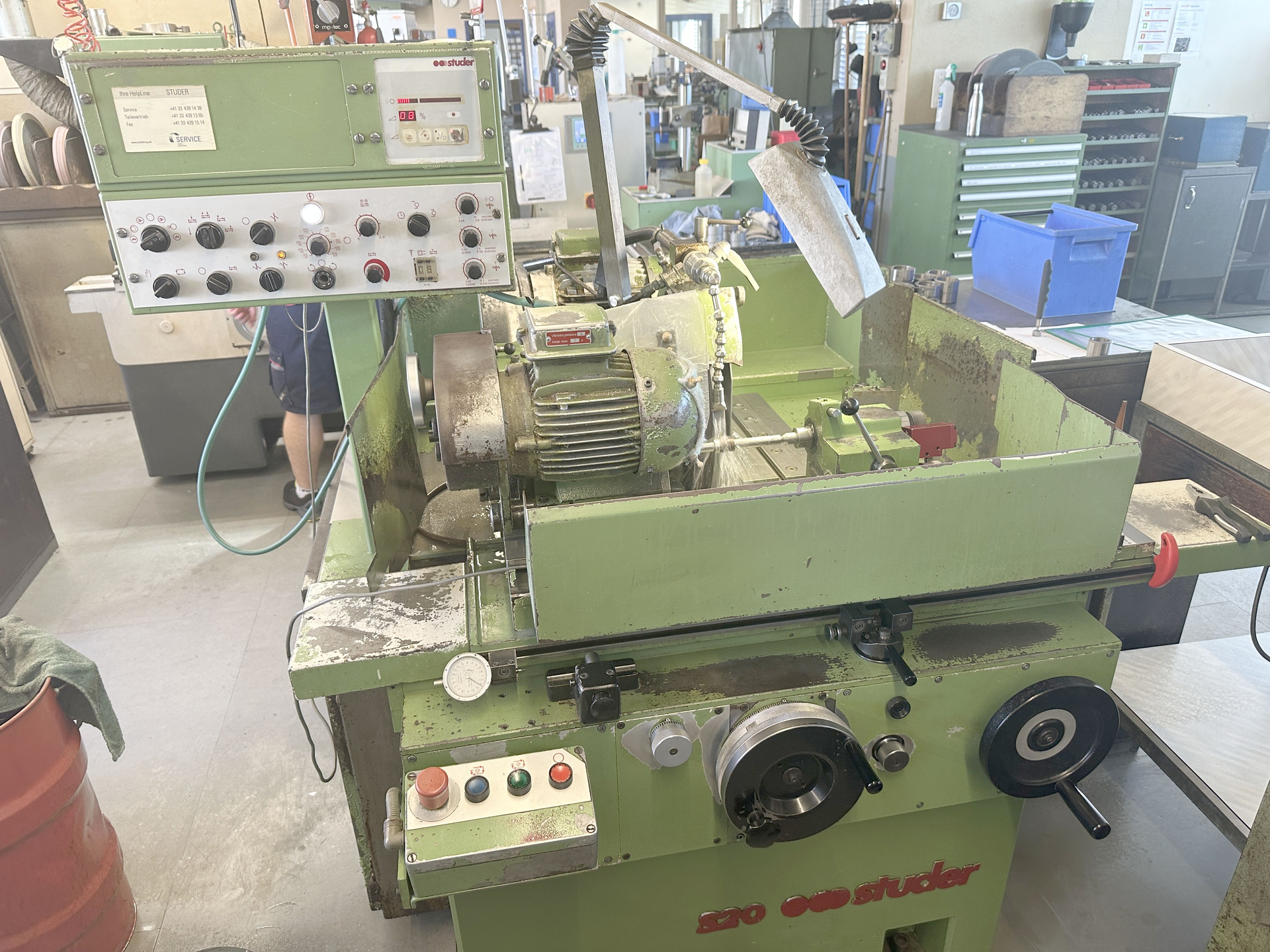

  • 022594 - STUDER S 20-2
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 100 mm.
Distance between centres: 400 mm.
Max. Longitudinal travel: 420 mm.
Diameter: 350 mm.
Width: 1800 mm.
Bore: 127 mm.
grinding wheel width: 50 mm.
Table load max.: 20 kg.
from: m/min.
up to: 4 m/min.
Peripheral speed: 30 m/s.
Hydraulic cross travel: 25 mm.
Angular displacement: 15+30 °.
rotatable: 90 °.
Spindle taper (collets): W20.
Spindle taper: 4 CM.
Taper in tailstock:: 2 CM.
Table angular displacement: 30 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 3 kW.
Workhead spindle motor: 0.5 CV.
Total power required: 10 kVA.
Machine's weight about: 1200 kg.
Length: 2500 mm.
Height: 1700 mm.
