MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • BOEHRINGER
  • Model:

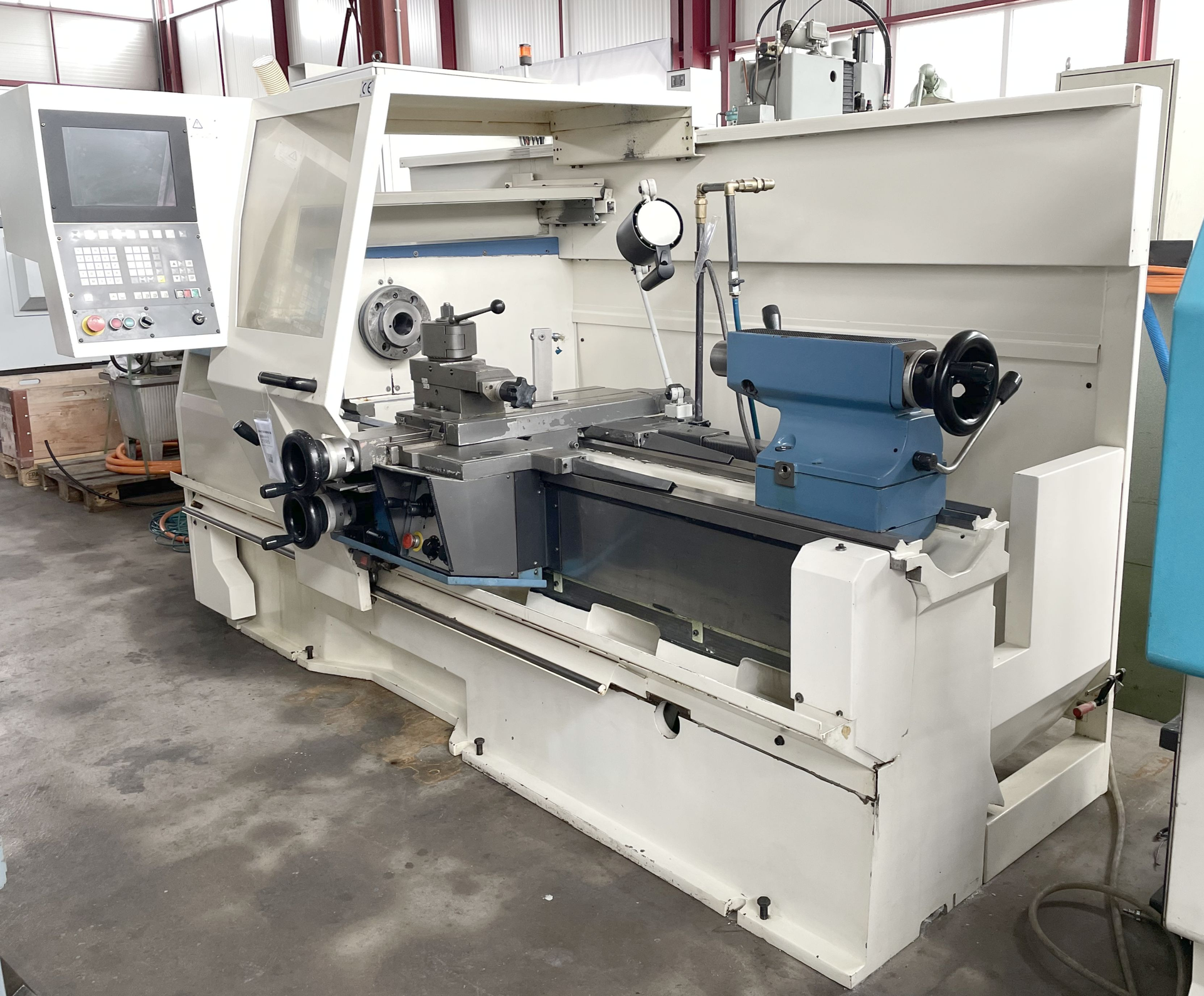

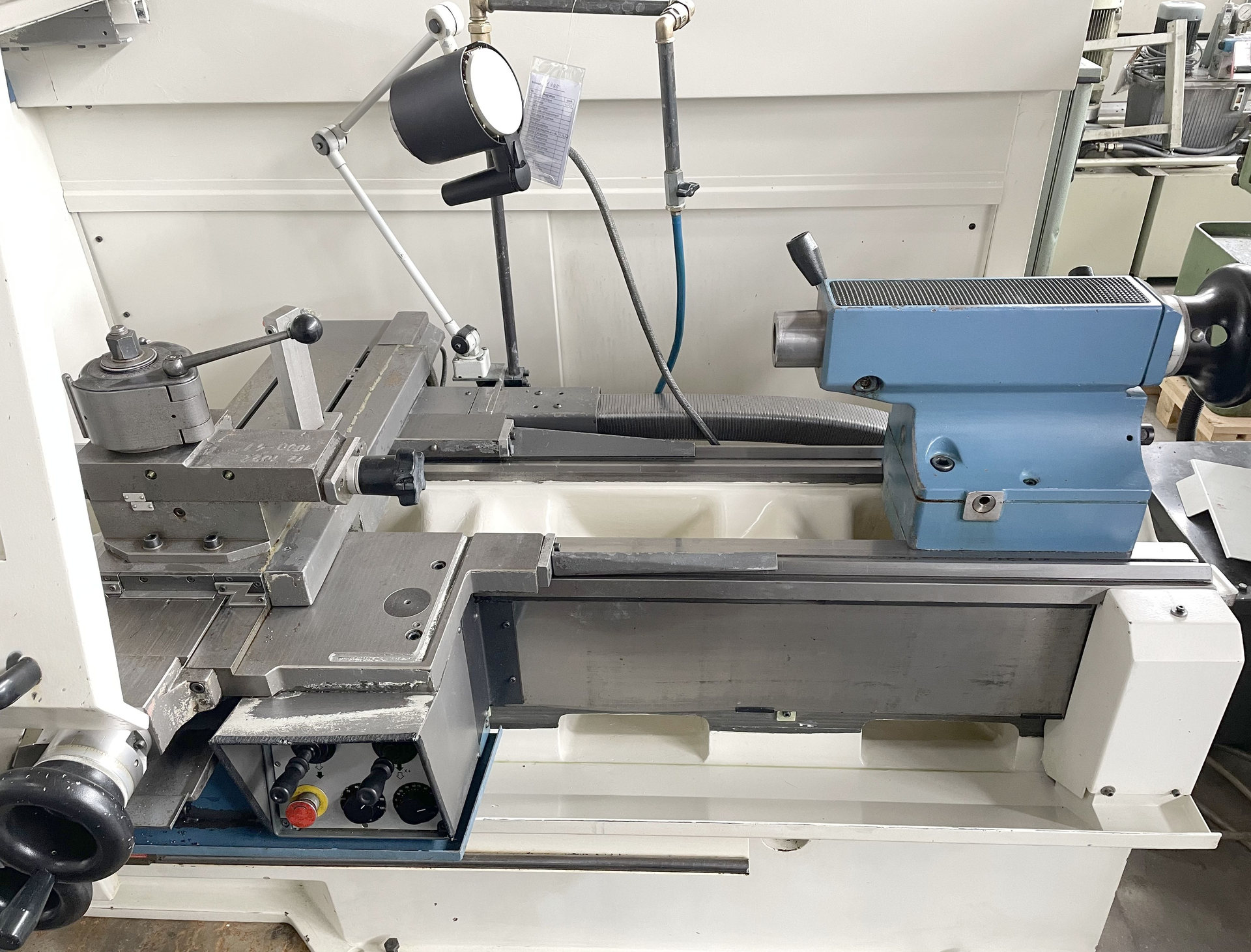

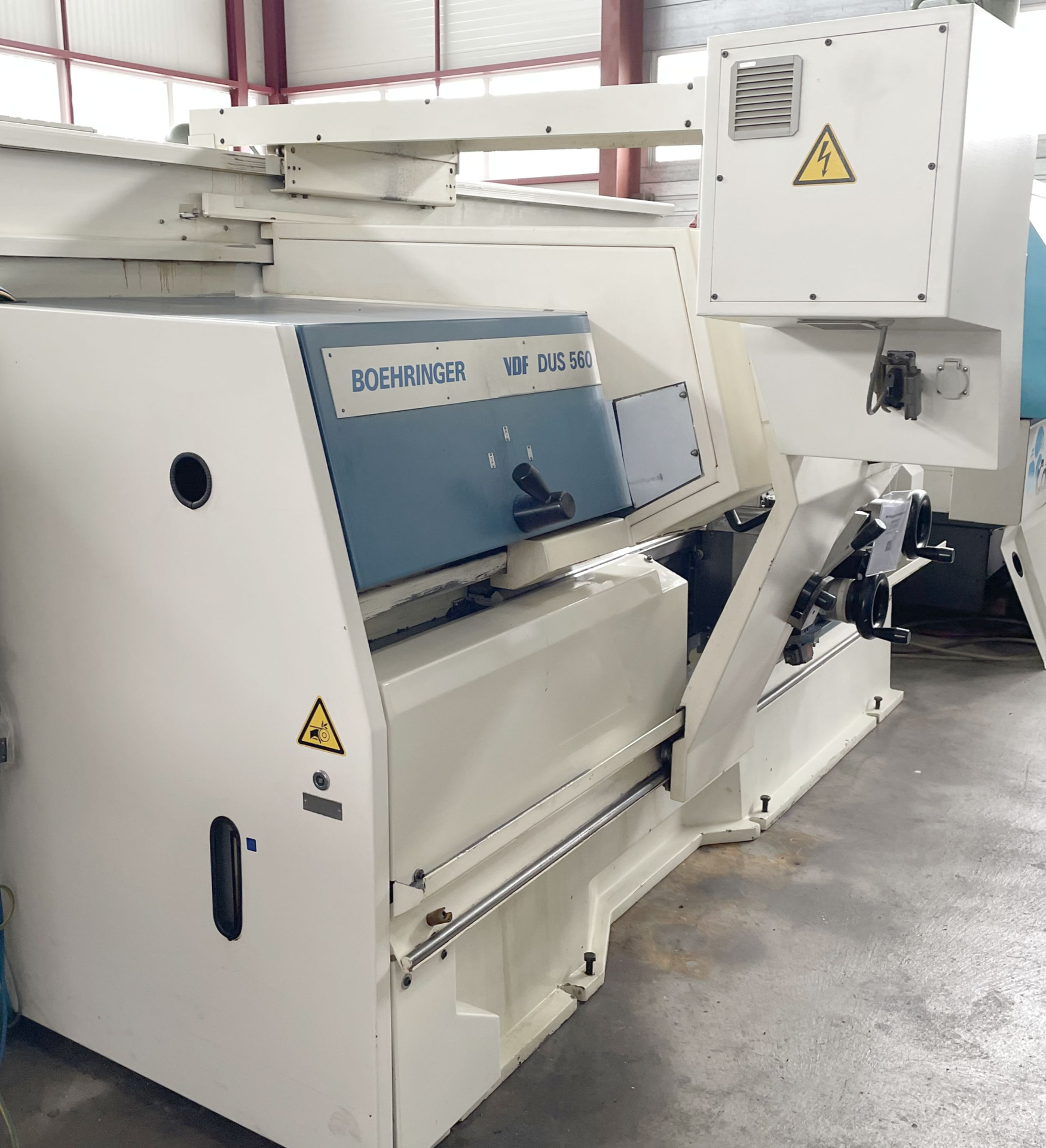

  • 021885 - BOEHRINGER / VDF DUS 560
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 280 mm.
Distance between centres: 1500 mm.
Swing over cross-slide: 365 mm.
Swing over bed: 570 mm.
Spindle head: DIN 55 027.
Spindle hole: 62 mm.
Spindle diameter: 80 mm.
Maximum turning length: 1500 mm.
from: 3 t/min.
up to: 50 mm/t.
number (steps): 2.
Spindle power: 19 / 15 kW.
Torque max.: 1800 / 1400 Nm.
Morse taper: 5 CM.
Spindle stroke: 190 mm.
longitudinal from: 0.01 mm/t.
transversal from: mm/t.
Rapid traverse X: 5 m/min.
Rapid traverse Z: 10 m/min.
Voltage 50 Hz 3x: 400 Volt.
Noise level: 80 dB (A).
Total power required: 35 kVA.
Machine's weight about: 5200 kg.
Length: 1200 mm.
Width: 400 mm.
Height: 1400 mm.

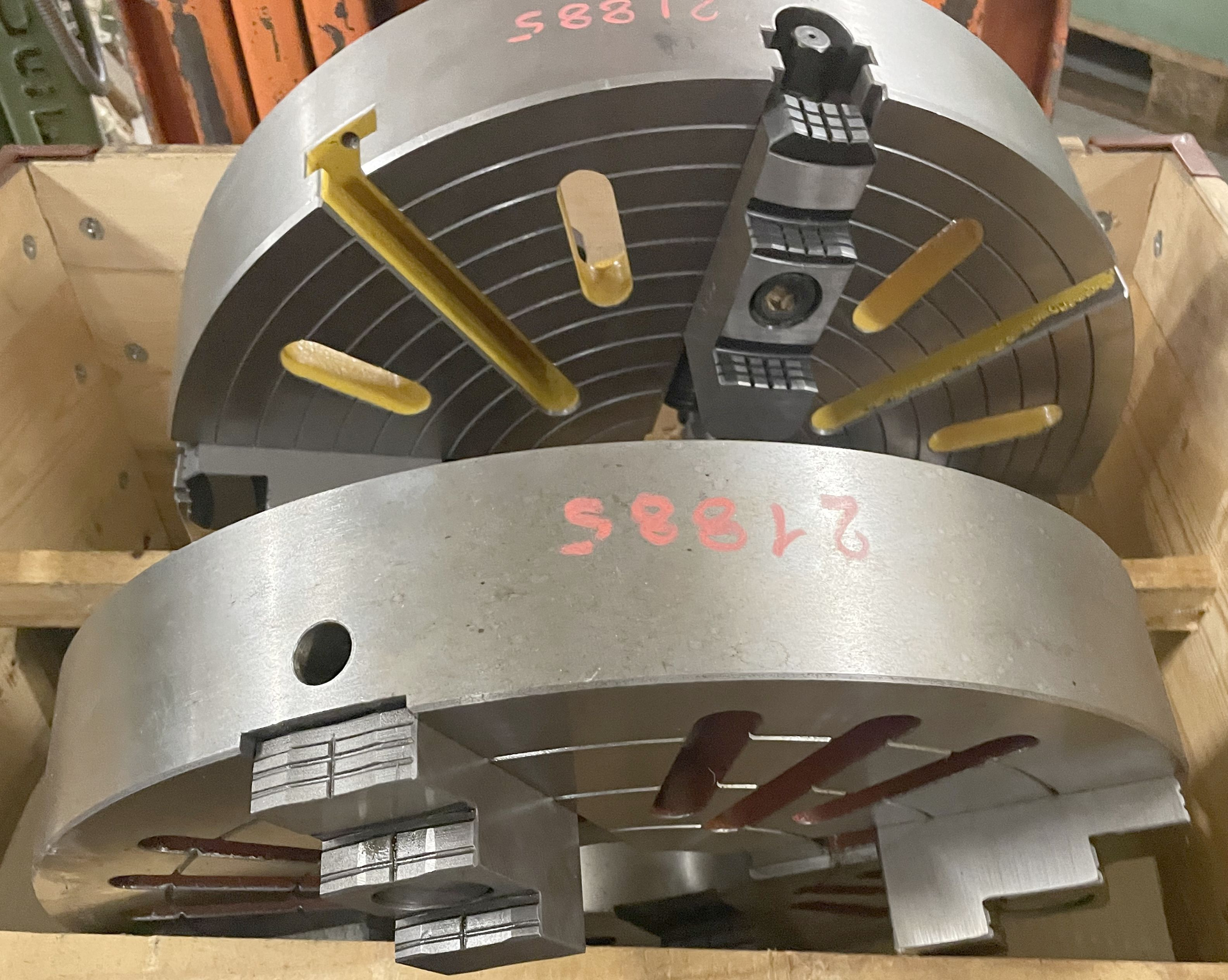

3-jaw chuck diameter: 300 mm.
4-jaw chuck diameter: 500 mm.

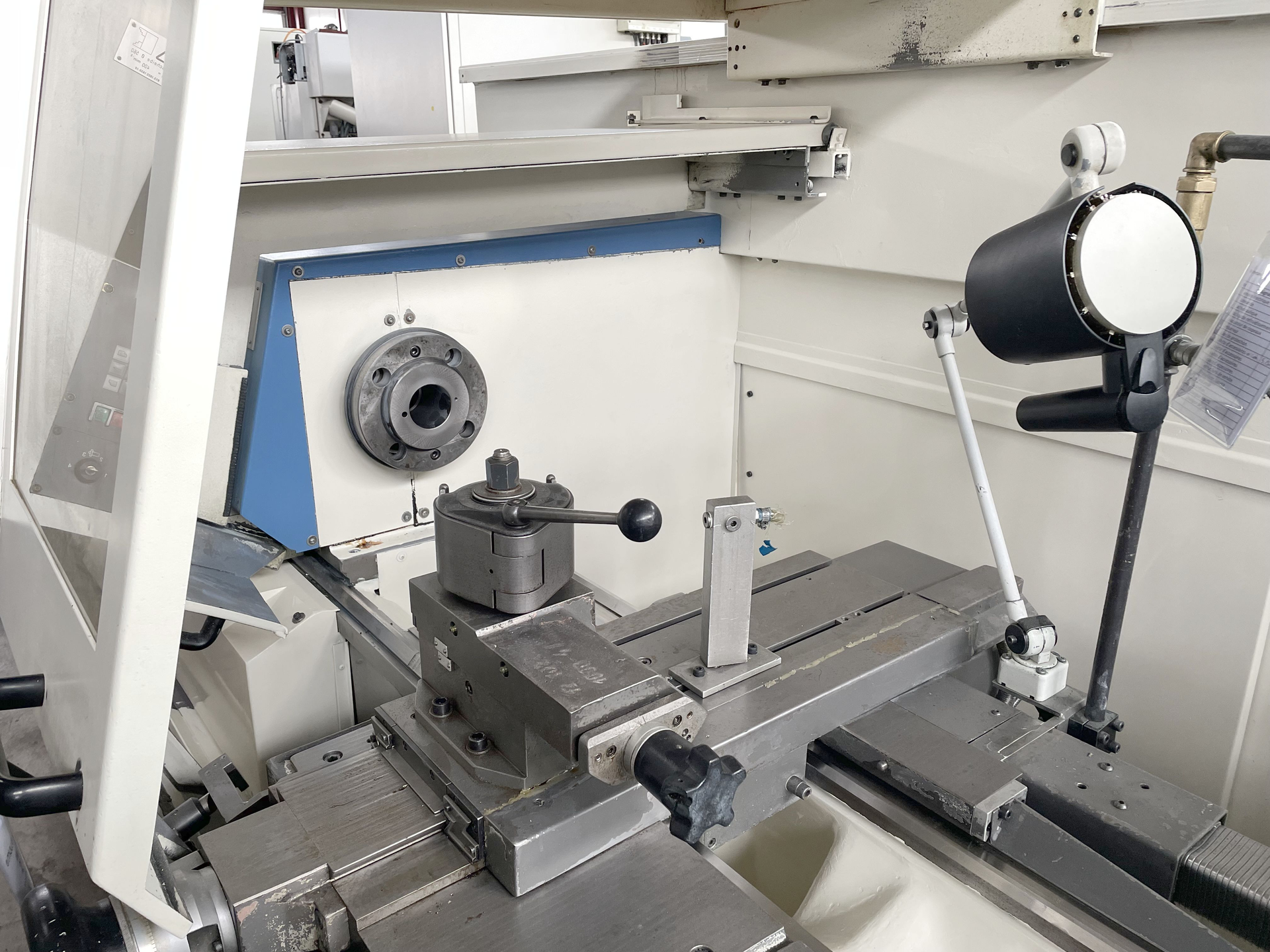

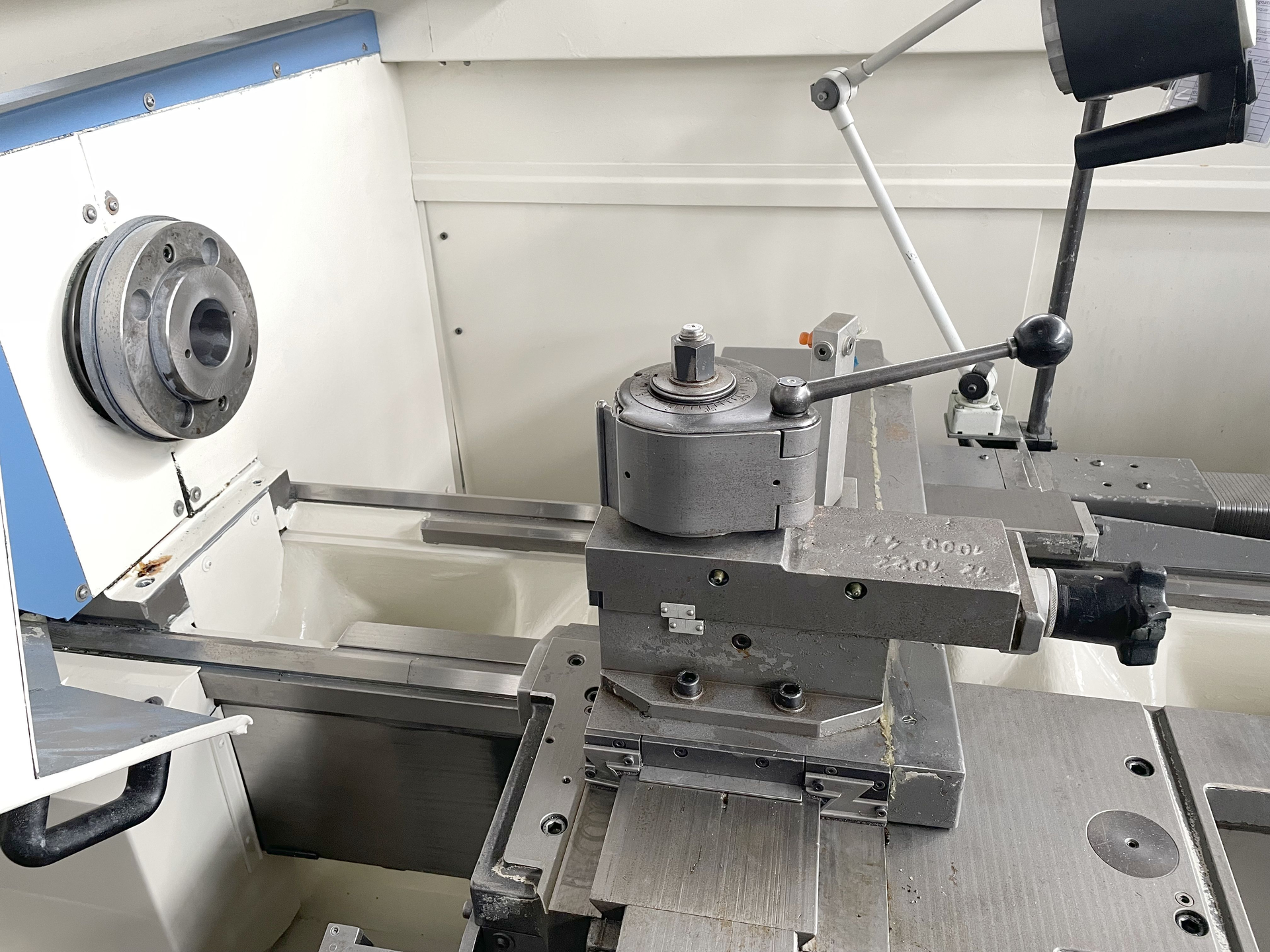

Quick change tool: MULTIFIX.
