MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

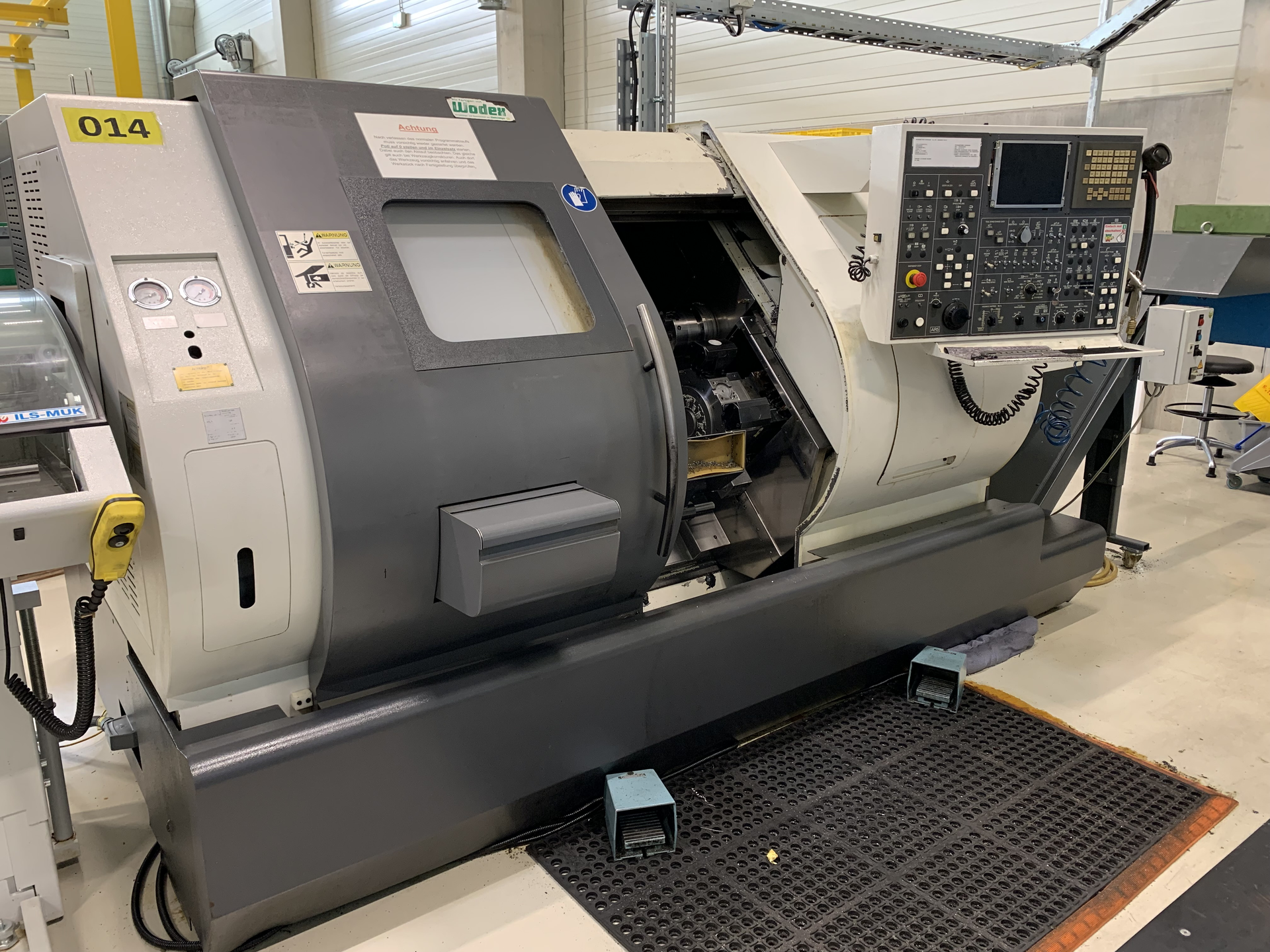

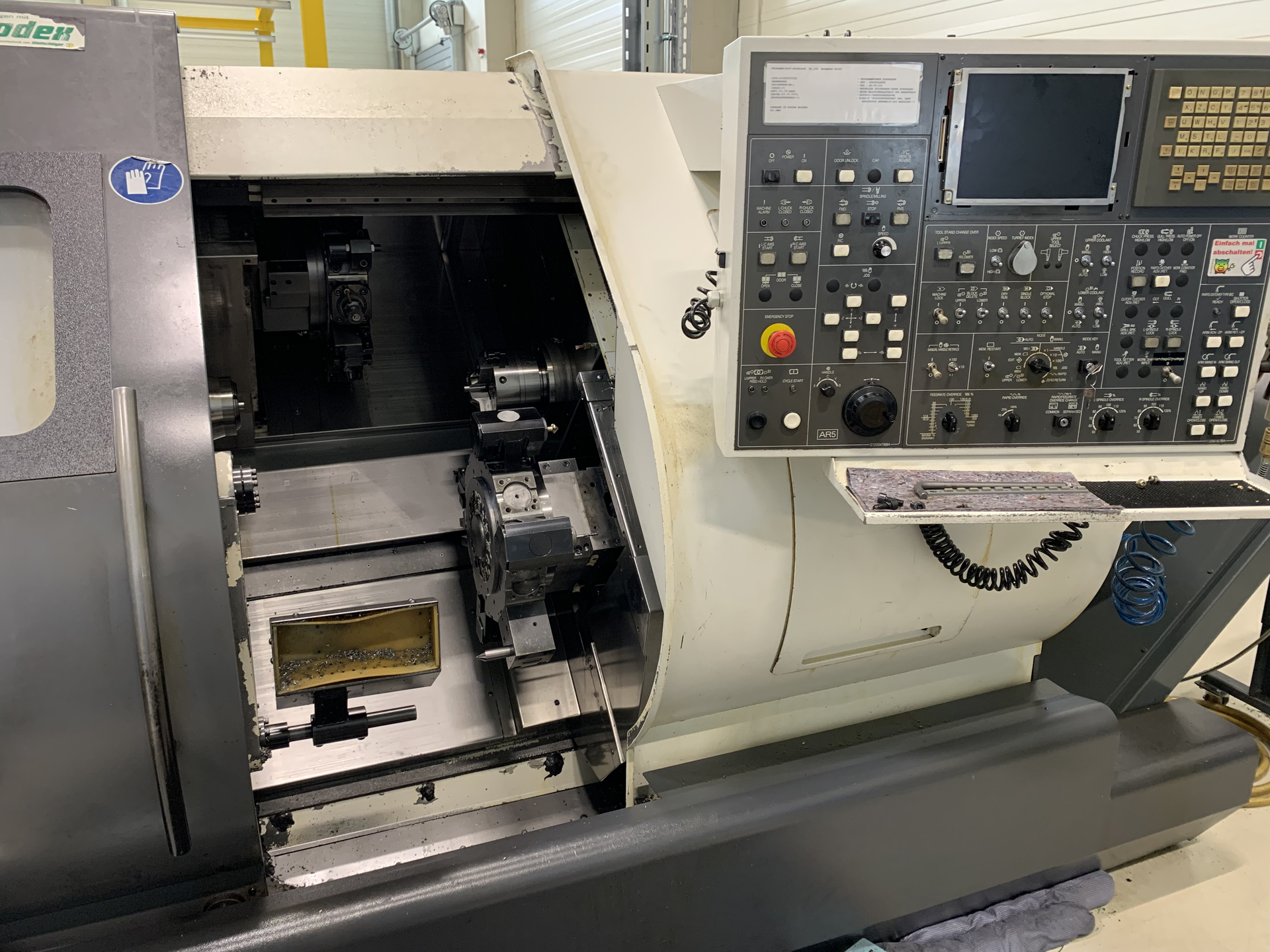

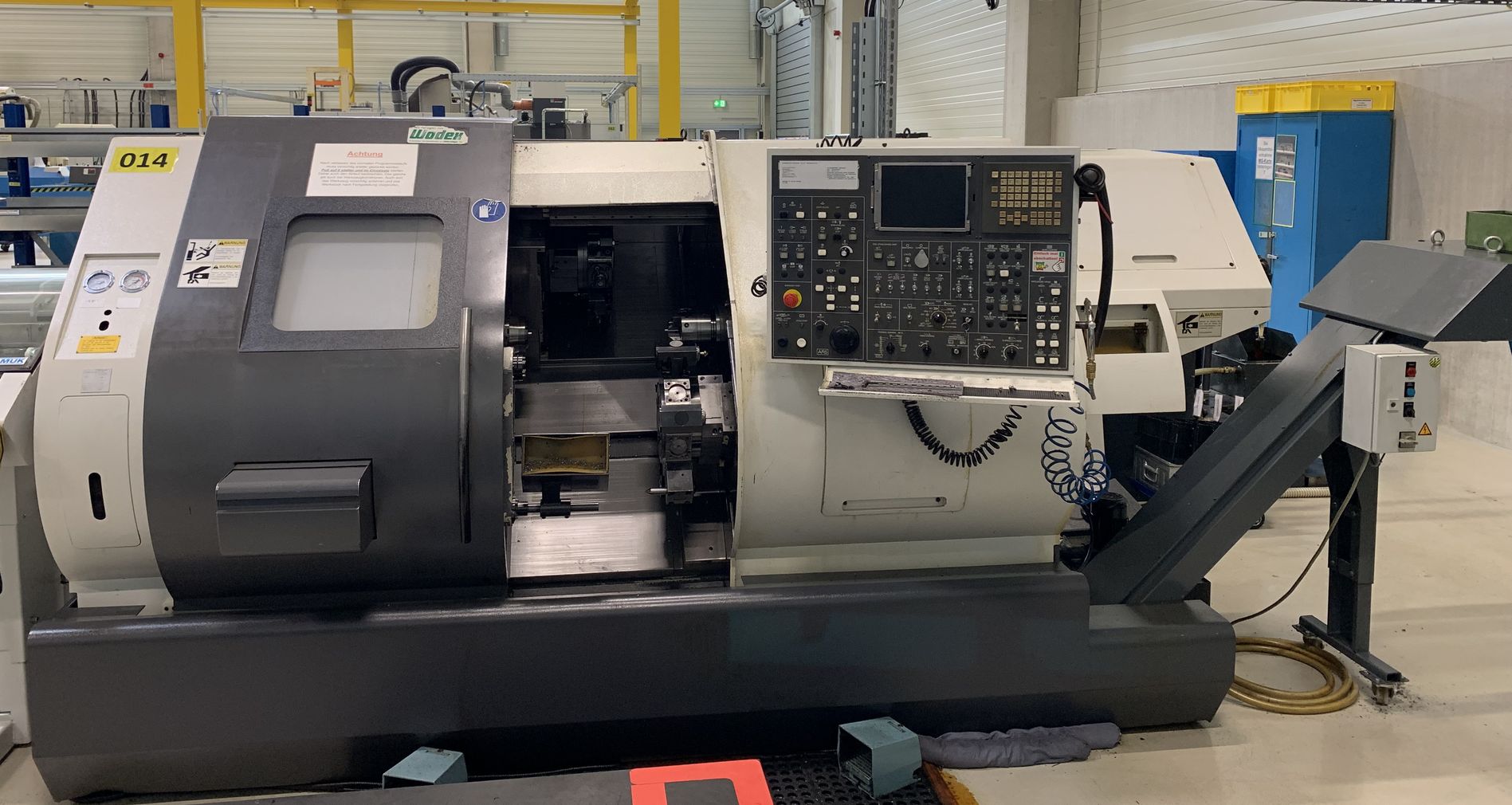

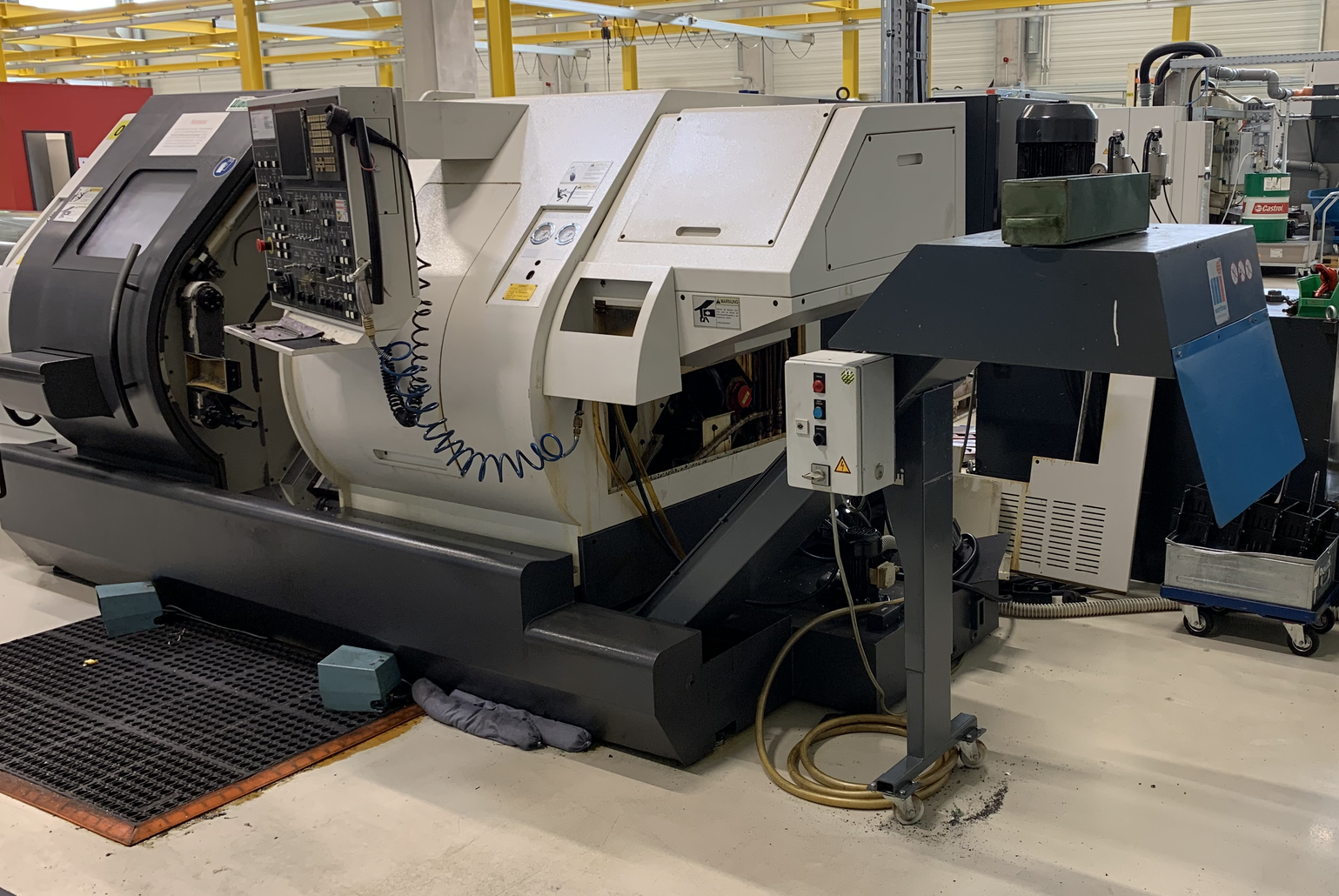

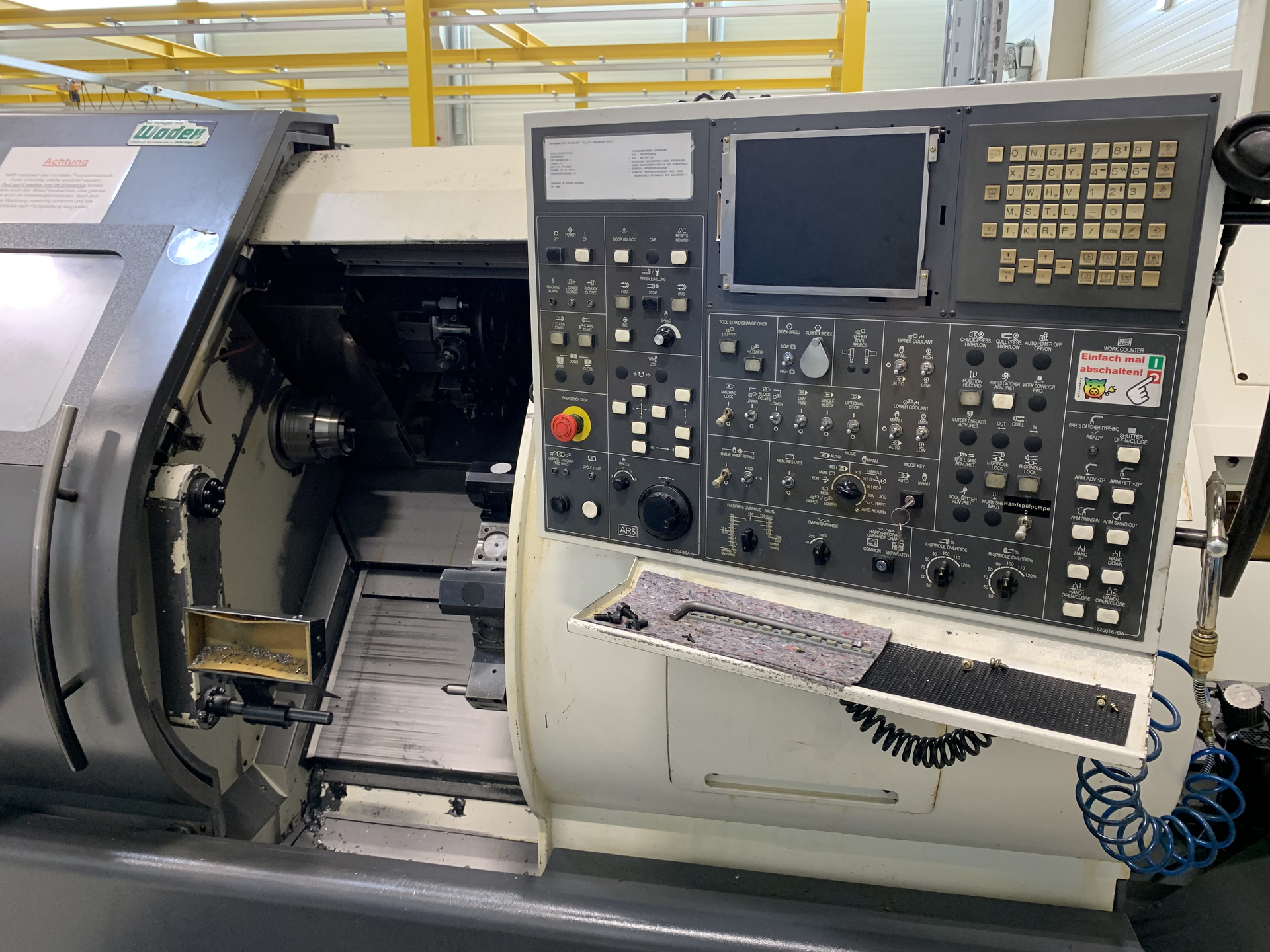

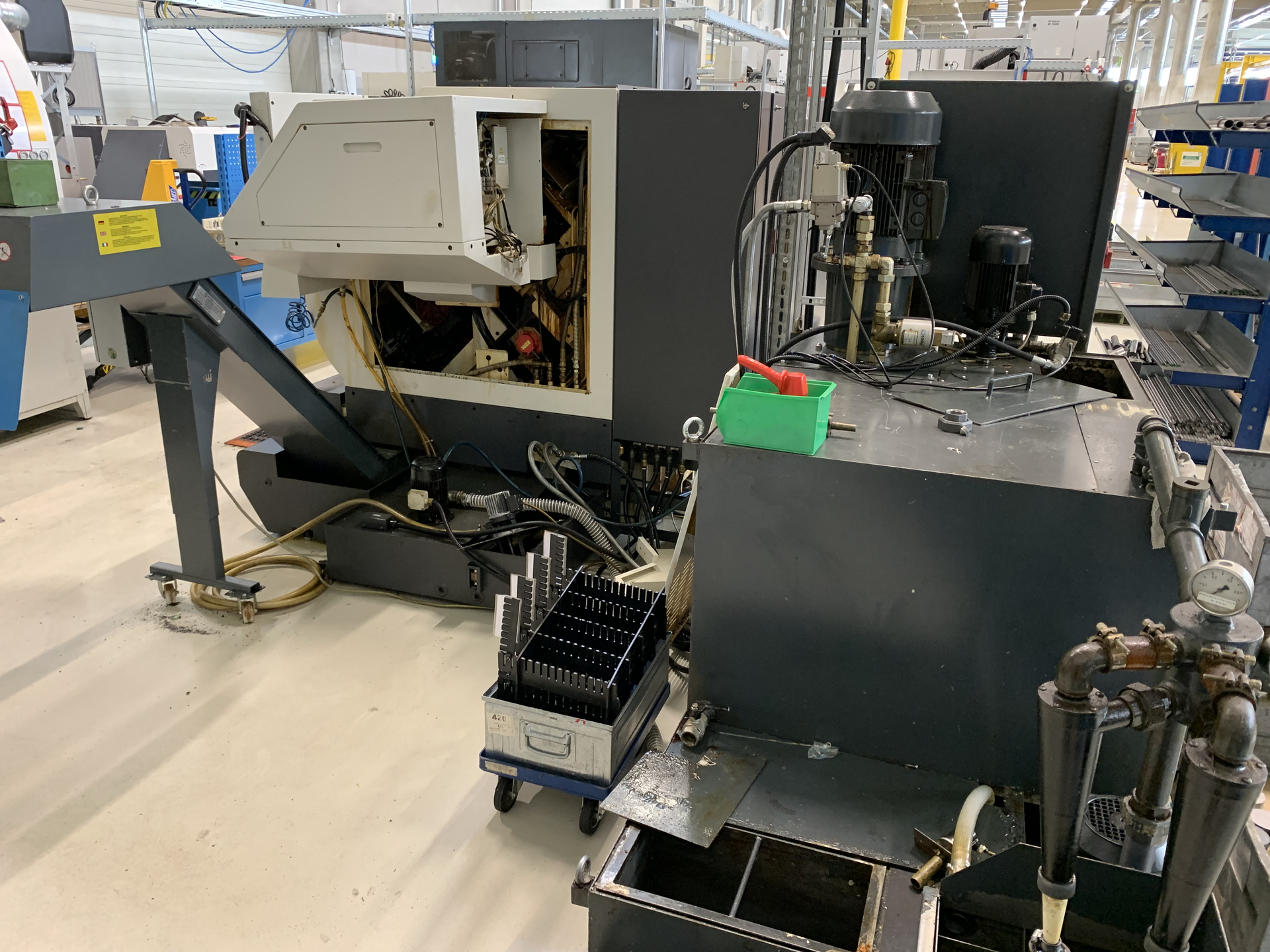

  • 021739 - NAKAMURA-TOME WT-150
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 2.
Number of revolvers: 2.
Swing over cross-slide: 310 mm.
Spindle hole: 51 mm.
Turning diameter: 310 mm.
Turning length: 255 / 755 mm.
Longitudinal travel (X-axis): 207.5 mm.
Transversal strocke (Z axis): 300 mm.
Number of positions turret 1: 12.
Number of positions turret 2: 12.

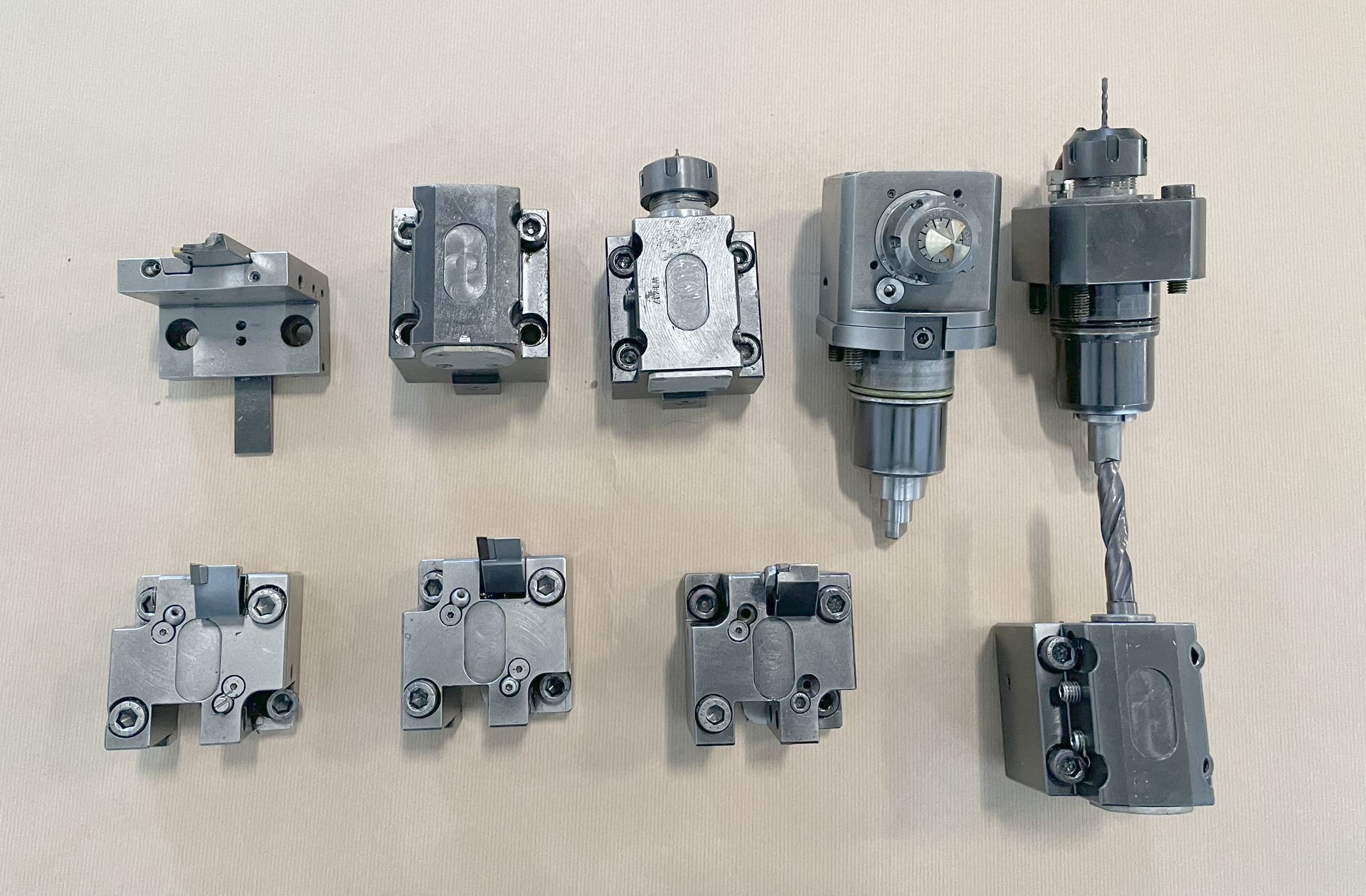

Driven tools turret 1: 12.
Driven tools turret 2: 12.
Spindle speeds: 60 - 6000 t/min.
Power of driven tools: 3.2 / 2.7 kW.
Inner cone diameter: 25 mm.
Camlock: A2-5.
C axis (spindle,resolution): 0.001 °.
max. speed: 6000 t/min.
Internal spindle diameter: 42 mm.
Power of back spindle: 7.5 / 5.5 kW.
Y axis: 2 x +/- 30 mm.
Rapid traverse:: X=12 / Z=40 m/min.
Time under power: 84881 Heures.
Operating time: 22689 Heures.
Working time: 5534 Heures.
Spindle motor: 7.5 / 5.5 kW.
Voltage 50 Hz 3x: 400 Volt.
Machine's weight about: 8500 kg.
Length: 3850 mm.
Width: 2330 mm.
Height: 2320 mm.
