MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

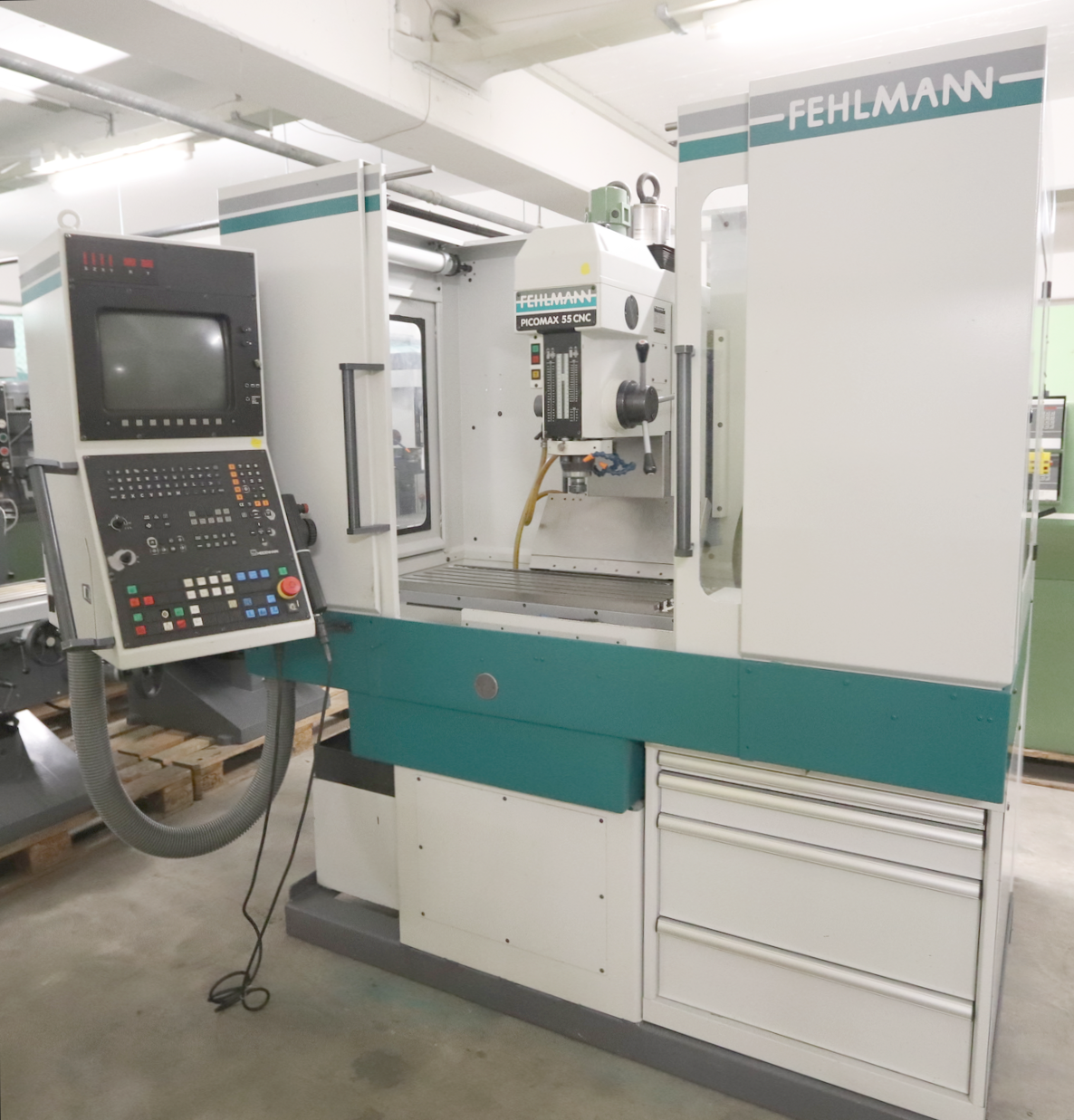

  • 021232 - FEHLMANN Picomax 55 CNC
  • Condition:
  • 1
  • YOM:
  • NA

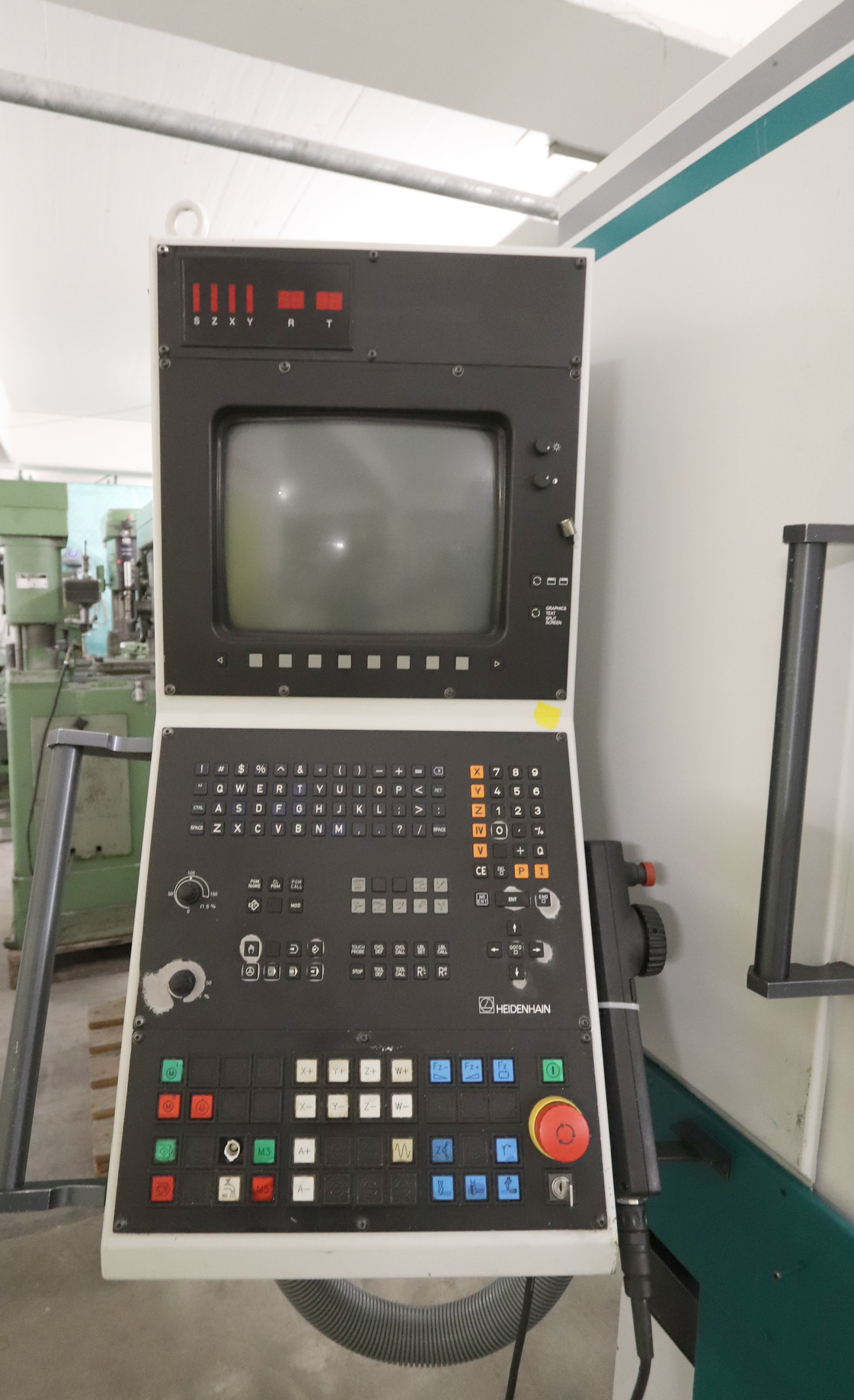

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Drill capacity in steel: 25 mm.
Threat cutting in steel M: 16.
Milling capacity: 100 cm3/min.

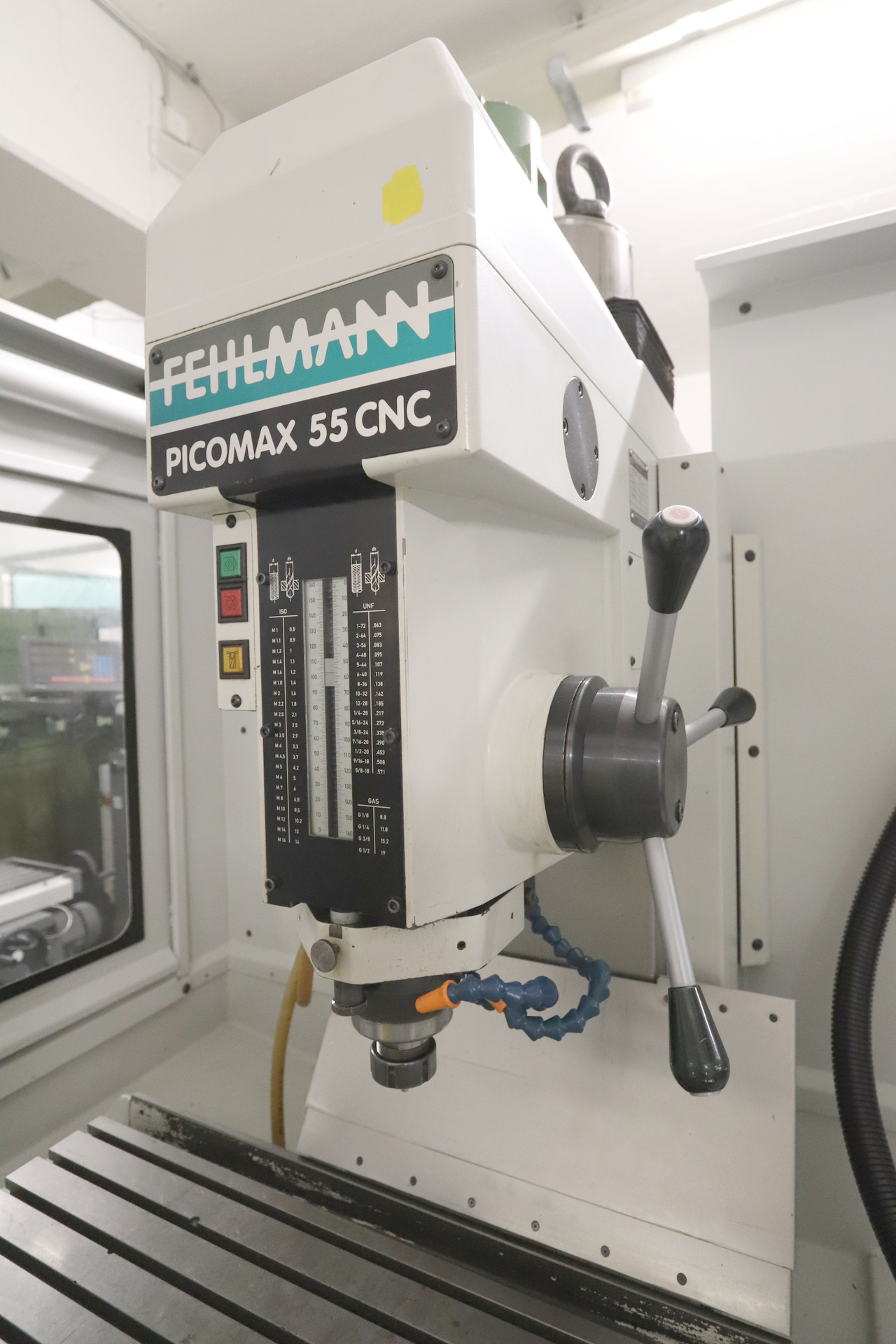

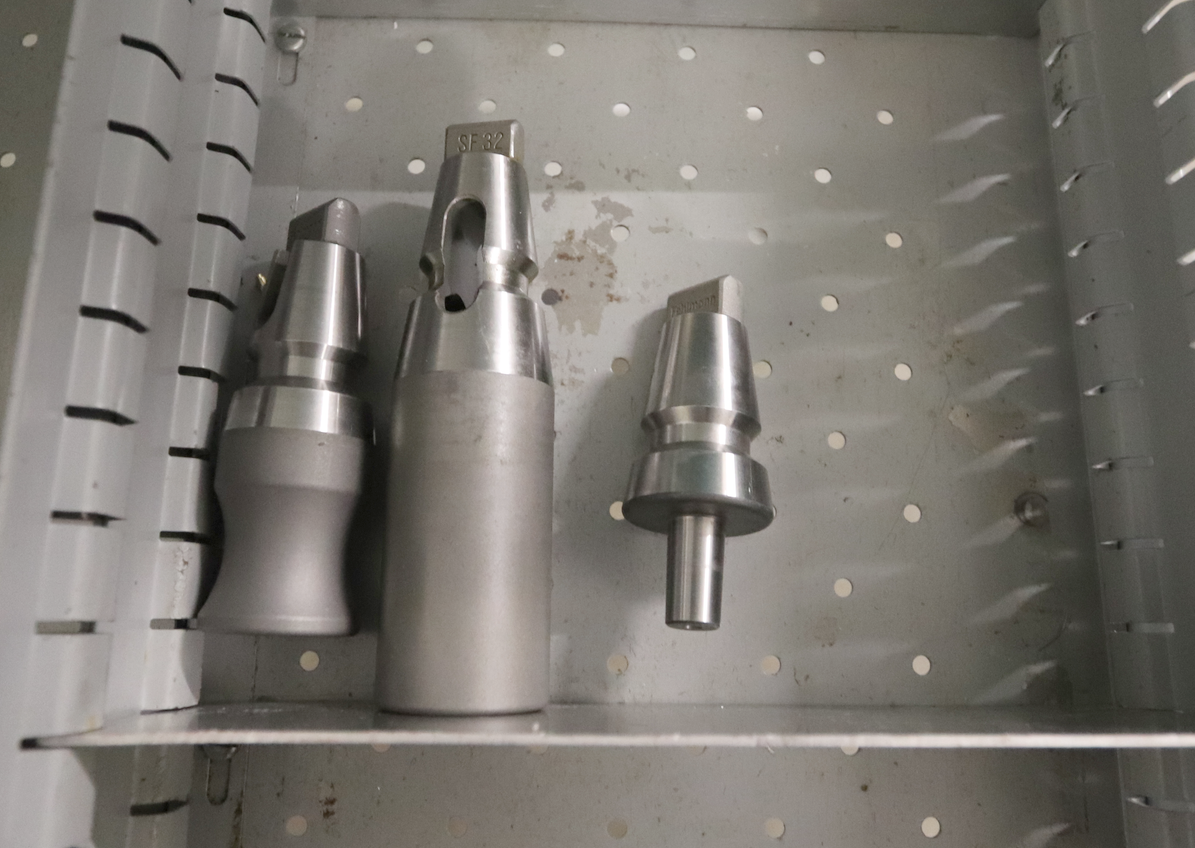

Taper in spindle: SF32.
from: 50 t/min.
up to: 10000 t/min.

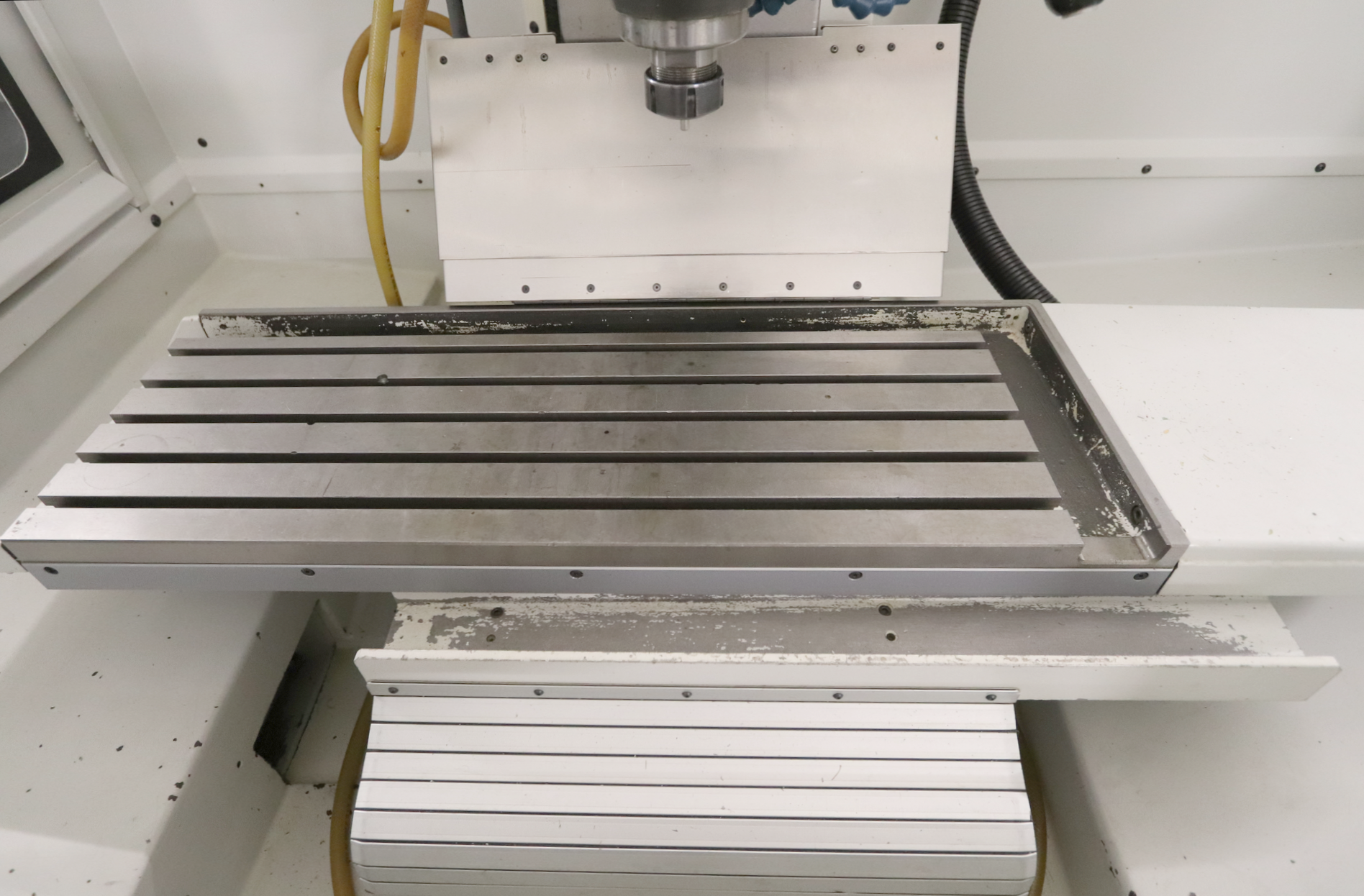

Table length: 885 mm.
Table width: 320 mm.
Number of T-channels: 5.
T-channel width: 12 mm.
Distance of the T-slots: 50 mm.
Table load max.: 250 kg.
Height of table above floor: 1040 mm.
Min. distance from table to spindle: 0 mm.
Max. distance from table to spindle: 620 mm.
Longitudinal travel: 500 mm.
Transversal travel: 250 mm.
Vertical travel: 145 mm.
X axis: 1 - 11000 mm/min.
Y axis: 1 - 11000 mm/min.
Z axis: 1 - 6000 mm/min.
W axis: 1 - 3600 mm/min.
Rapid traverse X: 11 m/min.
Rapid traverse Y: 11 m/min.
Rapid traverse Z: 6 m/min.
Voltage 50 Hz 3x: 400 Volt.
Power: 7 kW.
Total power required: 16 kW.
Machine's weight about: 2400 kg.
Length: 1920 mm.
Width: 1850 mm.
Height: 2400 mm.

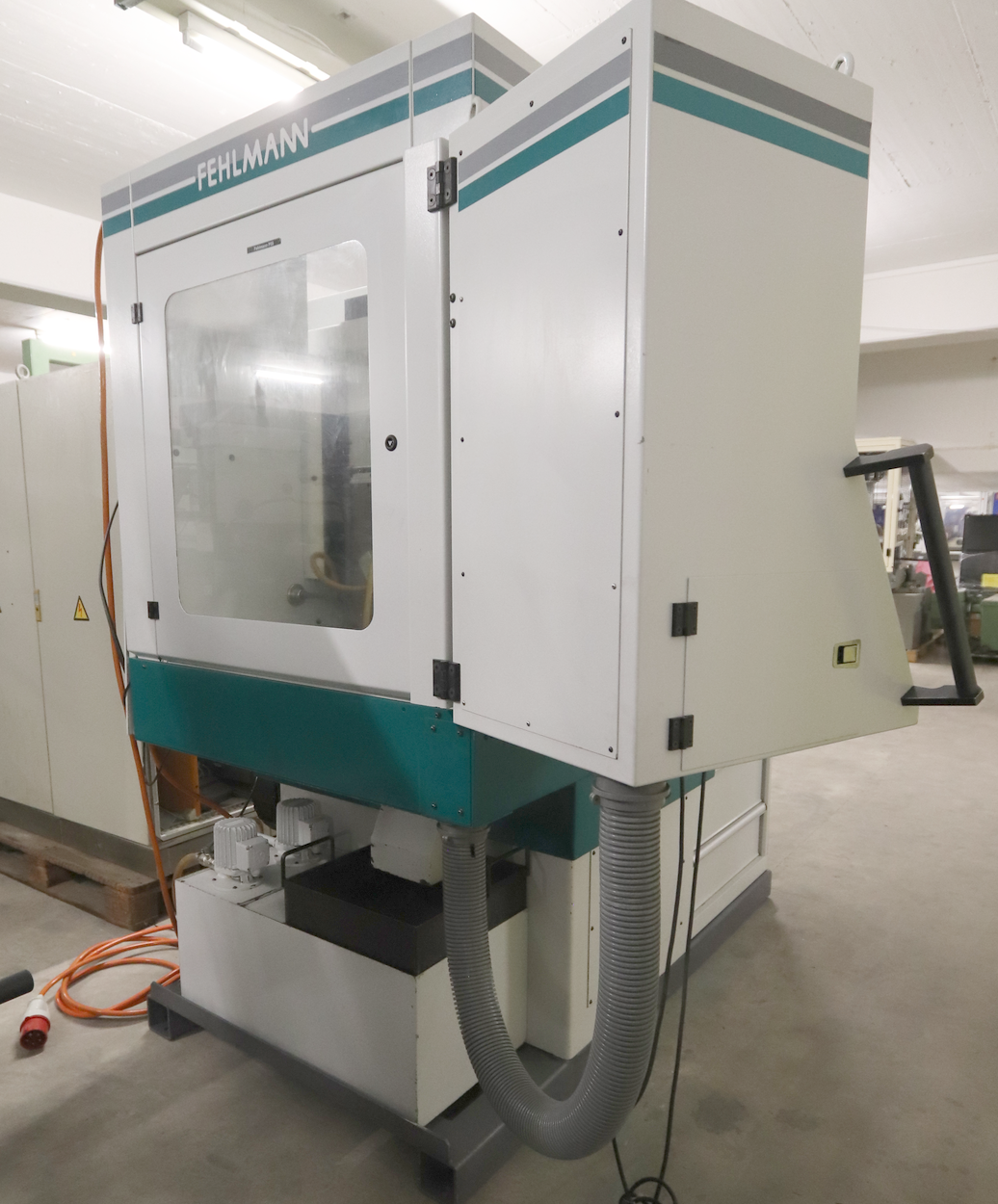

Coolant system: 100 l.
