MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TORNOS
  • Model:

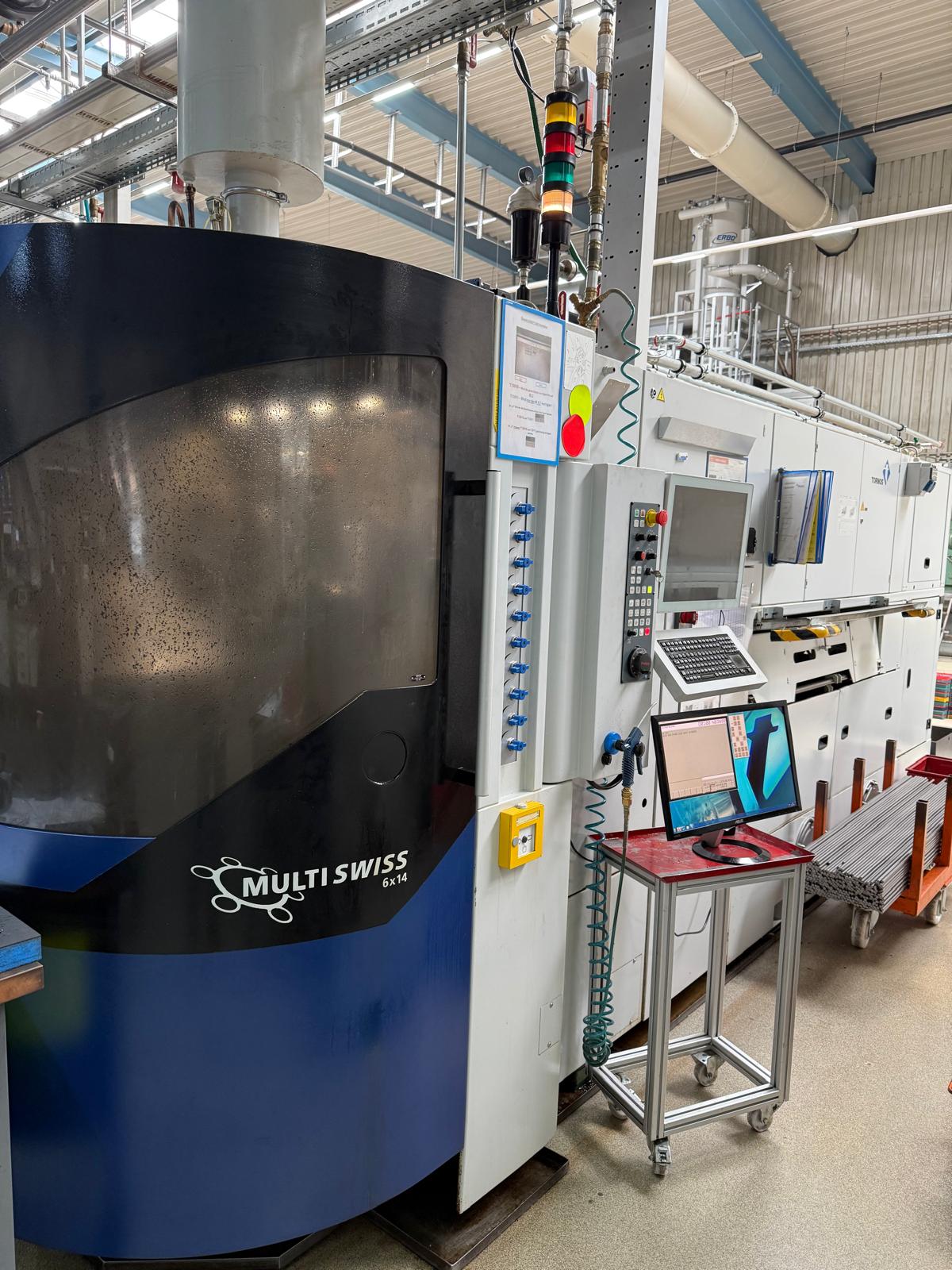

  • 023169 - TORNOS MULTISWISS 6x14
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 20.
Number of cross slides: 6.
Number of spindles: 6.
Number back spindle: 1.
Number of tools max.: 18.
Number of tools max. back spindle: 2.
Capacity round bar: 4 - 14 mm.
Workpiece length max.: 40 mm.
Outstanding length max.: 70 mm.
from: 0 t/min.
up to: 8000 t/min.
Spindle speeds: 0 - 8000 t/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle power: 6 kW.
Total power required: 70 kVA.
Machine's weight about: 7000 kg.
Length: 5920 mm.
Width: 1440 mm.
Height: 2120 mm.
