MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

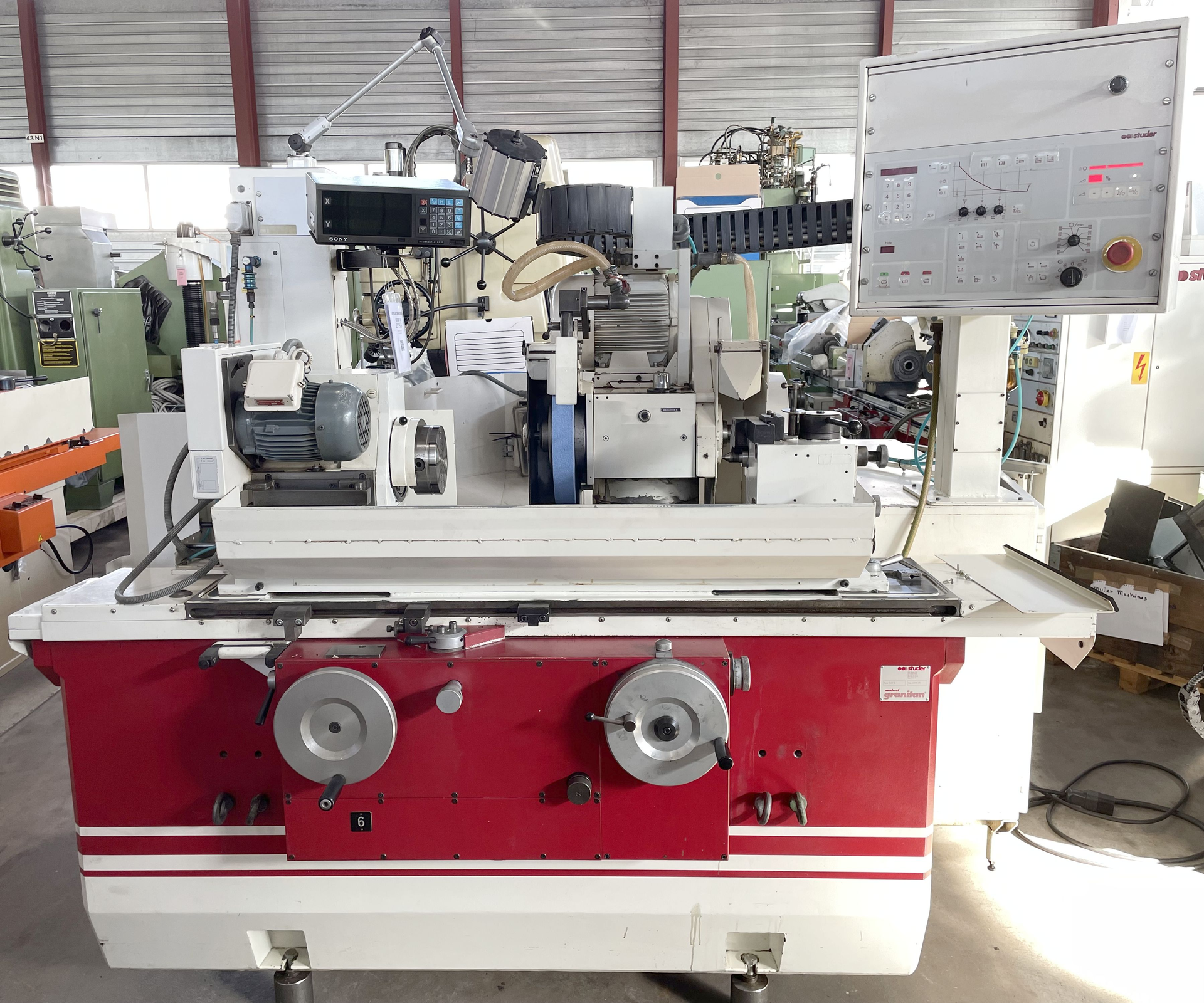

  • 021193 - STUDER S 40-2
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 650 mm.
Max. Longitudinal travel: 700 mm.
Diameter: 400 mm.
Width: 2000 mm.
Bore: 127 mm.

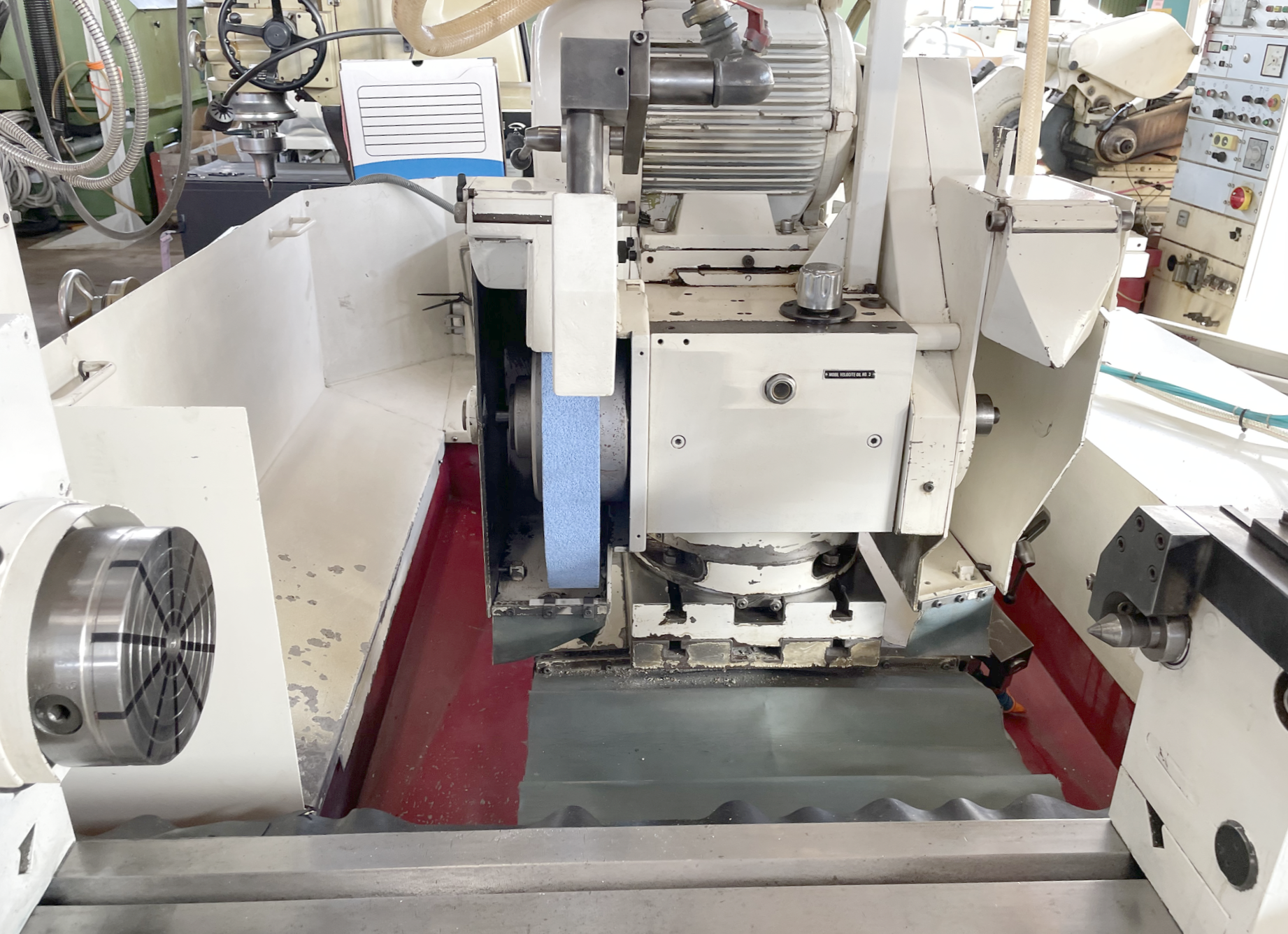

grinding wheel width: 80 mm.
Workpiece weight on centres max.: 130 kg.
number (steps): 6.
from: m/min.
up to: 9 m/min.
Peripheral speed: 35 m/s.
Hydraulic cross travel: 300 mm.
Angular displacement: 180 °.
rotatable: 0-90 °.
Spindle taper: 5 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: 12 °.
Voltage 50 Hz 3x: 400 Volt.
External Grinding wheel motor: 3.00 kW.
Workpiece spindle motor: 1 kW.
Total power required: 13 kVA.
Machine's weight about: 3100 kg.
Length: 2150 mm.
Height: 1800 mm.

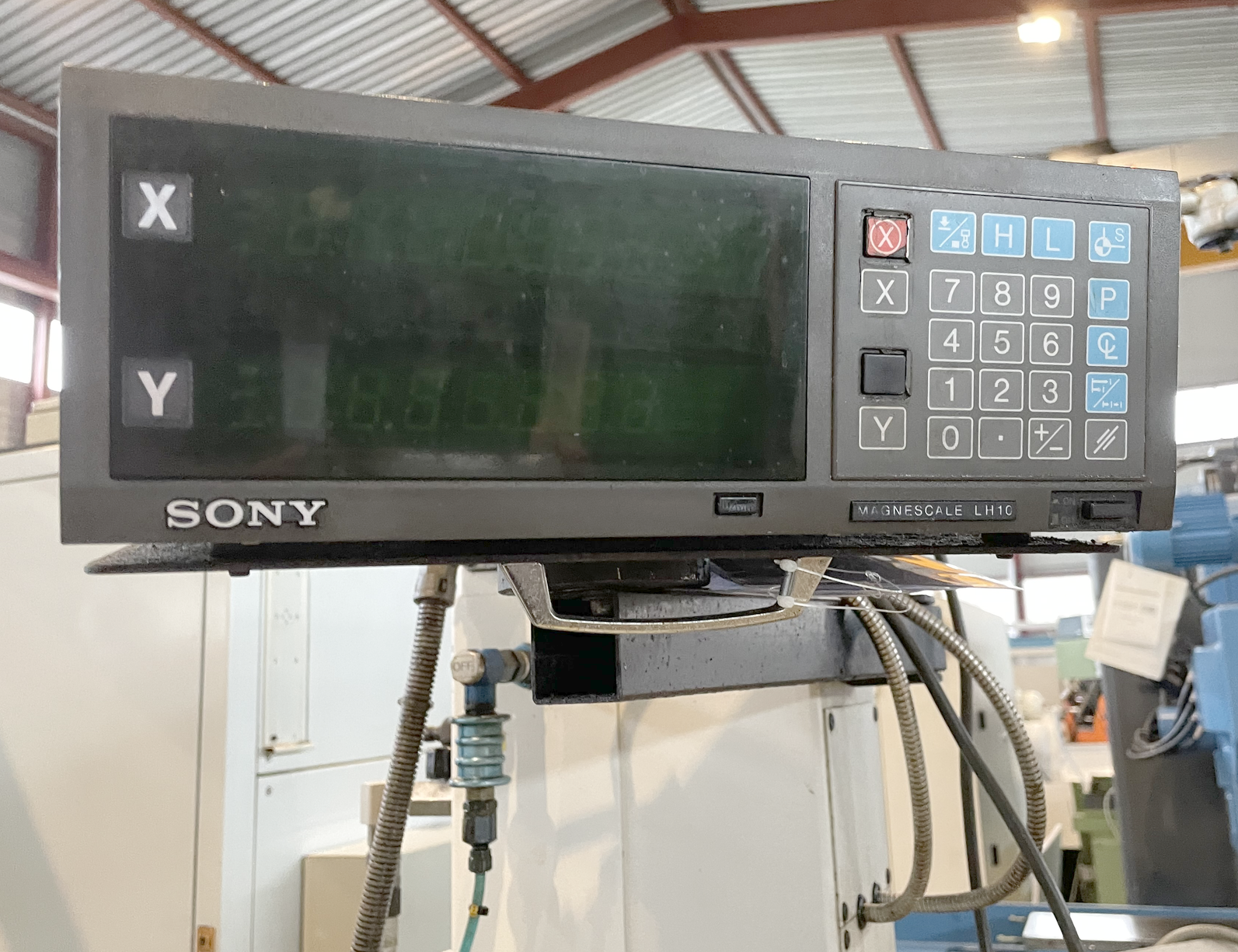

Digital readout number of axis:: 2.

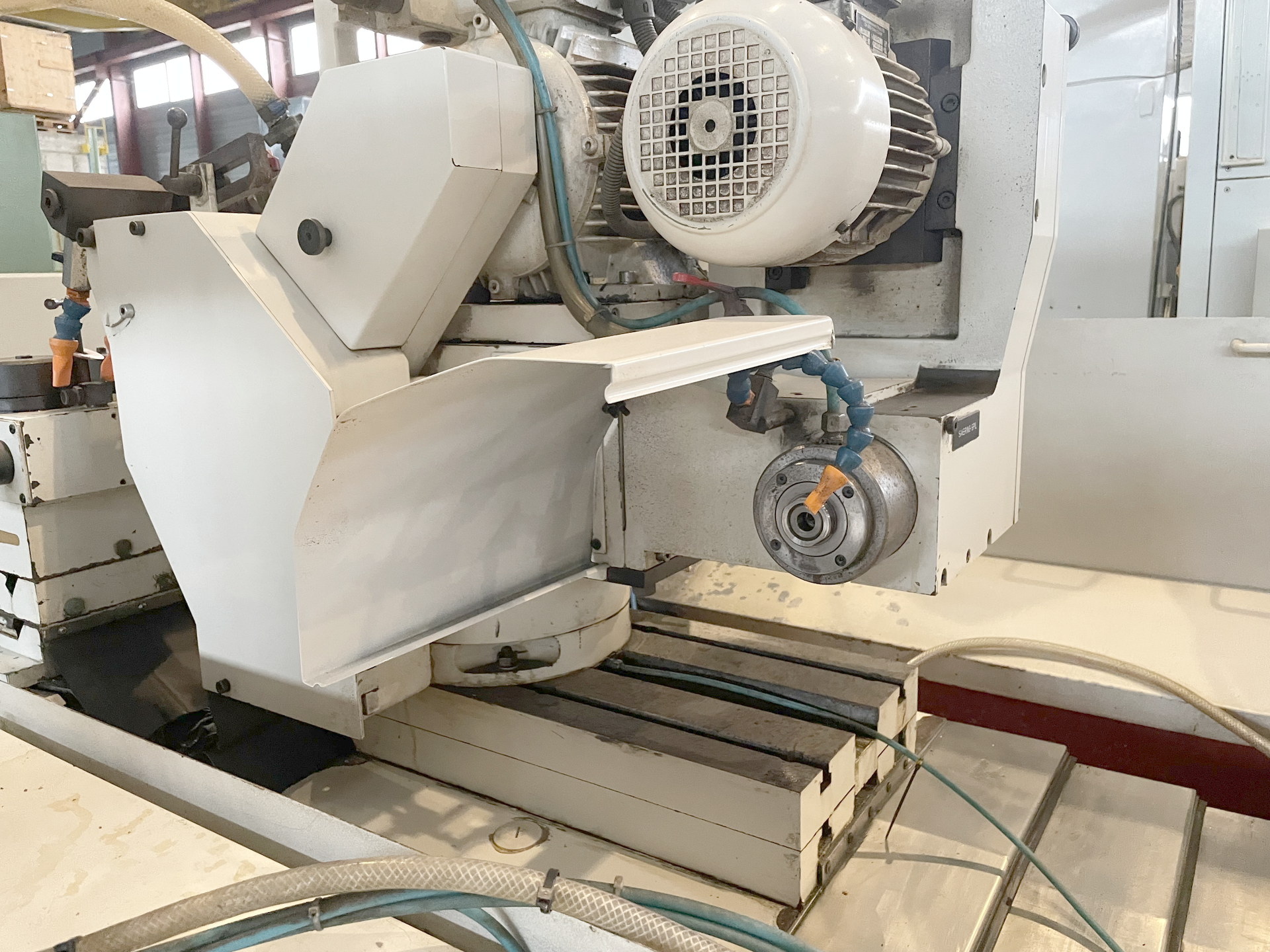

Spindle speeds: 25000 t/min.

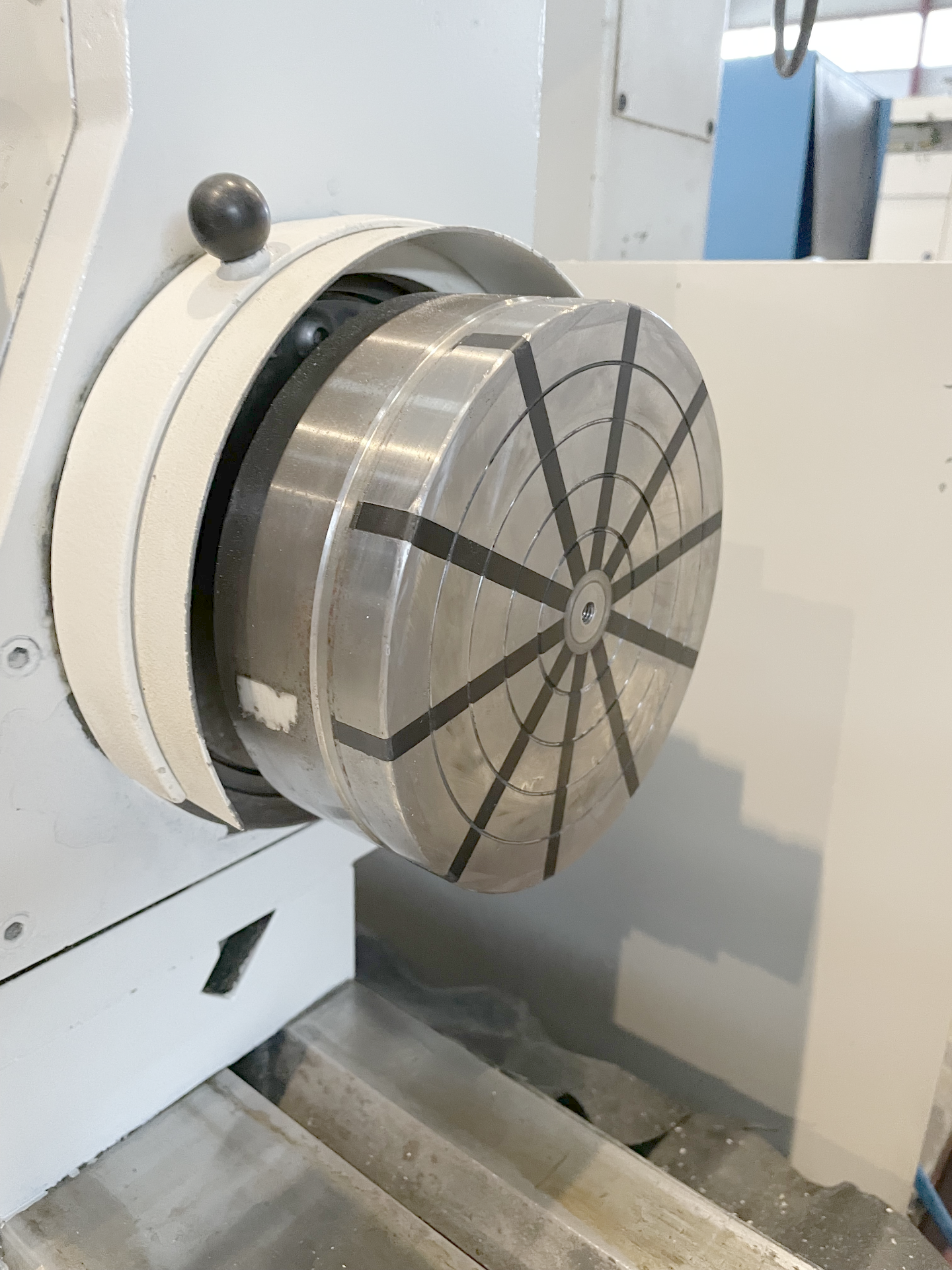

Macnetic chuck diameter: 150 mm.
