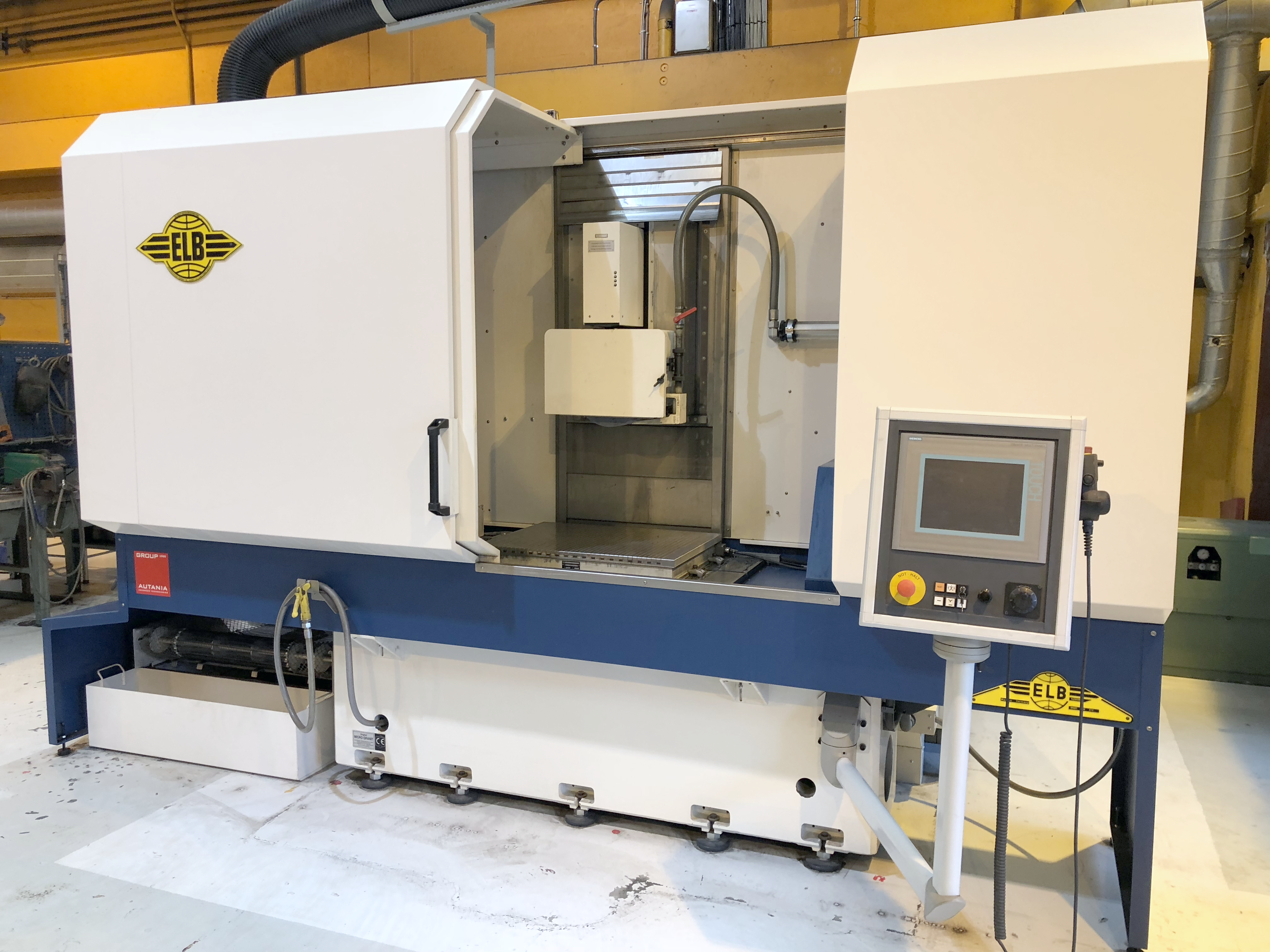

MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Elb

Model:

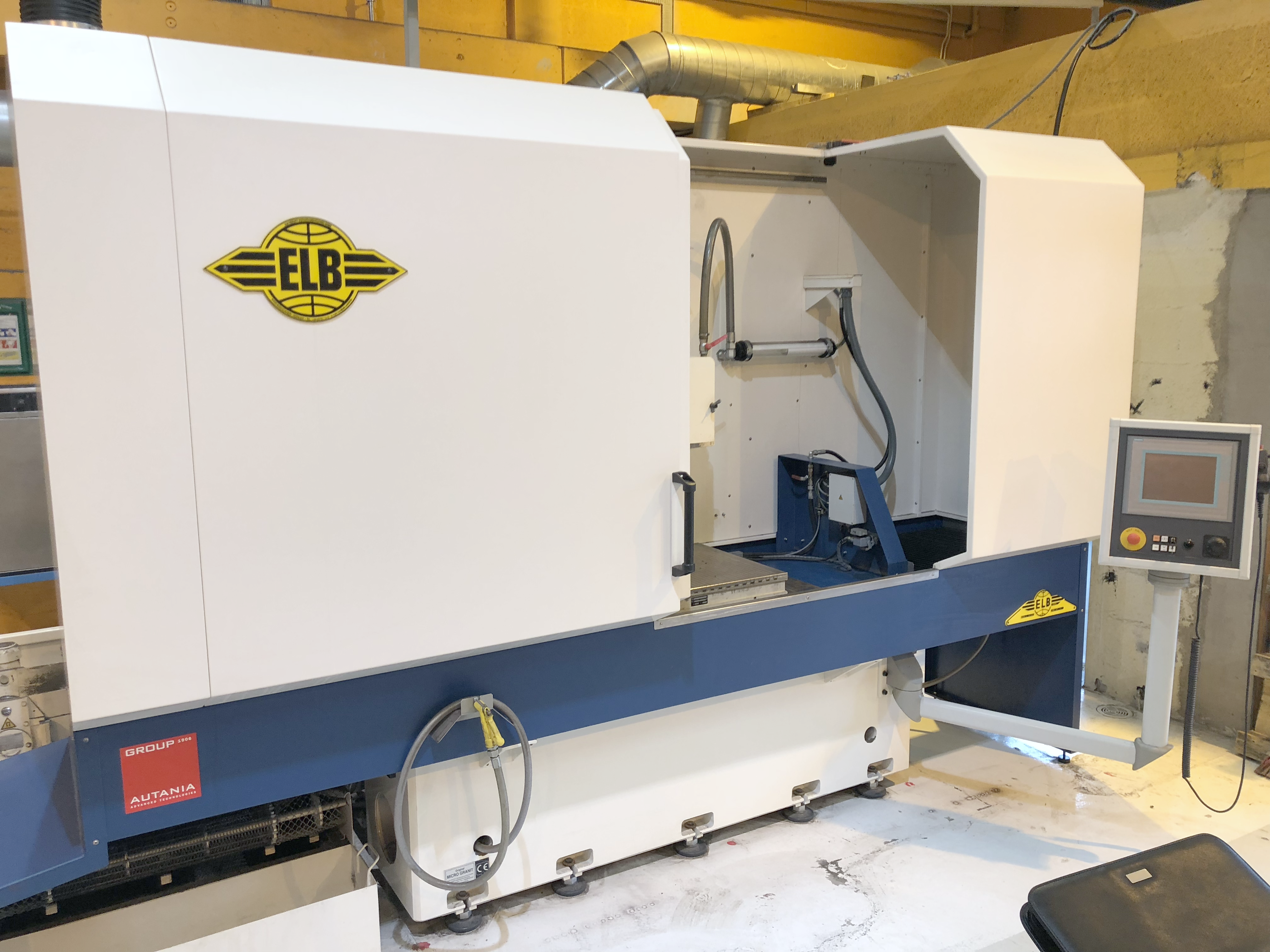

020348 - ELB SMART BD10 STC

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

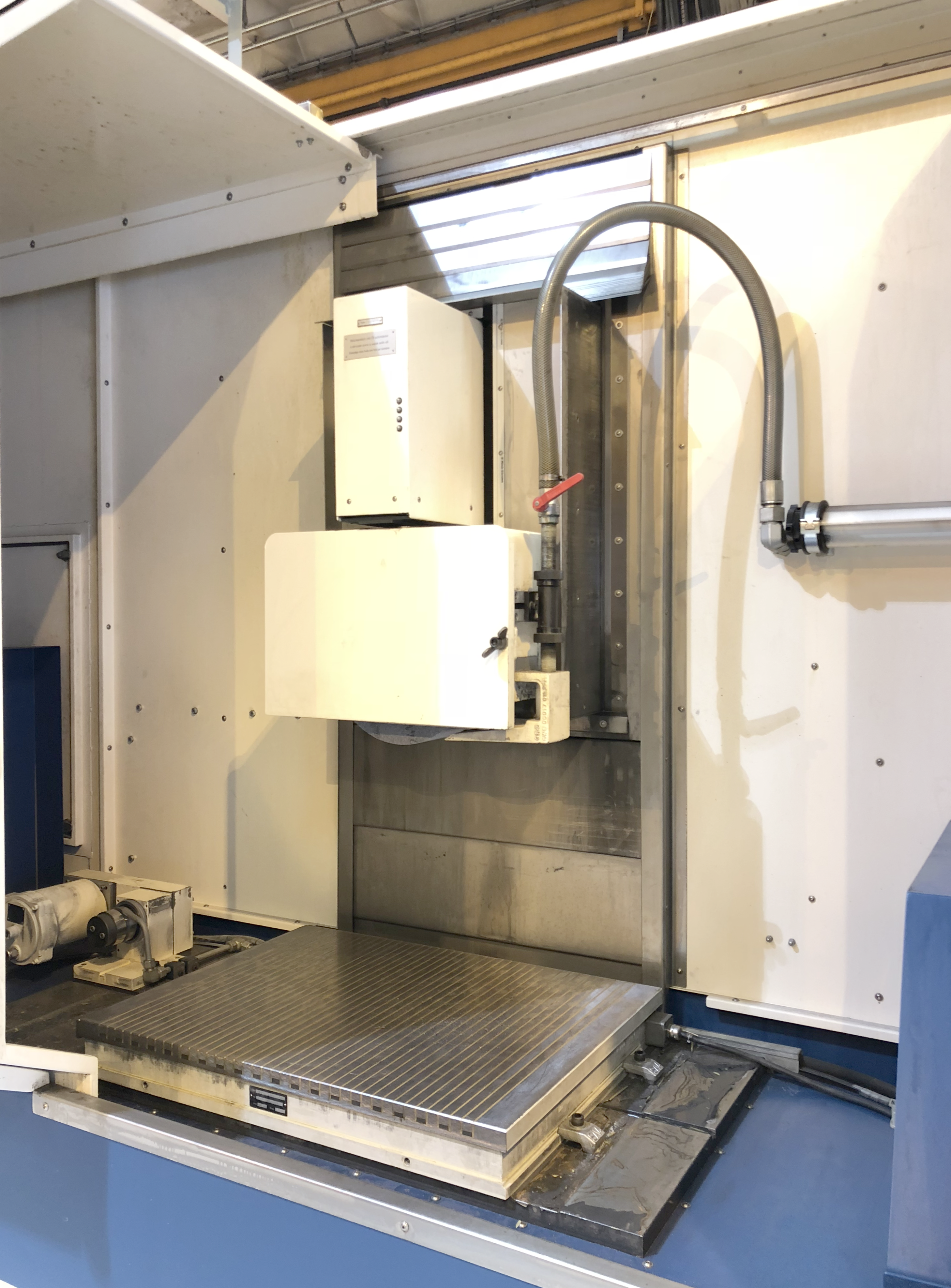

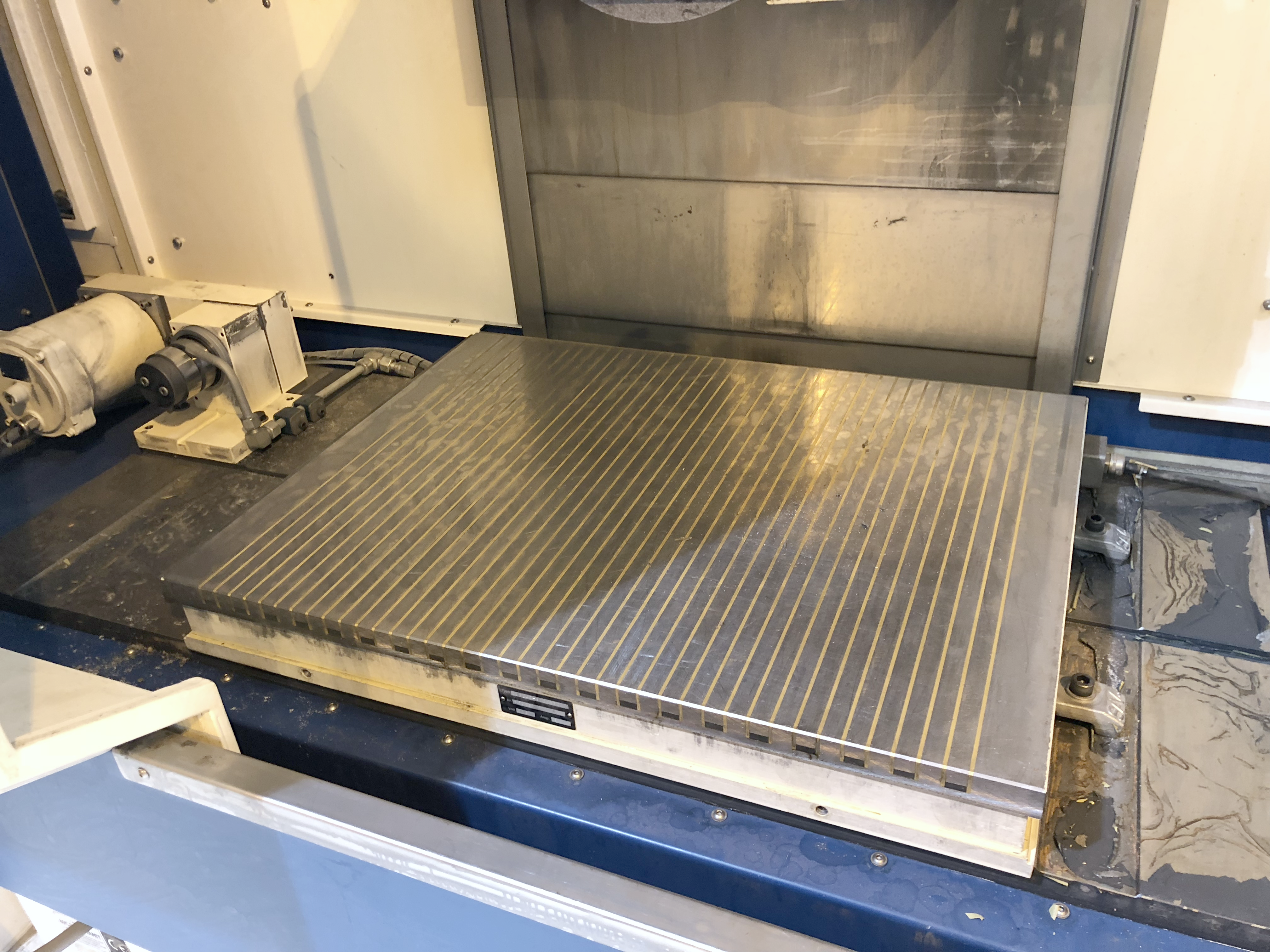

Table length: 1360 mm.
Table width: 590 mm.
Longitudinal travel (X-axis): 1100 mm.
Cross travel (z-axis): 670 mm.
vertical travel (Y-axis): 400 mm.
Table load max.: 1000 kg.
Grinding length: 1000 mm.
Grinding width: 600 mm.
Grinding height over table: 640 mm.

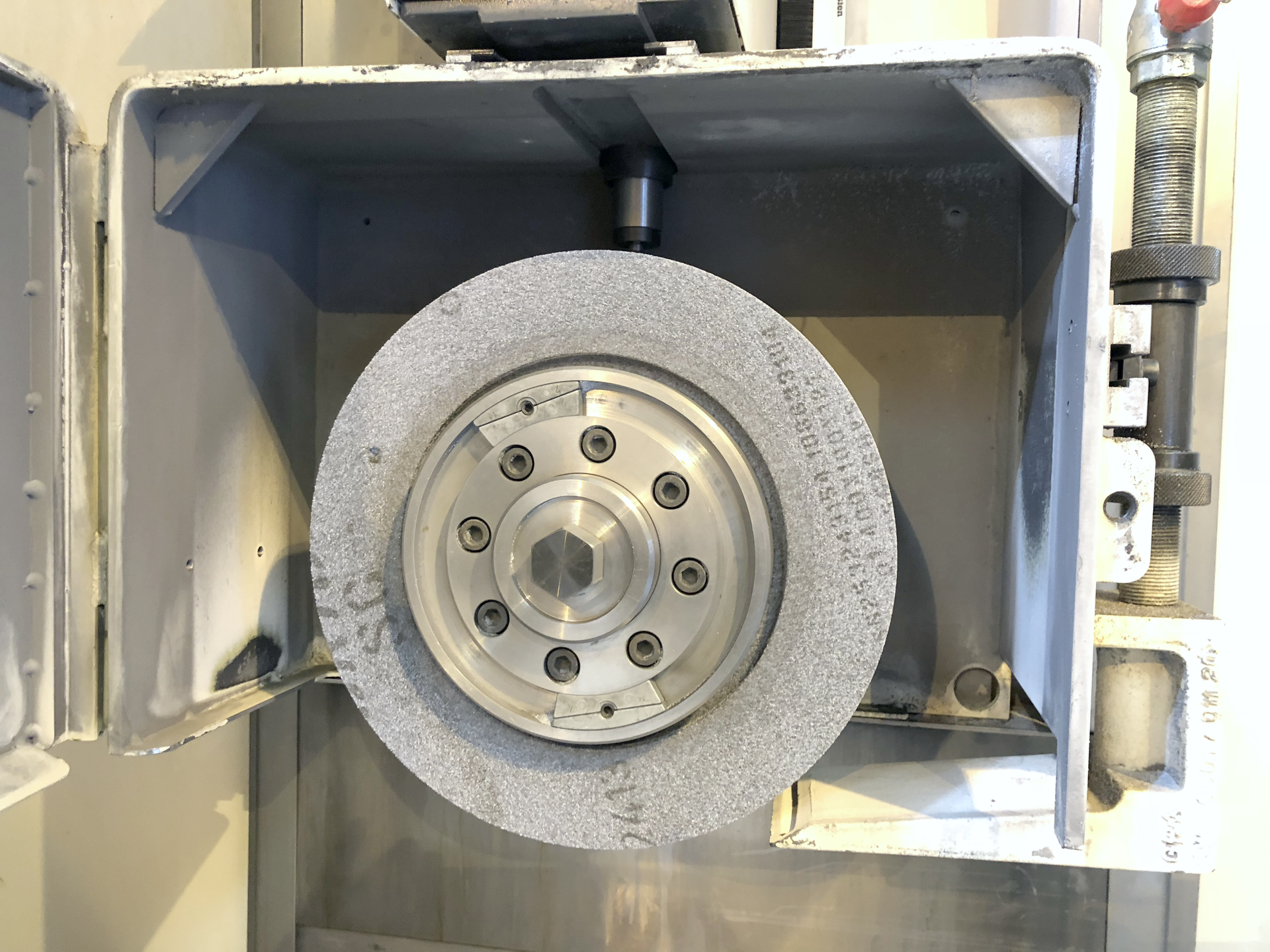

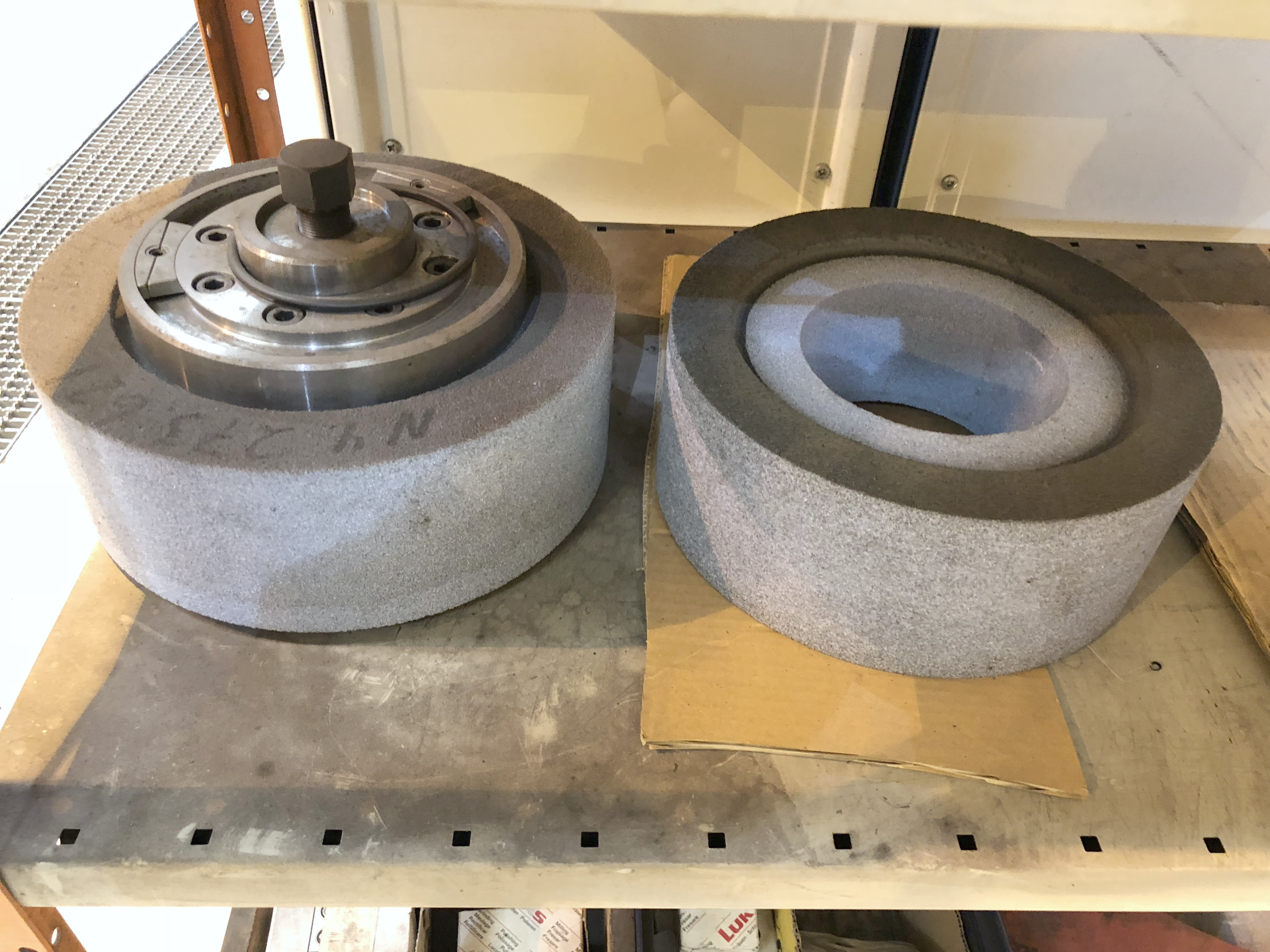

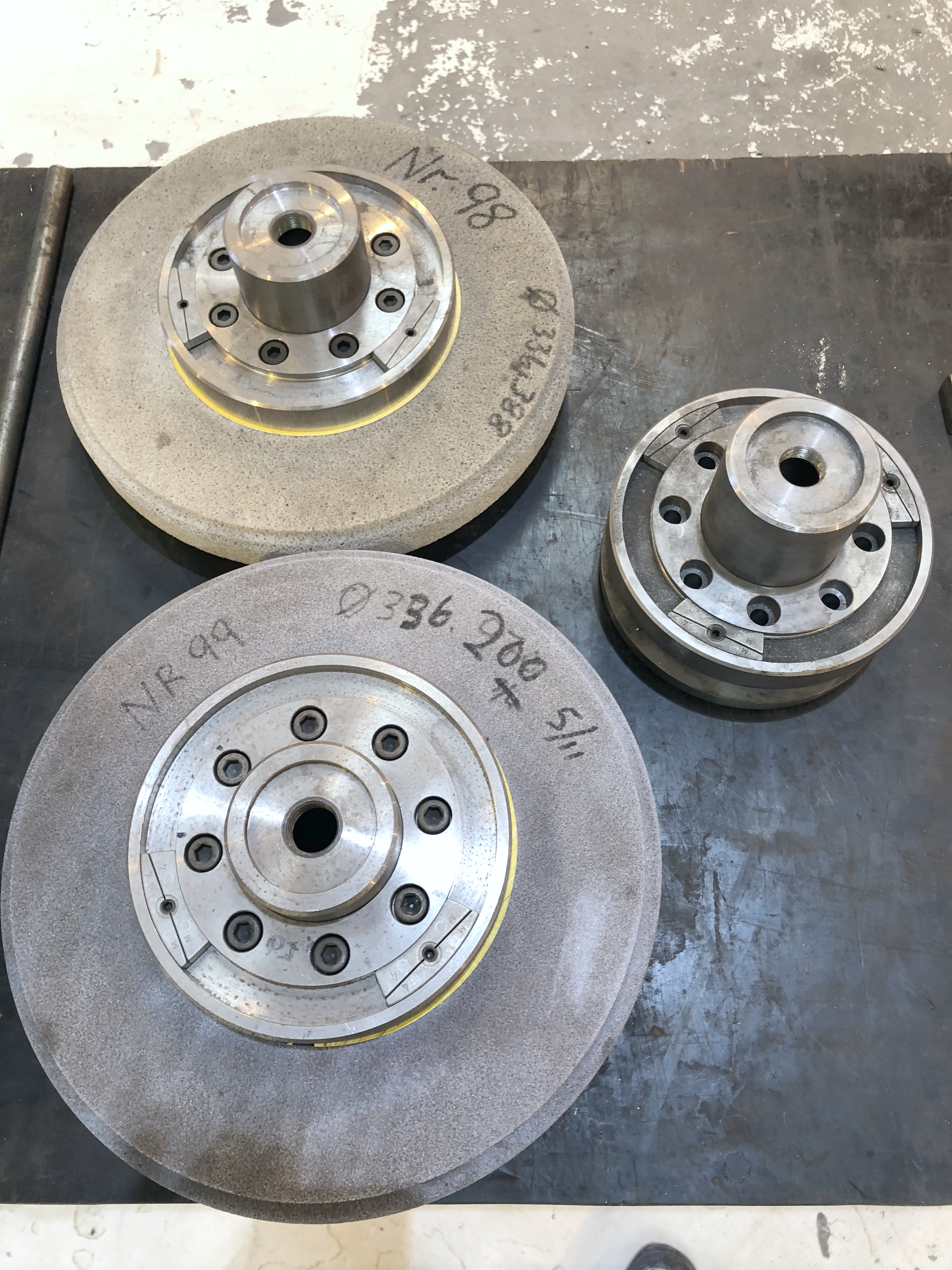

Diameter: 400 mm.
Width: 600 mm.
Bore: 127 mm.
Grinding wheel speeds:: 1450.
from: mm/min.
up to: 1500 mm/min.
Vertical rapid traverse: 1 m/min.
Noise level: 75 dB (A).
Voltage 50 Hz 3x: 400 Volt.
Grinding spindle motor: 10 kW.
Total power required: 30 kW.
Machine's weight about: 6900 kg.
Length: 800 mm.
Height: 2660 mm.
