MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

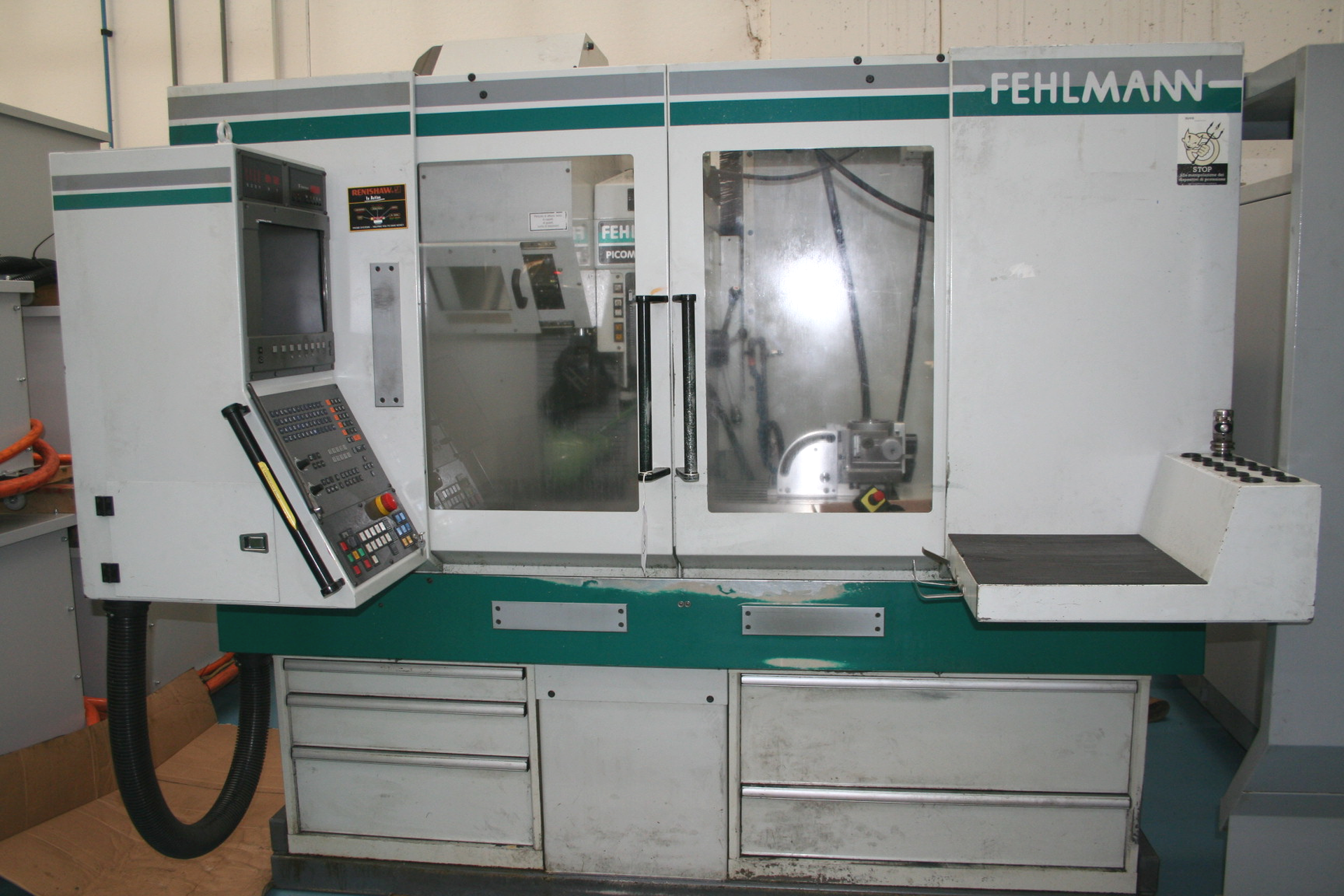

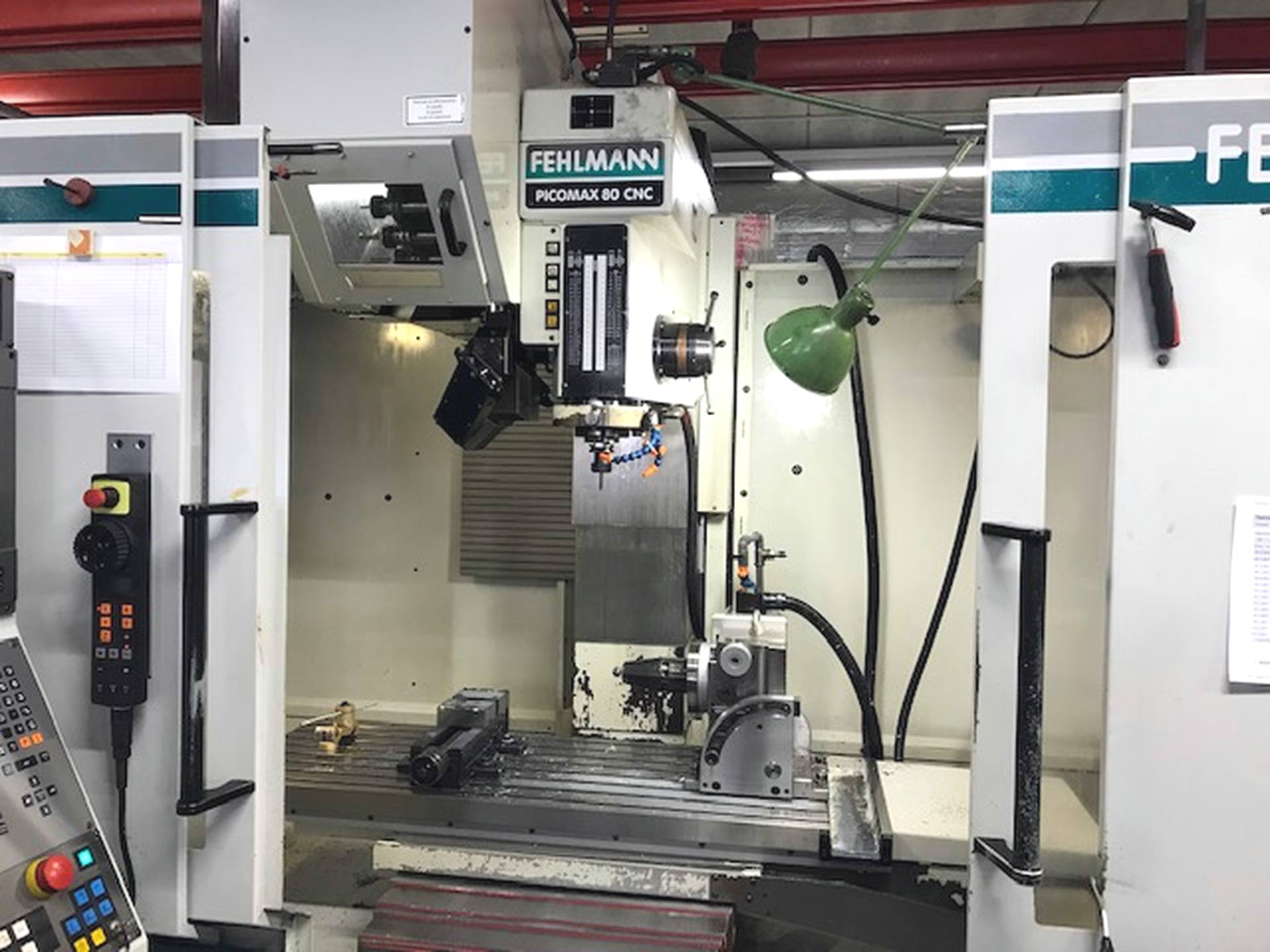

  • 020475 - FEHLMANN PICOMAX 80
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.
Table length: 1230 mm.
Table width: 410 mm.
Number of T-channels: 7.
Distance of the T-slots: 50 mm.
T-channel width: 12H8 mm.
Table load max.: 250 kg.
Longitudinal travel (X-axis): 700 mm.
Transversal travel (y-axis): 315 mm.
Vertical travel (z axis): 495 mm.
Verticla travel (V-axis): 180 mm.
Depth of throat: 370 mm.
spindle to table: 620 mm.
from: 50 t/min.
up to: 9200 t/min.
Feed range: 1 - 9000 mm/min.
Rapid traverse: long.: 9 m/min.
Rapid traverse: transversal: 9 m/min.
Rapid traverse: vertical: 4 m/min.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 16 kW.
Machine's weight about: 3200 kg.
Length: 2500 mm.
Width: 2500 mm.
Height: 2450 mm.

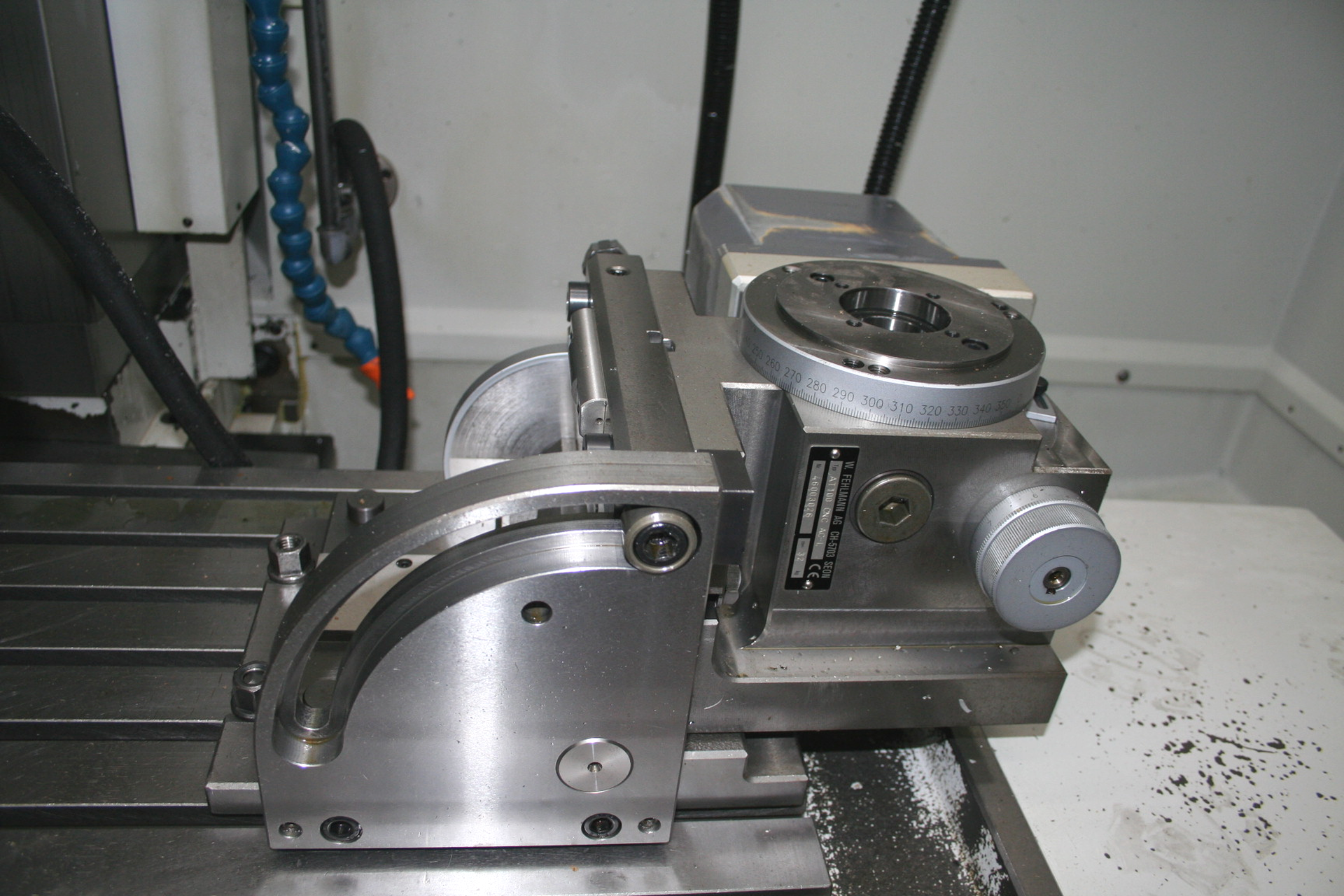

Dividing attachment 4th axis: FEHLMANN AT 100 CNC.
