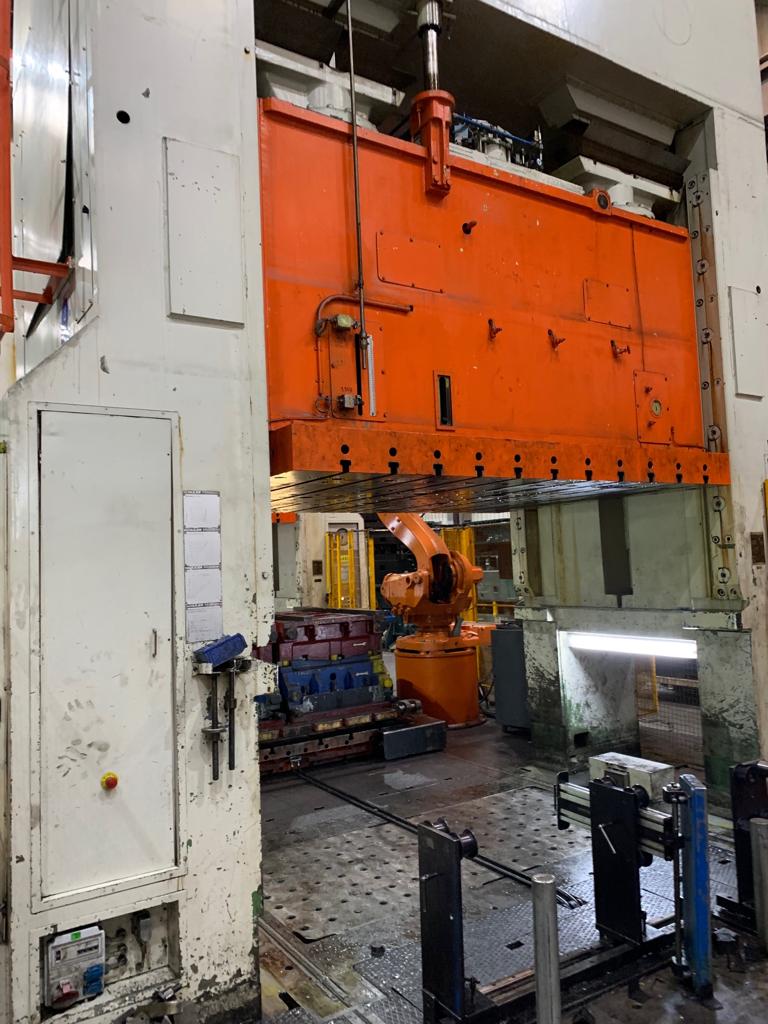

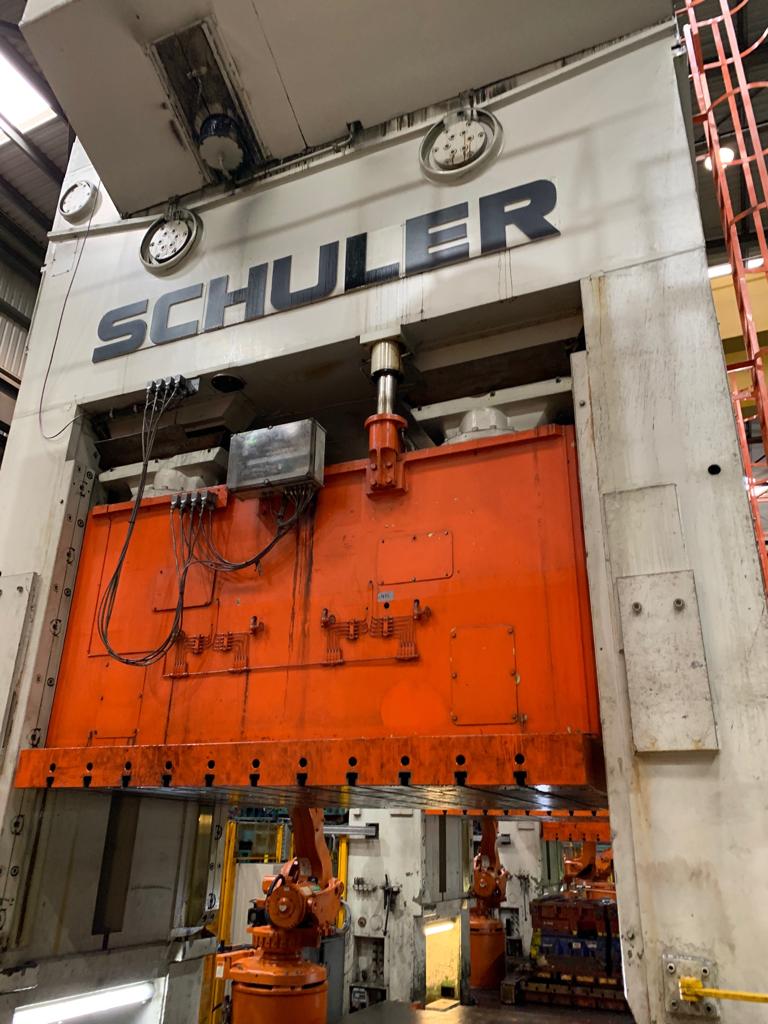

Mechanical Presses/SCHULER EB 4-500-3-0.85

Mechanical Presses/SCHULER EB 4-500-3-0.85

Mechanical Presses/SCHULER EB 4-500-3-0.85

Mechanical Presses/SCHULER EB 4-500-3-0.85

Mechanical Presses/SCHULER EB 4-500-3-0.85

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Presses

Subcategory:
Mechanical Presses

Manufacturer:
Schuler

Model:
SCHULER EB 4-500-3-0.85

Condition:
Used

YOM:
1970

Control:
NA

Price:
POA

Seller:
Pressen Haas

Country:
Germany

DESCRIPTION

Pressure total: 500 ton Ram
stroke: 850 mm
Slide adjustment: 350 mm
Shut height (stroke down, adjustment up): 1200 mm
Free frontal opening L-R: 3110 mm
Table surface area : 3000 x 1800 mm
Slide area: 3000 x 1800 mm
Number of strokes: 9 - 18 s.p.m.
Die cushion capacity in table: 130 ton
Die cushion stroke: 250 mm
Table height over floor: 475 mm
Die weight at the ram max.: 10 ton
Die Weight total: 25 ton
Height over floor approx.: 9170 mm
Weight of machine approx.: 180 ton
No. of moving bolster: 1 pcs.
Standard configuration: pneumatic cushion cylinder moving bolster fron to back

+ request more information

SEND ENQUIRY

*I AM A

Dealer

End User

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A

Dealer

End User

Sellers

Pressen Haas

Contact Name
Mario Kosjerina
