DOOSAN
08243
SPINDLE
LIVE TOOLS
Y AXIS
C AXIS 0,001 degrees

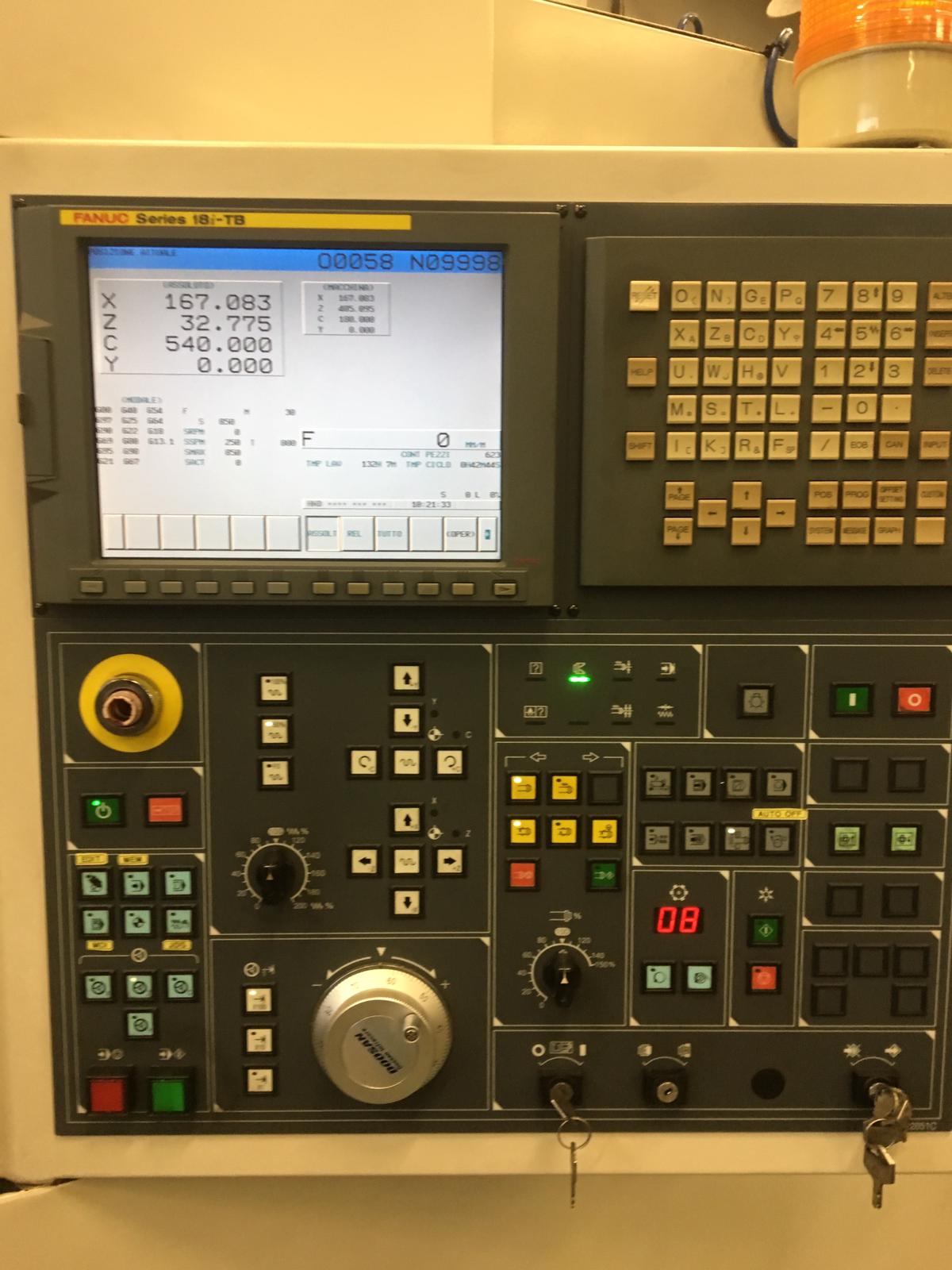

CNC FANUC 18i-TB
Travel X axis mm 250
Travel Y axis mm +/- 50
Travel Z axis mm 580
Max turning diameter mm 330
Max turning lenght mm 510
Spindle rpm 45-4500
Spindle size ASA A2-6
Spindle bore mm 65
Spindle power kW 11-15
No. live tools positions 12
Machine weight kg. 4750
Requested area m 3,6x1,7 m
Height m 1,74
EQUIPPED WITH:
-Chip conveyor

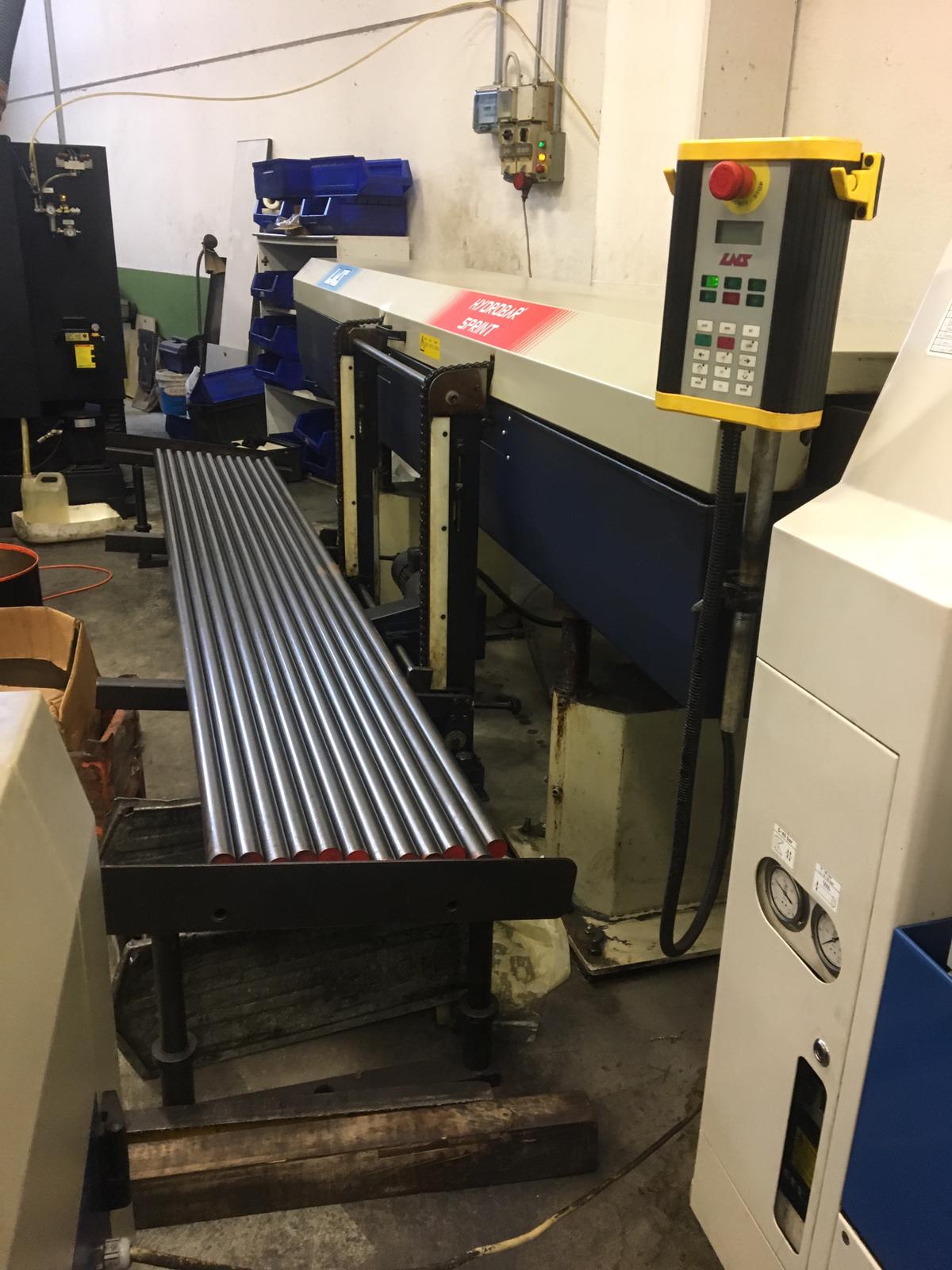

-Bar loader S2 LNS mm 3000
-N.02 axial live tool holders
-N.01 radial live tool holder
-Fixed tool holder

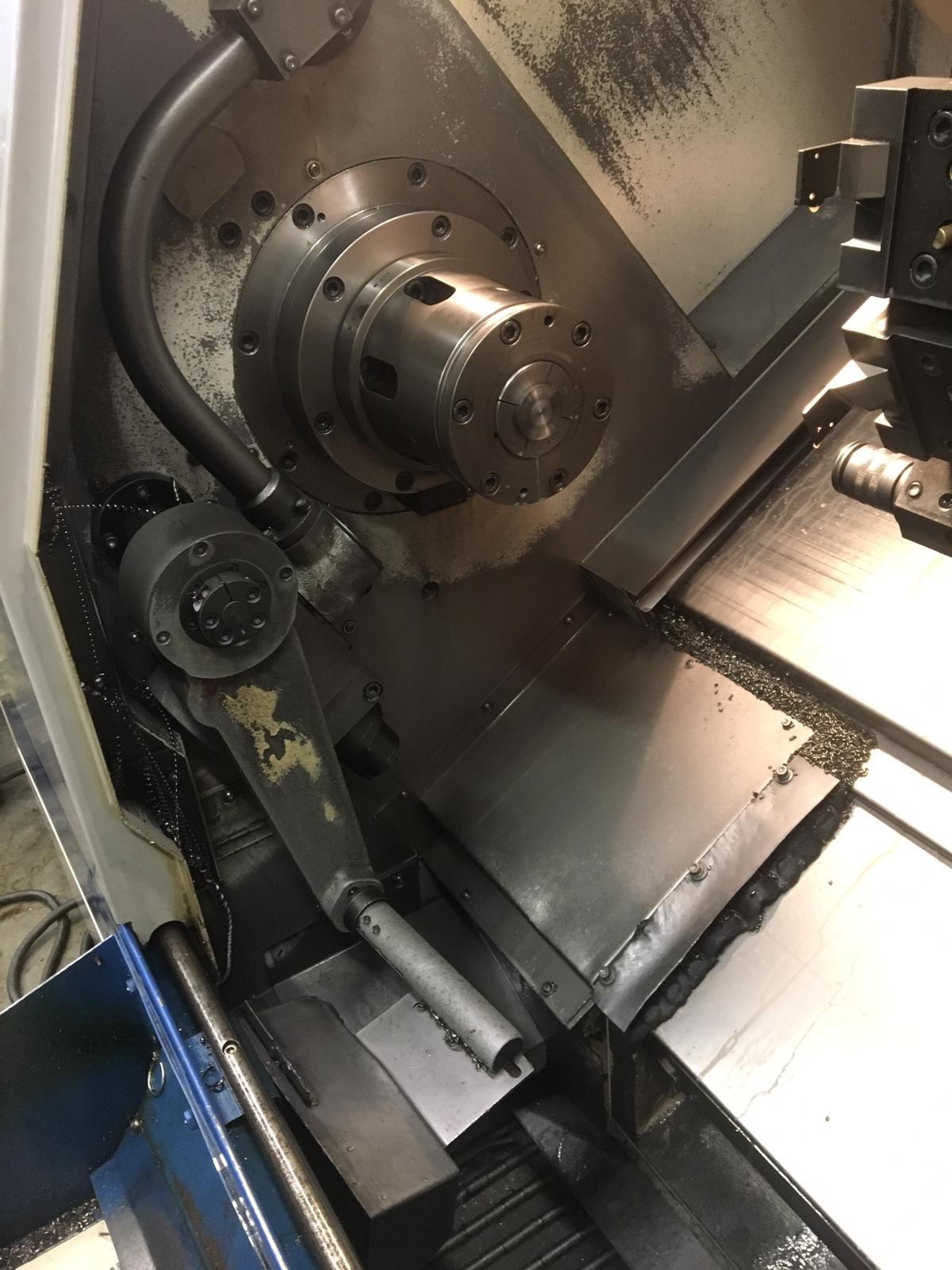

-Chuck
USED MACHINE
YASDA
07881
CNC Fanuc 31i -model A5
Axis X mm 900 longitudinal table
Axis Y mm 500 vertical spindle
Axis Z mm 450 cross column
Axis C 360 degerees table rotation
Axis B ± 110 degrees tilting table
Working table surface diam. 400 mm
Table load 200 k...
YCM
09170
CNC FANUC MXP-100i
TABLE:
Size 1120x600 mm
Max table load Kg 800
Number of T-slots (xSizexPitch) 5xmm18xmm100
STROKES:
Longitudinal axis X 1020 mm
Vertical axis Y mm 600
Z axis transversal 600 mm
Distance between spindle nose to table top m...
