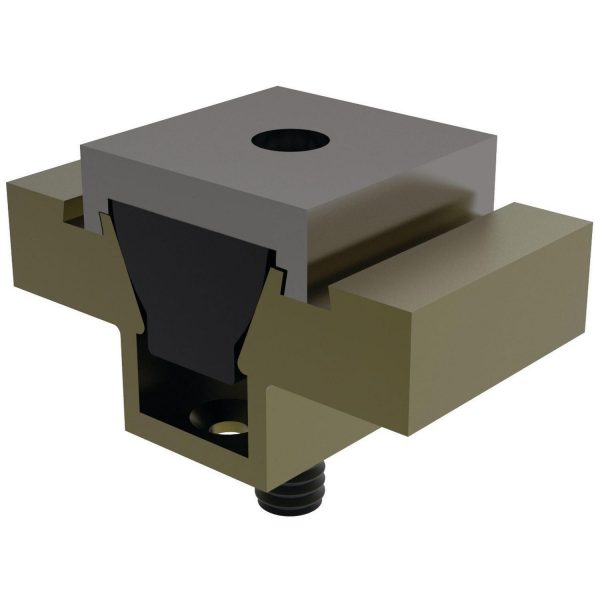

The compact Mitee-Bite Uniforce® clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece, enabling you to fixture unusual applications easily. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. A unique locking plate properly expands the clamp while making it rigid for machining the jaws to your specifications. These clamps are available in metric and imperial versions, with or without locking plate (* denotes locking plates included)
ALPA
10056
Measuring range mm 711
Application range 812
Max permissible errors, E(mpe) μm 7
Repeatibility, R(mpe) (2s) μm 2 (Ø:4)
Overall squareness deviation (frontal), S(mpe) μm 15
Max resolution mm 0,001
Measuring force N 0,75:1,5
Data output ...
ANGELINI
New04610
CNC FANUC OT
Heigth of center mm 165
Distance between center mm 600
Spindle bore mm 36
Spindle speed rpm 6000
Equipped with:
Part catche
Automatic turret Baruffaldi 6 positions
USED MACHINE
ZMM
07299
Swing diameter on the bed mm 520
Swing diameter on the carriage mm 320
Distance between center mm 1500
Spindle speed rpm 2000
Spindle motor power kW 5,5/7,5
USED MACHINE
