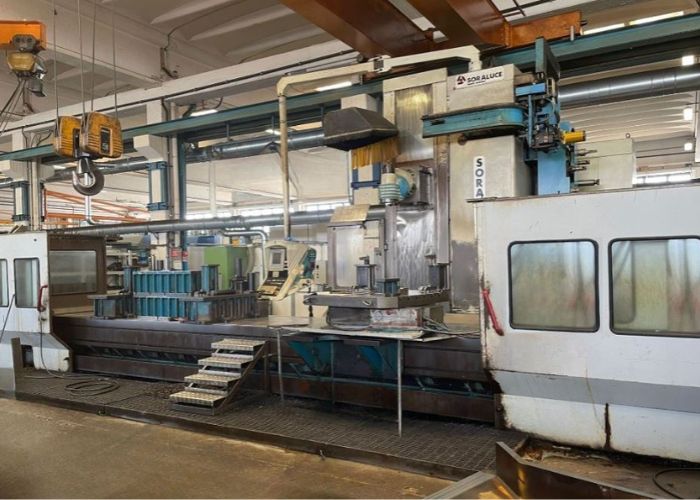

SORALUCE
09262
CNC SELCA S3045
STROKES:
Longitudinal stroke X axis 6500 mm
Vertical stroke Y axis 2000 mm
Z axis ram stroke 1200 mm
TABLE:
Table length 8000 mm
Table width mm 1100
Height from floor 870 mm
Number of T-slots 8
Distance between T-slots 140 mm
T-slot width 22 mm
Maximum weight on the table 3000 kg/m2
SPINDLE:
Motor power kw 30
Spindle head taper ISO 50
Speed number rpm 14.3-222-2000
AUTOMATIC TOOL CHANGE:
Magazine capacity 40 positions
Maximum tool diameter adjacent pocket 110 mm
Maximum tool diameter empty pocket 200 mm
Maximum tool length 350 mm
Maximum tool weight kg 20
MACHINE WEIGHT:
Approximate weight kg 30500
EQUIPPED WITH :
-Universal automatic head
B Axis indexing 2.5°
B axis indexing 2.5°
-Chip evacuator
USED MACHINE
FAMUP
09646
LINEAR DRIVE
MOVING COLUMN
CNC SELCA 4045 PD
TABLE:
Table size mm 1.600x650
T-slots mm 5x18x125
Max load Kg 1000
TRAVEL:
Longitudinal X axis 1200 mm
Cross Y axis 650 mm
Vertical Z axis 600 mm
Rapid feeds X/Y/Z m/min 60/60/30
SPINDLE:
Spin...
MICROCUT
08731
CNC FANUC Oi-MC
TABLE:
Table dimensions mm 1200x500
Max load Kg 1200
STROKES:
X axis mm 1000
Y axis mm 500
Z axis mm 570
SPINDLE:
Cone ISO 40
Tool taper BT/DIN 69871
Speed rpm 10.000
Motor kW 11/15
TOOL CHANGE:
Tool magazine 24 posizio...
ROSA
07234
Tangential wheel and rectangular table
Longitudinal travel 700 mm
Cross travel 300 mm
Distance between table and spindle mm 300
Grinding diameter mm 300
Grinding width mm 40
Equipped with:
Magnetic plate 600x300 mm
USED MACHINE
