MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

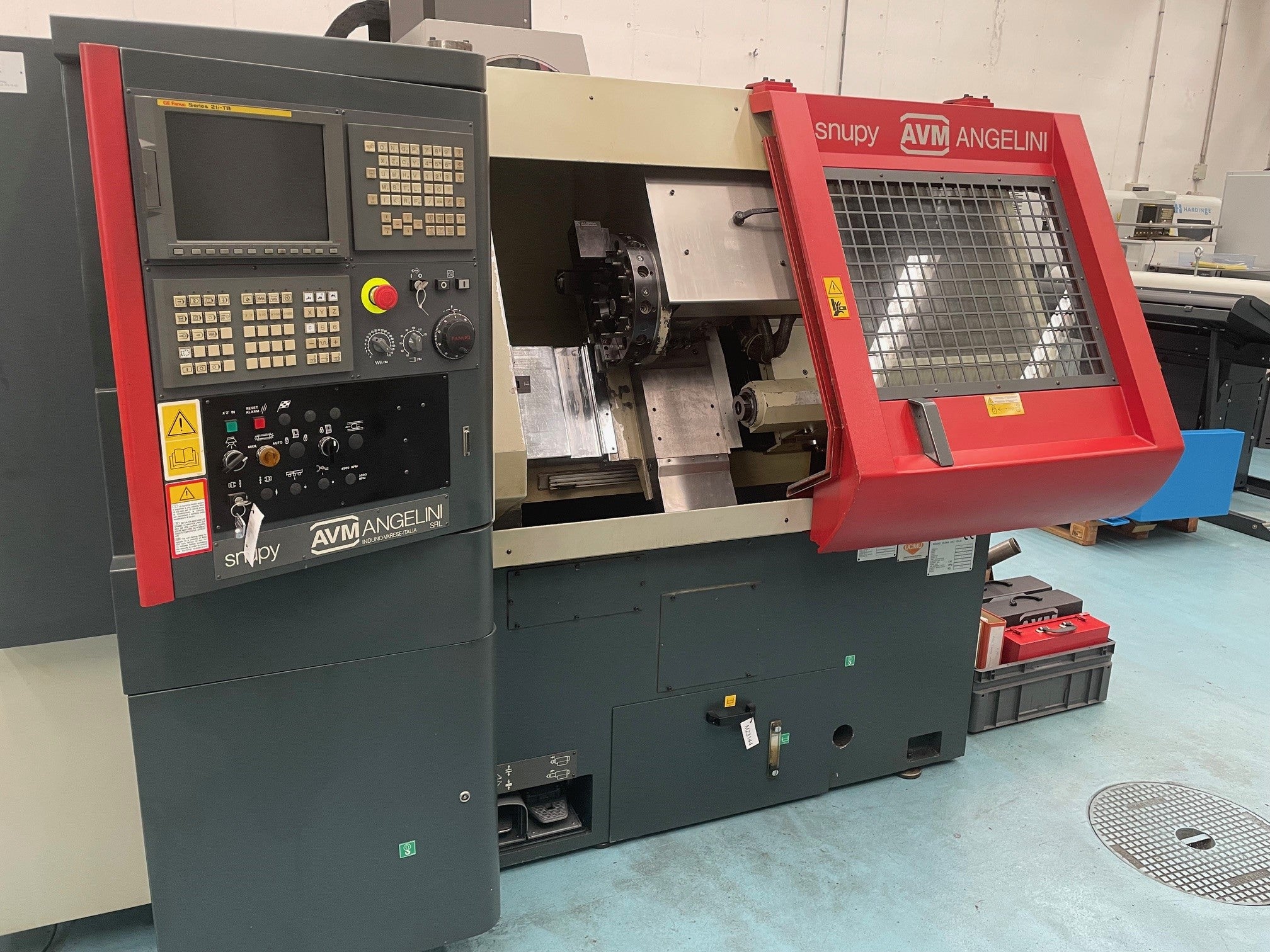

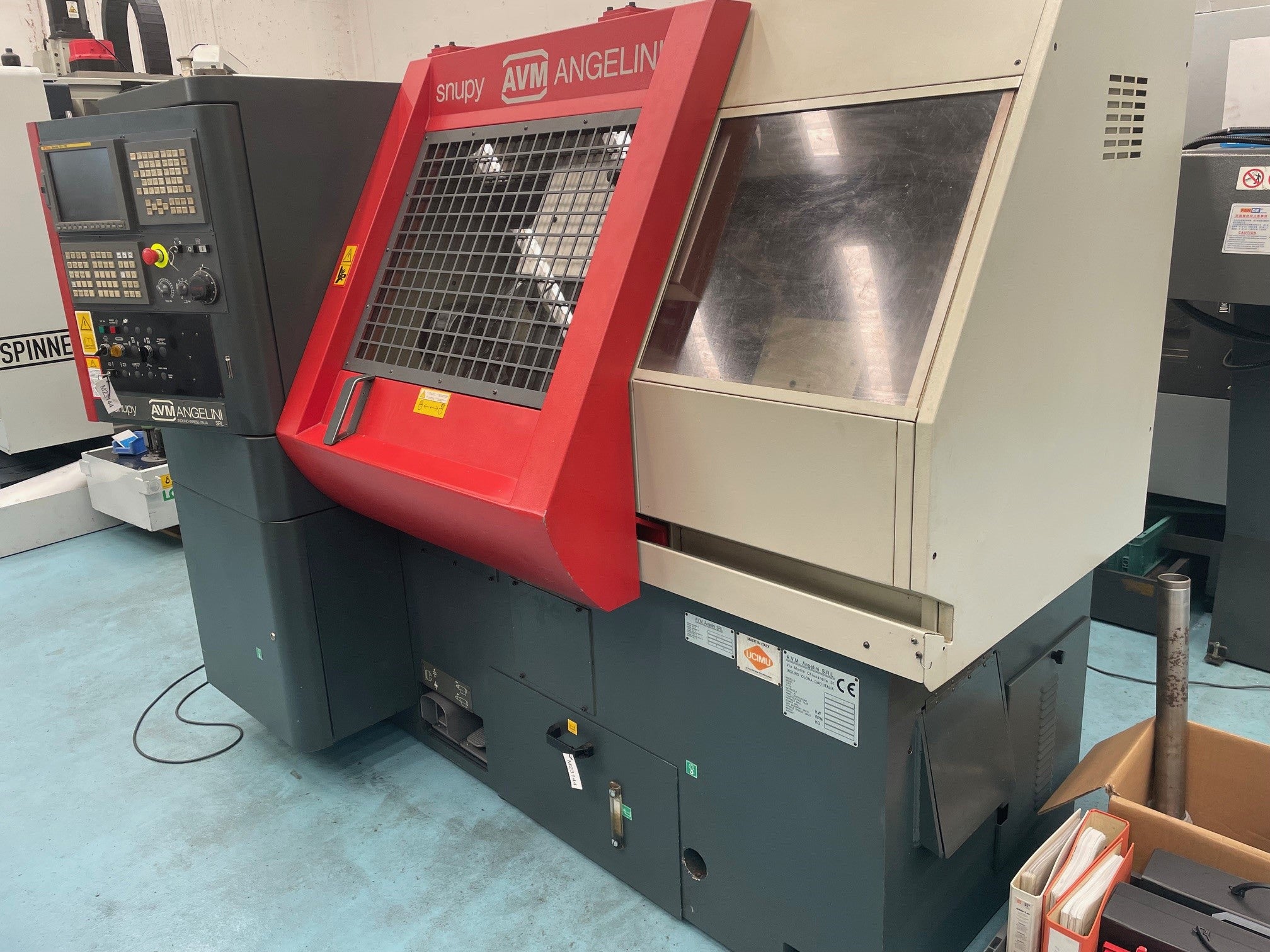

  • 023144 - ANGELINI SNUPY
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of spindles: 1.
Number of revolvers: 1.
Centre height: 190 mm.
Distance between centres: 600 mm.
Swing over cross-slide: 165 mm.
Swing over bed: 320 mm.
Spindle hole: 42 mm.
Longitudinal travel (Z-axis): 360 mm.
Longitudinal travel (X-axis): 170 mm.

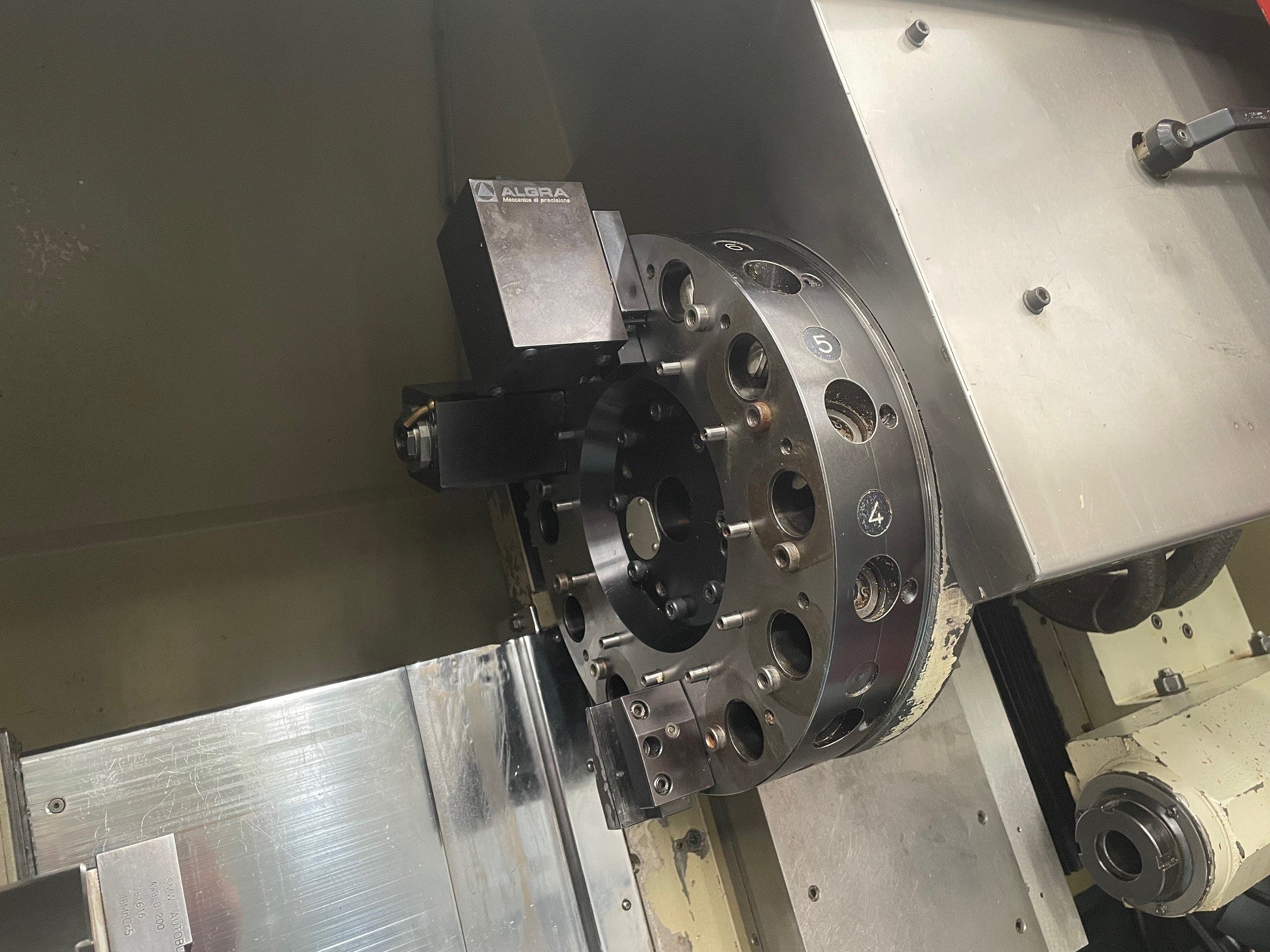

Number of positions turret 1: 12.
Spindle nose: VDI: 30.
Camlock: ASA-5.
from: 50 t/min.
up to: 6800 mm/min.
Spindle diameter: 70 mm.
longitudinal from: 1 mm/min.
transversal from: 1 mm/min.
Spindle motor: 15 kW.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 3500 kg.
Length: 2600 mm.
Width: 1600 mm.
Height: 1750 mm.
+ request more information
