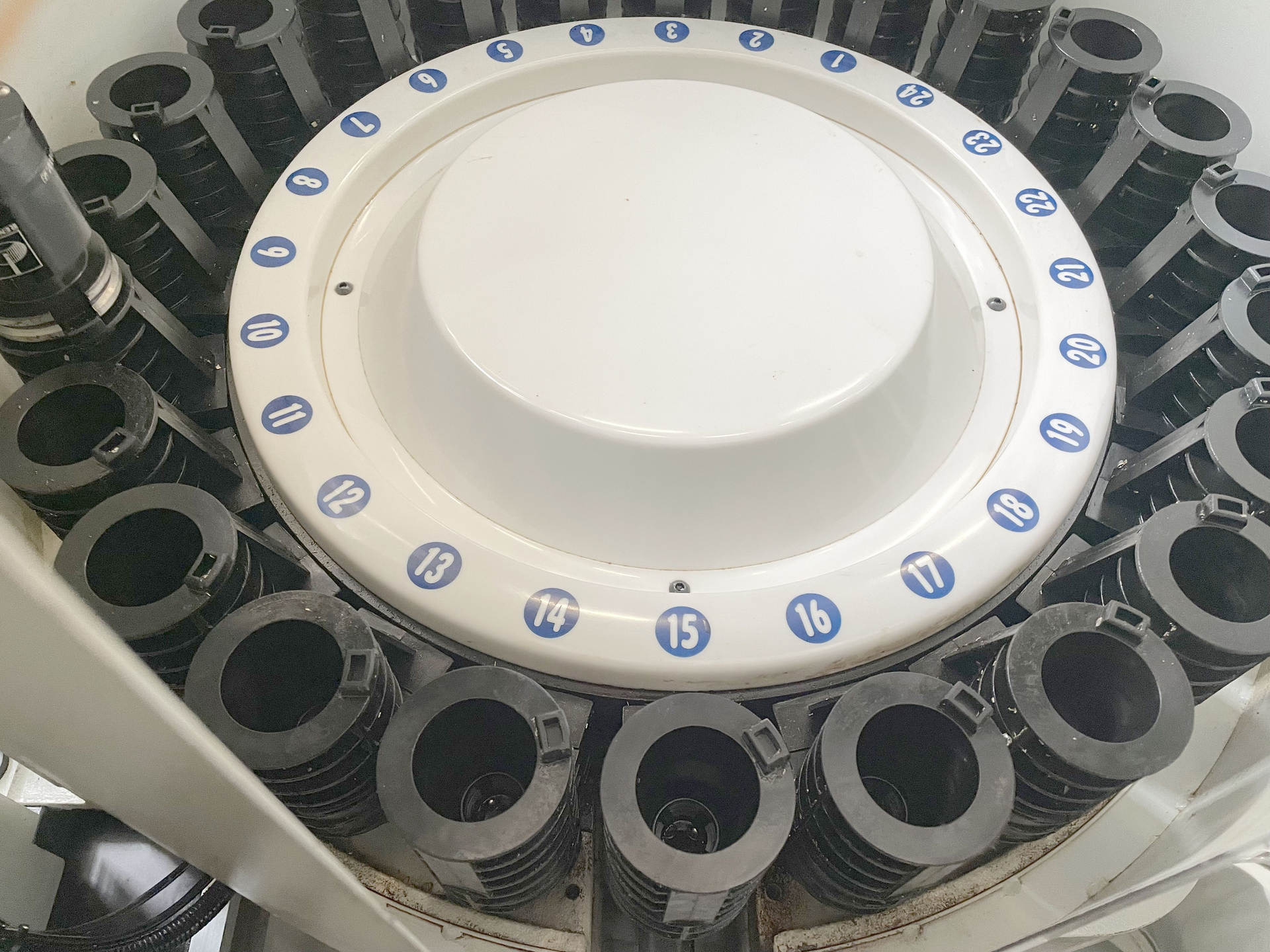

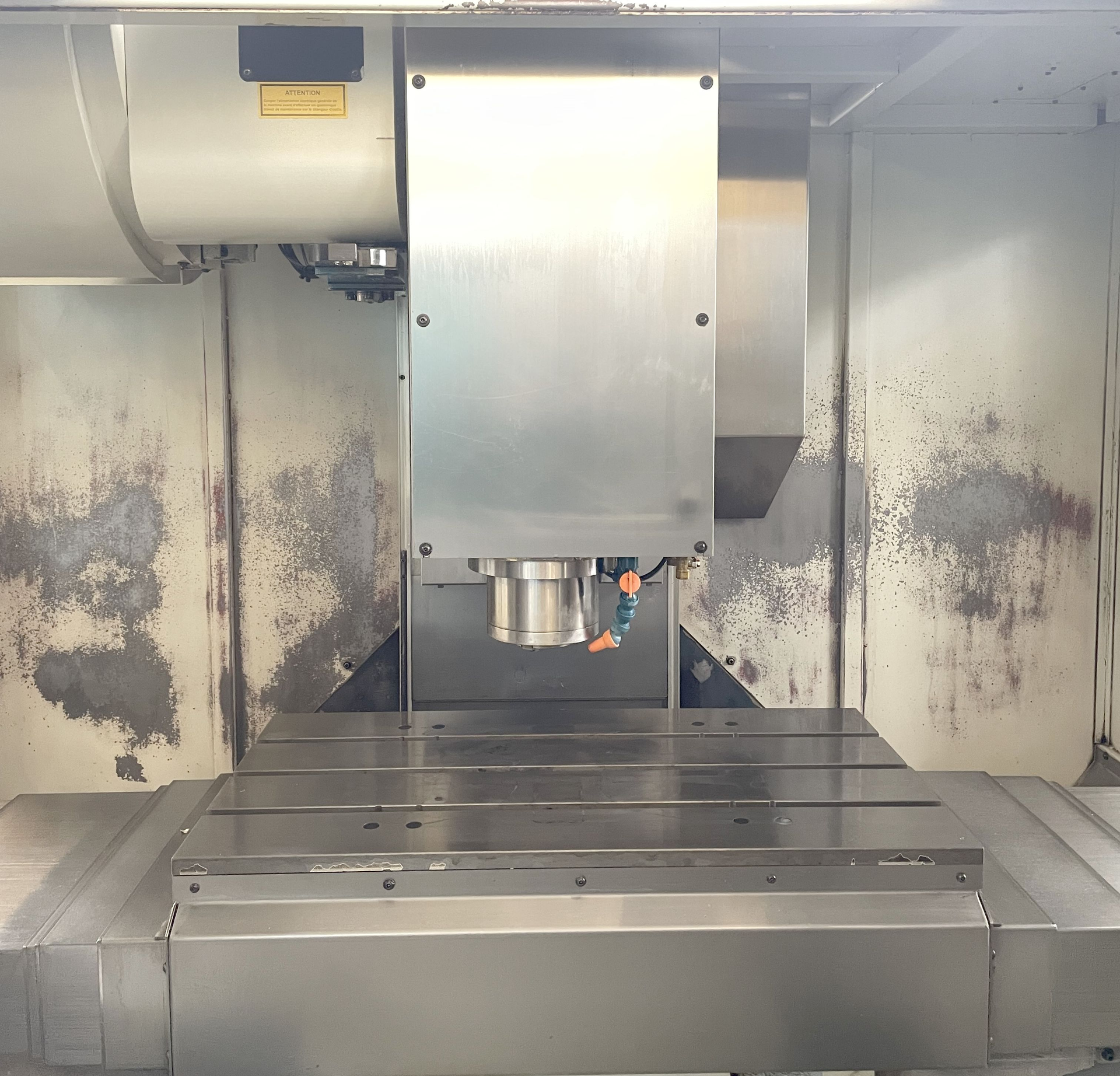

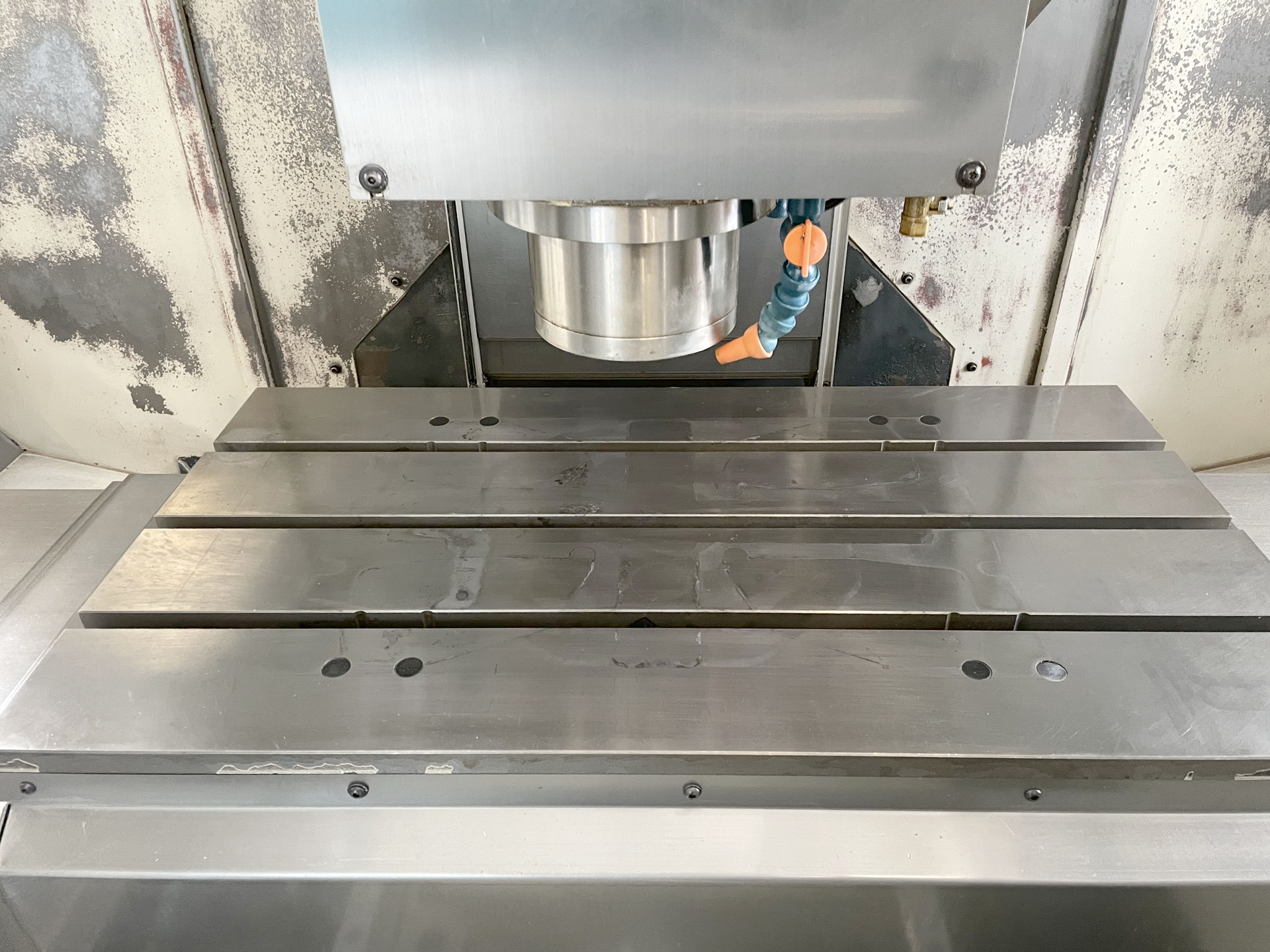

Number of axis total: 3. Number of spindles: 1. Table length: 1000 mm. Table width: 560 mm. Number of T-channels: 5. Distance of the T-slots: 100 mm. T-channel width: 18 mm. Table load max.: 1350 kg. Longitudinal travel (X-axis): 860 mm. Transversal travel (y-axis): 560 mm. Vertical travel (z axis): 600 mm. Number of tools: 24. Tool diameter max.: 77 mm. Tool lenght: 305 mm. Max. tool-weight: 6 kg. Time of tool changing: 6 s. Average chip-to-chip time: 8 s. Spindle nose SK: 40. Pull-Studs: DIN 69872 Form B. from: 30 t/min. up to: 8000 t/min. Rapid traverse: long.: 24 m/min. Rapid traverse: transversal: 24 m/min. Rapid traverse: vertical: 20 m/min. Voltage 50 Hz 3x: 400 Volt. Spindle motor: 12 kW. Spindle power: 18.5 / 22 kW. Total power required: 42 kW. Noise level: 78 dB (A). Machine's weight about: 5000 kg. Length: 3200 mm. Width: 2300 mm. Height: 2800 mm. Coolant system: 270 l.
