MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • REIDEN
  • Model:
  • 021348 - REIDEN FU 100 AS
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

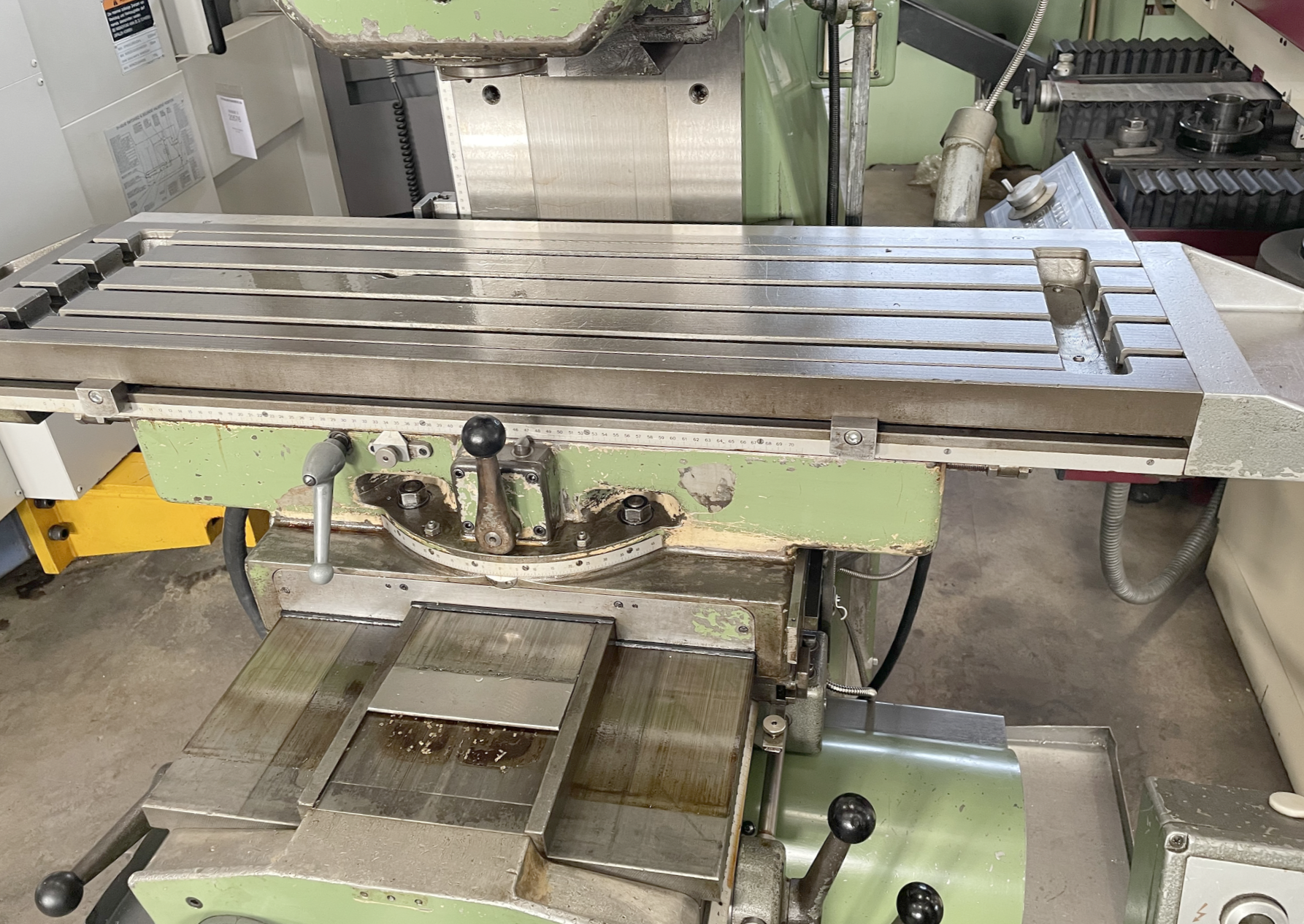

Table length: 1100 mm.
Table width: 300 mm.
Longitudinal travel (X-axis): 700 mm.
Transversal travel (y axis): 250 mm.
Vertical travel (z axis): 470 mm.
Travel of the upper slide: 400 mm.
number (steps): 12.
from: 45 t/min.
up to: 320 mm/min.
Taper in spindle: 40 ISO.
Feeds steps:: 12.
longitudinal from: 18.0 mm/min.
transversal from: 18.0 mm/min.
vertical from: 7.2 mm/min.
longitudinal: 2.5 m/min.
transversal: 2.5 m/min.
vertical: 1.0 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 6.0 CV.
Machine's weight about: 1900 kg.
Length: 2000 mm.
Width: 1600 mm.
Height: 1700 mm.

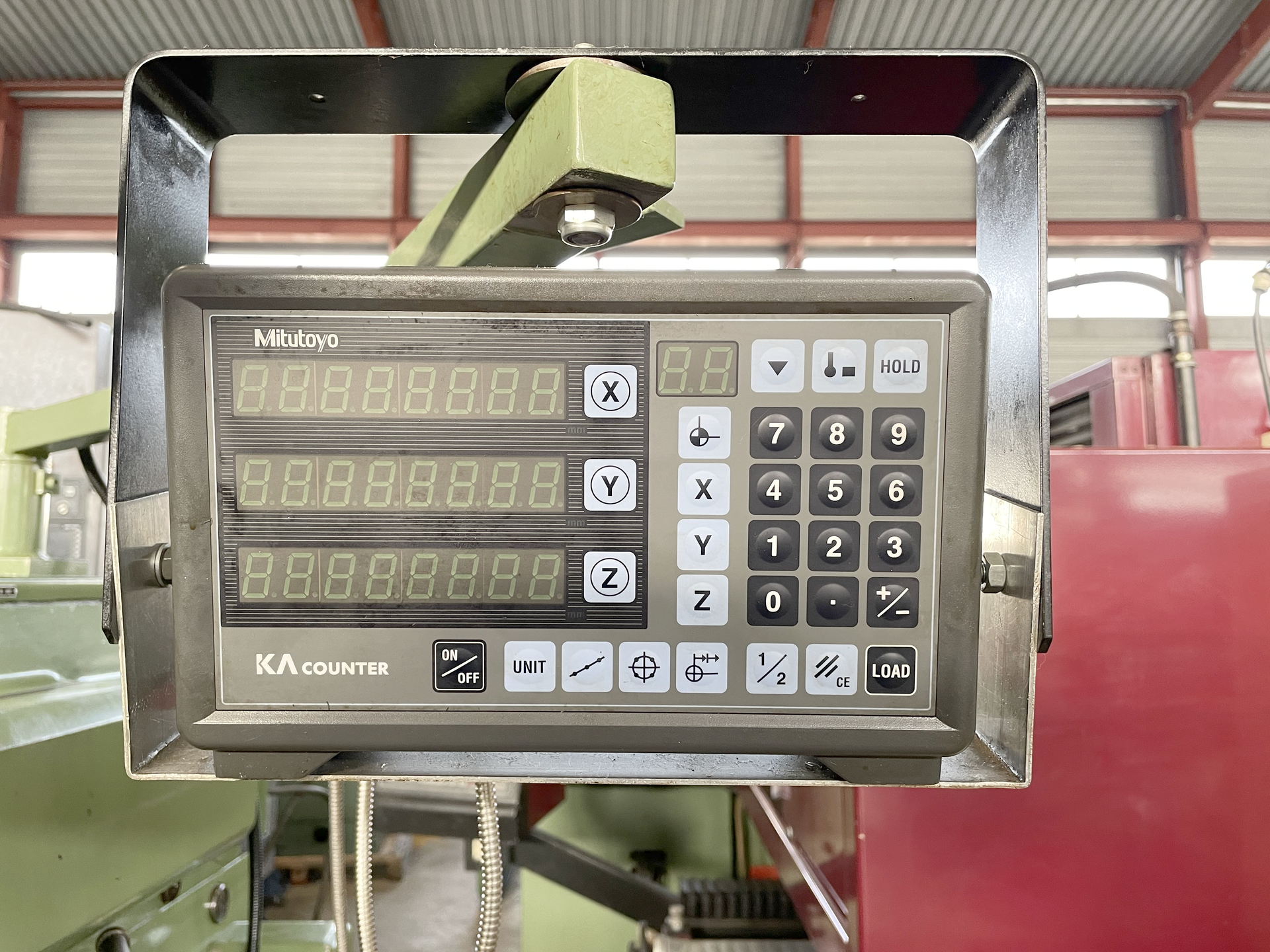

Digital readout number of axis:: 3.
Manufacturer: Mitutoyo.
