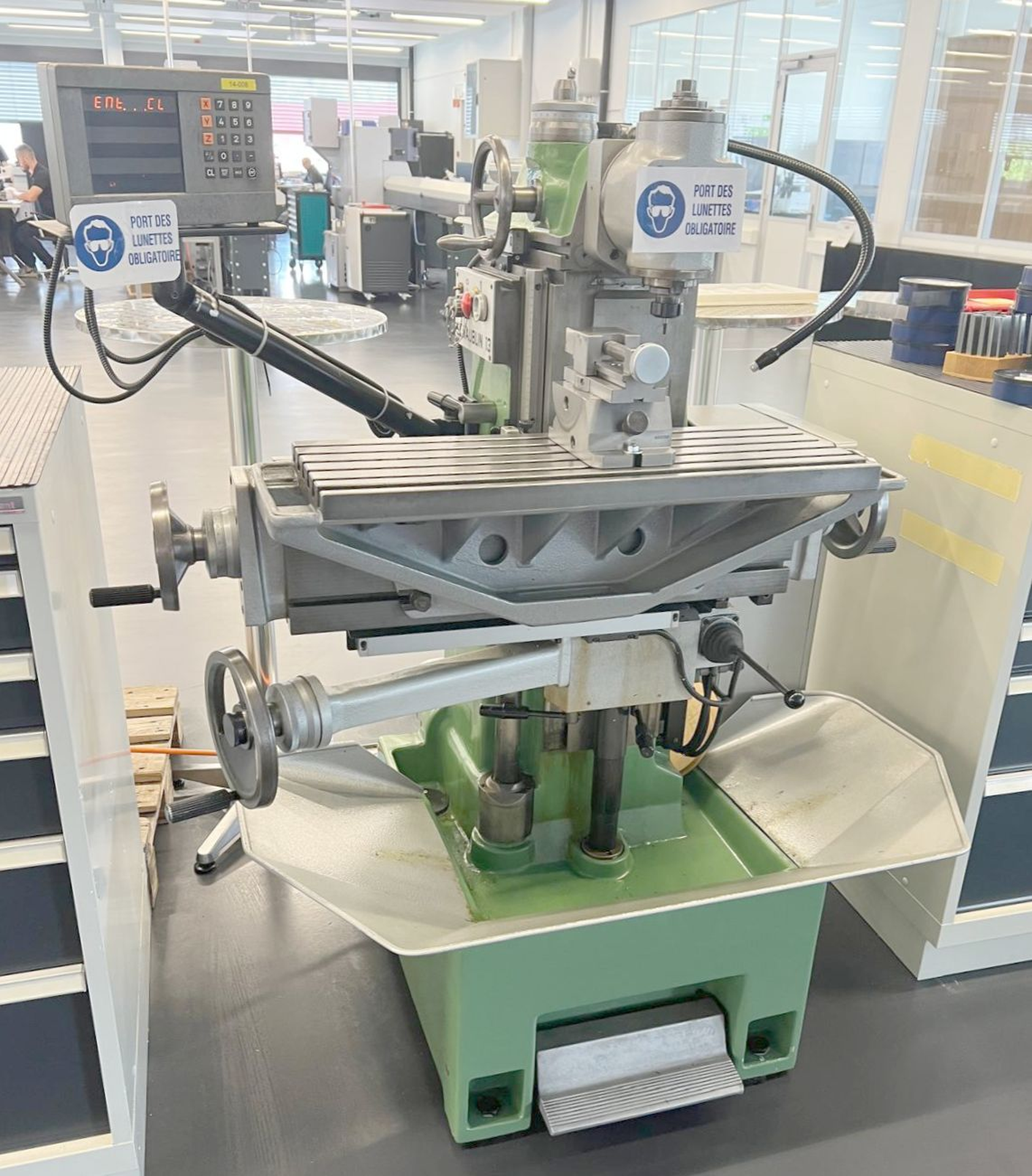

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • 022888 - SCHAUBLIN 13
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 630 mm.
Table width: 200 mm.
Number of T-channels: 5.
T-channel width: 12H7 mm.
Distance of the T-slots: 120 mm.
Longitudinal travel (X-axis): 320 mm.
Transversal travel (y axis): 150 mm.
Vertical travel (z axis): 375 mm.
Distance from vertical spindle to table: 310 mm.
Distance from horizontal spindle to table: 410 mm.
from: 58 t/min.
up to: 400 mm/min.
Taper in spindle: 40 ISO.
Feeds steps:: 10.
longitudinal from: 12 mm/min.
vertical from: 12 mm/min.
Rapid traverse:: 1 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 2 CV.
Total power required: 2 CV.
Machine's weight about: 700 kg.
Length: 1500 mm.
Width: 1100 mm.
Height: 1600 mm.
Digital readout number of axis:: 3.
