Home > Miscellaneous Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Amada
  • Model:

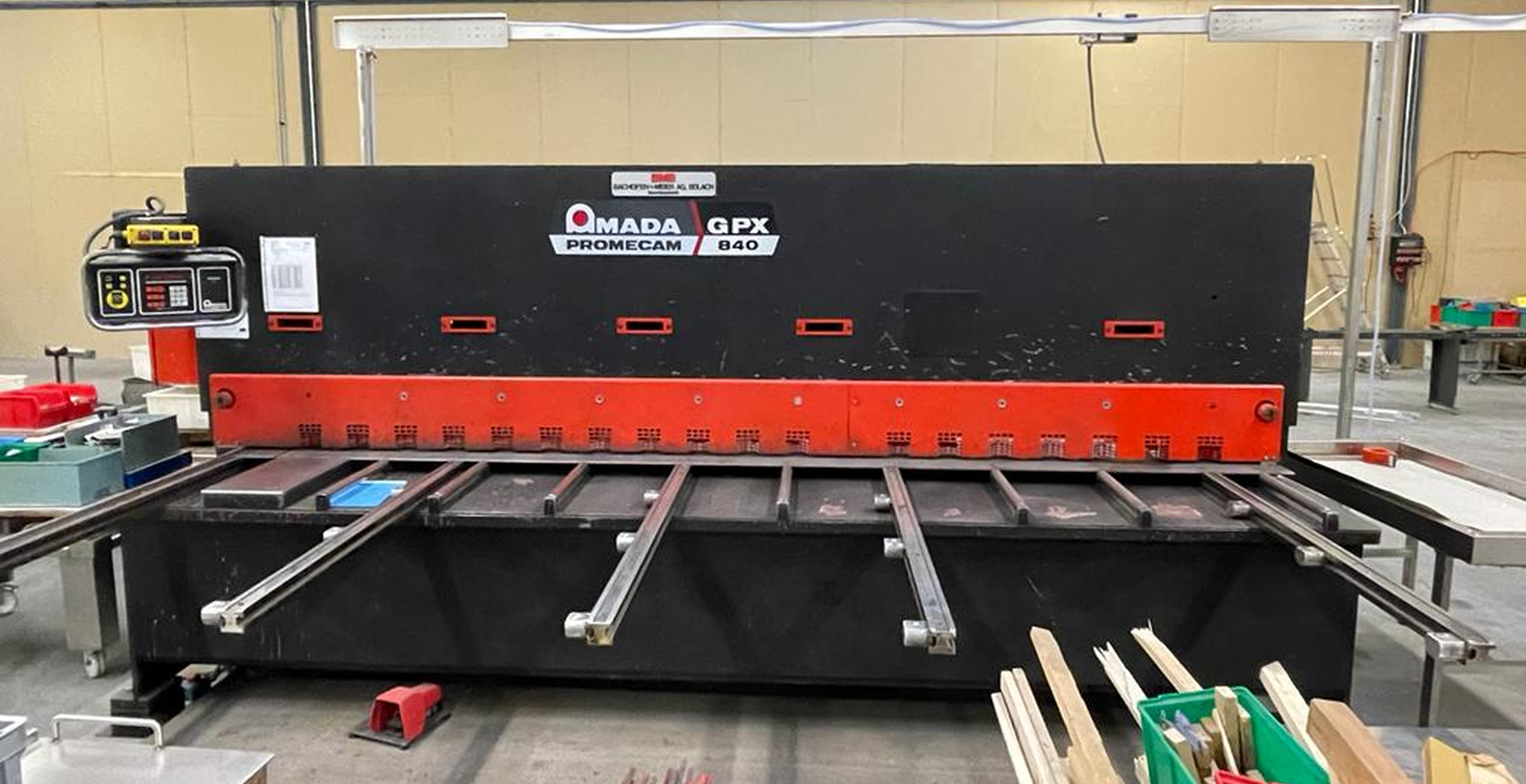

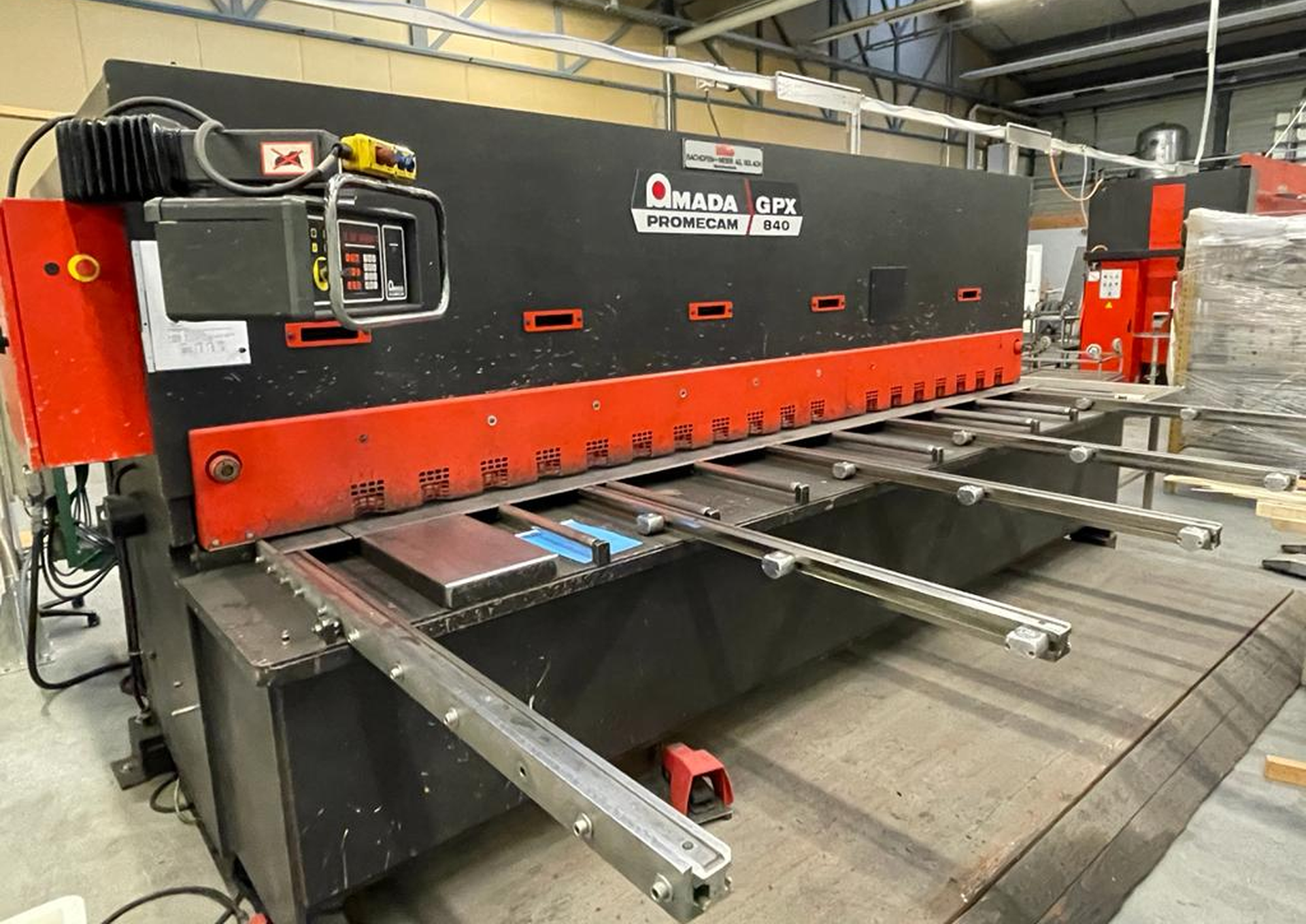

  • 021934 - AMADA GPX 840
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Cutting length: 4050 mm.
Cutting angle: 2 - 10 °.
Material thickness: 8 mm.
Chrome-nickel steel: 6 mm.
Table length: 710 mm.
Cutting speed: m/s.
Stop regulation speed: 100 mm/sec.
Shearing force: 271 kN.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 10000 kg.
Length: 4752 mm.
Width: 2112 mm.
Height: 2065 mm.
