Home > Miscellaneous Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TORNOS
  • Model:

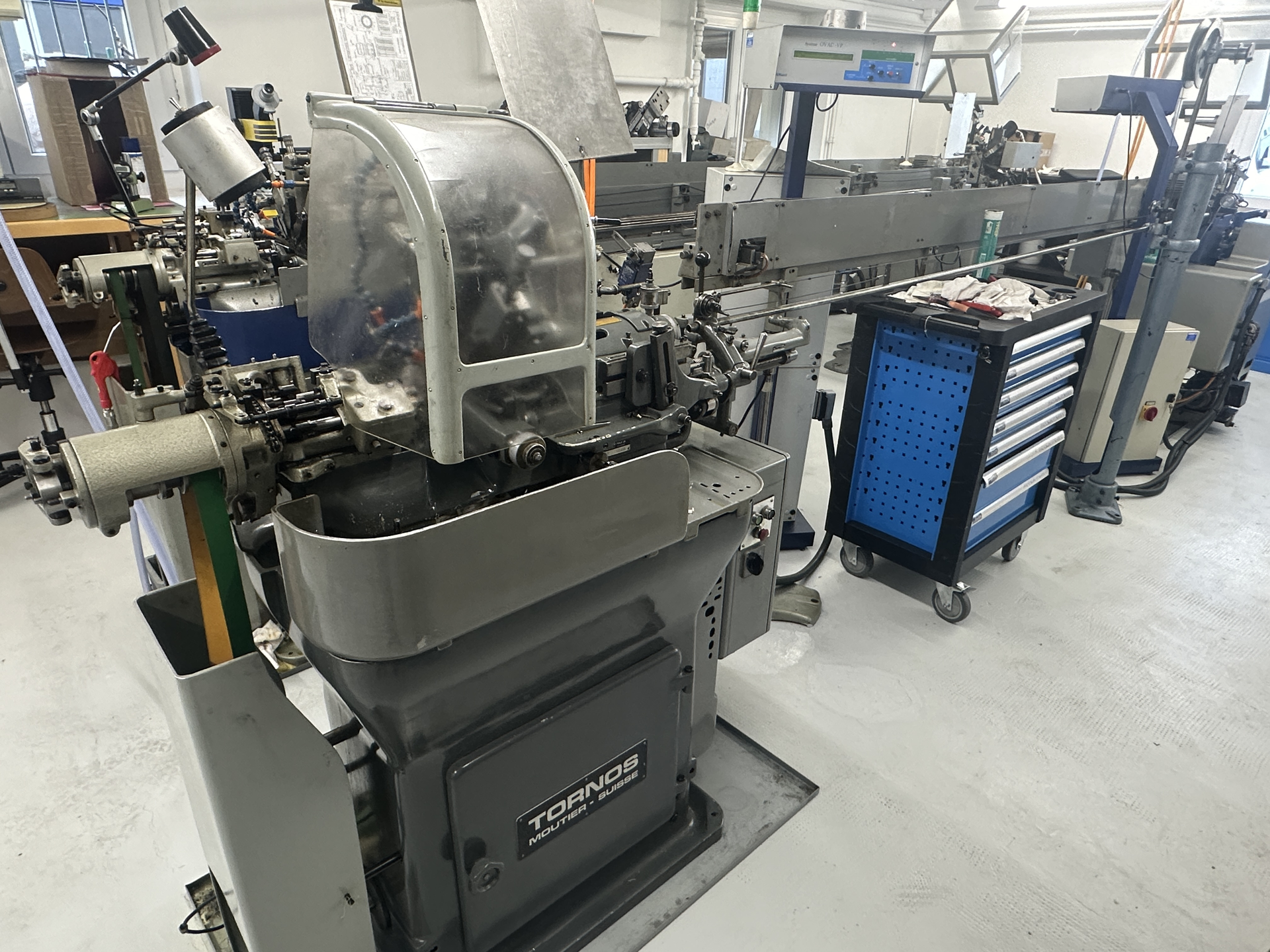

  • 022763 - TORNOS M 7
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Diameter of work admitted: 7 mm.
with flat cames: 60 mm.
Spindle hole: 8 mm.
Max. treading diameter: 6 M.
Number of tool cutters: 5.
Number of spindle speeds: 20.
from: 1400 t/min.
up to: 10000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Total power required: 2 CV.
Machine's weight about: 520 kg.
Length: 1200 mm.
Width: 700 mm.
Height: 1400 mm.

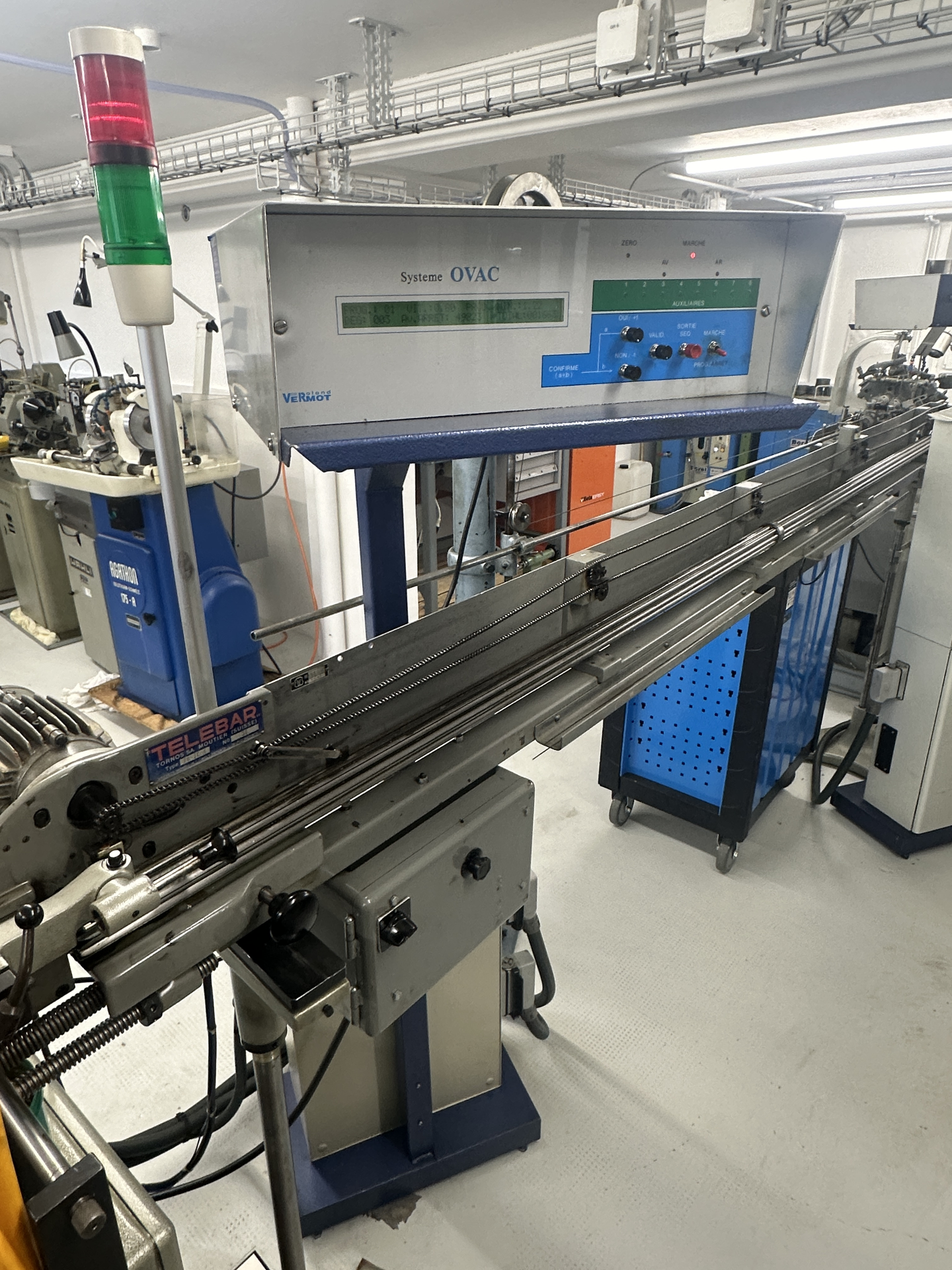

Bar loader number of bars: TELEBAR.

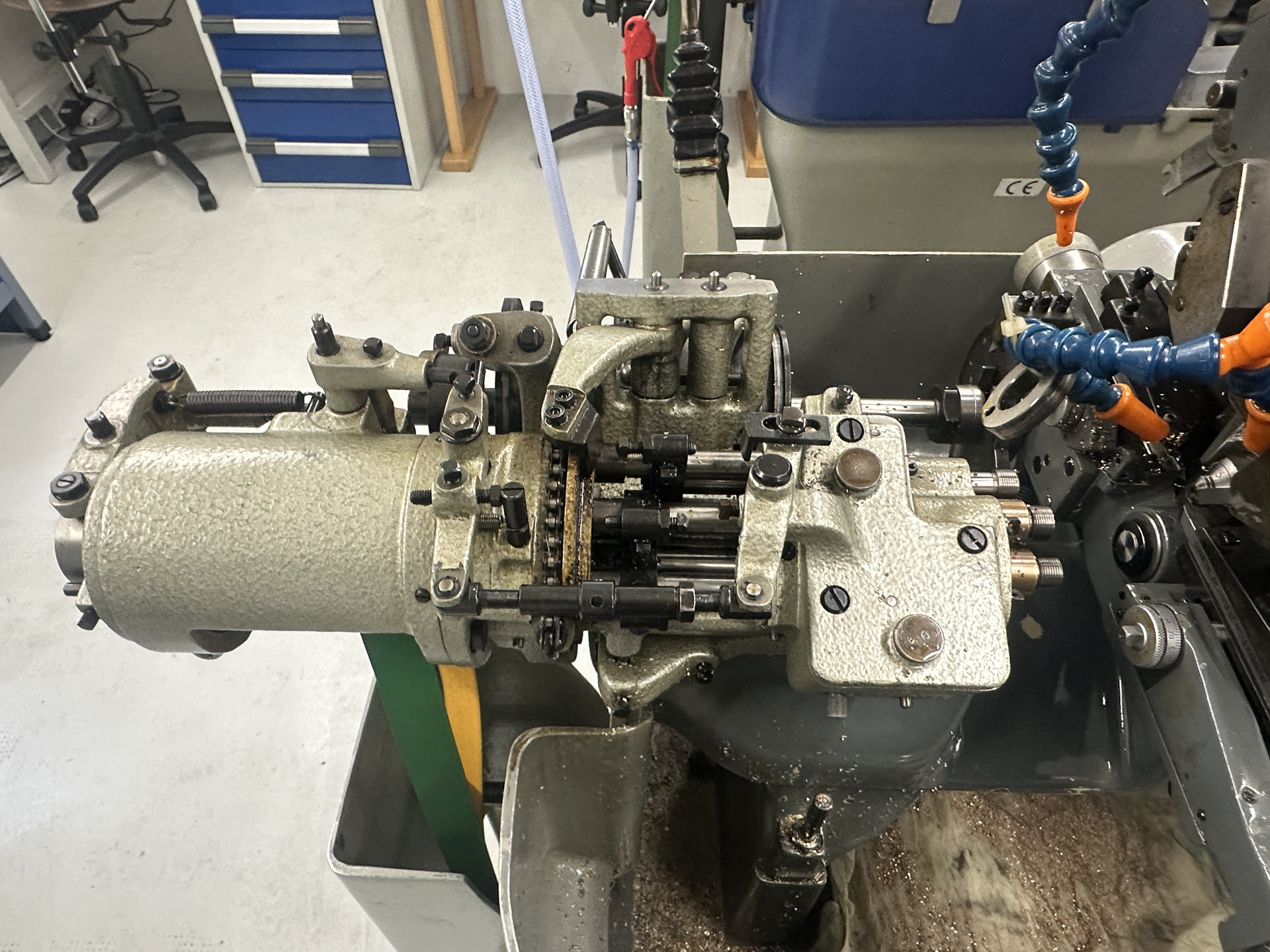

3-spindle drilling attachment: 13 Y.
Variocam: Vermont OVAC-VP.
+ request more information
