MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Star
  • Model:

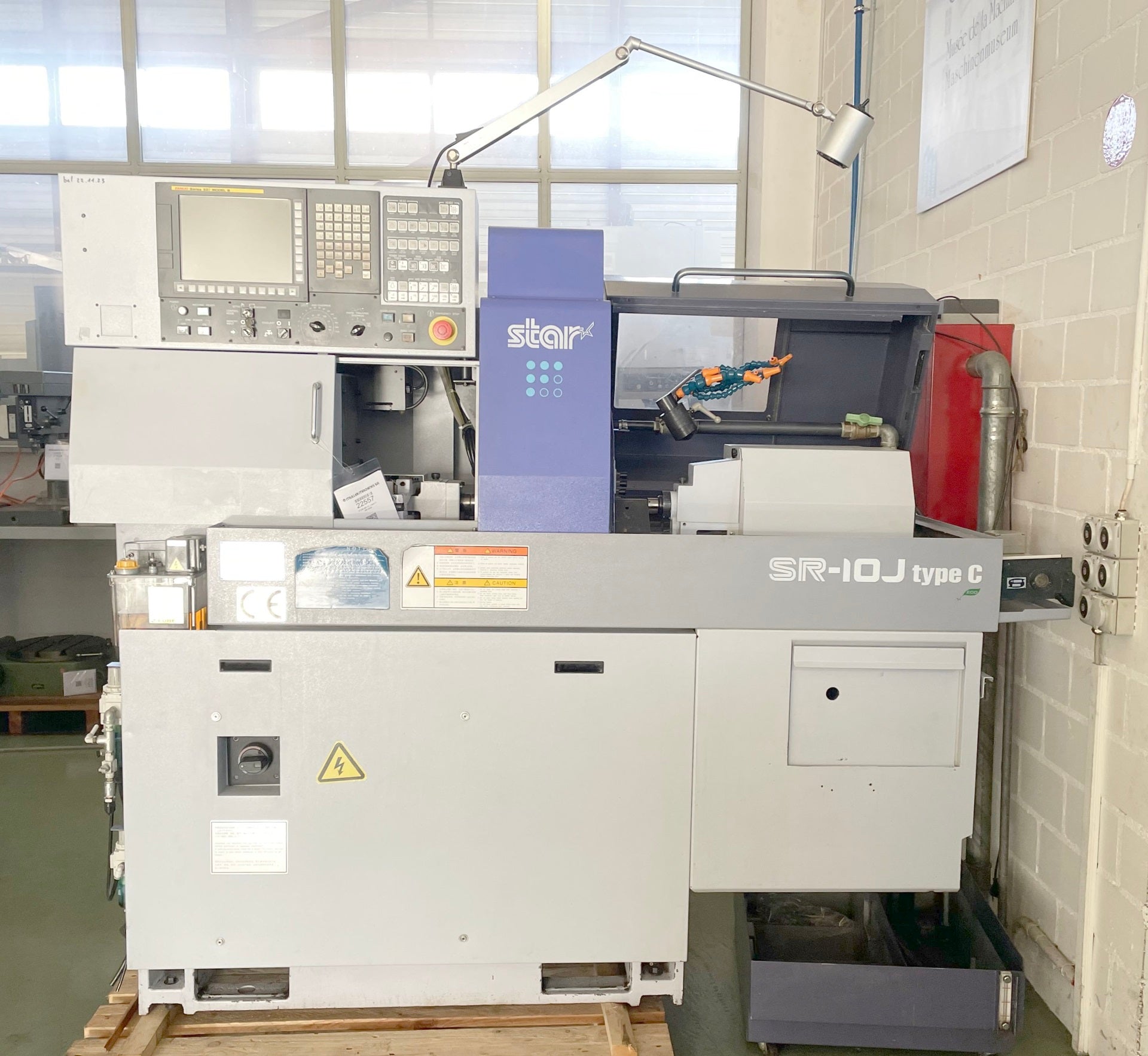

  • 022557 - STAR SR-10 J type C
  • Condition:
  • 1
  • YOM:
  • NA

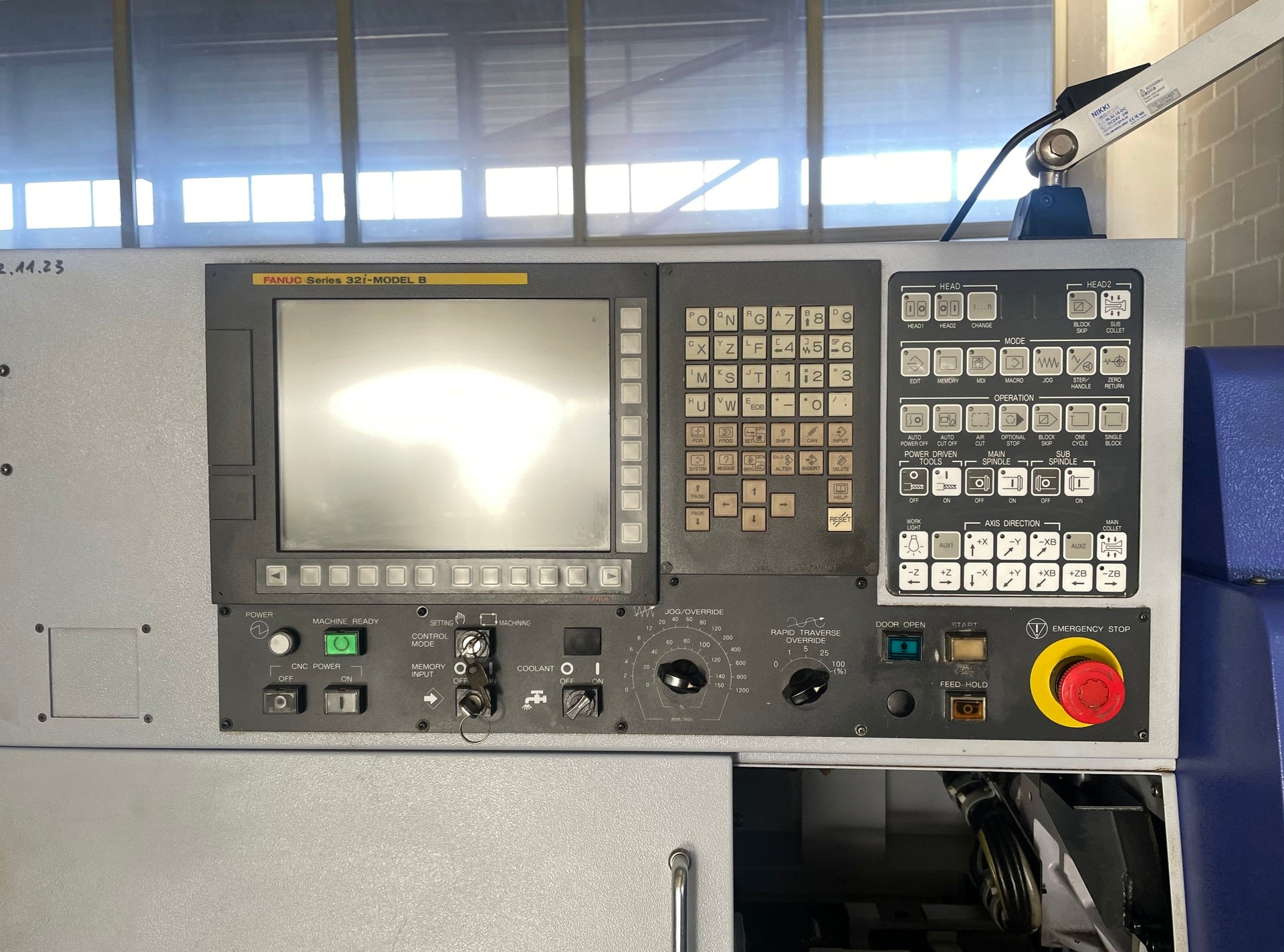

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

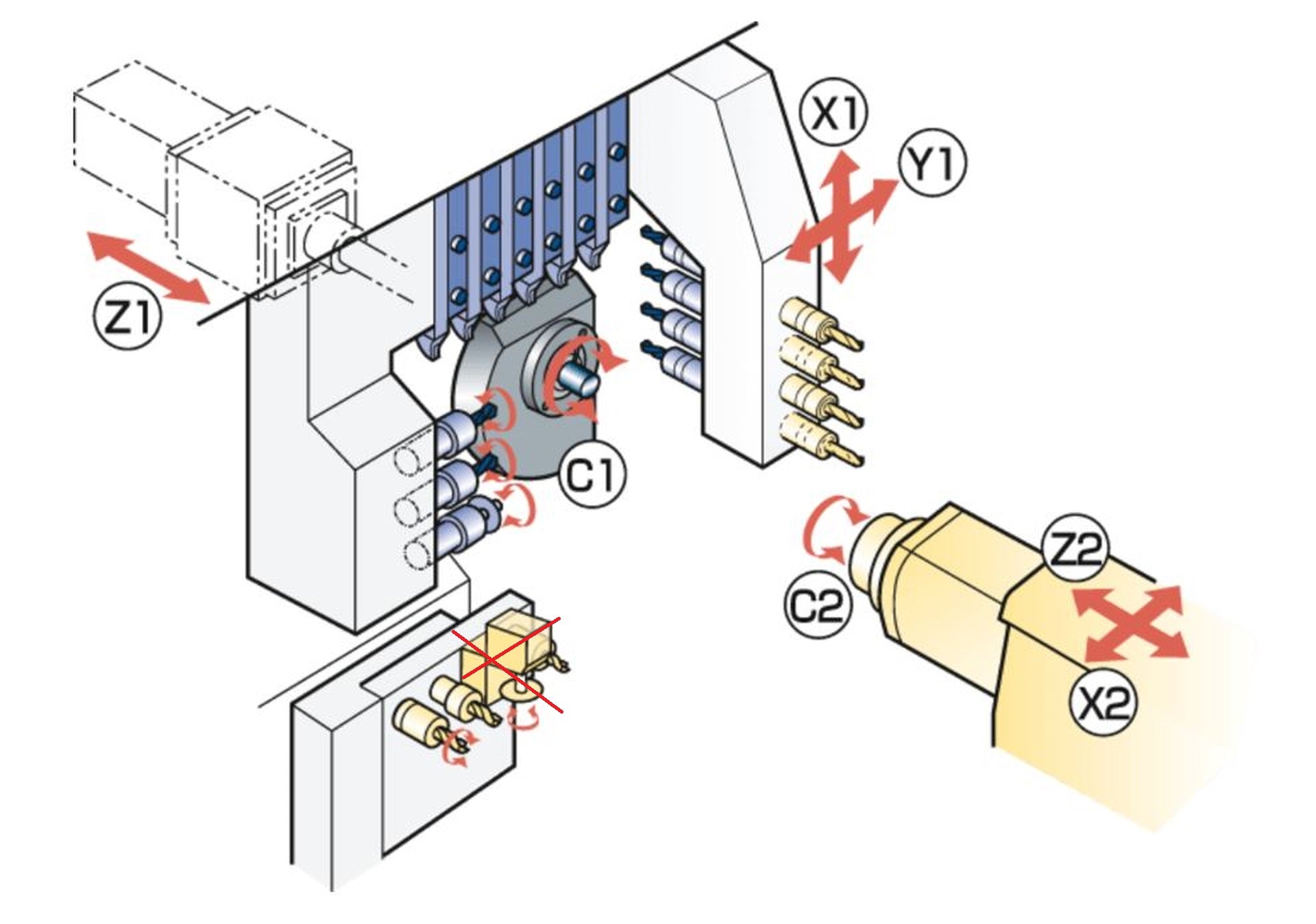

Number of axis total: 7.
Number of spindles: 2.
Machining diameter max.: 10 mm.
Maximum turning length: 135 mm.
from: 1 t/min.
up to: 10000 t/min.
Spindle power: 3.7 kW.
C axis (spindle,resolution): °.

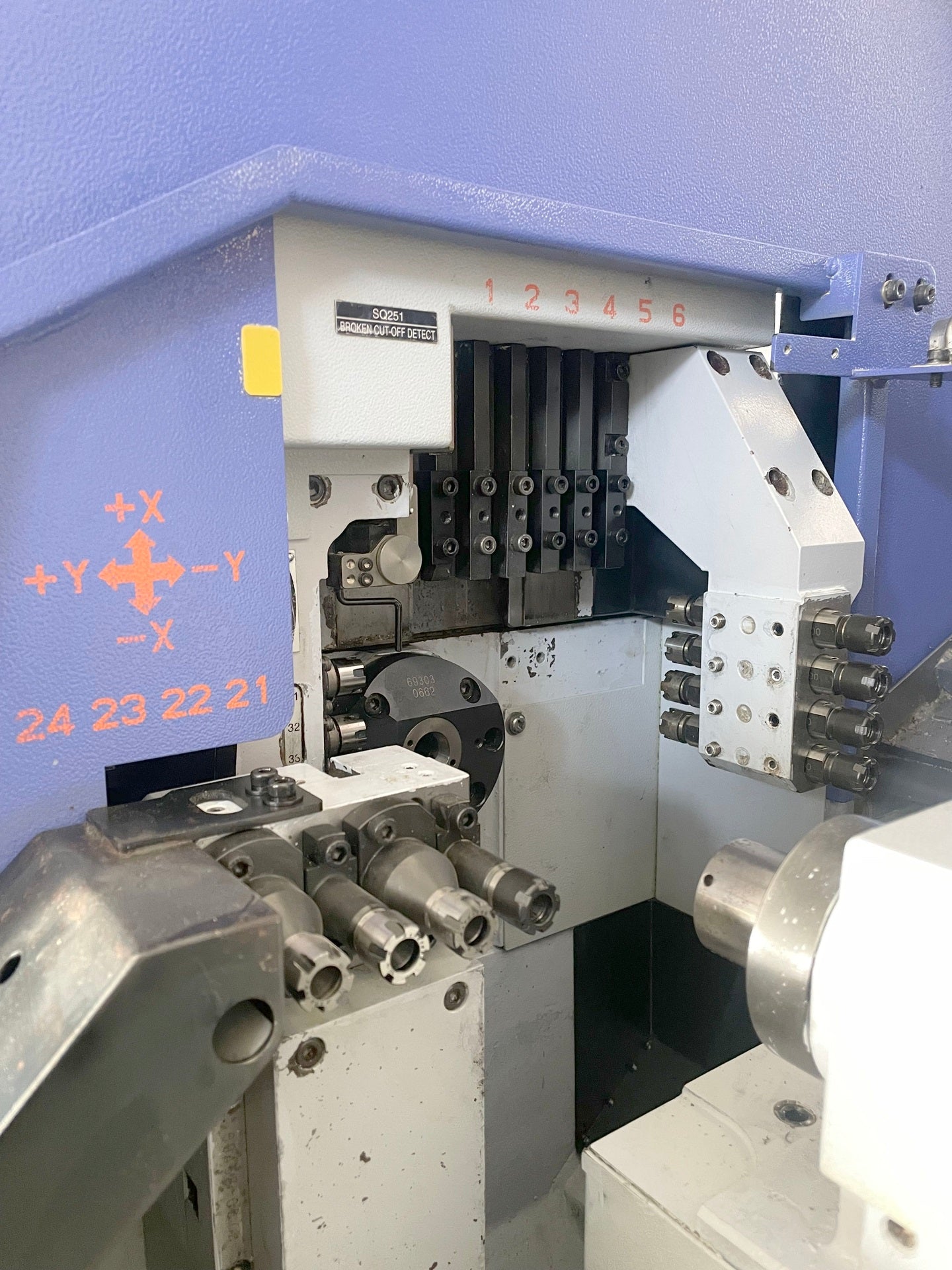

number of tools: 13.
Turning tools: 6 pce.
Drilling tools: 8 pce.
Transverse processing tools: 3 pce.
Spindle speeds (turning tools): 250 - 8000 t/min.
Rapid traverse:: 35 m/min.
Voltage 50 Hz 3x: 400 Volt.

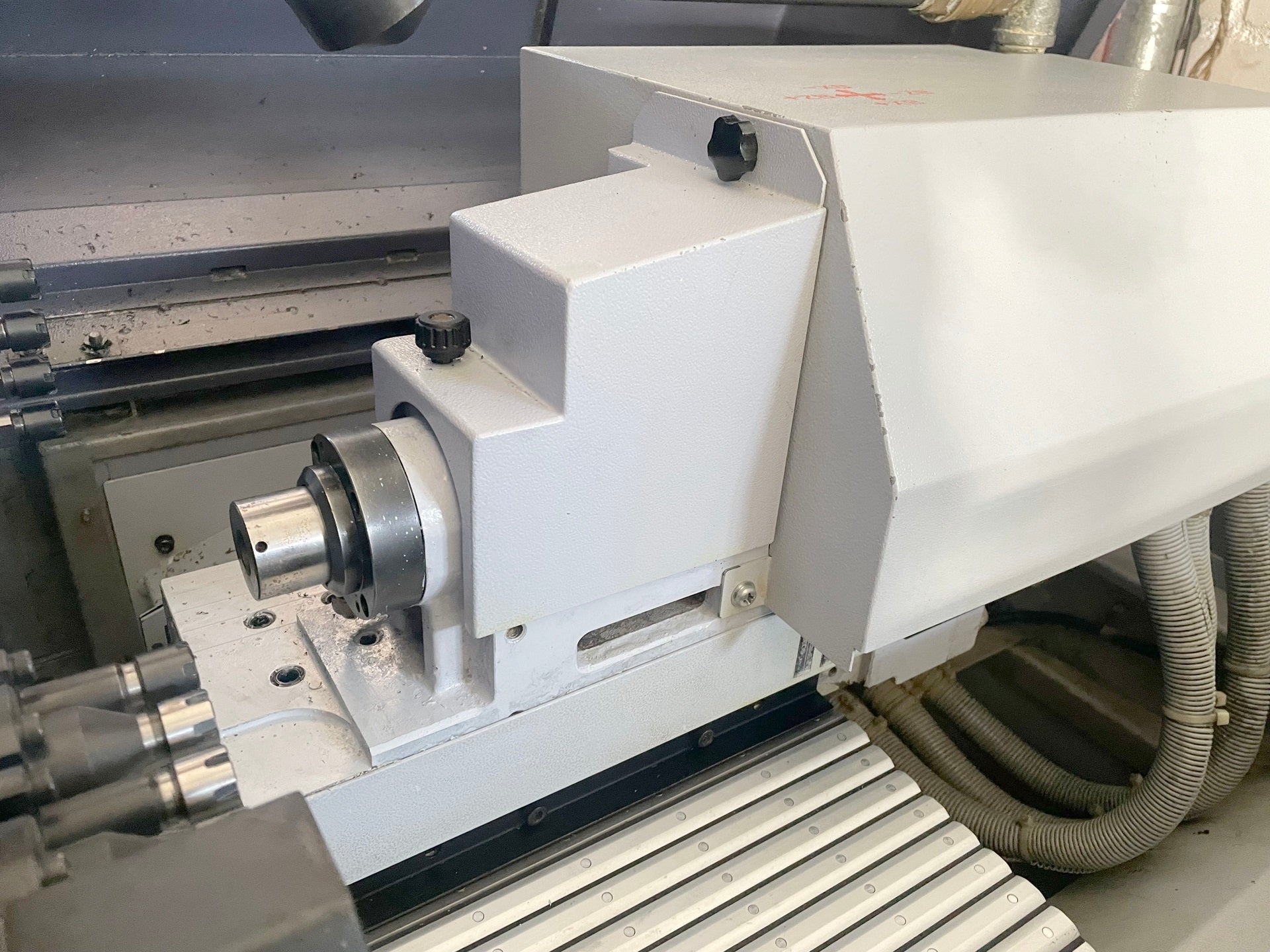

Power of back spindle: 1.1 kW.
Total power required: 3 kVA.
Machine's weight about: 1400 kg.
Length: 2000 mm.
Width: 820 mm.
Height: 1800 mm.
Coolant system: 89 l.
