MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

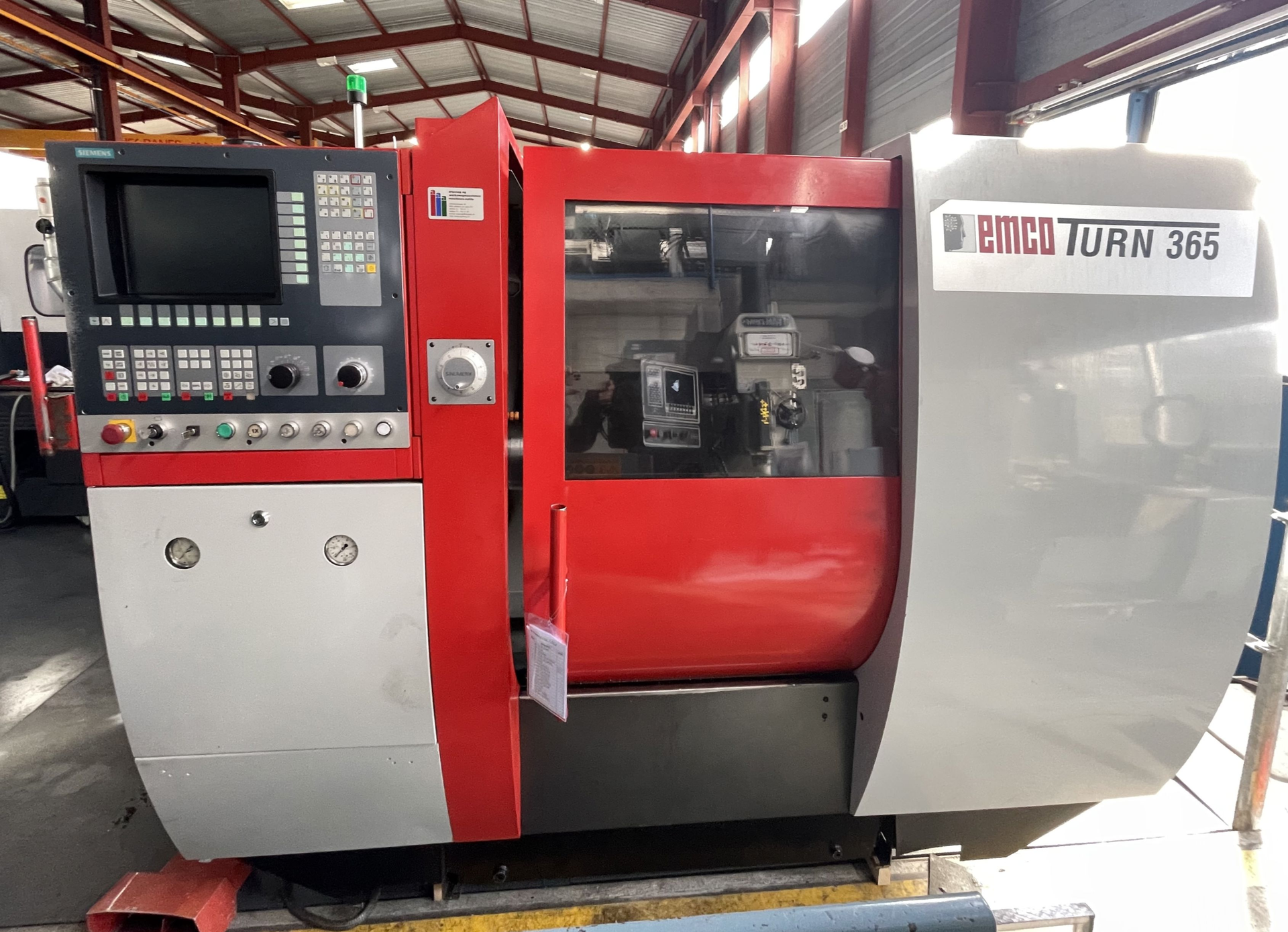

  • 022541 - EMCO Emcoturn 365
  • Condition:
  • 1
  • YOM:
  • NA

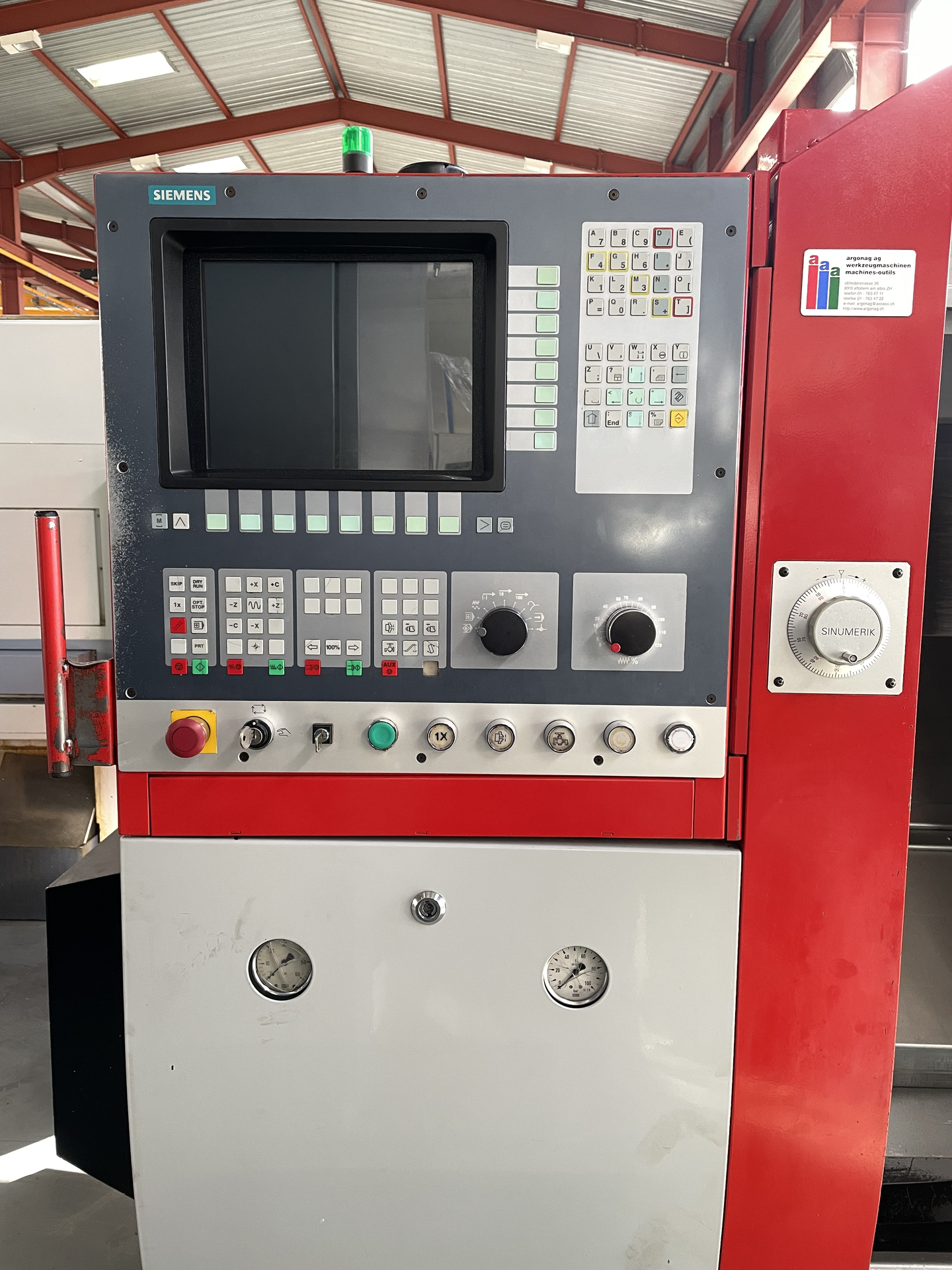

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Number of spindles: 1.
Number of revolvers: 1.
Distance between centres: 805 mm.
Swing over cross-slide: 360 mm.
Swing over bed: 600 mm.
Max. turning diameter: mm.
Taper in spindle: A6.
Maximum turning length: 520 mm.
Max. bar diameter: 65 mm.
Spindle positioning increment: 0.001 °.
Longitudinal travel (Z-axis): 610 mm.
Transversal strocke (X axis): 210 mm.
Rapid traverse X: 24 m/min.
Rapid traverse Z: 24 m/min.

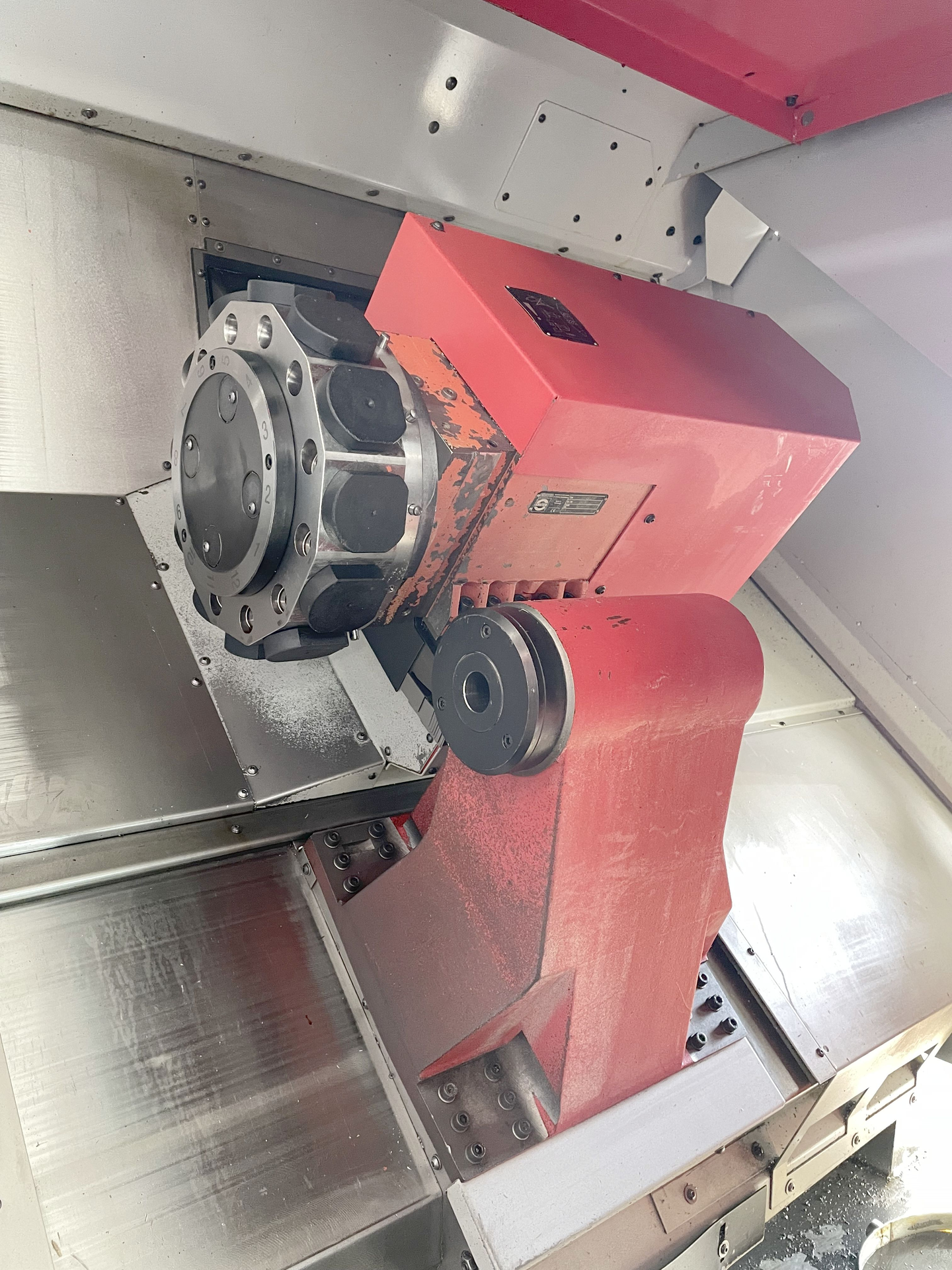

Number of positions: 12.
Driven tools turret: 12.
Spindle speeds: 0 - 4000 t/min.
Power of driven tools: 6.7 kW.
Torque max.: 191 Nm.
Spindle nose: VDI: 30.
Spindle hole: 66 mm.
from: 0 t/min.
up to: 4200 t/min.
Spindle power: 12 / 18 kW.
Tail stock travel: 500 mm.
Morse taper: 4 CM.
Pressure: 8000 N.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 18 kW.
Machine's weight about: 3900 kg.
Length: 3000 mm.
Width: 1910 mm.
Height: 1880 mm.

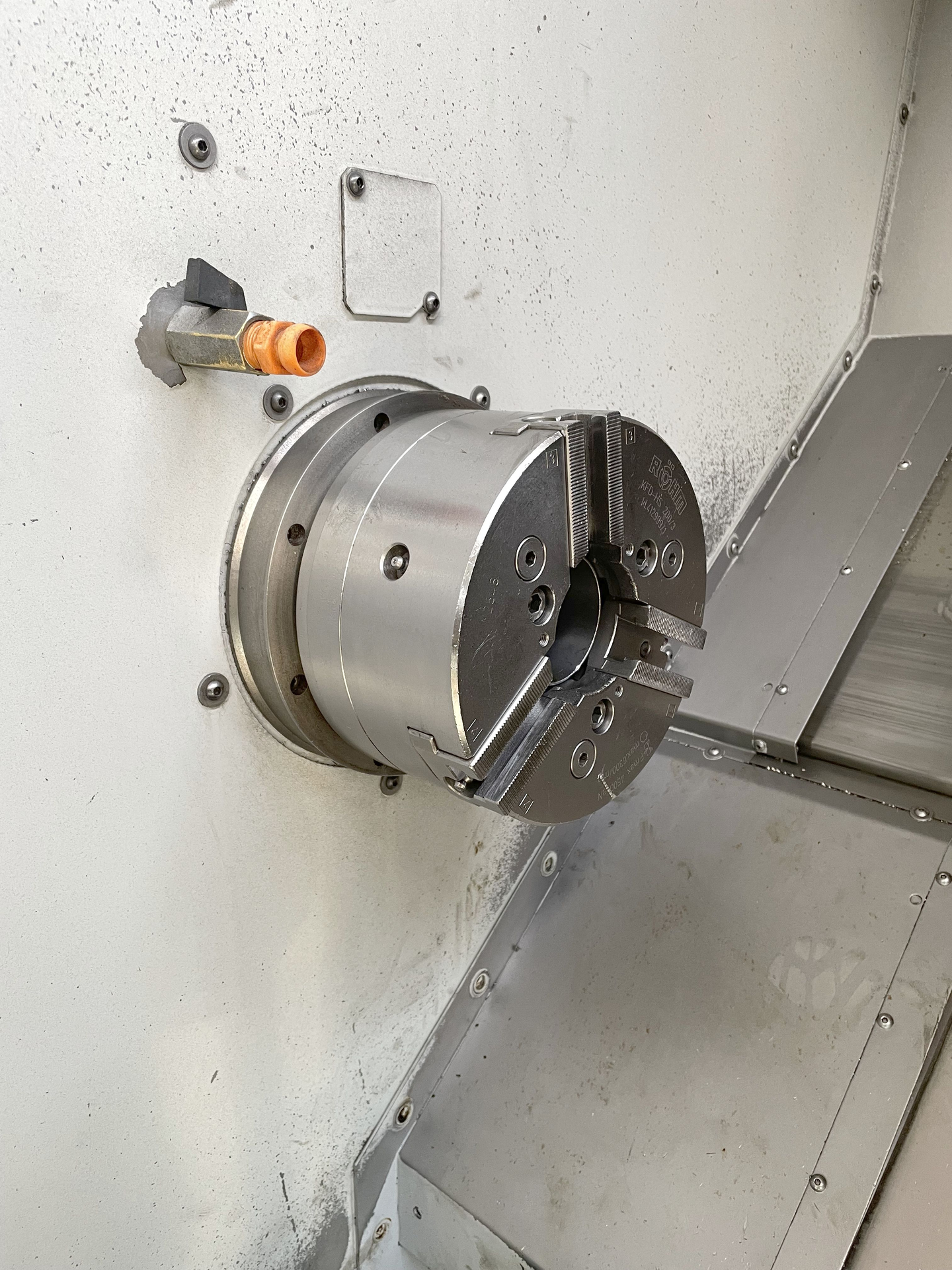

3-jaw chuck diameter: 200 mm.
Coolant system: 230 l.

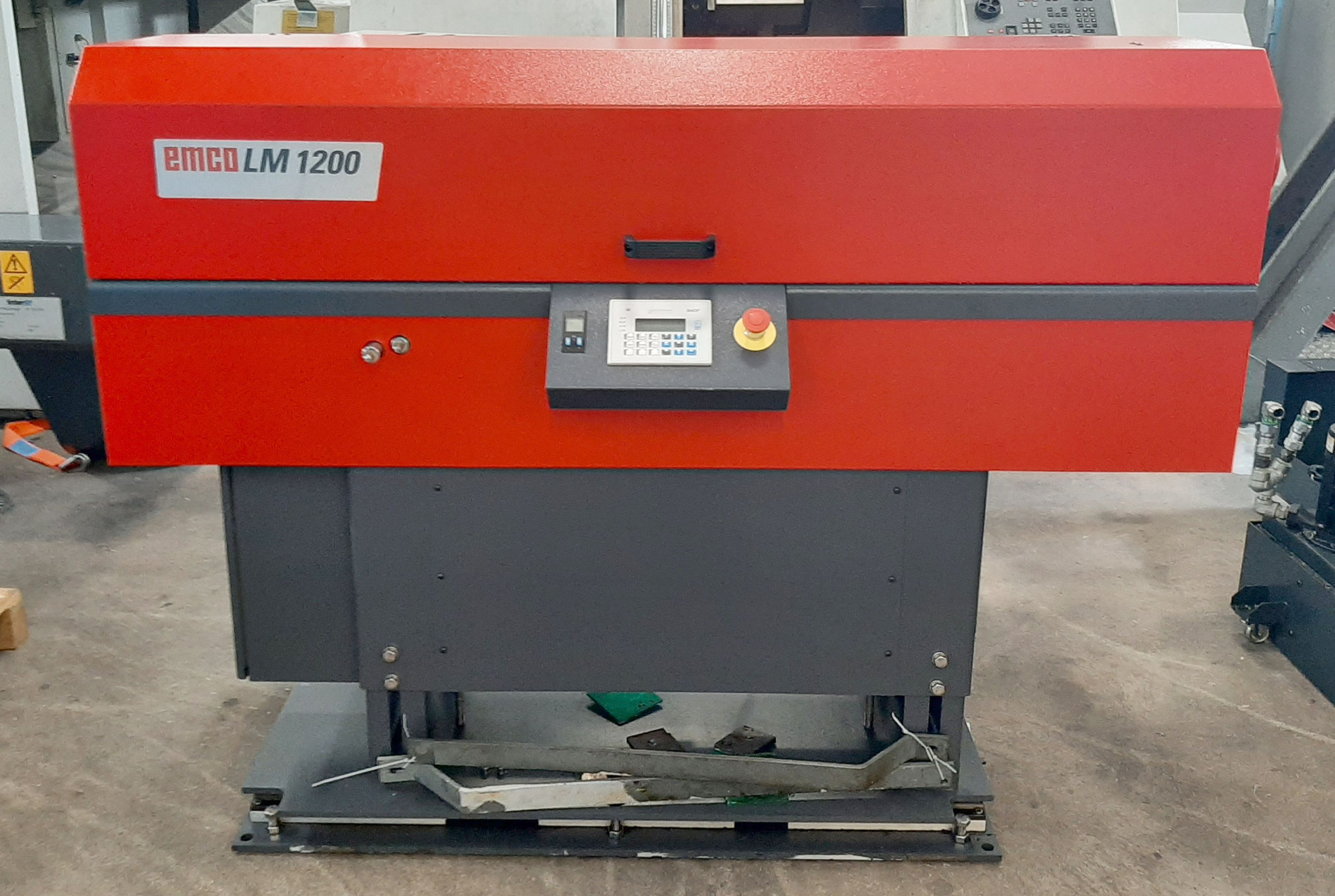

Bar feeder: EMCO.
Type: LM 1200.
