MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • INDEX
  • Model:

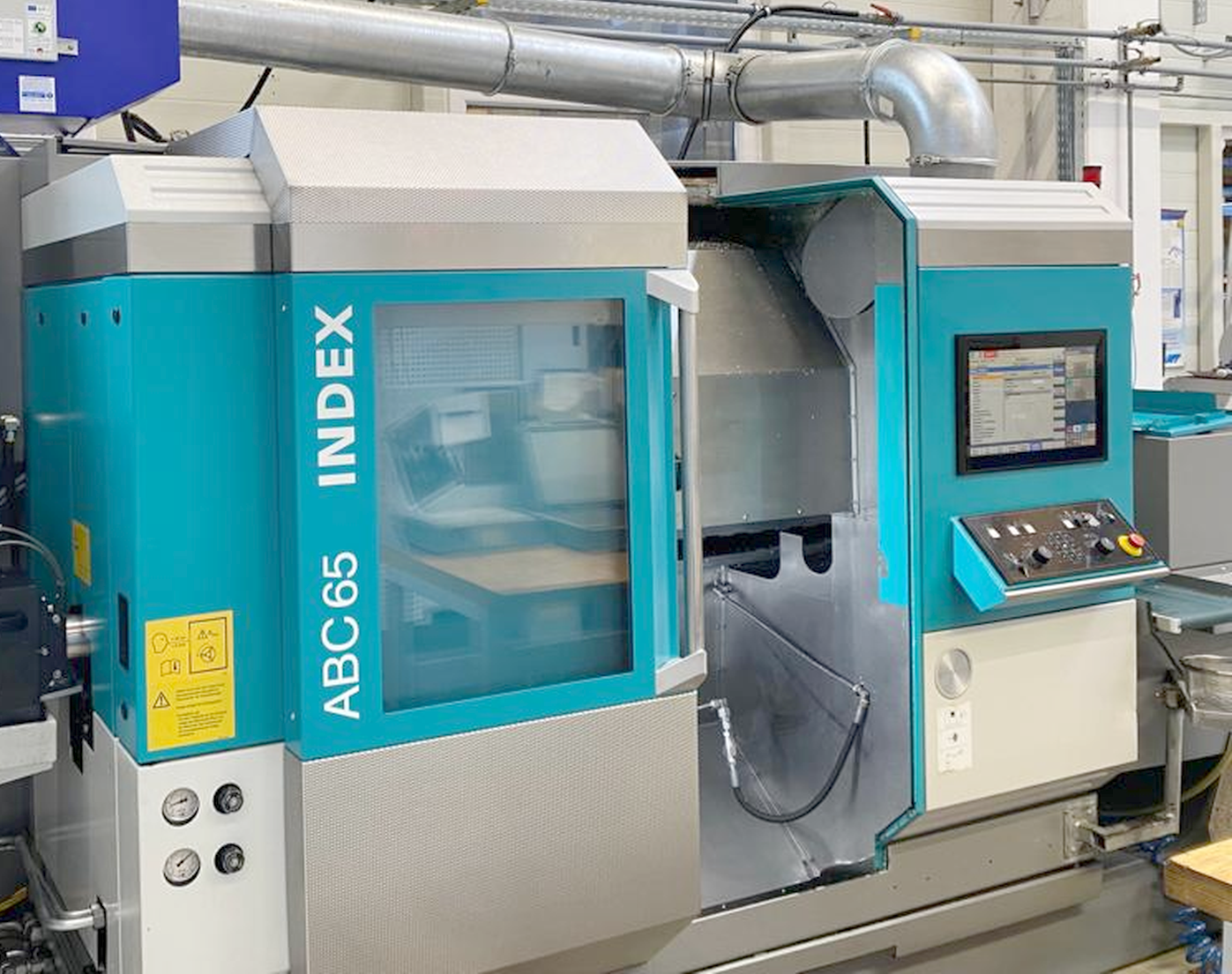

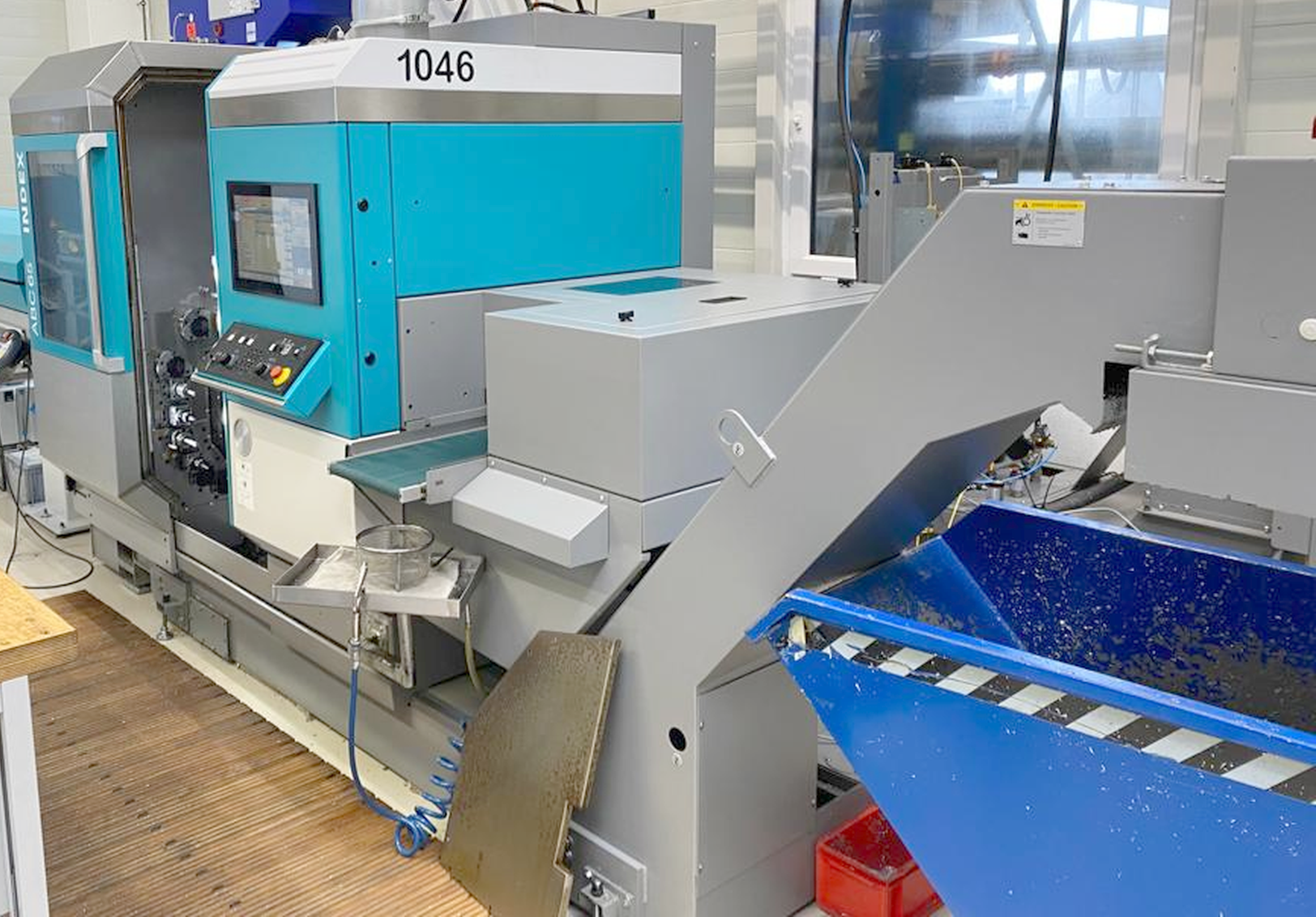

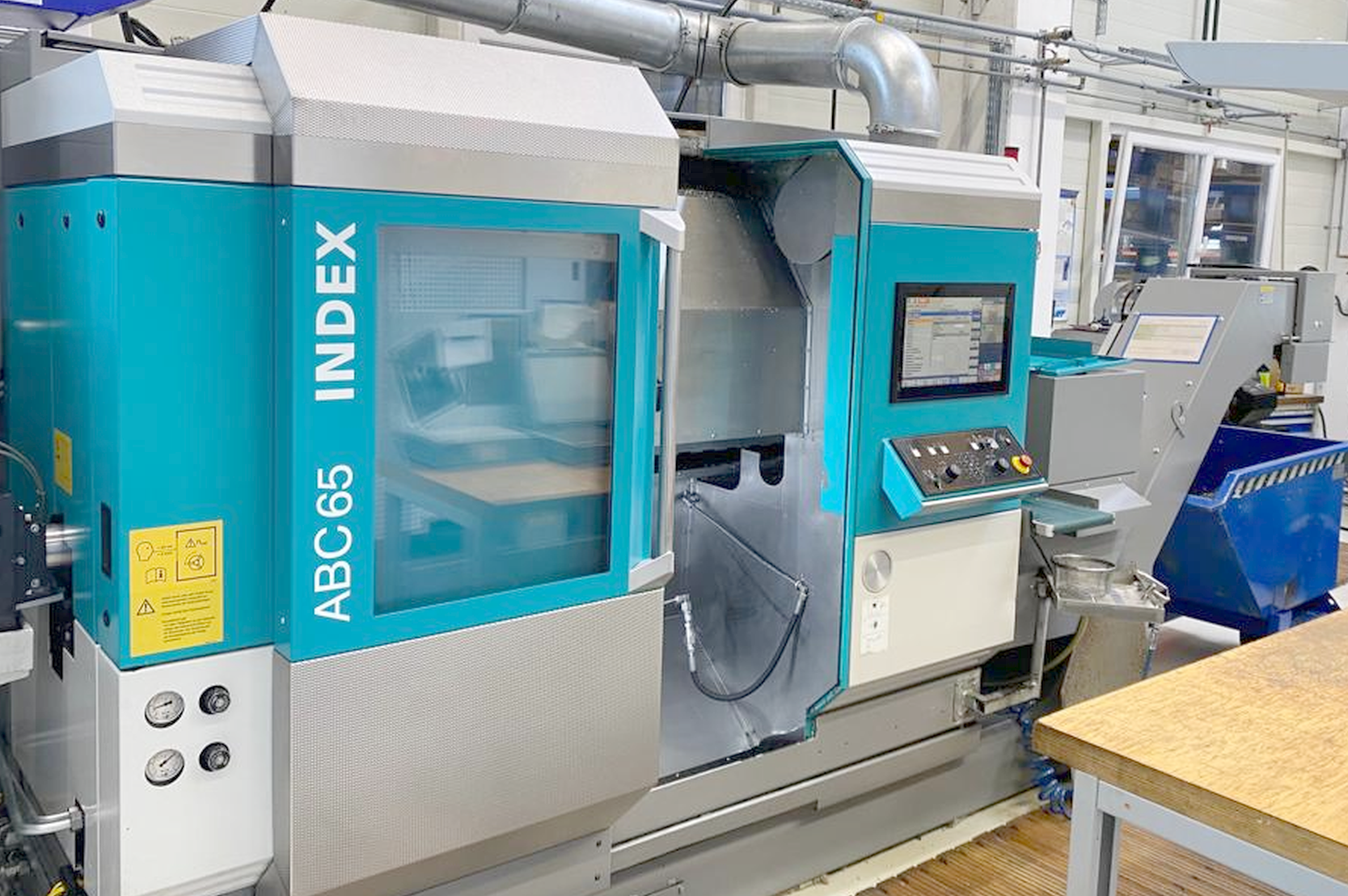

  • 022496 - INDEX ABC 65
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of turning spindles: 2.
Number of revolvers: 2.
Spindle head: ISO 702/1.
Spindle hole: 65 mm.
Spindle diameter: 110 mm.
Longitudinal travel (Z-axis): 300 mm.
Transversal strocke (X axis): 140 mm.
Transversal travel (y-axis): 100 mm.

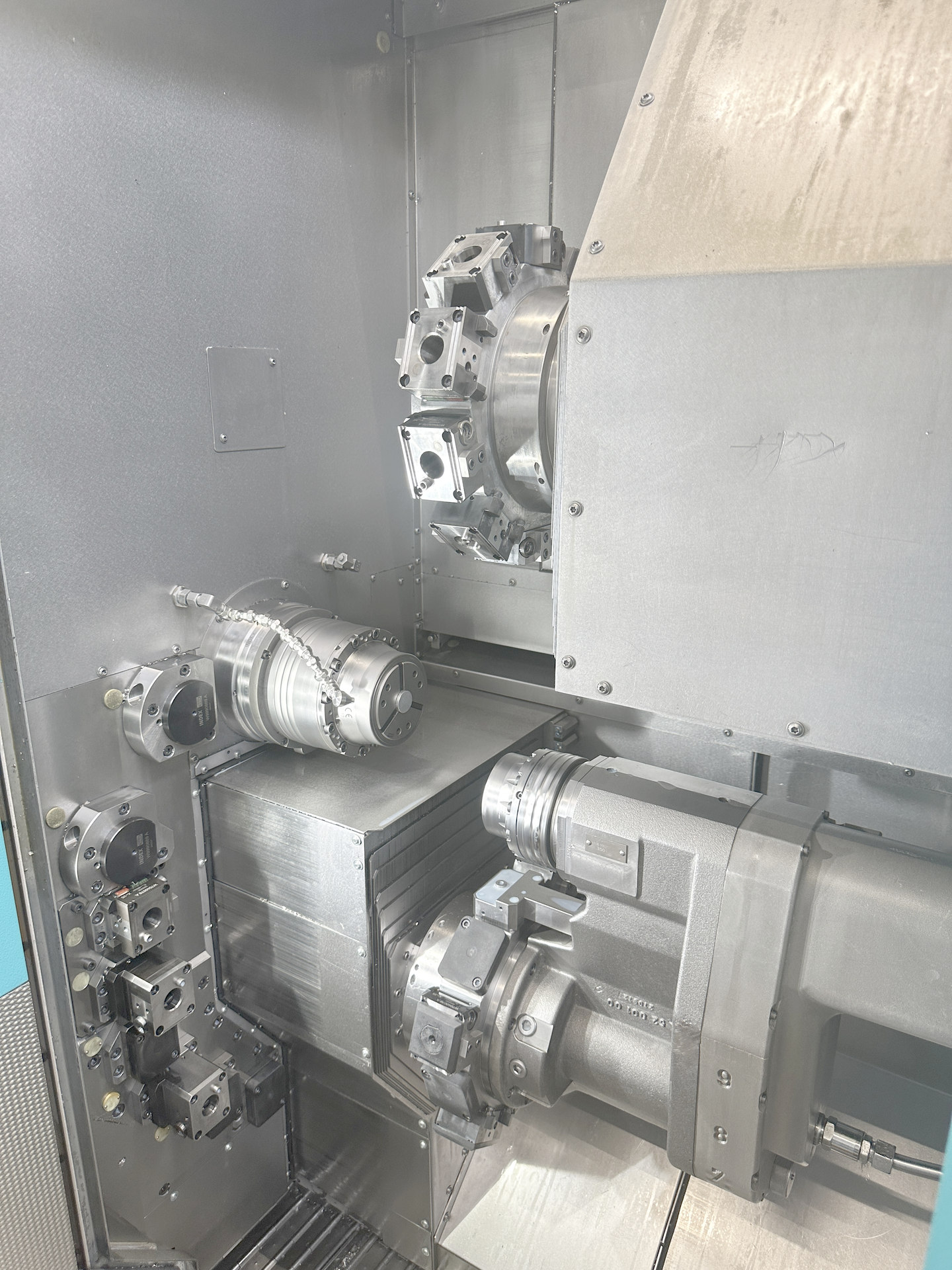

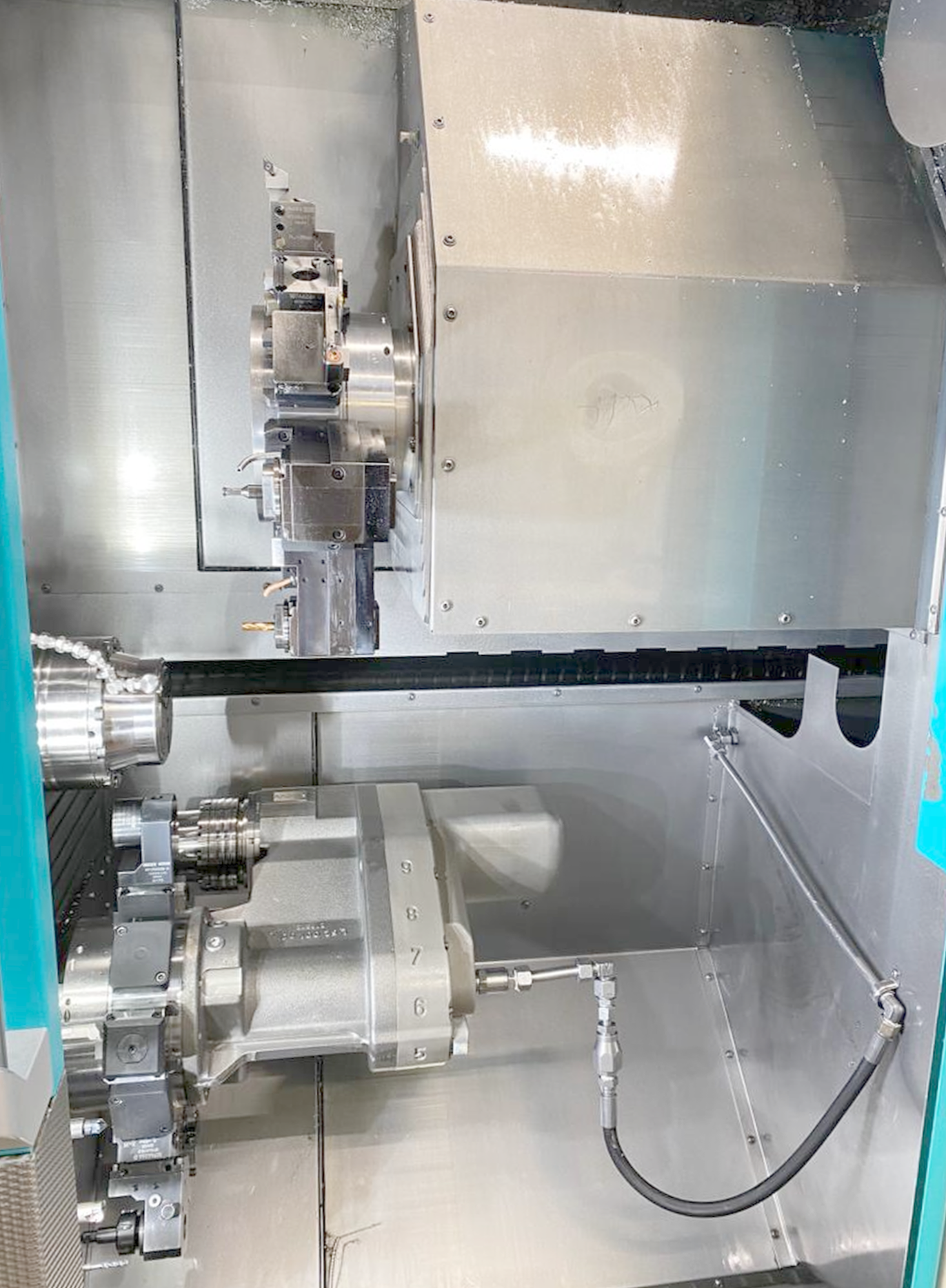

Turret slide: number: 2.
Number of positions turret 1: 10.
Number of positions turret 2: 9.
Number of positions turret back side: 8.

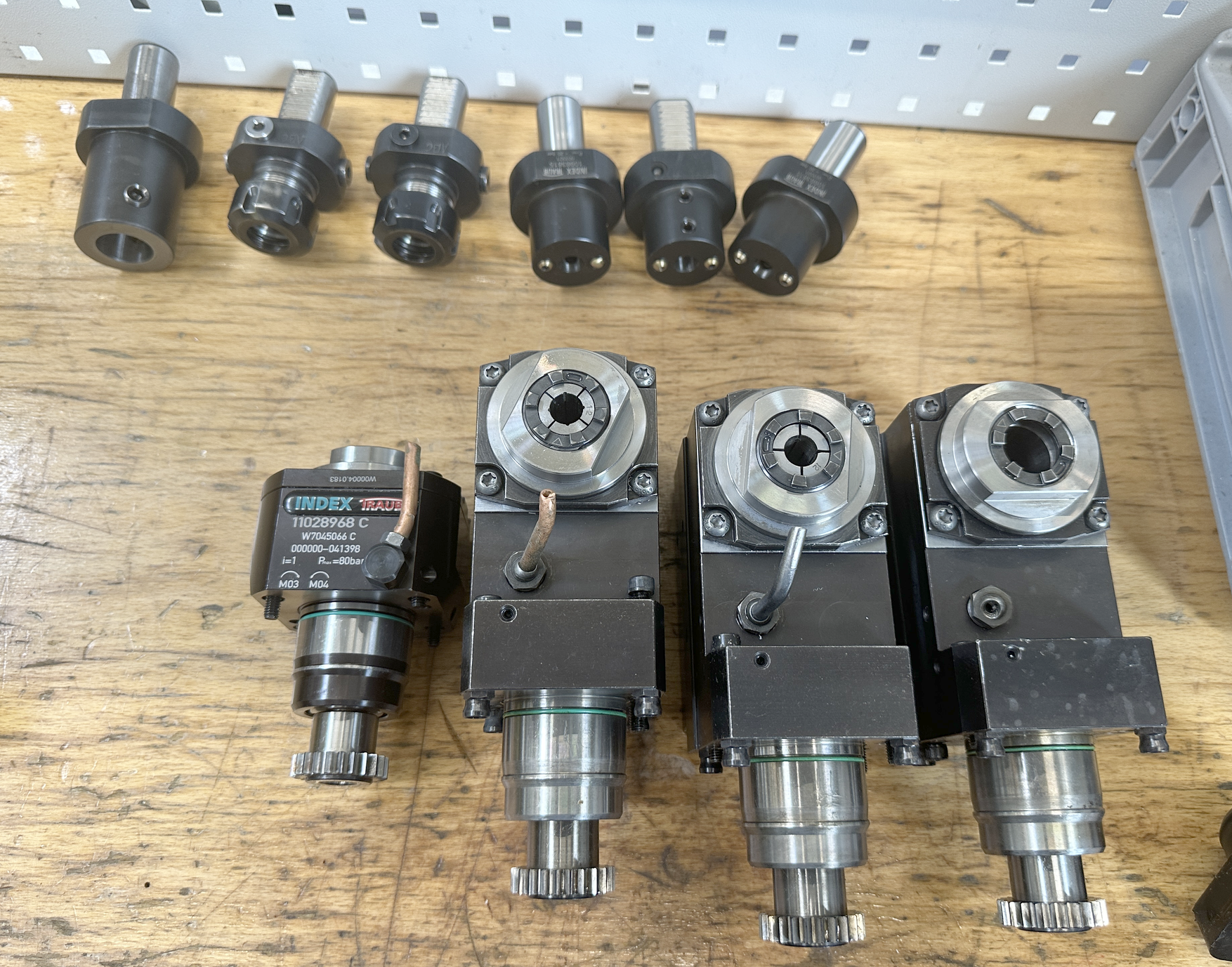

Driven tools turret 1: 10.
Driven tools turret 2: 9.
Driven tools back side: 5.
Spindle speeds: 12000 t/min.
Tool shank cross section: 45 mm.
Power of driven tools: 7.5 / 9 kW.
Indexing time: 0.4 s.
C axis (spindle,resolution): °.
from: 0 t/min.
up to: 6000 t/min.
Spindle power: 25 / 35 kW.
Torque max.: 10.5 / 20 Nm.
max. speed: 6000 t/min.
Internal spindle diameter: 65 mm.
Power of back spindle: 5 / 9 kW.
Rapid traverse X: 30 m/min.
Rapid traverse Z: 50 m/min.
Voltage 50 Hz 3x: 400 Volt.
Total power required: 41 kW.
Machine's weight about: 6500 kg.
Length: 3600 mm.
Width: 1280 mm.
Height: 1950 mm.

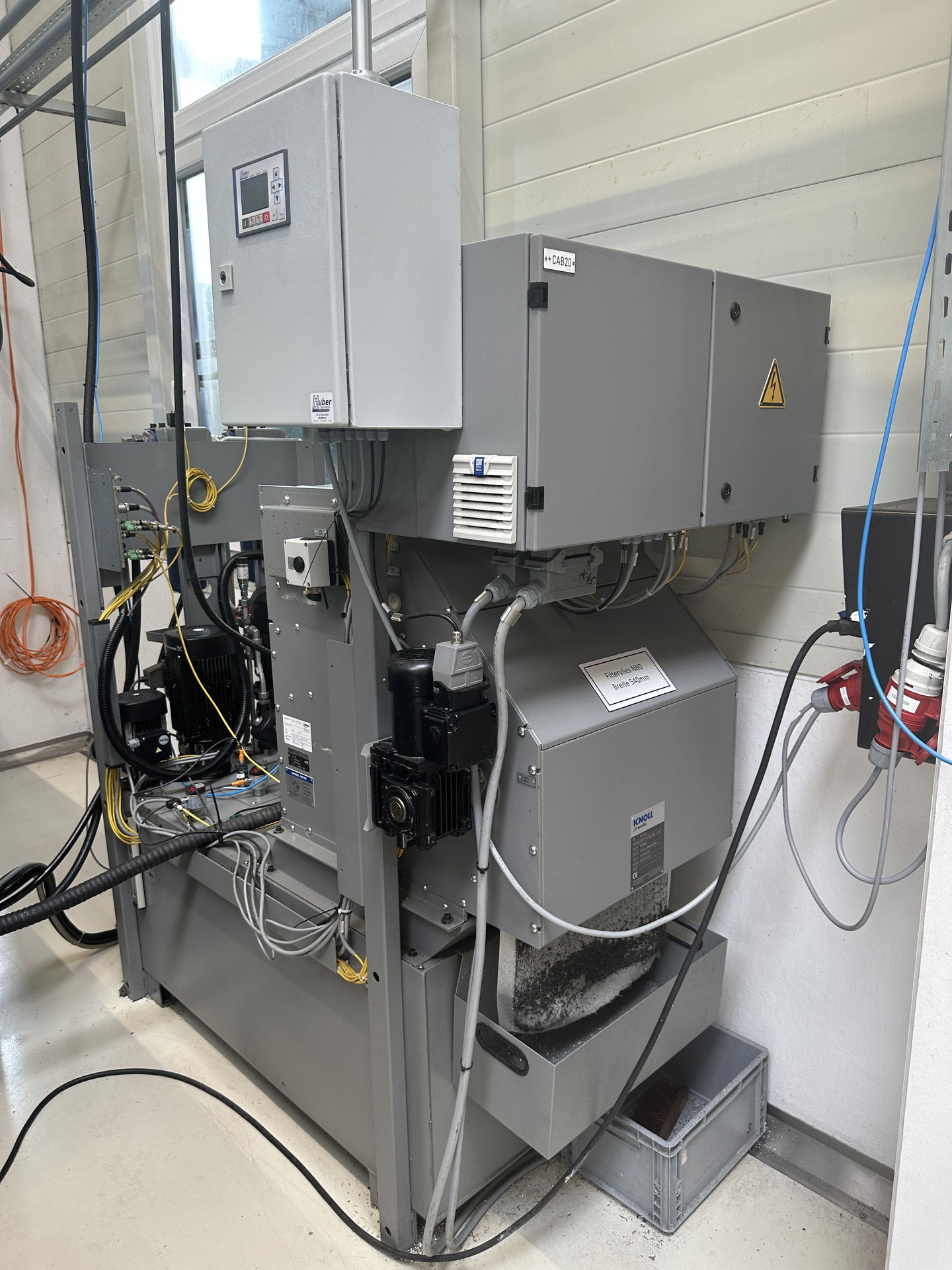

Coolant system: 300 l.
High pression colant device: 80 bar.
Z-axis revised: 2023.
