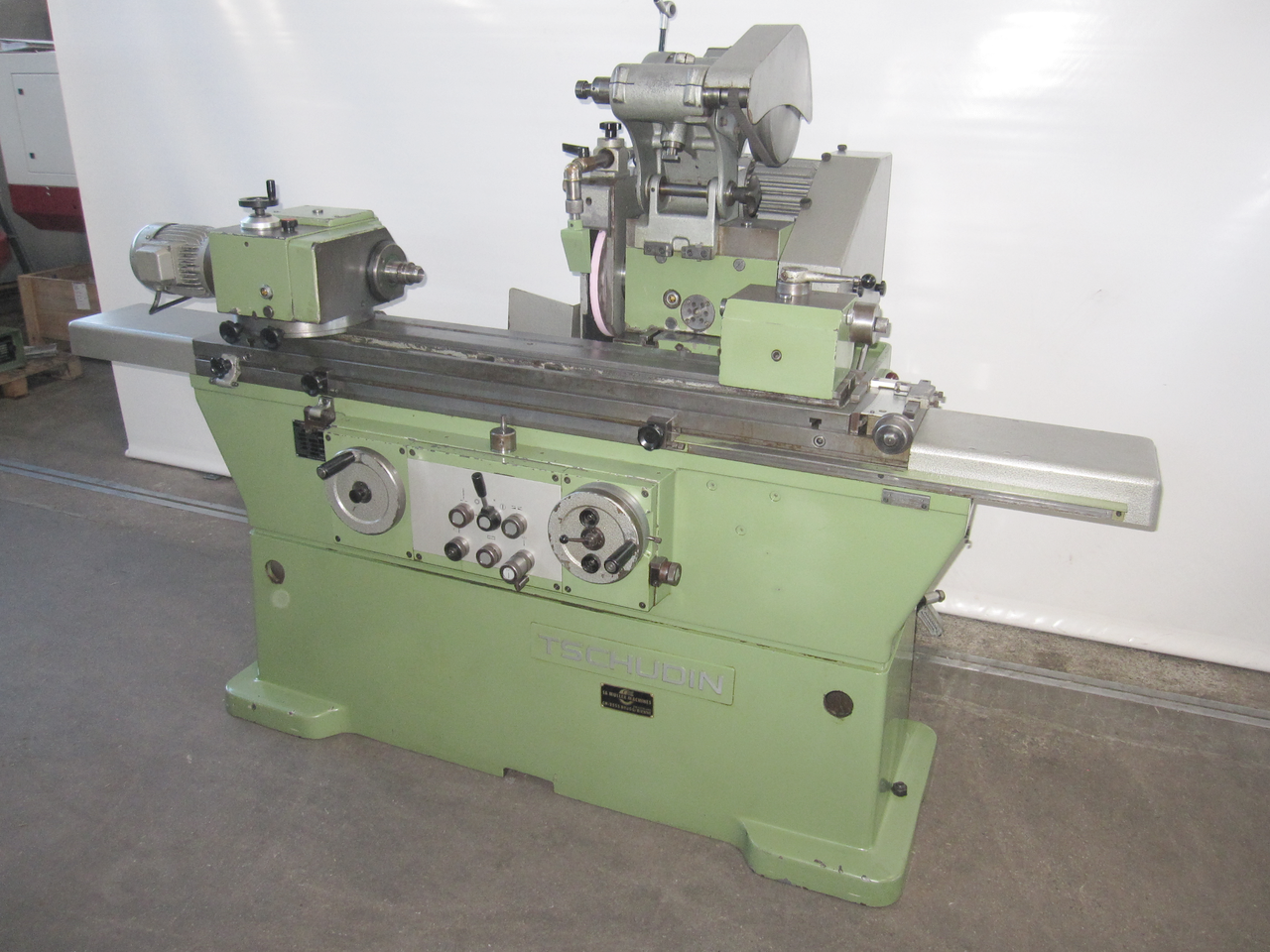

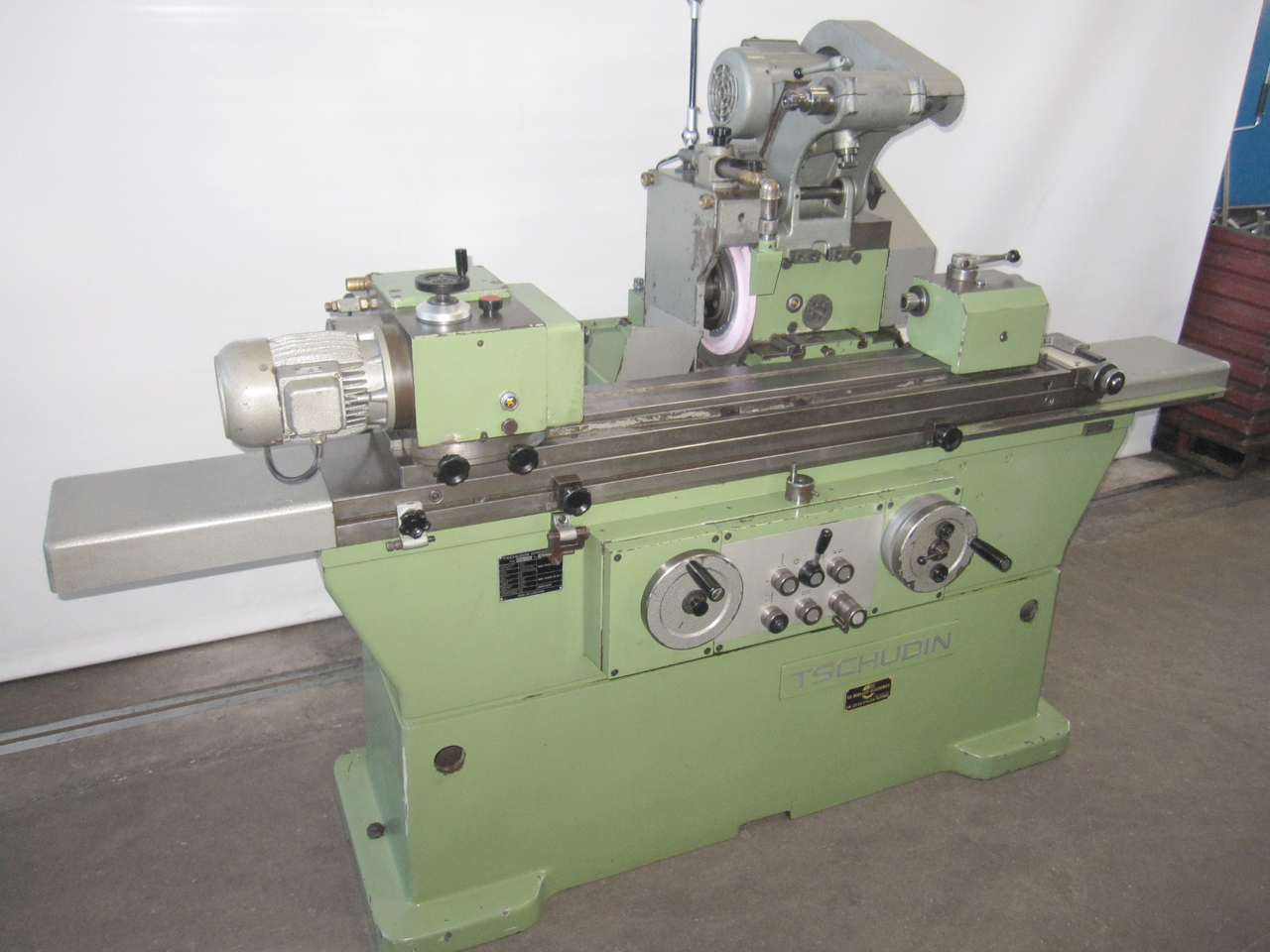

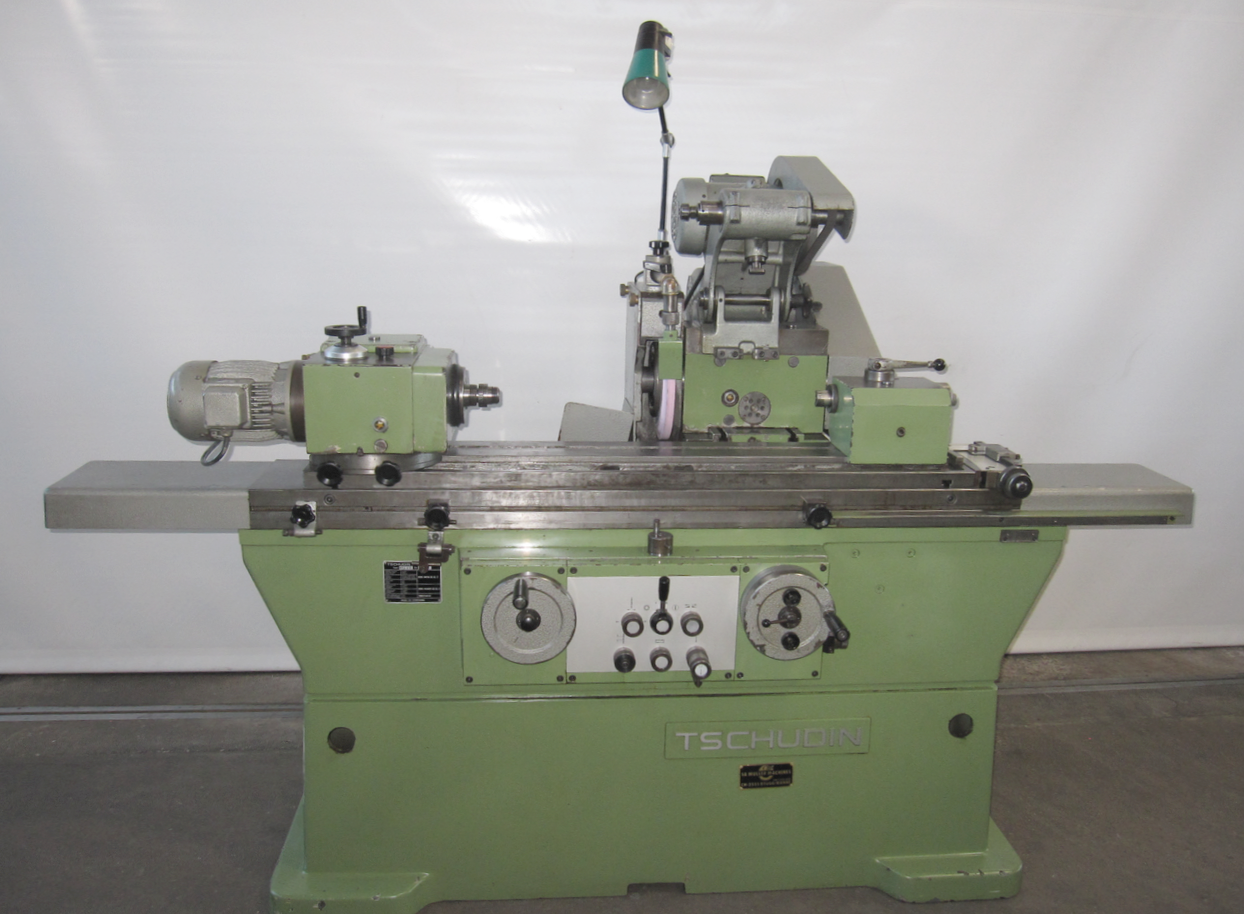

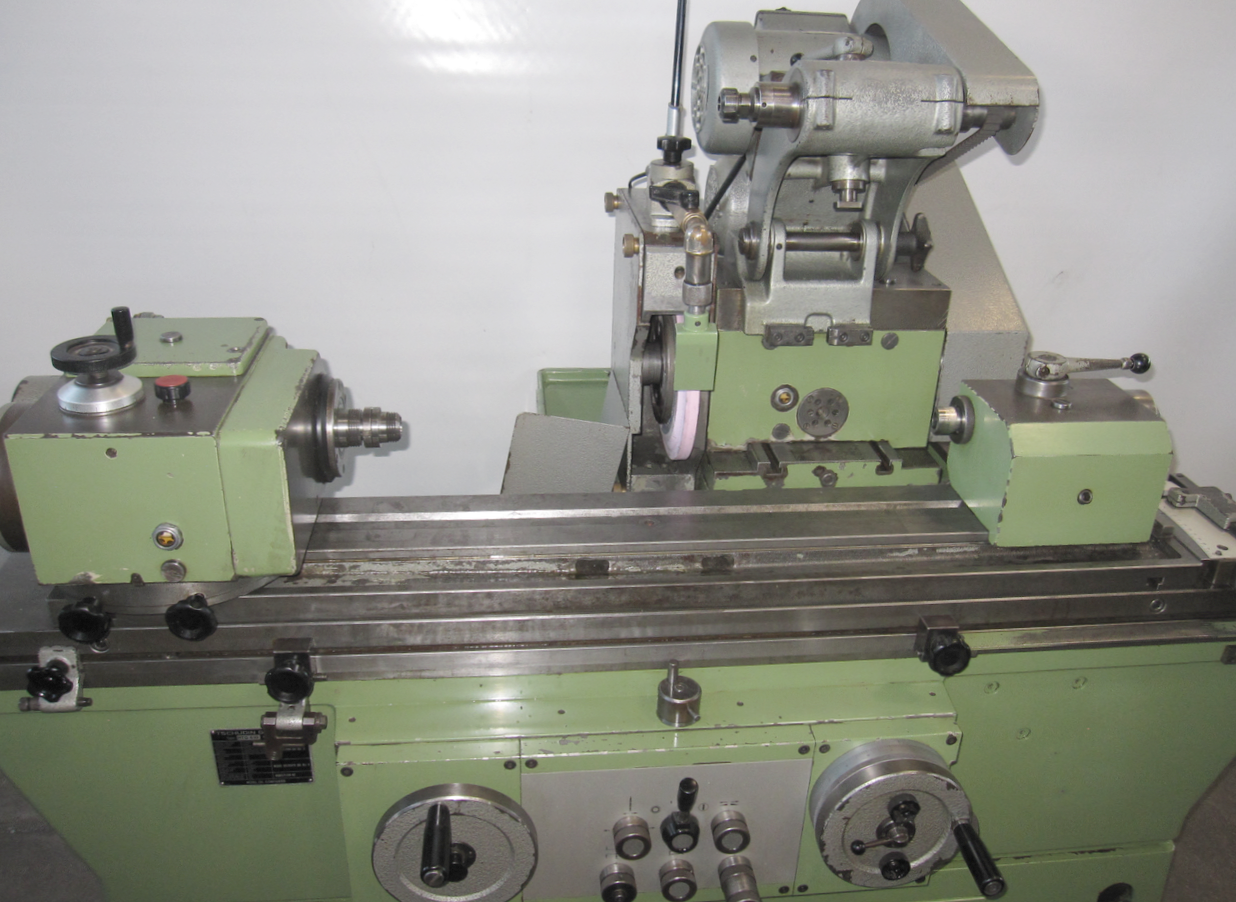

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Tschudin
  • Model:
  • 018292 - TSCHUDIN HTG 610
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 100 mm.
Distance between centres: 680 mm.
Max. Longitudinal travel: 620 mm.
Diameter: 350 mm.
Bore: 127 mm.
grinding wheel width: 50 mm.
number (steps): 3.
from: 65 t/min.
up to: 5 m/min.
rotatable: 360 °.
Spindle taper: 5 CM.
Taper in tailstock:: 3 CM.
Table angular displacement: 8 °.
Voltage 50 Hz 3x: 380 Volt.
External Grinding wheel motor: 4.0 CV.
Total power required: 7 CV.
Machine's weight about: 2500 kg.
Length: 2700 mm.
Width: 1800 mm.
Height: 1900 mm.
Spindle speeds: 50 t/min.
