MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • STUDER
  • Model:

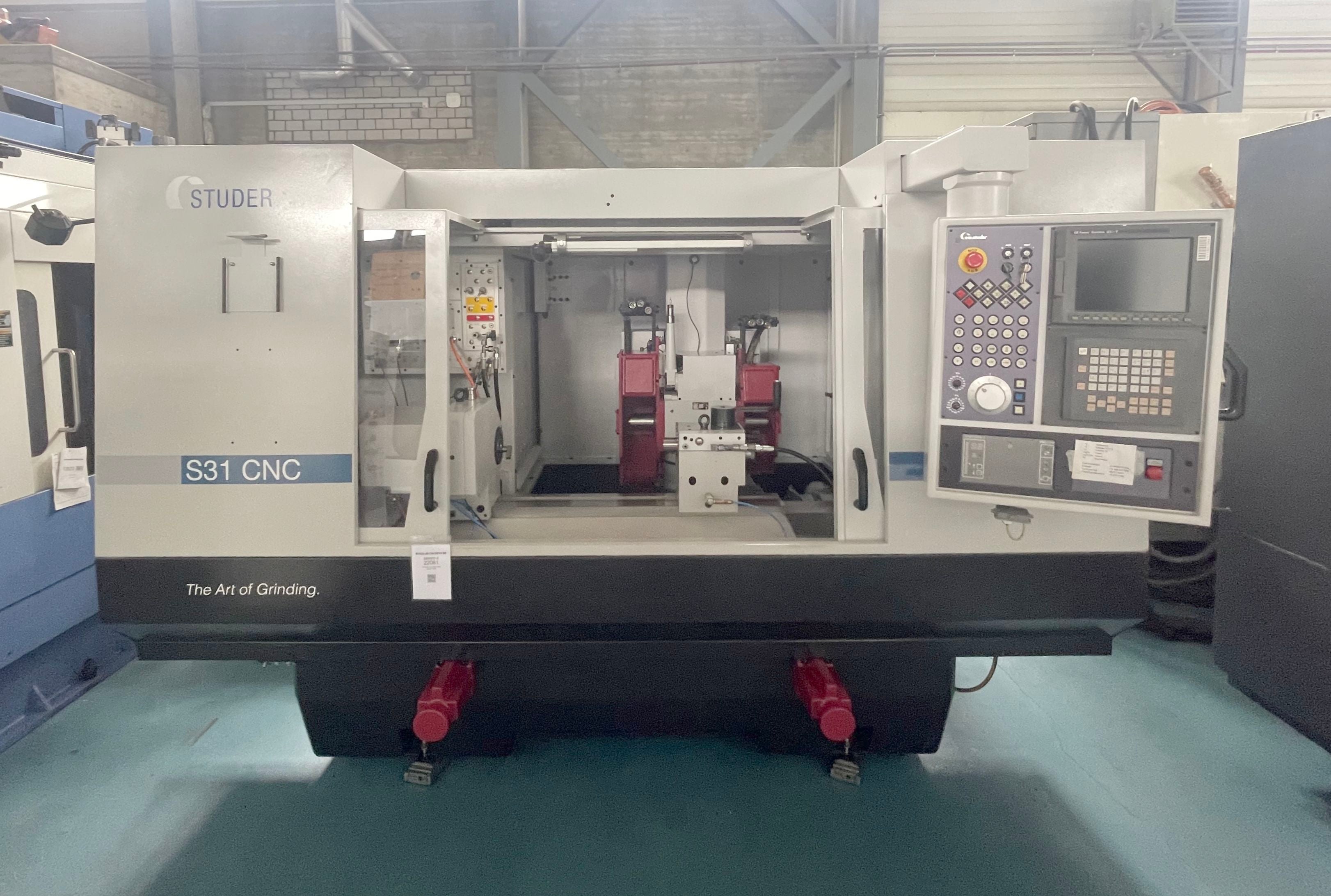

  • 022081 - STUDER S 31 LEAN CNC
  • Condition:
  • 1
  • YOM:
  • NA

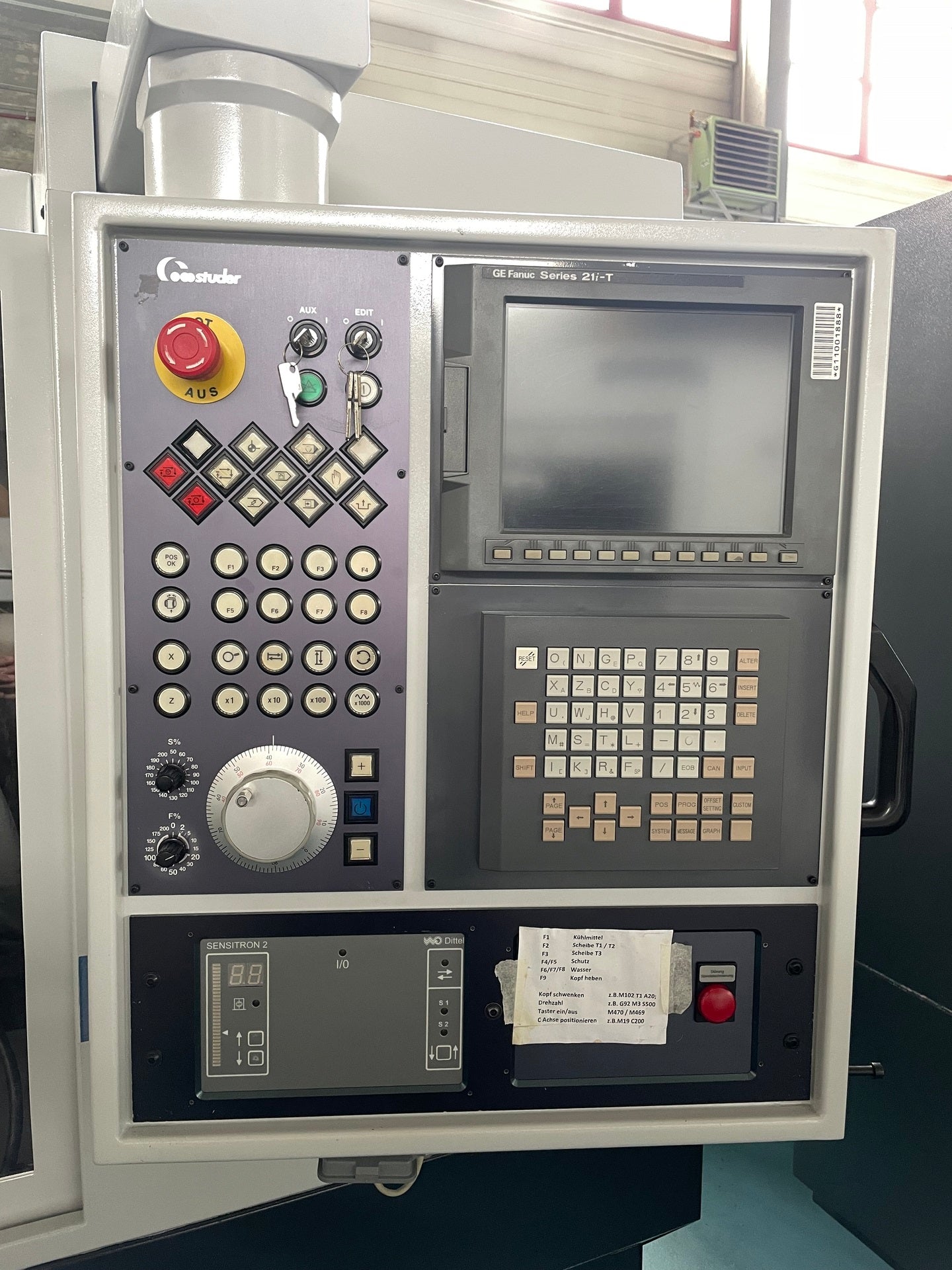

  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Centre height: 175 mm.
Distance between centres: 650 mm.
Workpiece weight on centres max.: 80 kg.
Diameter: 500 mm.
Width: 2200 mm.
Bore: 203 mm.

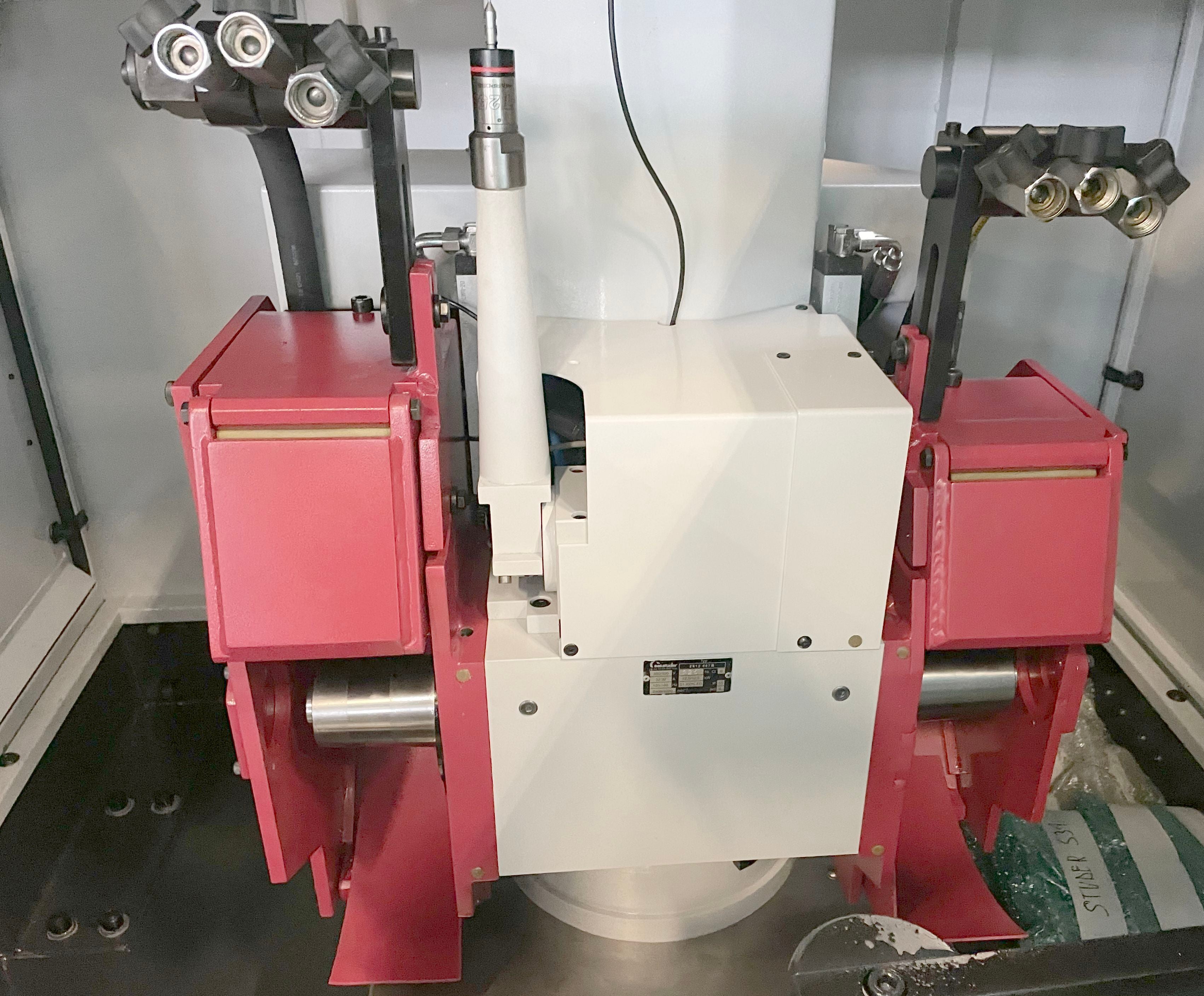

Turret grinding tool holder for ext. and int.: 2+1.
from: 1 t/min.

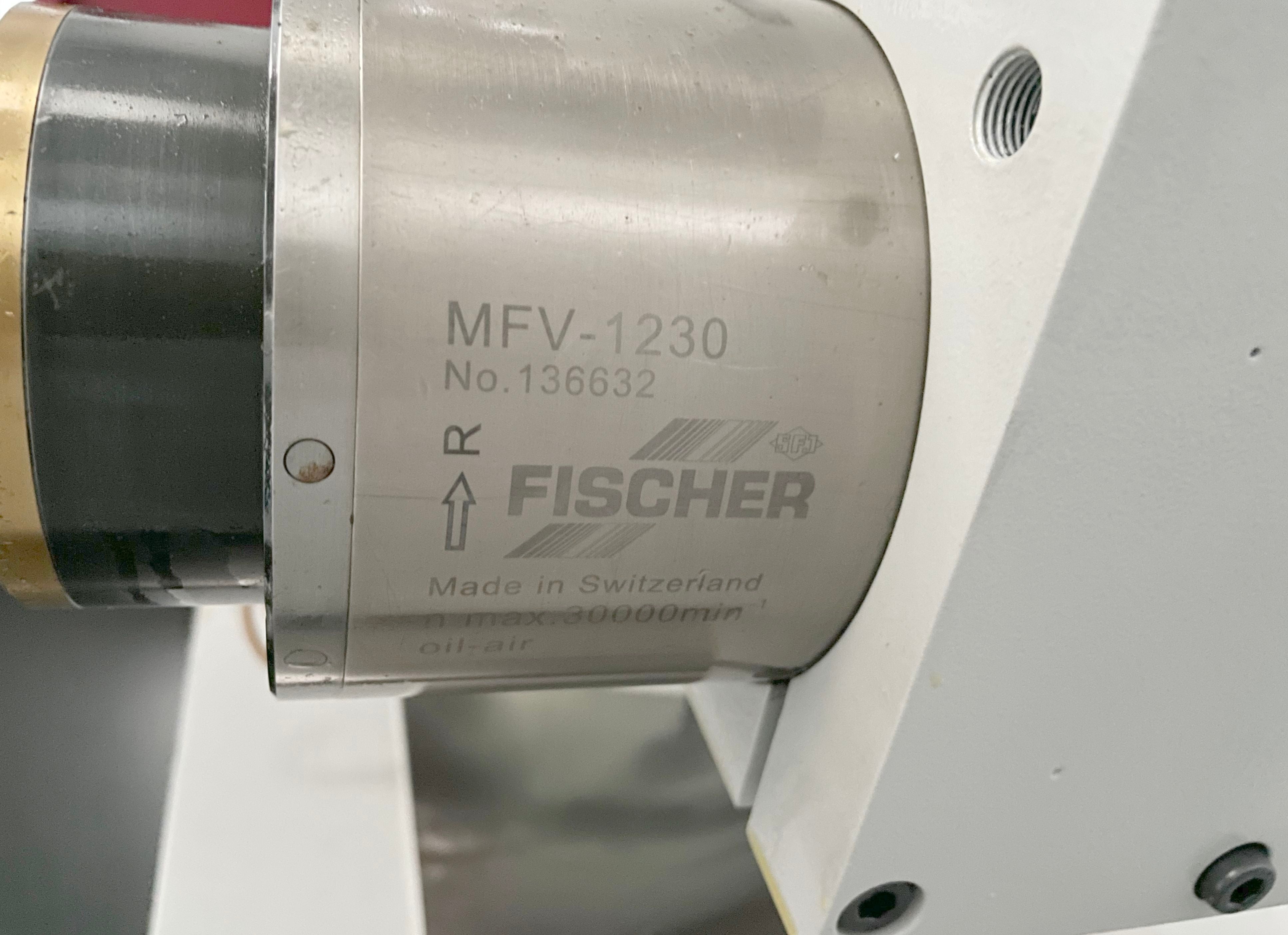

up to: 30000 t/min.
Rotatable grinding spindle head (b-axis): 1 °.
Peripheral speed: 50 m/s.
Max. travel: 254 mm.
Typing speed: 30 t/min.
rotatable: -15 / + 195 °.

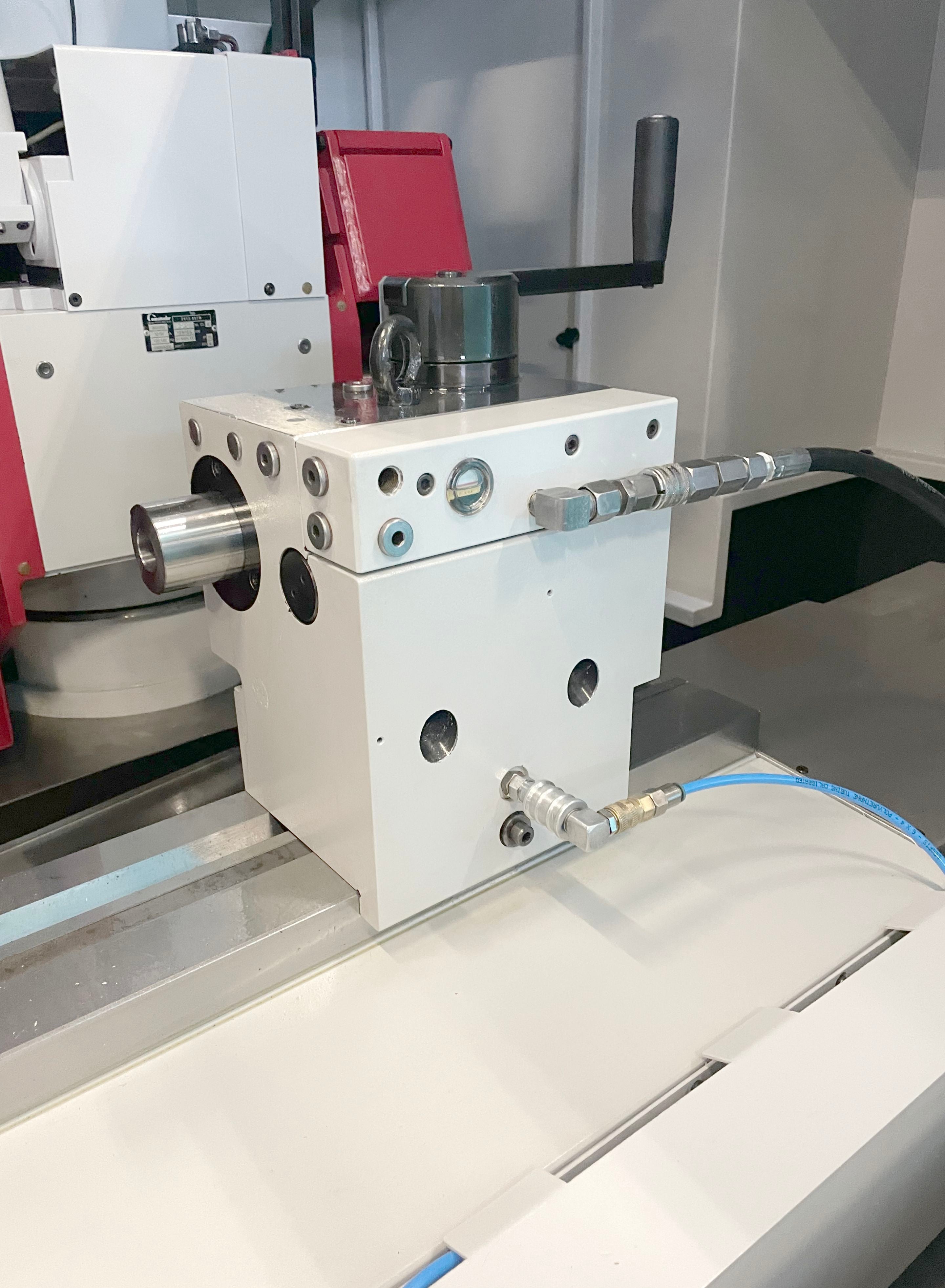

taper in spindle: MT: 4.
Required power: 3 kW.

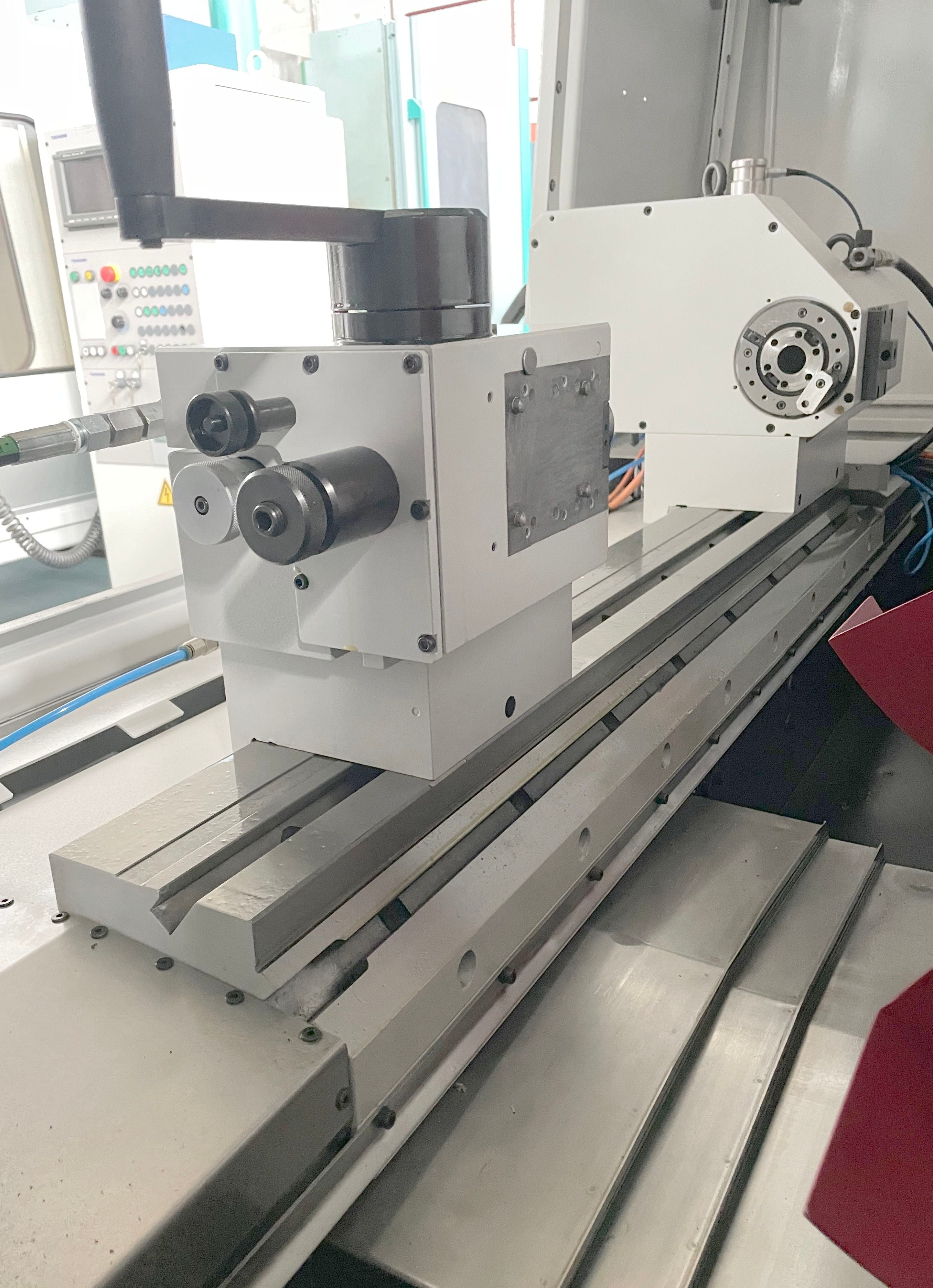

Taper in tailstock:: 3 CM.
Spindle stroke: 35 mm.
Spindle diameter: 50 mm.
Air connect: 5 - 7 bar.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 7.5 kW.
Total power required: 32 kVA.
Machine's weight about: 5200 kg.
Length: 3000 mm.
Height: 2100 mm.
Number of spindles: 1.
Machine refurbished: 2025.
